8-40 — HEATER SYSTEM (#153802) — 26 parça

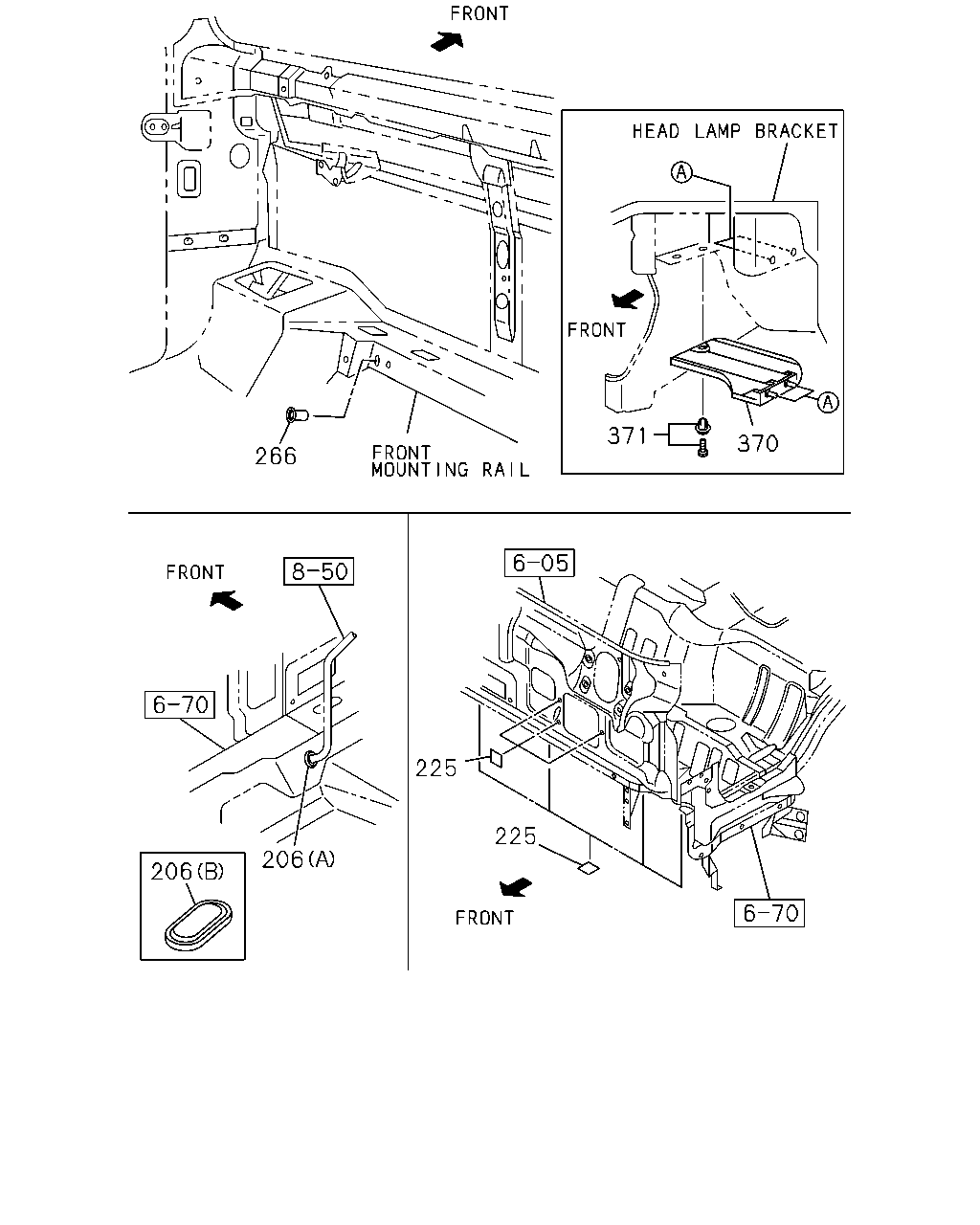

çizim 459072
266 371 370 206 206 225 225
BalonParca AdiParca NoAdetTipApplied Date
206 09.743 GROMMET; A/C PIPE TO BLOWER UNIT
08.845 (B) H=78 B=37 		8-97036-019-0 01 1 1412-
206 09.743 GROMMET; A/C PIPE TO BLOWER UNIT
08.845 (B) H=69.5 B=29.5 		8-97036-020-0 01 1 1412-
206 09.743 GROMMET; A/C PIPE TO BLOWER UNIT
(A) 		8-98019-649-0 01 1 1412-
225 08.845 SEAL; WATER 8-97856-616-0 04 1 1412-
266 08.845 PLUG; HTR HOLE
09.211 OD=13 		9-09756-019-0 01 1 1412-
370 08.866 PLATE; BAFFLE,BLOWER UNIT 8-97856-129-2 01 1 1412-
371 08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 1412-

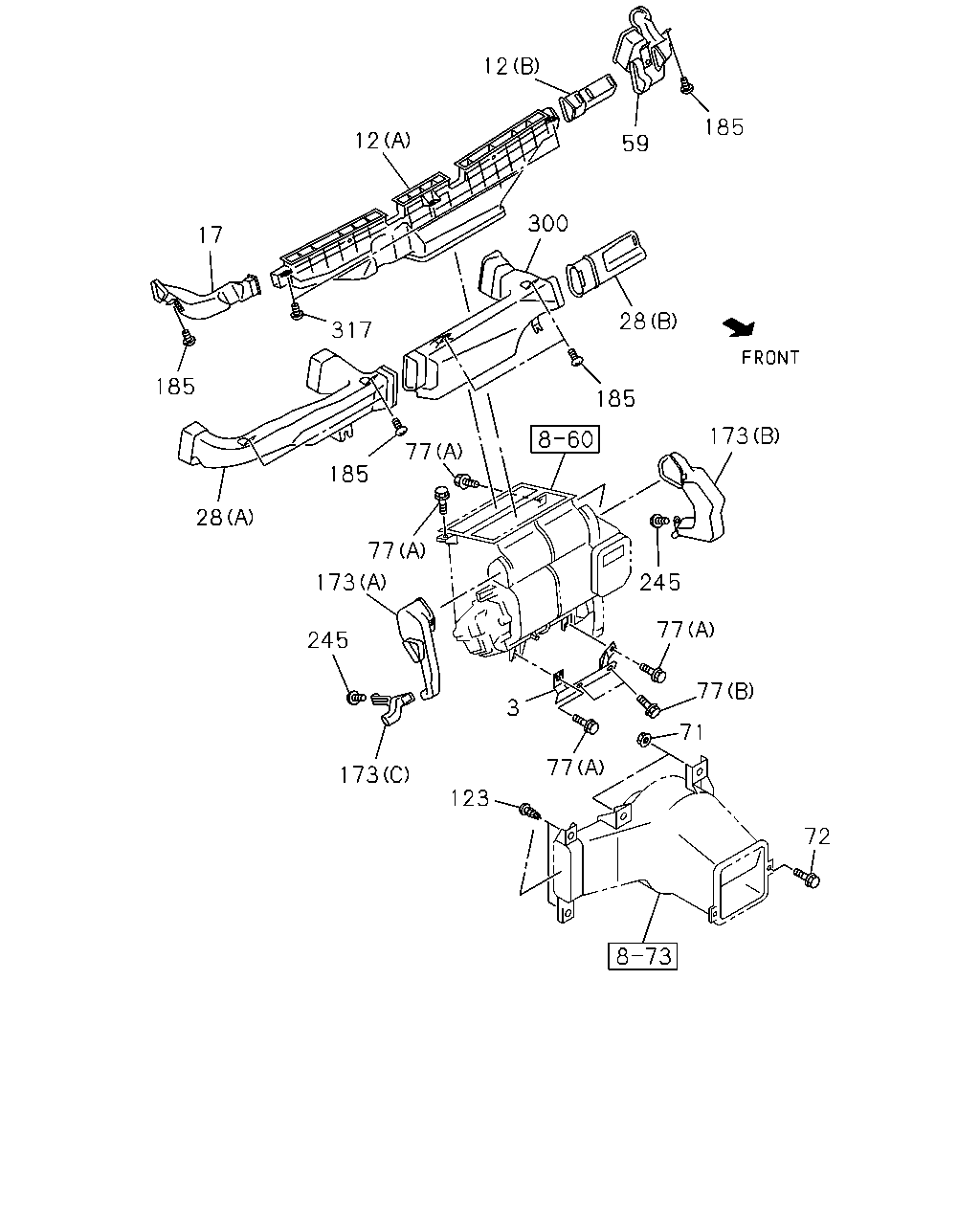

çizim 460025
17 12 12 59 185 300 317 77 185 28 185 77 173 245 173 123 3 77 71 72 77 77 245 173 185 28
BalonParca AdiParca NoAdetTipApplied Date
3 08.854 BRACKET; HTR UNIT 8-98001-195-2 01 1 1412-
12 09.779 NOZZLE; DEFROSTER
(A) 		8-97585-477-2 01 1 1412-
12 09.779 NOZZLE; DEFROSTER
(B) 		8-98038-571-1 01 1 1412-
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97585-468-0 01 1 1412-
28 09.786 DUCT; AIR,VENTILATOR
(A) 		8-98285-594-0 01 1 1412-
28 09.786 DUCT; AIR,VENTILATOR
(B) 		8-98285-596-0 01 1 1412-
59 09.786 DUCT; VENT,ASSIST SIDE 8-98285-597-0 01 1 1412-
71 08.845 NUT; BLOWER UNIT TO DASH
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412-
72 08.857 BOLT; BLOWER UNIT
07.833 M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1412-
77 08.845 BOLT; HTR UNIT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1412-
77 08.845 BOLT; HTR UNIT
07.833 (B) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1412-
123 09.786 SCREW; DUCT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
173 09.786 DUCT; FOOT,HTR
(A) 		8-97385-979-3 01 1 1412-
173 09.786 DUCT; FOOT,HTR
(B) 		8-97385-981-3 01 1 1412-
173 09.786 DUCT; FOOT,HTR
(C) 		8-98034-469-2 01 1 1412-
185 09.262 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1412-
245 09.786 CLIP; FOOT DUCT
09.264 		1-09987-144-0 02 1 1412-
300 09.264 DUCT; VENT,CENTER 8-98285-595-0 01 1 1412-
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1412-
