◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51596 - NHR RHD EURO5 WB 2400MM ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#153799) — 28 parça

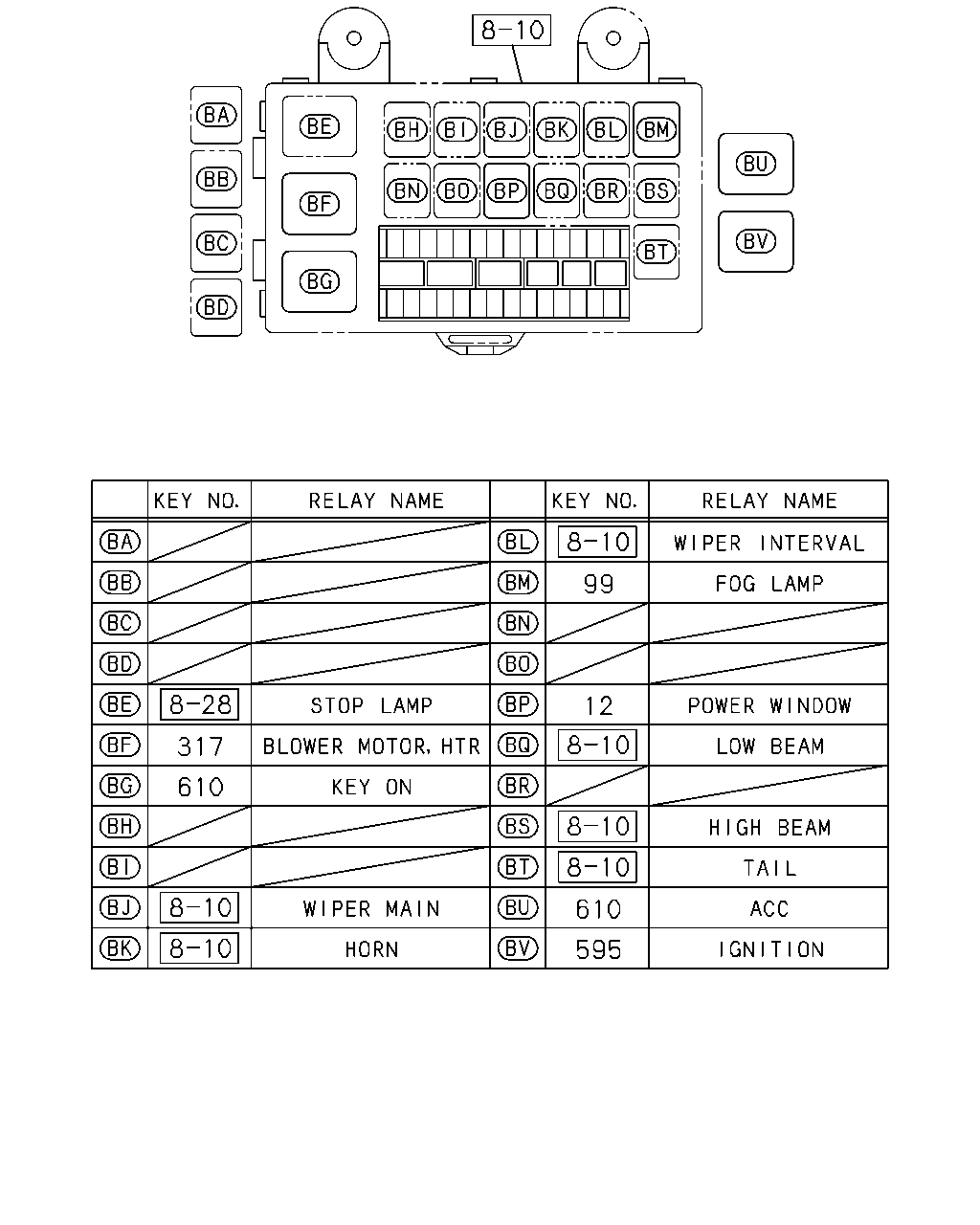

çizim 459088
317 610 12 99 610 595
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1412-
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1412-
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1412-
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1412-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1412-

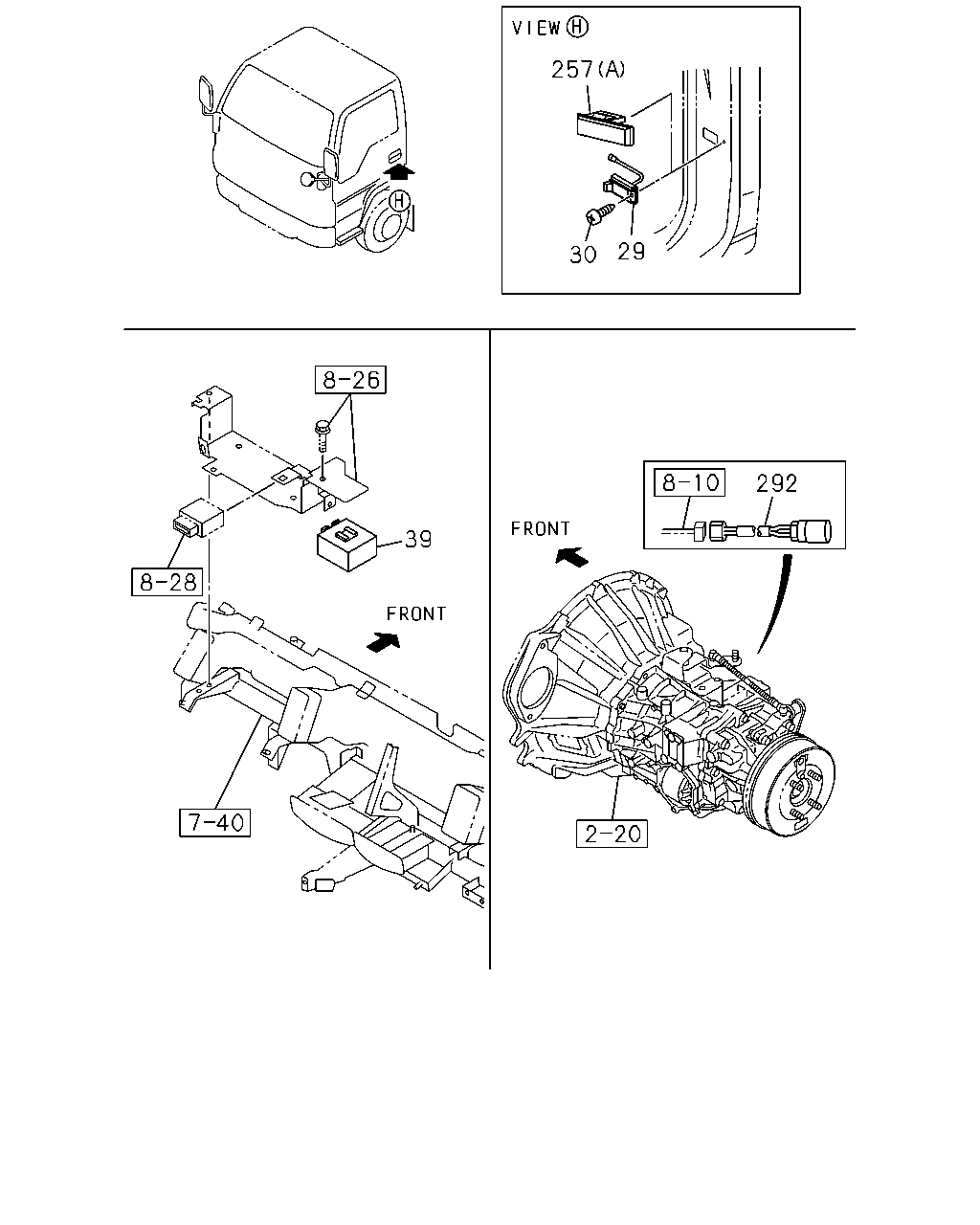

çizim 460003
257 30 29 292 39
BalonParca AdiParca NoAdetTipApplied Date
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 1412-
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 1412-
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1412-
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 1412-
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 09 1 1412-
292 16.263 SWITCH; BACKUP LAMP 8-98184-536-0 01 1 1412-

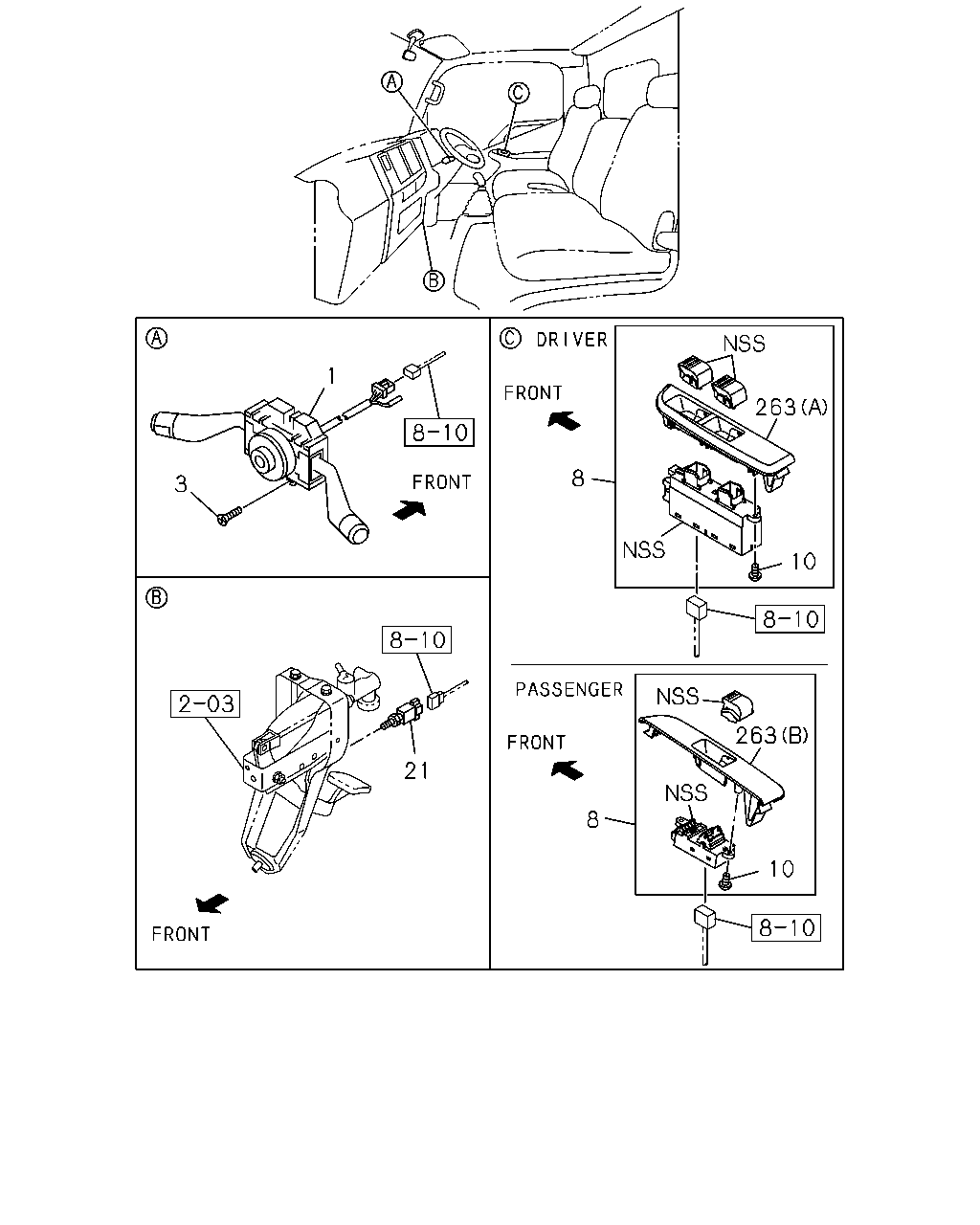

çizim 460243
1 3 8 10 263 21 8 10 263
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-731-0 01 1 1412-
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-732-0 01 1 1412-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1412-
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98159-549-0 01 1 1412-1509
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-759-0 01 1 1510-
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-739-1 01 1 1412-1509
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-426-0 01 1 1510-
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1412-
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1412-
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-834-0 01 1 1412-
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-839-0 01 1 1412-

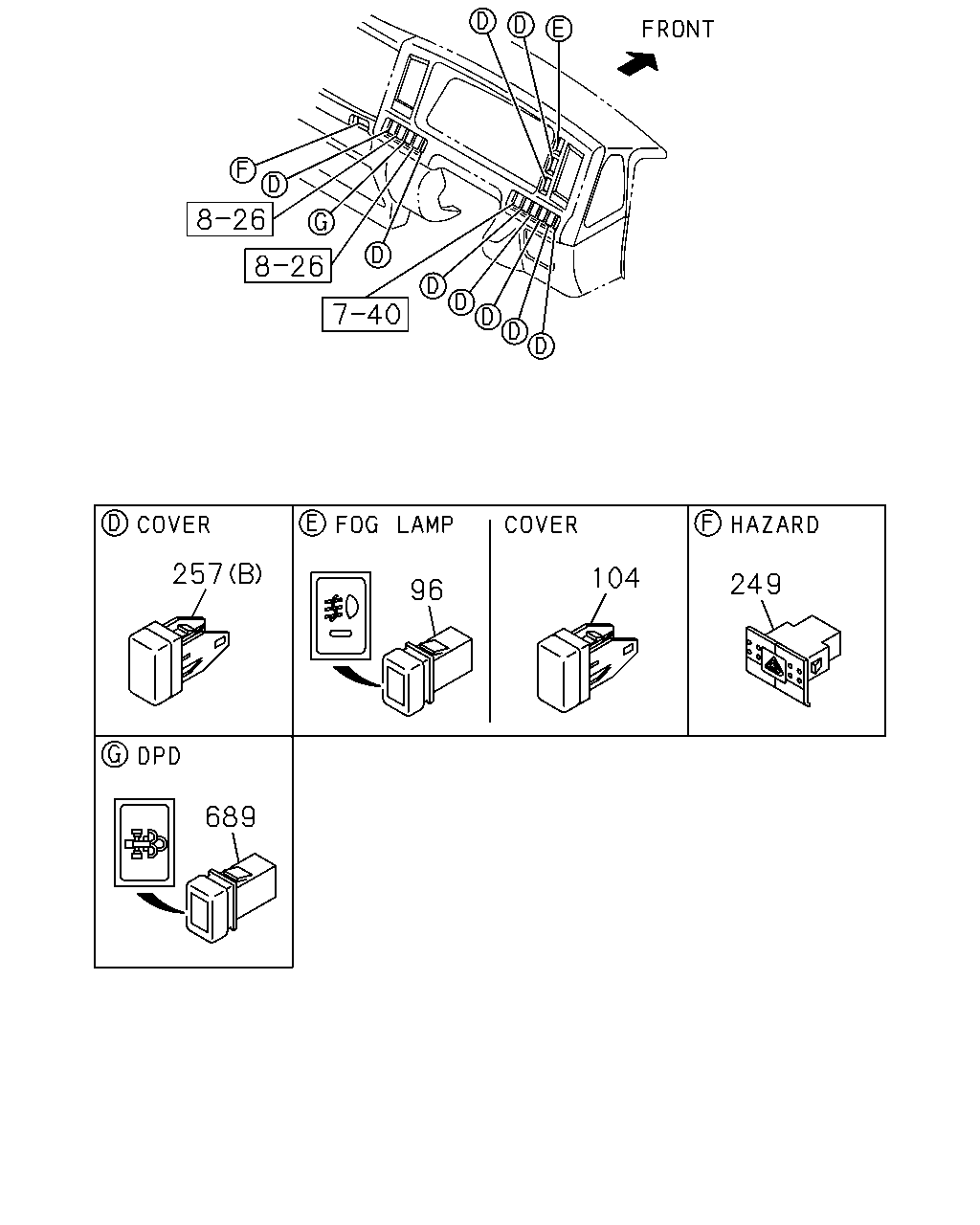

çizim 460283
96 104 249 257 689
BalonParca AdiParca NoAdetTipApplied Date
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1412-
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1412-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1412-
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 1412-
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 09 1 1412-
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1412-
