Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶
8-15 — FIXING PARTS; WIRING HARNESS
(#153797) — 81 parça
◀
[815A] FIXING;BRACKET(NO.1) (11 parça)
[815A] FIXING;BRACKET(NO.4) (3 parça)
[815A] FIXING;BRACKET(NO.2) (8 parça)
[815A] BOLT,NUT AND SCREW (24 parça)
[815A] FIXING;BRACKET(NO.3) (5 parça)
[815A] CLIP AND OTHER PARTS (19 parça)
[815A] CLIP (11 parça)
▶

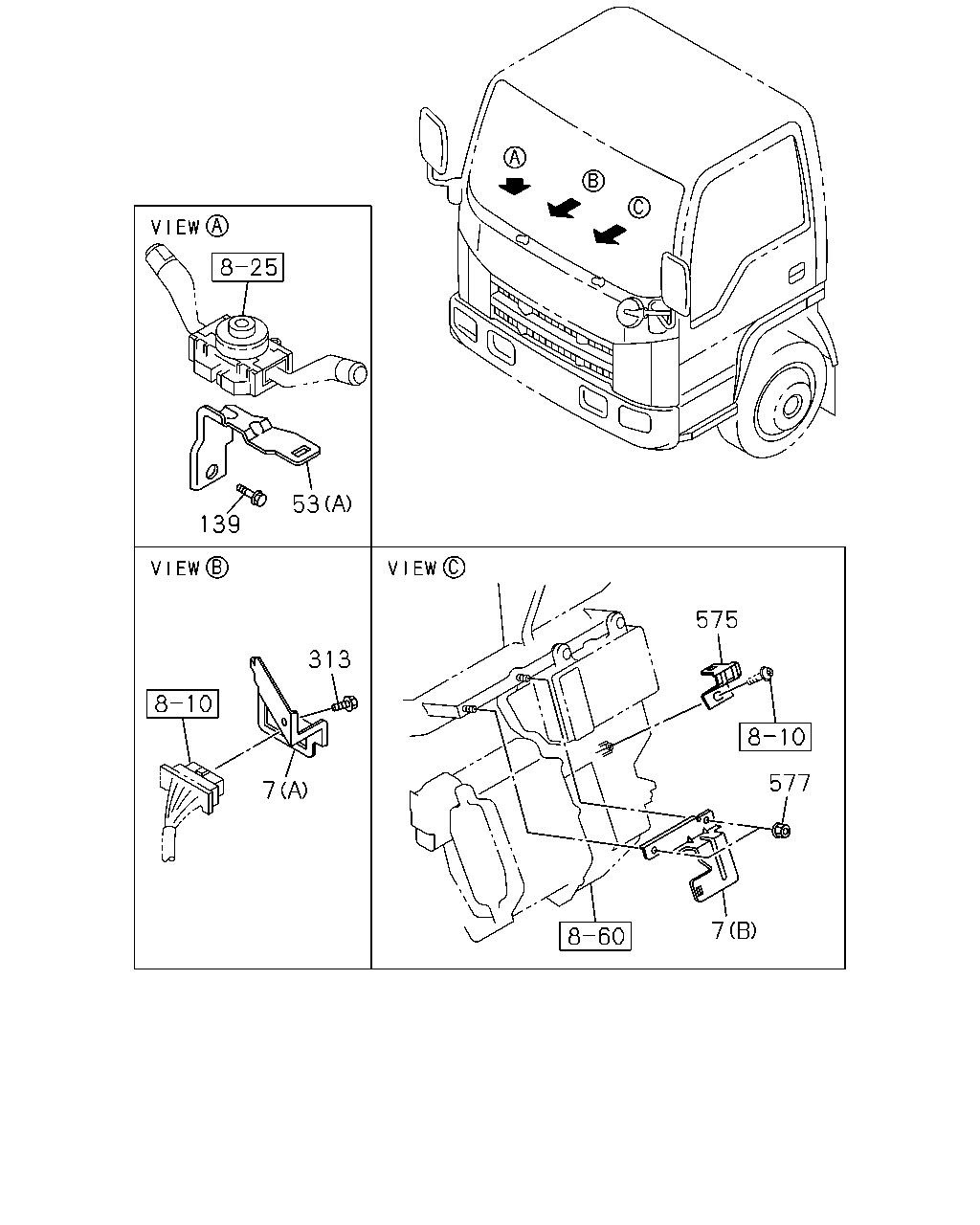

53
139
313
7
575
577
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
02.559 BRACKET; CONNECTOR
(B)
8-98029-762-4
01
1
1412-
7
02.559 BRACKET; CONNECTOR
(A)
8-98043-072-1
01
1
1412-
53
02.483 BRACKET; HARNESS
(D)
8-98033-918-2
01
1
1412-
53
02.483 BRACKET; HARNESS
(A)
8-98052-458-0
01
1
1412-
53
02.483 BRACKET; HARNESS
(B)
8-98052-900-1
01
1
1412-
53
02.483 BRACKET; HARNESS
(C)
8-98242-426-2
01
1
1412-
53
02.483 BRACKET; HARNESS
(E)
8-98282-934-0
01
1
1412-
139
02.559 BOLT; BRKT
02.343 M8X12 FLANGE
0-28050-812-0
01
1
1412-
313
02.559 BOLT; BRKT
09.171 M6X16 FLANGE
0-28450-616-0
01
1
1412-
575
02.559 BRACKET; FUSE BOX
8-98052-866-2
01
1
1412-
577
02.559 NUT; FUSE BOX
01.062 M6 FLANGE
0-91180-106-0
04
1
1412-

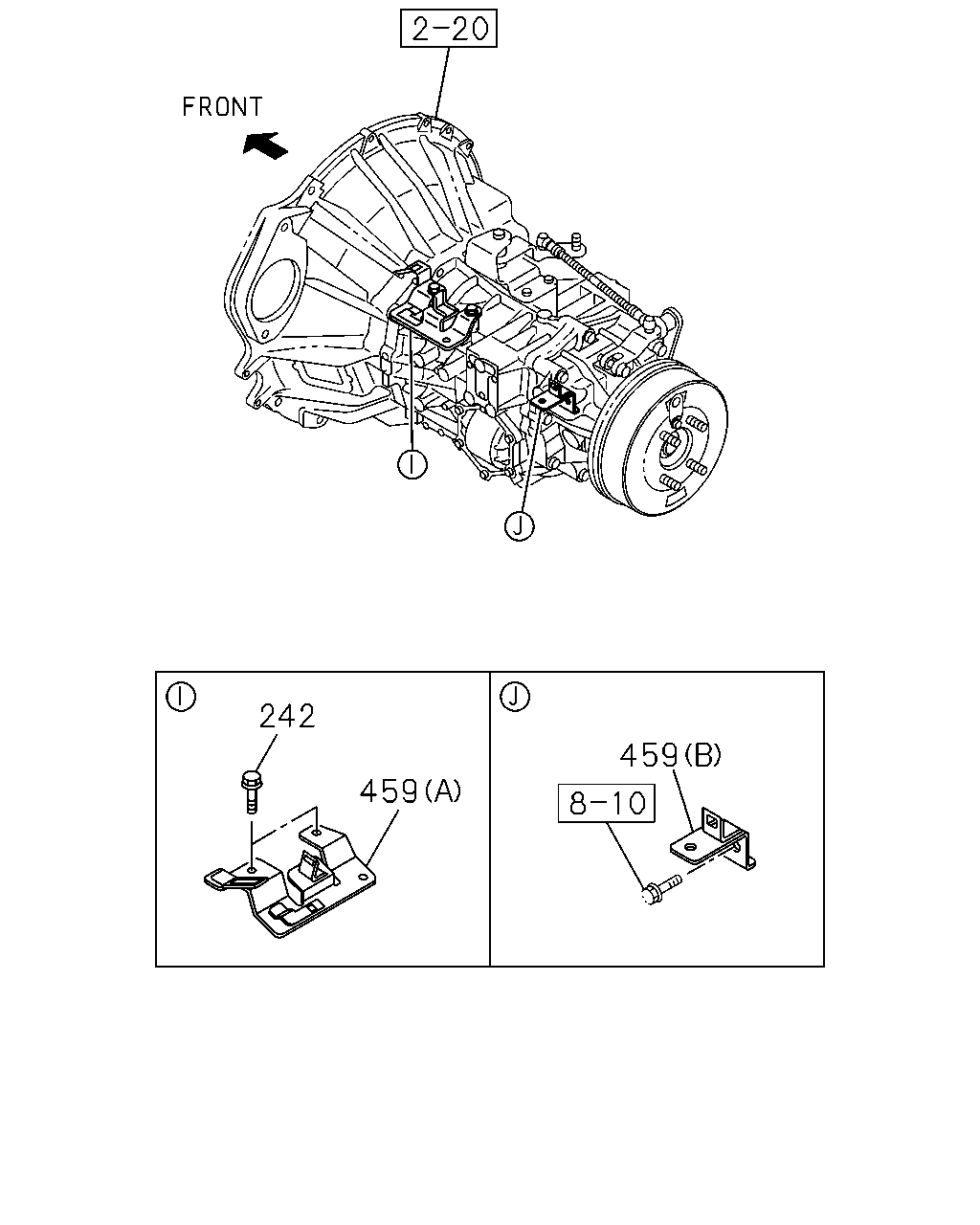

242
459
459
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
242
02.483 BOLT; BRKT,HARNESS
06.216 M8X25 FLANGE
0-28650-825-0
03
1
1412-
459
02.483 BRACKET; SUPPORT,HARNESS
(A)
8-98020-227-3
01
1
1412-
459
02.483 BRACKET; SUPPORT,HARNESS
(B)
8-98180-294-0
01
1
1412-
53
515
53
480
53
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
02.483 BRACKET; HARNESS
(D)
8-98033-918-2
01
1
1412-
53
02.483 BRACKET; HARNESS
(A)
8-98052-458-0
01
1
1412-
53
02.483 BRACKET; HARNESS
(B)
8-98052-900-1
01
1
1412-
53
02.483 BRACKET; HARNESS
(C)
8-98242-426-2
01
1
1412-
53
02.483 BRACKET; HARNESS
(E)
8-98282-934-0
01
1
1412-
480
02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE
0-28650-625-0
01
1
1412-
480
02.483 BOLT; BRKT
01.531 (B) M8X20 FLANGE
0-28650-820-0
01
1
1412-
515
02.559 NUT; BRKT
05.816 M12 FLANGE
0-91180-212-0
01
1
1412-
516
38
313
365
480
139
516
38
516
480
242
460
529
377
386
386
24
577
294
469
519
515
511
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
02.559 NUT; HARNESS
M6 FLANGE STAINLESS
8-98297-112-0
01
1
1412-
38
02.559 BOLT; CLIP,HARNESS
03.162 (A) M6X12 FLANGE
0-28050-612-0
03
1
1412-
38
02.559 BOLT; CLIP,HARNESS
02.343 (B) M8X16 FLANGE
0-28050-816-0
01
1
1412-
139
02.559 BOLT; BRKT
02.343 M8X12 FLANGE
0-28050-812-0
01
1
1412-
242
02.483 BOLT; BRKT,HARNESS
06.216 M8X25 FLANGE
0-28650-825-0
03
1
1412-
294
02.559 NUT
01.062 M8 FLANGE
0-91180-108-0
01
1
1412-
313
02.559 BOLT; BRKT
09.171 M6X16 FLANGE
0-28450-616-0
01
1
1412-
365
02.559 BOLT; CLAMP,HARNESS CONNECTOR
03.162 M6X20 FLANGE
0-28650-620-0
02
1
1412-
377
02.559 BOLT; CAB EARTH
02.343 M8X18.5 W/PL WASHER
8-98141-255-0
03
1
1412-
386
02.559 BOLT; GRAND HARNESS
02.343 (A) M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1412-
386
02.559 BOLT; GRAND HARNESS
02.343 (B) M8X24 W/PL WASHER
8-98141-256-1
02
1
1412-
460
02.559 BOLT; HARNESS PROTECTOR
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1412-
460
02.559 BOLT; HARNESS PROTECTOR
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1412-
469
02.559 NUT; PROTECTOR
01.062 M8 FLANGE
0-91180-108-0
02
1
1412-
480
02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE
0-28650-625-0
01
1
1412-
480
02.483 BOLT; BRKT
01.531 (B) M8X20 FLANGE
0-28650-820-0
01
1
1412-
511
02.559 SCREW; HARNESS COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
04
1
1412-
515
02.559 NUT; BRKT
05.816 M12 FLANGE
0-91180-212-0
01
1
1412-
516
02.559 BOLT; HARNESS
02.343 (A) M8X12 FLANGE
0-28050-812-0
01
1
1412-
516
02.559 BOLT; HARNESS
02.343 (C) M8X16 FLANGE
0-28050-816-0
01
1
1412-
516
02.559 BOLT; HARNESS
09.650 (B) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
01
1
1412-
519
02.559 NUT; EARTH CABLE
03.162 M10 FLANGE
0-91180-110-0
01
1
1412-
529
02.559 BOLT; RELAY BOX
08.155 M8X35 W/LK&PL WASHER
1-09030-094-0
03
1
1412-
577
02.559 NUT; FUSE BOX
01.062 M6 FLANGE
0-91180-106-0
04
1
1412-

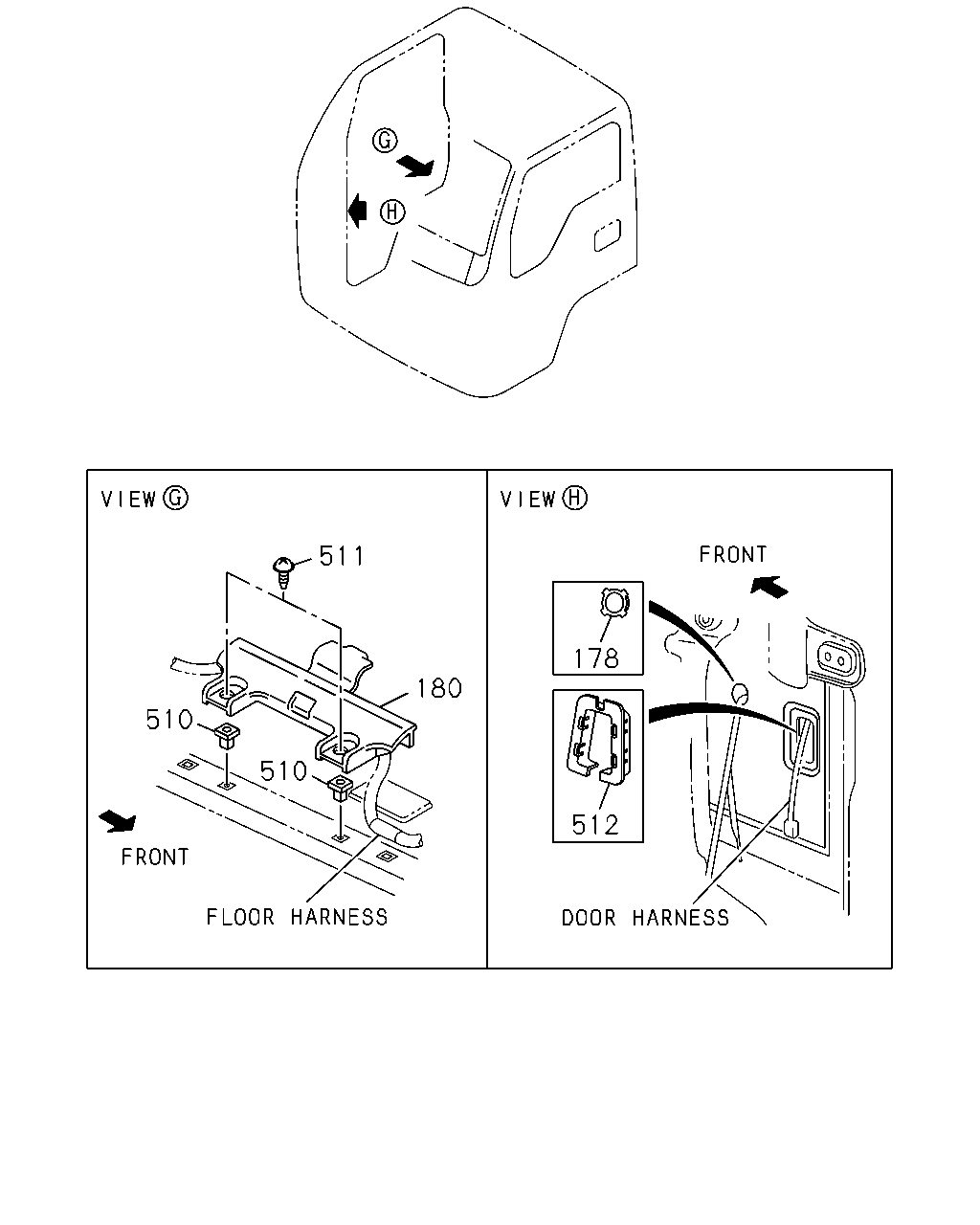

511
180
510
510
178
512
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
178
02.559 GROMMET; HARNESS
ID=47
8-94279-735-0
01
1
1412-
180
02.559 COVER; HARNESS
8-97856-130-4
02
1
1412-
510
02.559 GROMMET; SCREW
04.931 H=15
8-94463-268-1
04
1
1412-
511
02.559 SCREW; HARNESS COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
04
1
1412-
512
02.559 PROTECTOR; HARNESS
8-97072-950-0
02
1
1412-

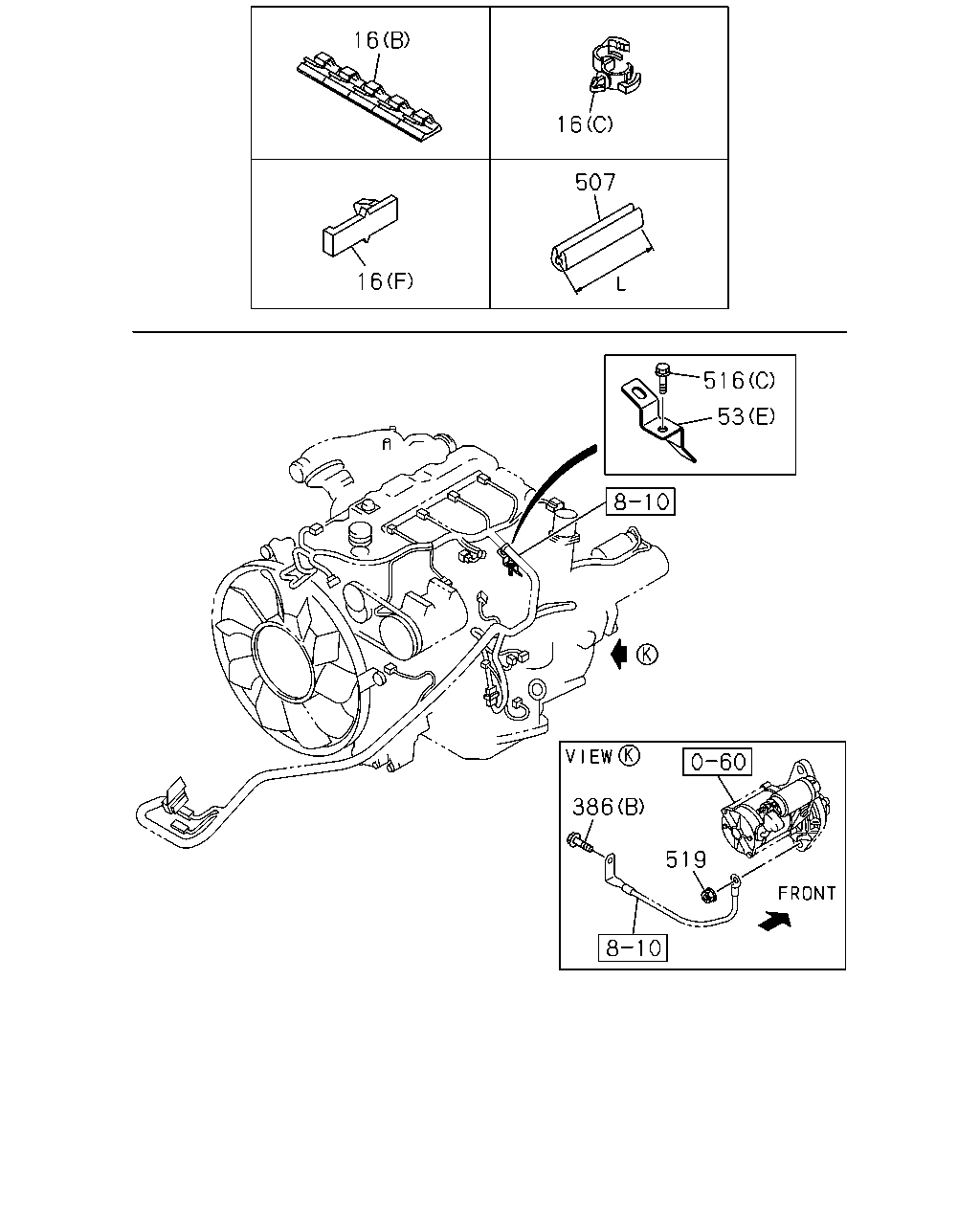

16
16
16
507
516
53
386
519
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15
8-94315-436-1
03
1
1412-
16
02.559 CLIP; HARNESS
(F) L=36.5
8-97019-892-0
01
1
1412-
16
02.559 CLIP; HARNESS
(E) L=155
8-97173-307-0
09
1
1412-
16
02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE
1-09987-214-0
02
1
1412-
16
02.559 CLIP; HARNESS
(A) L=250
5-09707-030-1
01
1
1412-
16
02.559 CLIP; HARNESS
02.694 (C) ID=6 & 10-13
8-97069-515-0
01
1
1412-
16
02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15
8-94315-436-1
02
1
1412-
53
02.483 BRACKET; HARNESS
(D)
8-98033-918-2
01
1
1412-
53
02.483 BRACKET; HARNESS
(A)
8-98052-458-0
01
1
1412-
53
02.483 BRACKET; HARNESS
(B)
8-98052-900-1
01
1
1412-
53
02.483 BRACKET; HARNESS
(C)
8-98242-426-2
01
1
1412-
53
02.483 BRACKET; HARNESS
(E)
8-98282-934-0
01
1
1412-
386
02.559 BOLT; GRAND HARNESS
02.343 (A) M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1412-
386
02.559 BOLT; GRAND HARNESS
02.343 (B) M8X24 W/PL WASHER
8-98141-256-1
02
1
1412-
507
02.559 FINISHER
03.885 L=50
8-94270-377-1
01
1
1412-
516
02.559 BOLT; HARNESS
02.343 (A) M8X12 FLANGE
0-28050-812-0
01
1
1412-
516
02.559 BOLT; HARNESS
02.343 (C) M8X16 FLANGE
0-28050-816-0
01
1
1412-
516
02.559 BOLT; HARNESS
09.650 (B) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
01
1
1412-
519
02.559 NUT; EARTH CABLE
03.162 M10 FLANGE
0-91180-110-0
01
1
1412-
16
16
16
22
22
48
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15
8-94315-436-1
03
1
1412-
16
02.559 CLIP; HARNESS
(F) L=36.5
8-97019-892-0
01
1
1412-
16
02.559 CLIP; HARNESS
(E) L=155
8-97173-307-0
09
1
1412-
16
02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE
1-09987-214-0
02
1
1412-
16
02.559 CLIP; HARNESS
(A) L=250
5-09707-030-1
01
1
1412-
16
02.559 CLIP; HARNESS
02.694 (C) ID=6 & 10-13
8-97069-515-0
01
1
1412-
16
02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15
8-94315-436-1
02
1
1412-
22
02.559 CLIP; ENG HARNESS
02.343 (B) L=119.5
1-09707-197-0
01
1
1412-
22
02.559 CLIP; ENG HARNESS
04.104 (C) ID=12 & 6.8
8-97125-842-0
01
1
1412-
22
02.559 CLIP; ENG HARNESS
(A) ID=6.8
8-97134-154-0
01
1
1412-
48
02.559 CLIP; FRAME HARNESS
01.240 ID=14 L=47
5-09700-319-0
07
1
1412-
