Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#153796) — 47 parça
◀
[810A] OTHER HARNESS(NO.3) (2 parça)
[810A] OTHER HARNESS(NO.2) (2 parça)
[810A] CAB HARNESS (10 parça)
[810A] OTHER PARTS (7 parça)
[810A] OTHER HARNESS(NO.1) (7 parça)
[810A] FRAME HARNESS;FRONT (17 parça)
[810A] RELAY;CAB HARNESS (2 parça)
▶

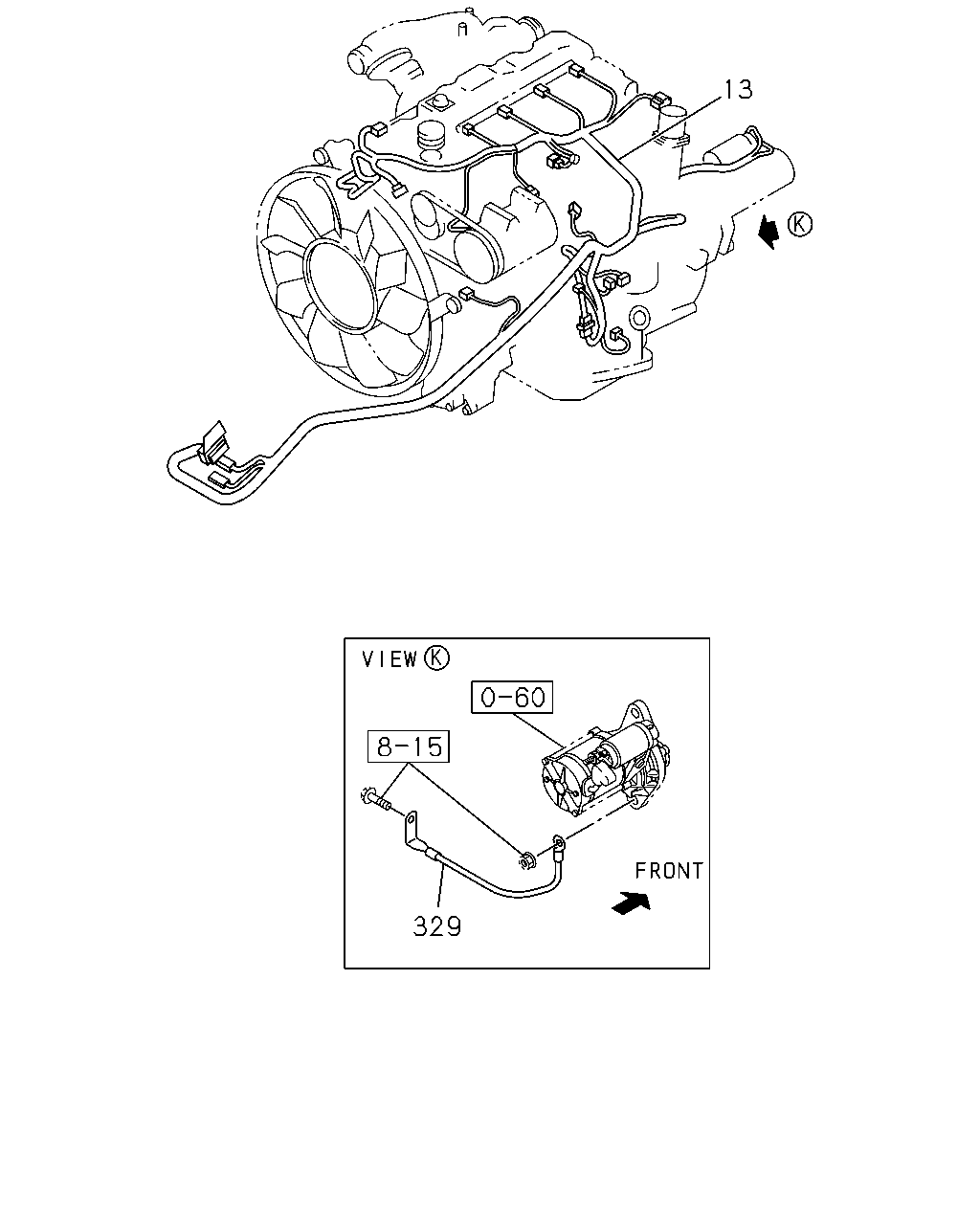

13
329
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
02.525 HARNESS; ENG
8-98277-838-1
01
1
1412-
329
02.480 CABLE; ENG TO FRAME
8-98227-630-1
01
1
1412-

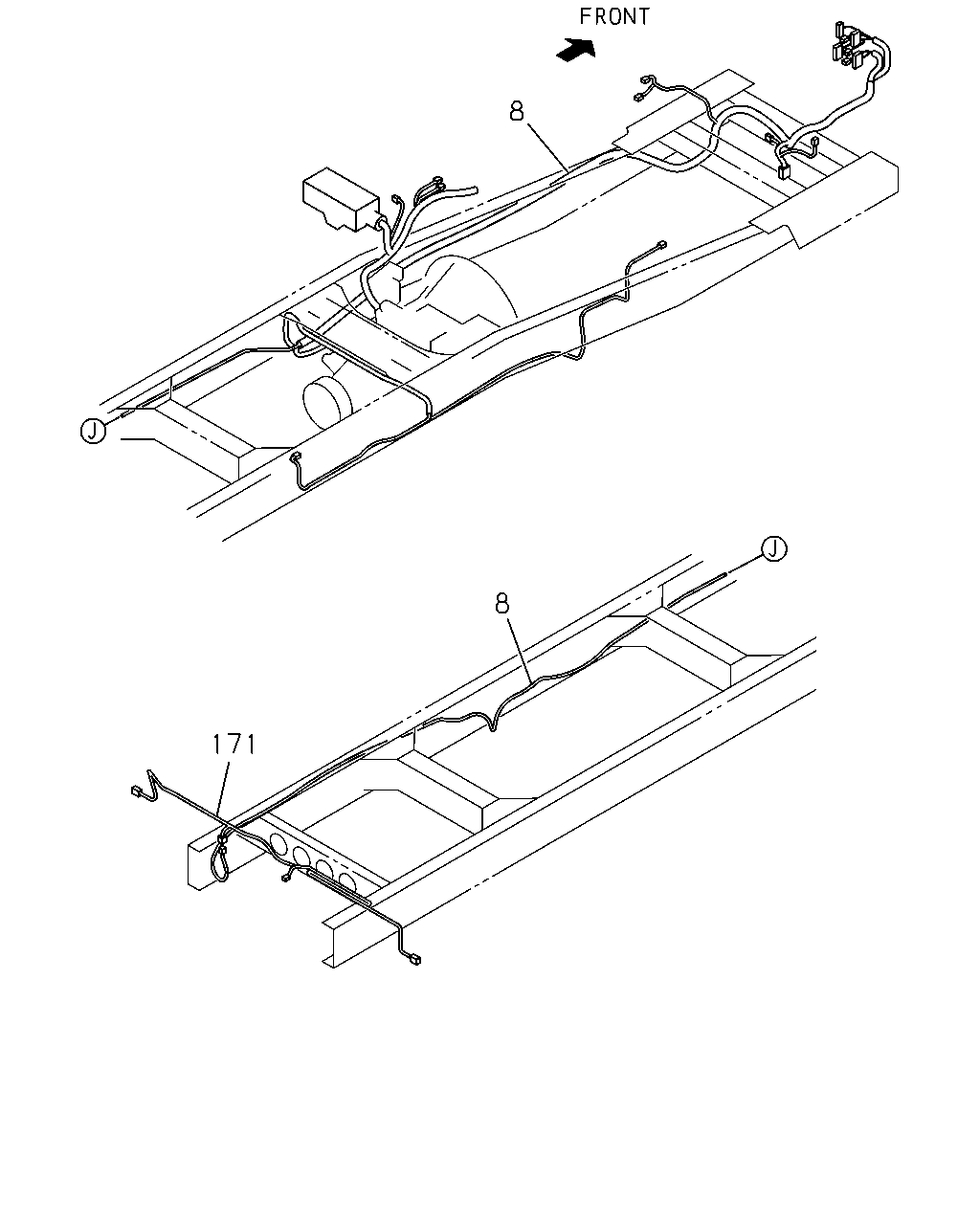

8
8
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98297-584-0
01
1
1412-
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98222-483-0
01
1
1412-

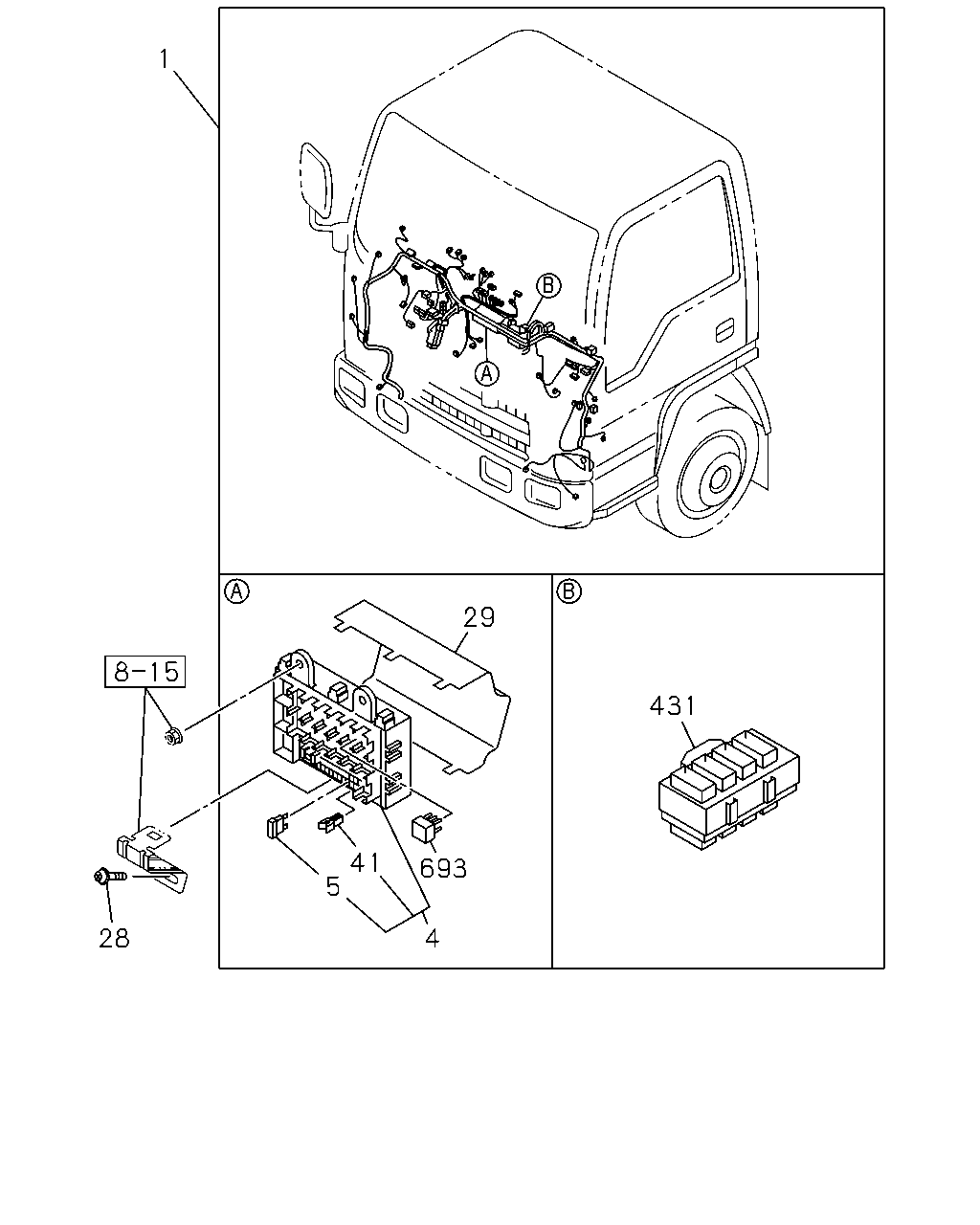

431
693
29
41
4
5
28
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
8-98286-925-1
01
1
1412-
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
1412-
5
02.485 FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1412-
5
02.485 FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1412-
5
02.485 FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1412-
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1412-
29
02.483 COVER; FUSE BOX
8-98041-308-0
01
1
1412-
41
08.821 PULLER; FUSE
8-98054-260-0
01
1
1412-
431
02.530 CONNECTOR; JOINT
8-98046-206-0
01
1
1412-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1412-

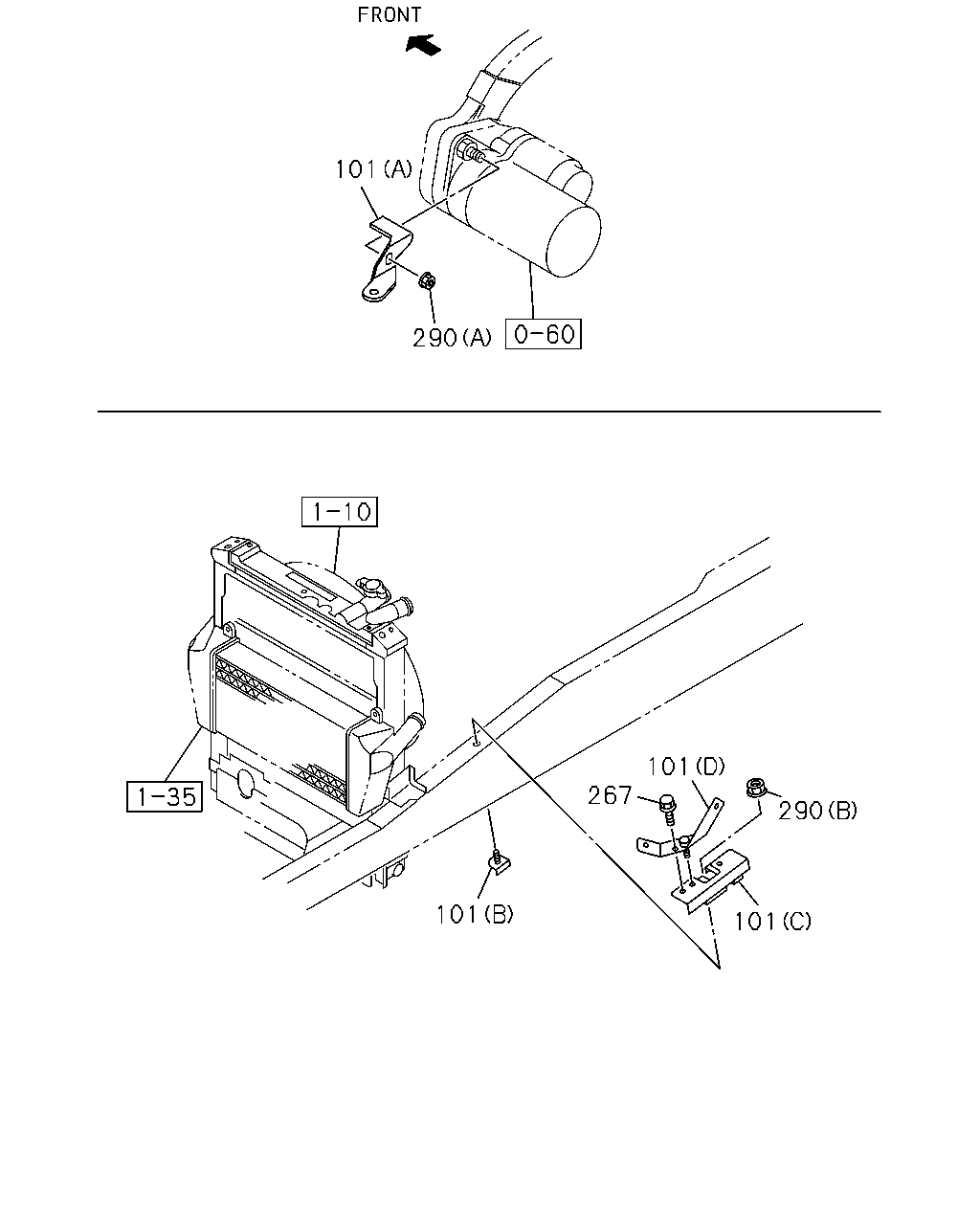

101
290
101
267
290
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
02.483 BRACKET; HARNESS CONNECTOR
02.183 (A)
8-98030-725-1
01
1
1412-
101
02.483 BRACKET; HARNESS CONNECTOR
(C)
8-98078-070-1
01
1
1412-
101
02.483 BRACKET; HARNESS CONNECTOR
(D)
8-98078-071-1
01
1
1412-
101
02.483 BRACKET; HARNESS CONNECTOR
(B)
8-98093-465-1
01
1
1412-
267
02.483 BOLT; BRKT
00.685 M6X25 FLANGE
0-28650-625-0
01
1
1412-
290
02.483 NUT; BRKT
01.062 (B) M8 FLANGE
0-91180-108-0
01
1
1412-
290
02.483 NUT; BRKT
03.162 (A) M10 FLANGE
0-91180-110-0
01
1
1412-

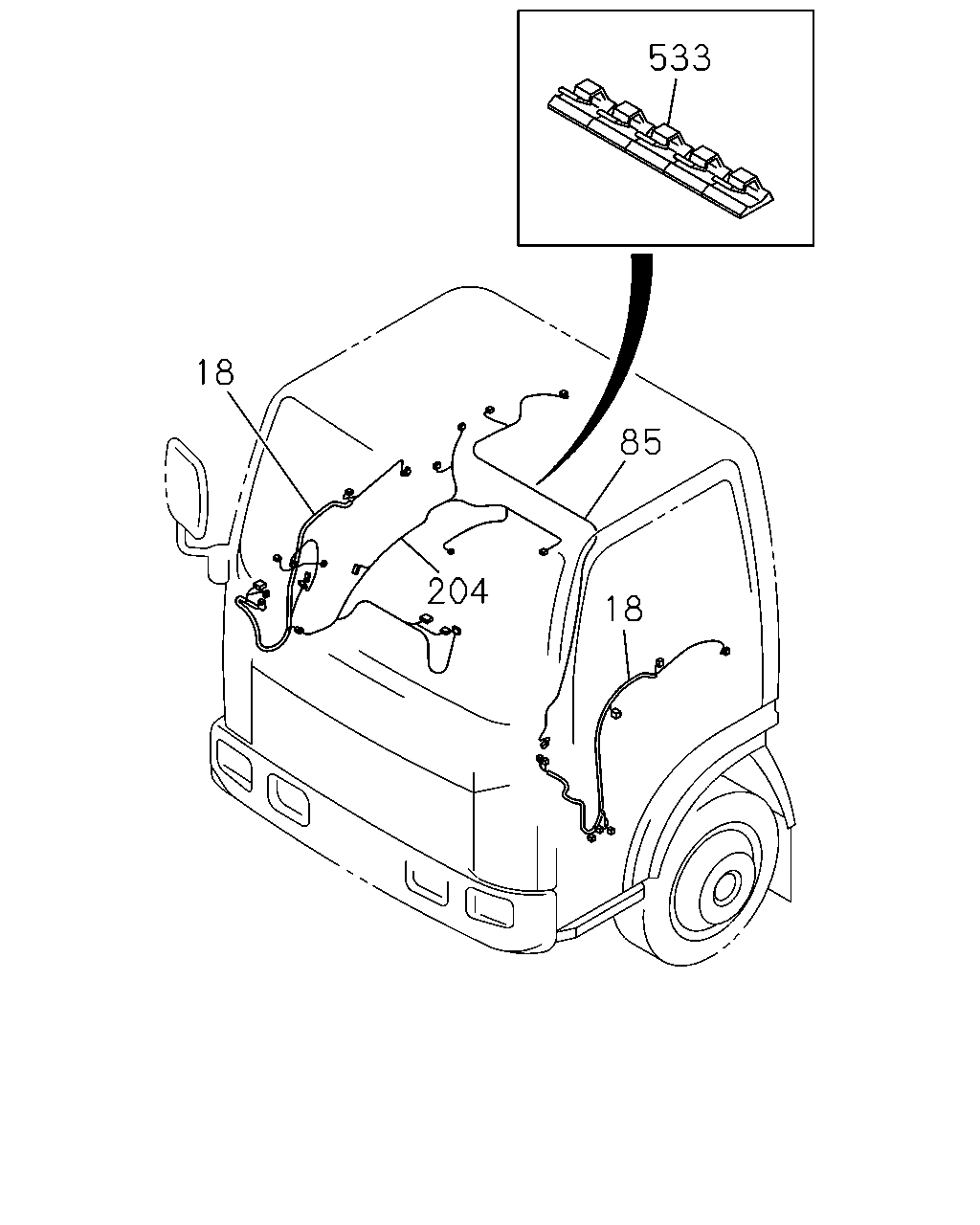

533
85
18
204
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-98033-814-2
01
1
1412-
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-98033-817-2
01
1
1412-
18
02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>
8-98033-813-2
01
1
1412-
18
02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>
8-98033-815-1
01
1
1412-
85
06.495 HARNESS; ROOM LAMP
8-98055-202-2
01
1
1412-
204
02.559 HARNESS; CABLE,FLOOR
8-98075-310-2
01
1
1412-
533
02.559 CLIP
16.065 1 SET=5 PIECE
1-09987-214-0
01
1
1412-

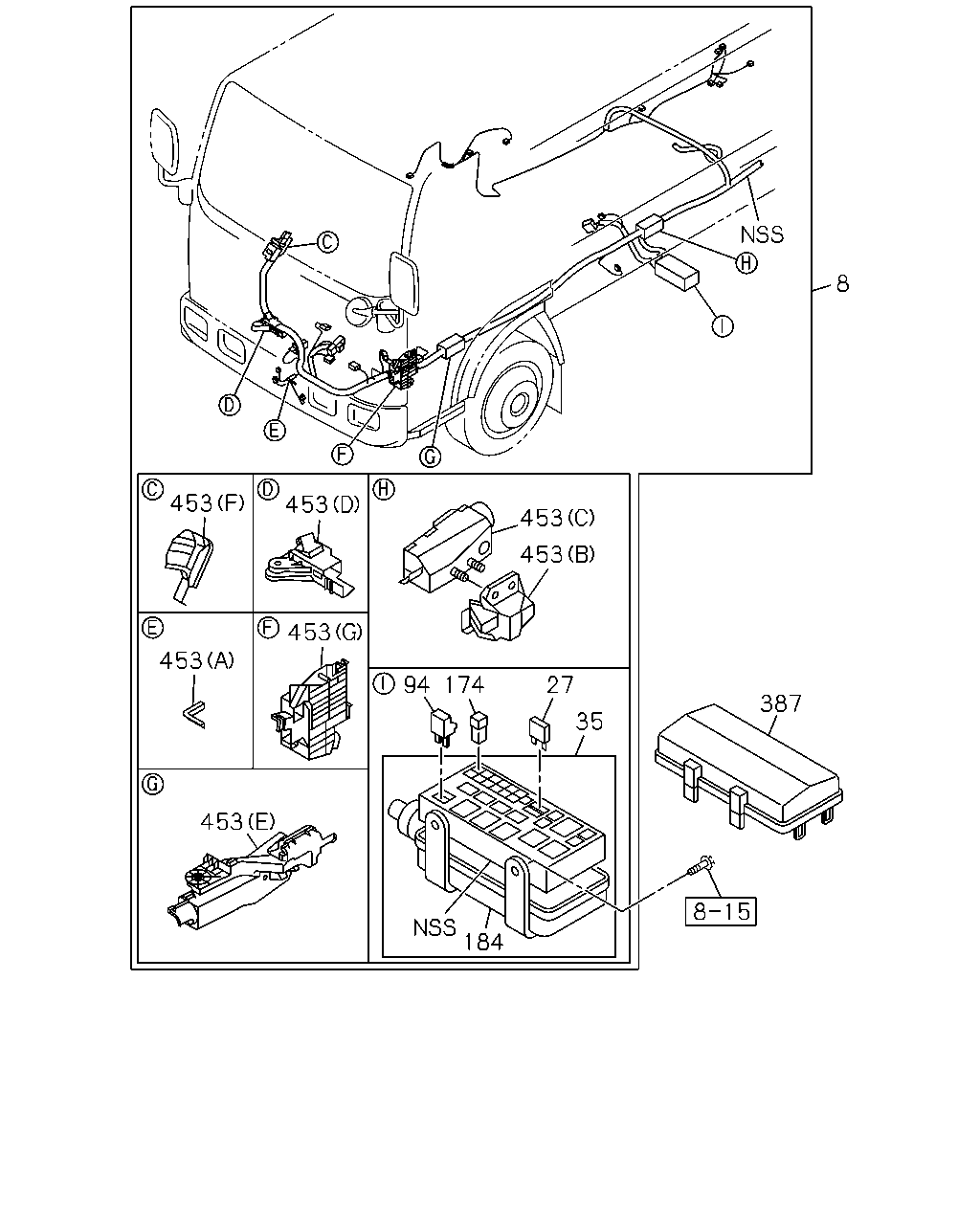

387
184
35
27
174
94
453
453
453
453
453
453
453
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98297-584-0
01
1
1412-
27
08.965 FUSE UNIT
02.485 10A RED
8-98054-257-0
AR
1
1412-
35
02.530 BOX; RELAY & FUSE
8-98030-763-0
01
1
1412-
94
02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A
8-94422-639-1
01
1
1412-
174
08.965 FUSE; SLOW BLOW
30A PINK
8-98079-191-0
AR
1
1412-
174
08.965 FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
AR
1
1412-
174
08.965 FUSE; SLOW BLOW
50A RED
8-98079-193-0
AR
1
1412-
174
08.965 FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
1412-
184
02.559 COVER; RELAY & FUSE BOX
8-98030-766-0
01
1
1412-
387
02.483 COVER; RELAY BOX
8-98081-367-0
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(A)
8-94417-716-0
02
1
1412-
453
02.483 PROTECTOR; HARNESS
(F)
8-97062-169-0
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-850-1
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(C)
8-98031-851-2
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(E)
8-98114-566-1
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(D)
8-98242-252-1
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(G)
8-98242-253-0
01
1
1412-

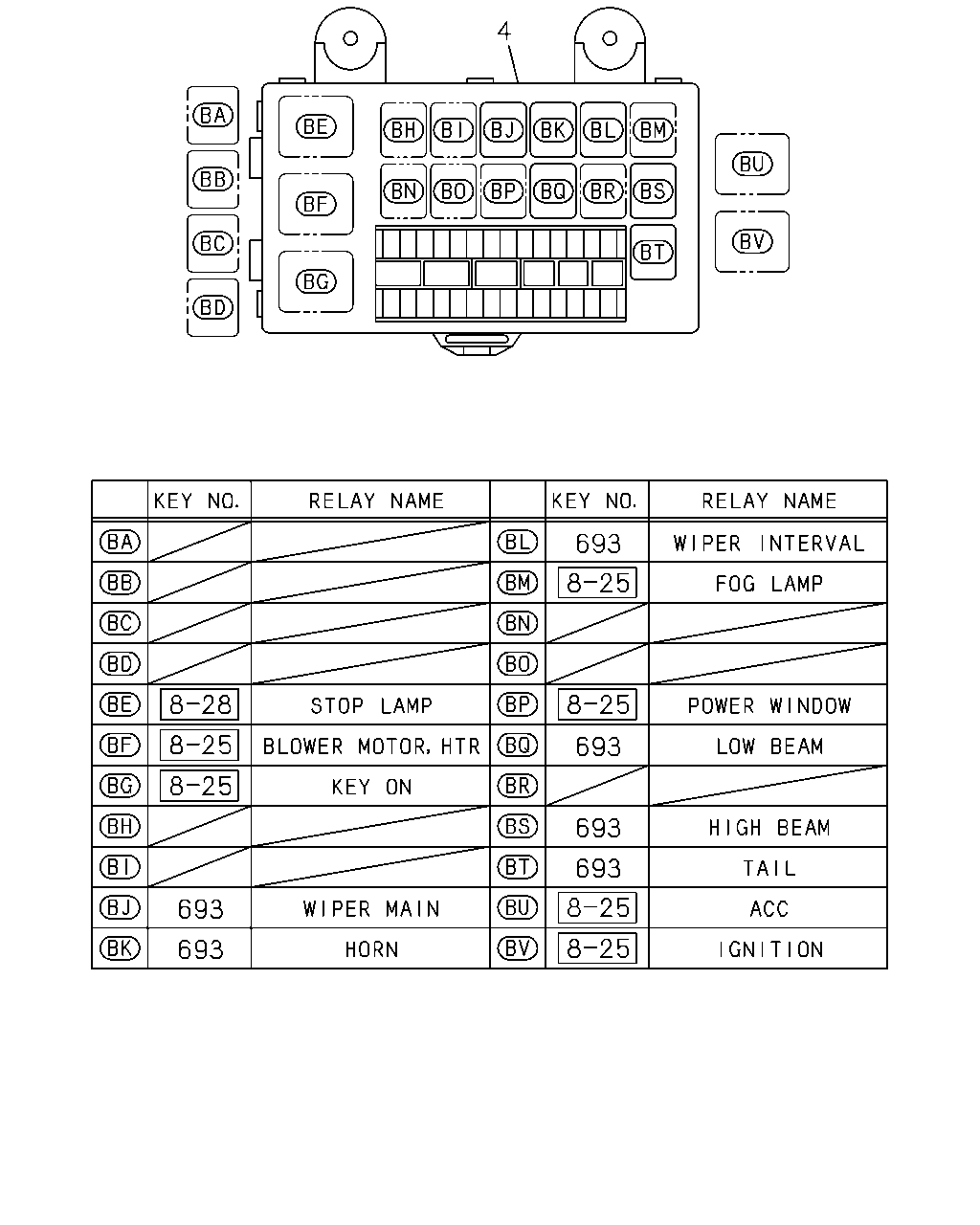

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
1412-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1412-
