Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶

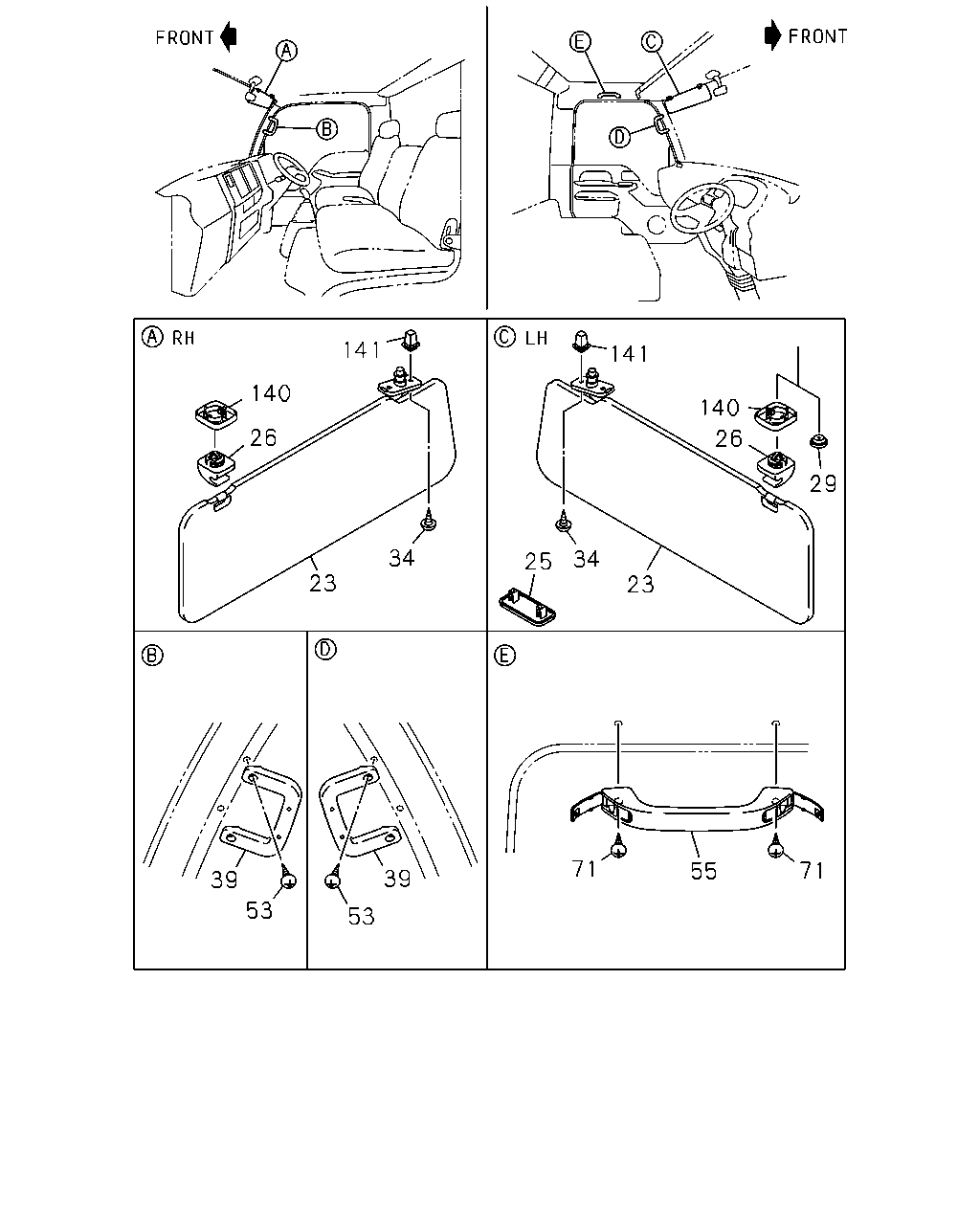

7-43 — SUN VISOR AND ASSIST GRIP
(#153791) — 16 parça
141
140
23
26
34
141
26
140
29
23
34
25
55
71
71
39
53
53
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> DARK GRAY
8-97406-194-0
01
1
1412-
23
16.070 SUN VISOR
DARK GRAY
8-97411-871-0
01
1
1412-
25
16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY
8-97406-201-3
01
1
1412-
26
16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> DARK GRAY
8-97406-198-2
02
1
1412-
26
16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY
8-97406-198-2
01
1
1412-
29
16.070 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0
8-94279-040-0
01
1
1412-
34
16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING
0-72180-518-0
04
1
1412-
34
16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING
0-72180-518-0
02
1
1412-
39
16.450 HANDLE; ASSIST,A-POST
DARK GRAY
8-97406-420-1
02
1
1412-
53
16.450 SCREW; ASSIST HANDLE
M6X28
8-98004-344-0
04
1
1412-
55
16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY
8-97405-285-2
01
1
1412-
71
16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28
8-98004-344-0
02
1
1412-
140
16.742 SPACER; HOLDER,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> DARK GRAY
8-97406-202-1
02
1
1412-
140
16.742 SPACER; HOLDER,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY
8-97406-202-1
01
1
1412-
141
16.070 COVER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 16.588
8-94279-039-0
04
1
1412-
141
16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 16.588
8-94279-039-0
02
1
1412-
