7-40 — INSTRUMENT PANEL AND BOX (#153789) — 94 parça

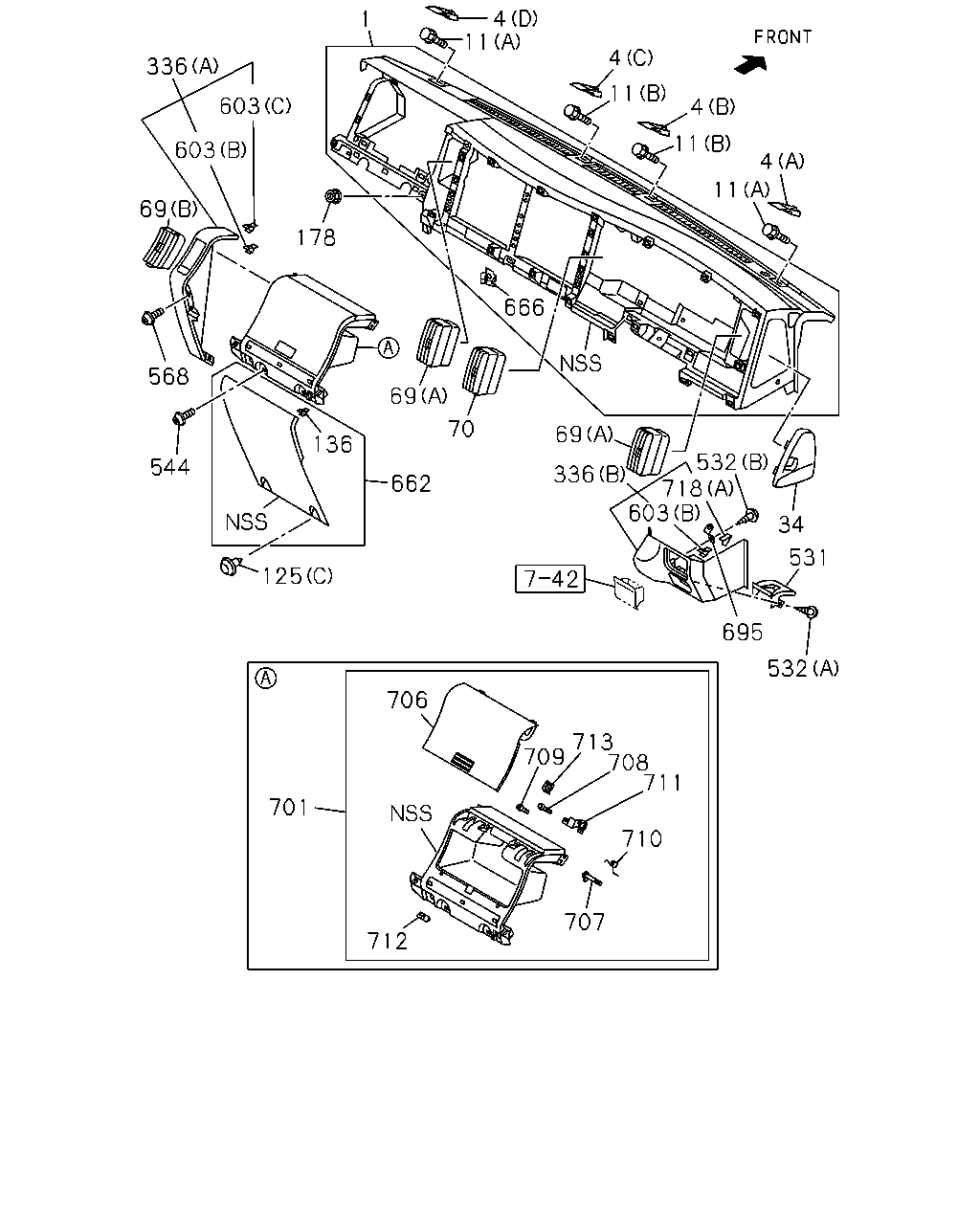

çizim 458938
1 4 11 4 4 11 11 11 4 666 178 603 603 336 69 568 544 136 125 662 70 69 69 532 603 34 531 695 532 718 336 701 706 709 708 713 711 710 707 712
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97418-085-0 01 1 1412-
4 16.080 COVER; INST PNL
(B) GRAY 		8-97407-087-0 01 1 1412-
4 16.080 COVER; INST PNL
(A) GRAY 		8-97407-088-0 01 1 1412-
4 16.080 COVER; INST PNL
(C) GRAY 		8-97407-089-0 01 1 1412-
4 16.080 COVER; INST PNL
(D) GRAY 		8-97407-090-0 01 1 1412-
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> (E) GRAY 		8-97407-898-1 01 1 1412-
11 16.090 BOLT; INST PNL
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1412-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 02 1 1412-
34 16.085 LID; OIL TANK
GRAY 		8-97406-263-1 01 1 1412-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1412-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1412-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1412-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1412-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1412-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1412-
136 16.085 CLIP; INST COVER 8-98021-271-0 07 1 1412-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 01 1 1412-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97418-987-0 01 1 1412-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97419-994-0 01 1 1412-
531 16.100 CASE; ASH TRAY 8-97853-130-0 01 1 1412-
532 16.100 SCREW; ASH TRAY
16.090 (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
532 16.100 SCREW; ASH TRAY
(A) M5X8 		8-98058-631-0 02 1 1412-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1412-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1412-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 06 1 1412-
603 16.090 CLIP; COVER
(C) 		8-98034-329-0 02 1 1412-
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-259-1 01 1 1412-
666 16.085 INSERT; INST PANEL 8-98037-629-0 20 1 1412-
695 16.085 BRACKET; ASH TRAY 8-98009-037-0 02 1 1412-
701 16.100 TRAY; INST
GRAY 		8-97421-003-0 01 1 1412-
706 16.081 LID; TRAY INST
GRAY 		8-97406-856-1 01 1 1412-
707 09.744 SHAFT; TRAY INST LID 8-98034-369-1 02 1 1412-
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1412-
709 16.085 SCREW; TRAY INST
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1412-
710 09.744 SPRING; TRAY INST LID 8-98034-365-1 01 1 1412-
710 09.744 SPRING; TRAY INST LID 8-98034-370-1 01 1 1412-
711 16.100 HOLDER ASM; LID 8-98034-367-1 01 1 1412-
711 16.100 HOLDER ASM; LID 8-98034-368-1 01 1 1412-
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 1412-
713 16.069 NUT; TRAY INST LID
16.085 		8-98038-450-0 04 1 1412-
718 16.100 SEAL; COVER
(A) 		8-98071-934-0 01 1 1412-
718 16.100 SEAL; COVER
(B) 		8-98085-197-0 01 1 1412-

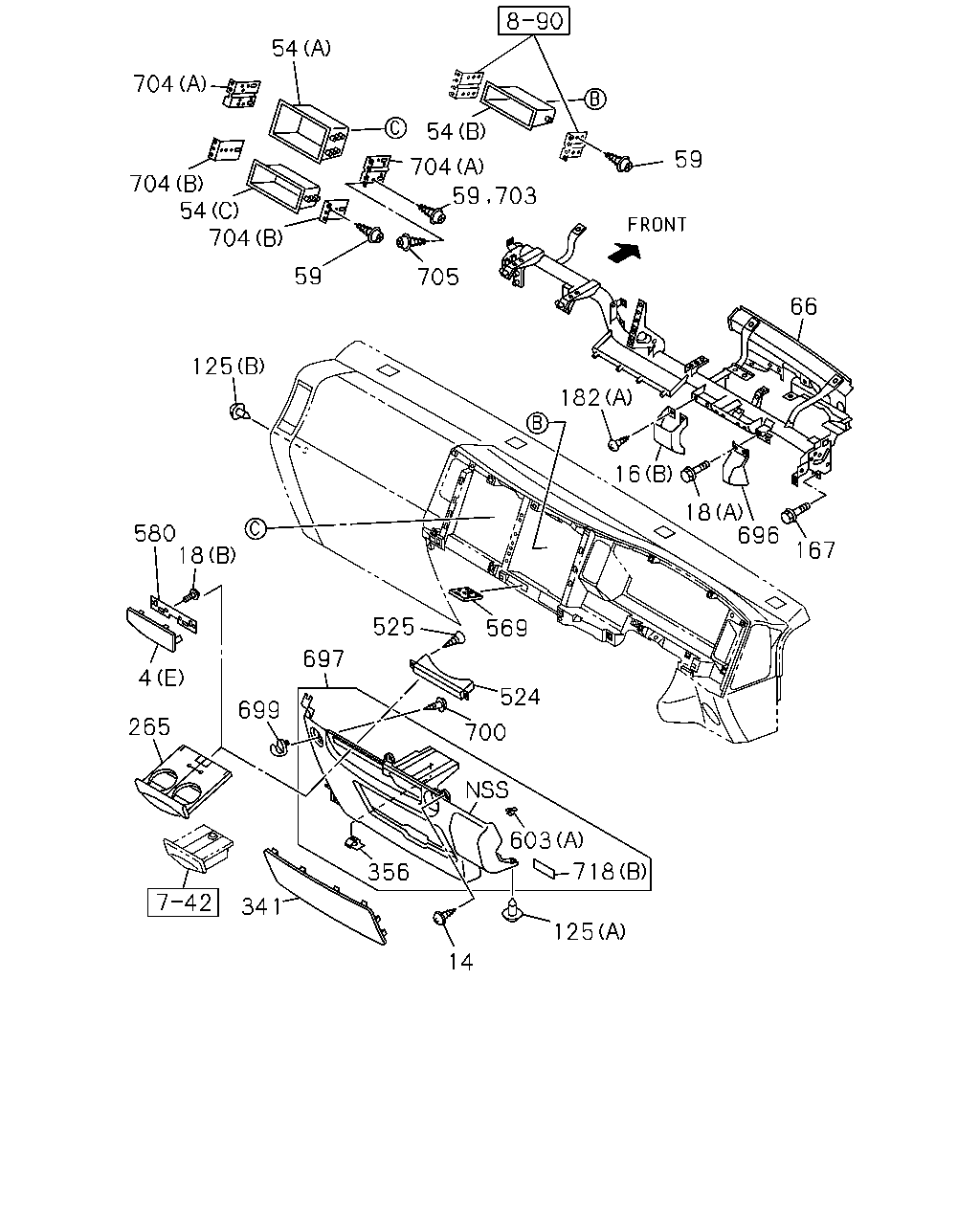

çizim 459805
59 66 167 696 18 16 182 524 569 525 700 125 718 603 356 14 341 265 4 580 18 699 697 59 125 704 54 704 704 54 54 59 704 703 705
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
(B) GRAY 		8-97407-087-0 01 1 1412-
4 16.080 COVER; INST PNL
(A) GRAY 		8-97407-088-0 01 1 1412-
4 16.080 COVER; INST PNL
(C) GRAY 		8-97407-089-0 01 1 1412-
4 16.080 COVER; INST PNL
(D) GRAY 		8-97407-090-0 01 1 1412-
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> (E) GRAY 		8-97407-898-1 01 1 1412-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
16 16.085 BRACKET; INST PNL
(A) 		8-97410-806-2 01 1 1412-
16 16.085 BRACKET; INST PNL
(B) 		8-97410-807-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(C) 		8-97585-611-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(D) 		8-98033-528-1 01 1 1412-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1412-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (B) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1412-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1412-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1412-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1412-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1412-
66 16.085 REINFORCEMENT; INST PANEL 8-98261-307-0 01 1 1412-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1412-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1412-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1412-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1412-
341 16.110 LID; FUSE BOX
GRAY 		8-97406-266-4 01 1 1412-
356 16.085 NUT; COVER 8-98038-562-0 01 1 1412-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1412-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1412-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1412-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1412-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1412-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 06 1 1412-
603 16.090 CLIP; COVER
(C) 		8-98034-329-0 02 1 1412-
696 16.085 BRACKET; KNEE 8-98115-226-0 01 1 1412-
697 16.080 PANEL; INST CENTER
GRAY 		8-97406-257-5 01 1 1412-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1412-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1412-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1412-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1412-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1412-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1412-
718 16.100 SEAL; COVER
(A) 		8-98071-934-0 01 1 1412-
718 16.100 SEAL; COVER
(B) 		8-98085-197-0 01 1 1412-

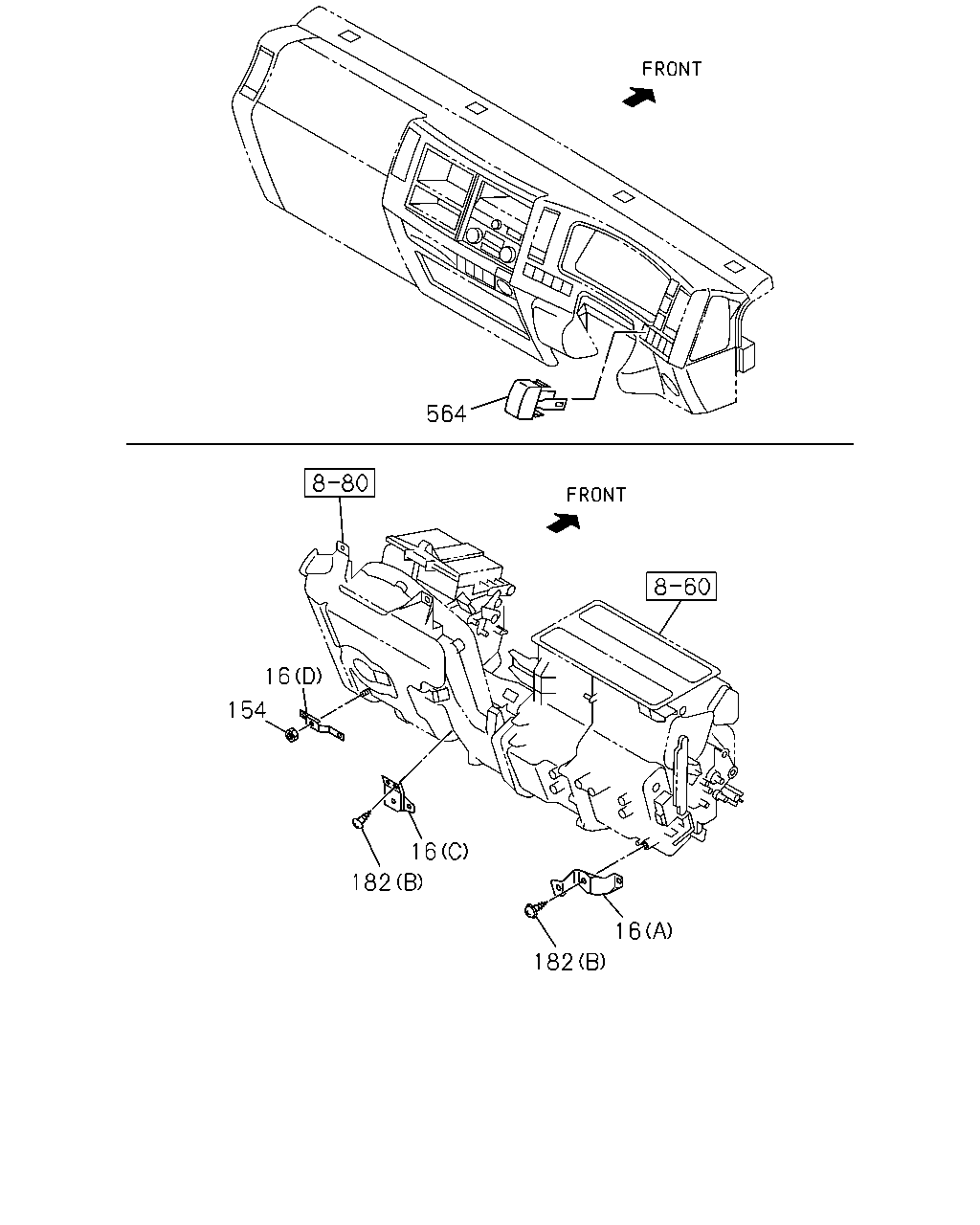

çizim 459849
564 16 154 182 16 182 16
BalonParca AdiParca NoAdetTipApplied Date
16 16.085 BRACKET; INST PNL
(A) 		8-97410-806-2 01 1 1412-
16 16.085 BRACKET; INST PNL
(B) 		8-97410-807-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(C) 		8-97585-611-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(D) 		8-98033-528-1 01 1 1412-
154 16.085 NUT
02.343 M5 		0-91110-505-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
564 16.081 COVER; SW 8-98025-954-1 01 1 1412-
