7-20 — MIRROR AND MIRROR STAY (#153787) — 22 parça

2 3 162 159 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.068 MIRROR; ROOM DARK GRAY	8-97406-215-1	01	1	1412-
2	16.069 SCREW; MIRROR TO BODY 16.263 M5X16	8-94279-341-0	02	1	1412-
3	16.069 STOPPER; RR VIEW MIRROR L=22	8-97857-352-1	01	1	1412-
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	1412-
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	1412-
162	16.069 SEAL; ROOM LAMP	8-97856-532-0	01	1	1412-

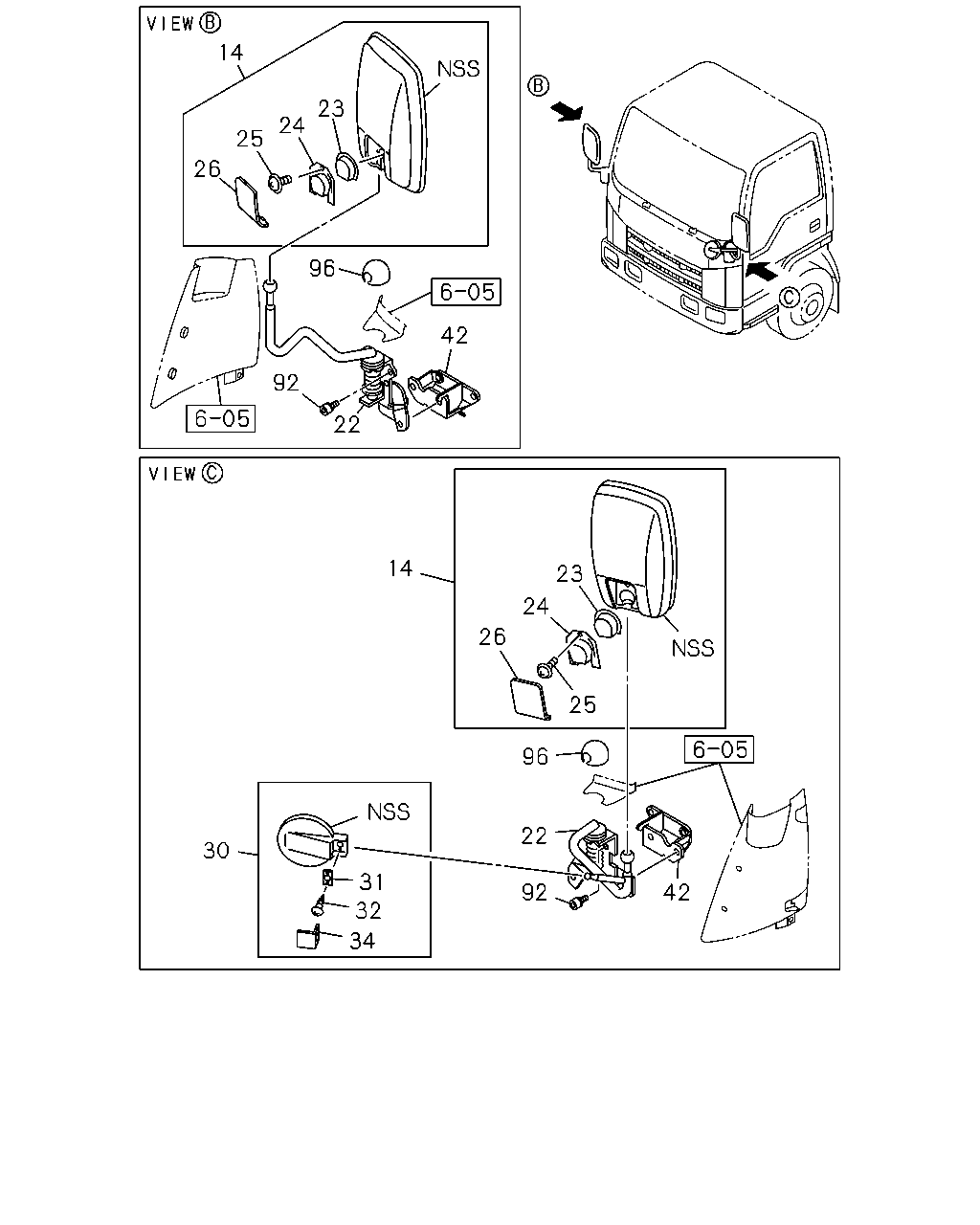

14 23 24 25 26 96 92 14 22 42 30 31 32 34 23 24 26 25 96 22 92 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	1412-
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-98033-229-3	01	1	1412-
22	16.069 STAY; OUTSIDE MIRROR	8-98033-223-1	01	1	1412-
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-98033-239-1	01	1	1412-
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	1412-
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	1412-
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	1412-
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	1412-
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	1412-
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	1412-
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1412-
34	16.069 CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	1412-
42	16.069 ATTACHMENT; OUTSIDE MIRROR	8-97581-625-2	01	1	1412-
42	16.069 ATTACHMENT; OUTSIDE MIRROR	8-97581-755-2	01	1	1412-
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-98020-347-0	10	1	1412-
96	16.069 CAP; MIRROR STAY	8-98027-552-2	02	1	1412-
