51596 - NHR RHD EURO5 WB 2400MM
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#153760) — 44 parça
◀

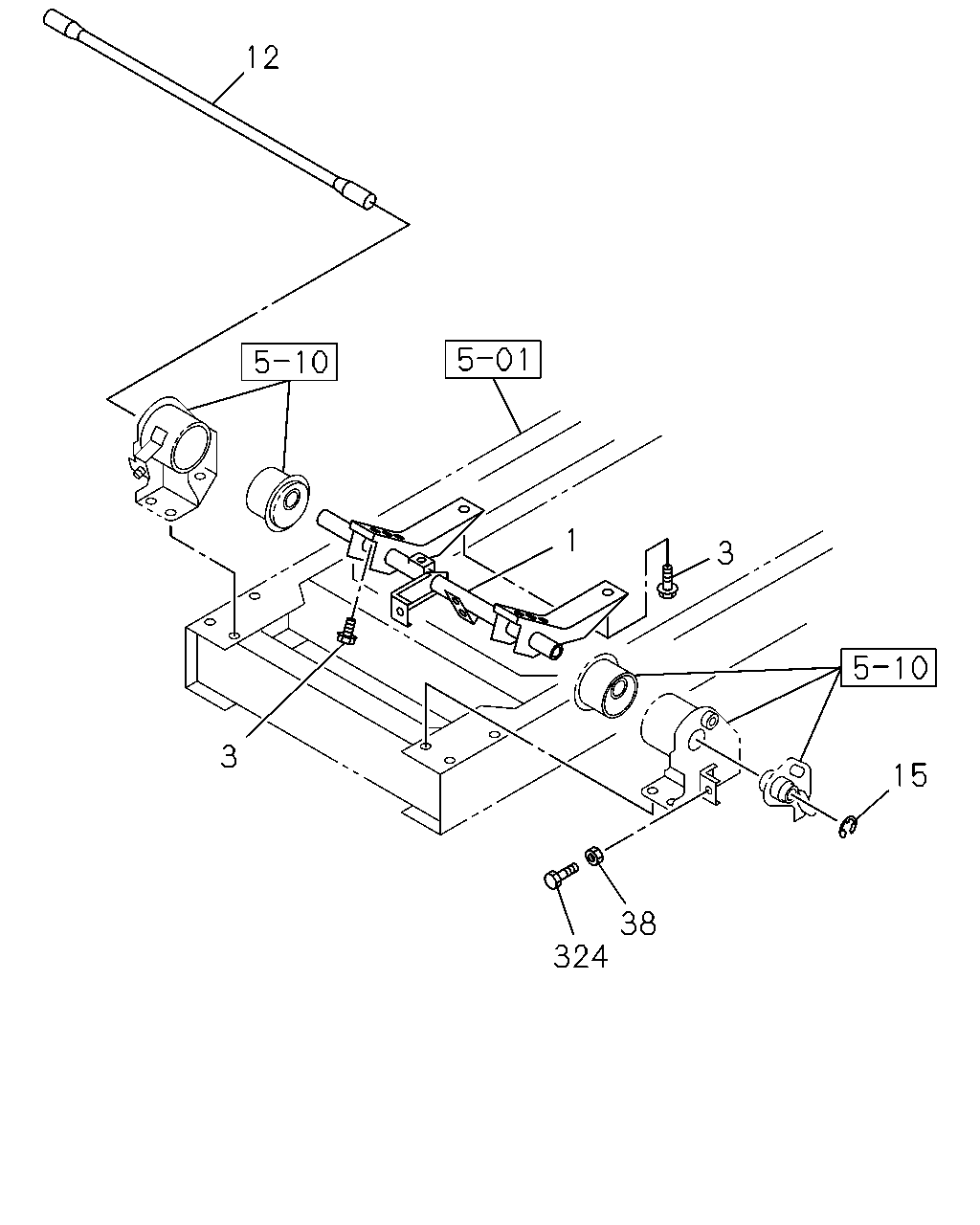

[515A] TORSION BAR LEVER (6 parça)

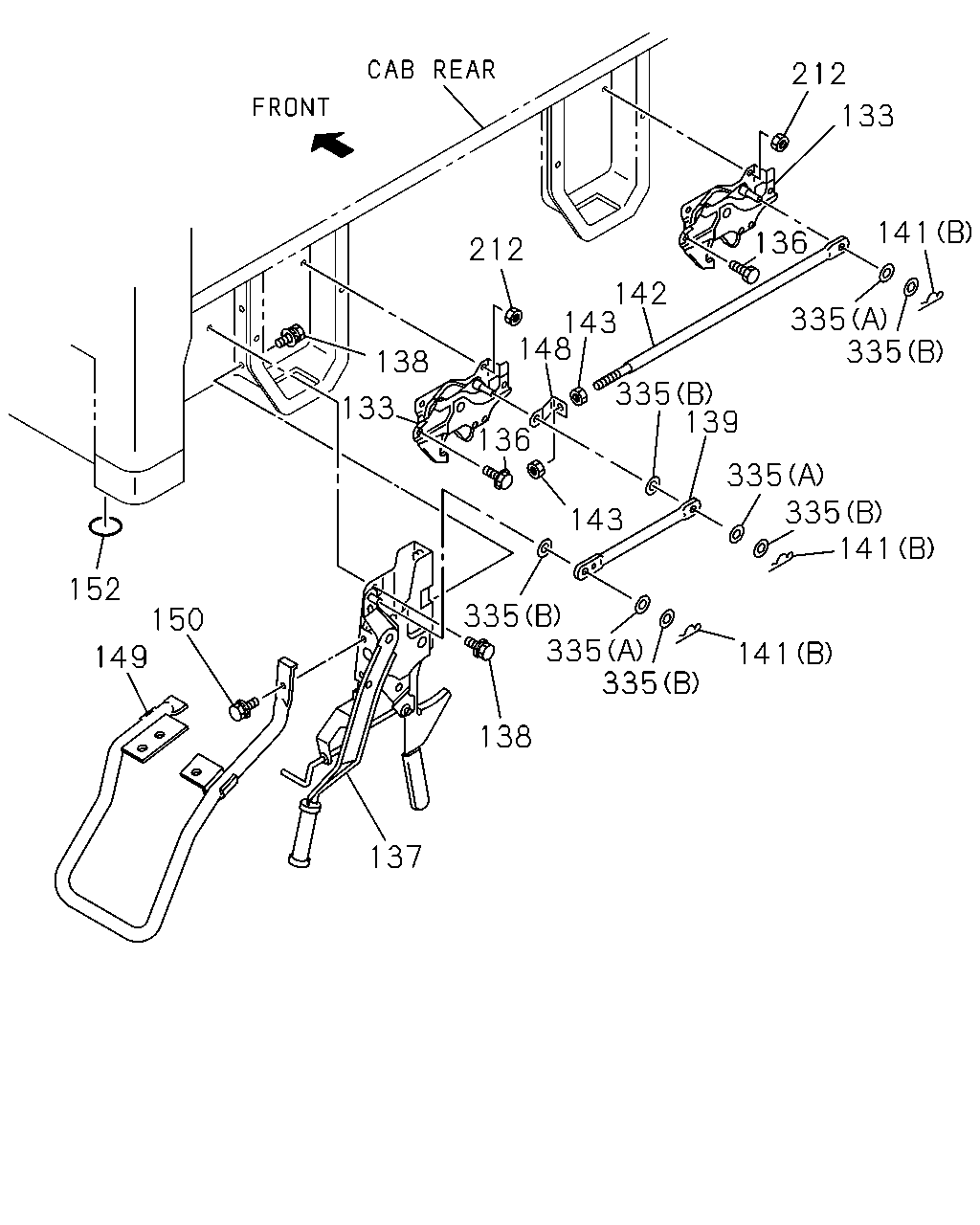

[515A] CAB LOCK (17 parça)

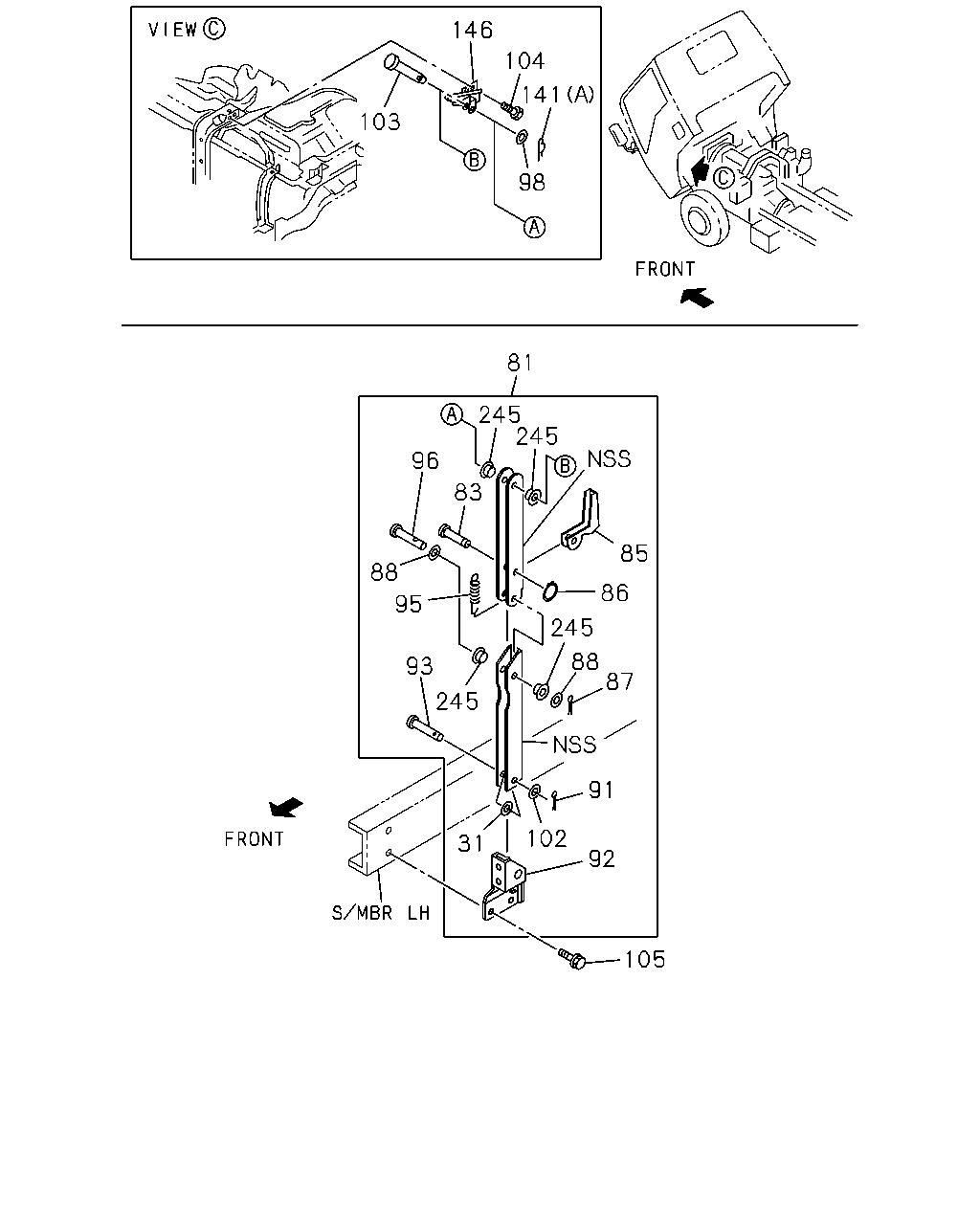

[515A] CAB STAY (21 parça)
▶
15
3
1
38
324
3
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 LEVER; TORSION BAR
8-98007-073-1
01
1
1412-
3
09.003 BOLT; LEVER
M12X37 W/LK&PL WASHER
8-97359-033-0
06
1
1412-
12
09.003 BAR; TORSION,UPR
8-98001-520-0
01
1
1412-
15
09.003 RING; SNAP,TORSION BAR
8-97359-034-0
01
1
1412-
38
09.005 NUT; LK
M14
8-98039-988-0
01
1
1412-
324
09.003 BOLT; ADJUST
M14X55
8-98004-319-1
01
1
1412-
335
142
143
148
139
335
143
335
141
141
335
335
335
138
137
149
152
150
133
138
136
212
212
136
335
335
141
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
133
09.005 LOCK ASM; CAB
8-97853-055-9
01
1
1412-
133
09.005 LOCK ASM; CAB
8-97853-056-8
01
1
1412-
136
09.005 BOLT; CAB LK
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1412-
137
09.005 CONTROL UNIT; CAB LOCK
8-97853-051-9
01
1
1412-
138
09.005 BOLT; CAB LOCK CONT UNIT
03.483 M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1412-
139
09.005 ROD; CAB LOCK,LEVER TO HOOK
8-97997-597-0
01
1
1412-
141
09.005 PIN; SNAP,CAB LOCK ROD
(A) L=32.6
1-09987-142-0
01
1
1412-
141
09.005 PIN; SNAP,CAB LOCK ROD
(B) L=34
8-98039-426-1
03
1
1412-
142
09.005 ROD; HOOK TO HOOK
8-97856-099-1
01
1
1412-
143
09.005 NUT; JAW JOINT,HOOK TO HOOK
00.833 M10
0-91110-510-0
02
1
1412-
148
09.005 JOINT; JAW,HOOK TO HOOK
8-97856-106-0
01
1
1412-
149
16.450 HANDLE; TILT
8-97853-054-4
01
1
1412-
150
16.450 BOLT; TILT HANDLE
06.216 M8X25 FLANGE
0-28650-825-0
03
1
1412-
152
09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
16.165 OD=25 BLACK
1-76798-019-0
03
1
1412-
212
09.005 NUT; BRKT,CAB LOCK
01.062 M8 FLANGE
0-91180-108-0
04
1
1412-
335
09.005 WASHER; CAB LOCK ROD
04.439 (B) ID=12.5 OD=22
0-91610-512-0
05
1
1412-
335
09.005 WASHER; CAB LOCK ROD
(A) ID=13 OD=22
8-98060-839-0
03
1
1412-
81
245
83
96
88
95
93
245
87
88
245
85
86
245
91
92
102
31
105
98
141
104
146
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
09.003 WASHER; WAVE
09.005 ID=13 OD=22
8-98060-839-0
01
1
1412-
81
09.003 STAY ASM; CAB TILT
8-98123-309-0
01
1
1412-
83
09.003 PIN; JOINT,CAB STAY
8-98122-493-0
01
1
1412-
85
09.003 LEVER; LOCK,CAB STAY
8-94331-481-0
01
1
1412-
86
09.003 RING; SNAP,LOCK LEVER,CAB STAY
16.585 ID=6
0-91805-506-0
01
1
1412-
87
09.003 PIN; SPLIT,CAB STAY PIN
06.897 OD=2.8 L=20
0-81123-020-0
01
1
1412-
88
09.003 WASHER; PL,CAB STAY PIN
04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
02
1
1412-
91
09.003 PIN; SPLIT,CAB STAY
06.255 OD=3.7 L=20
0-81124-020-0
01
1
1412-
92
09.003 BRACKET; CAB STAY TO FRAME
8-97385-586-1
01
1
1412-
93
09.003 PIN; CAB STAY
8-98122-498-0
01
1
1412-
95
09.003 SPRING; RETURN,CAB STAY
8-94160-167-2
01
1
1412-
96
09.003 PIN; JOINT
8-98123-513-0
01
1
1412-
98
09.003 WASHER; CAB STAY
09.008 ID=10.5 T=2.0
1-09985-183-0
01
1
1412-
102
09.003 WASHER; PL,CAB STAY
02.812 ID=12.5 OD=26
0-91610-612-0
01
1
1412-
103
09.003 PIN; JOINT,CAB STAY
OD=10 L=48
1-09744-107-0
01
1
1412-
104
09.003 BOLT; CAB STAY BRKT
02.277 M8X20 FLANGE
0-28660-820-0
03
1
1412-
105
09.003 BOLT; CAB STAY
00.029 M10X30 FLANGE
0-28651-030-0
02
1
1412-
141
09.005 PIN; SNAP,CAB LOCK ROD
(A) L=32.6
1-09987-142-0
01
1
1412-
141
09.005 PIN; SNAP,CAB LOCK ROD
(B) L=34
8-98039-426-1
03
1
1412-
146
09.003 BRACKET ASM; CAB STAY UPR
8-98055-486-0
01
1
1412-
245
09.003 BUSHING; CAB STAY
1-62500-587-0
04
1
1412-
