Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#153757) — 22 parça
◀

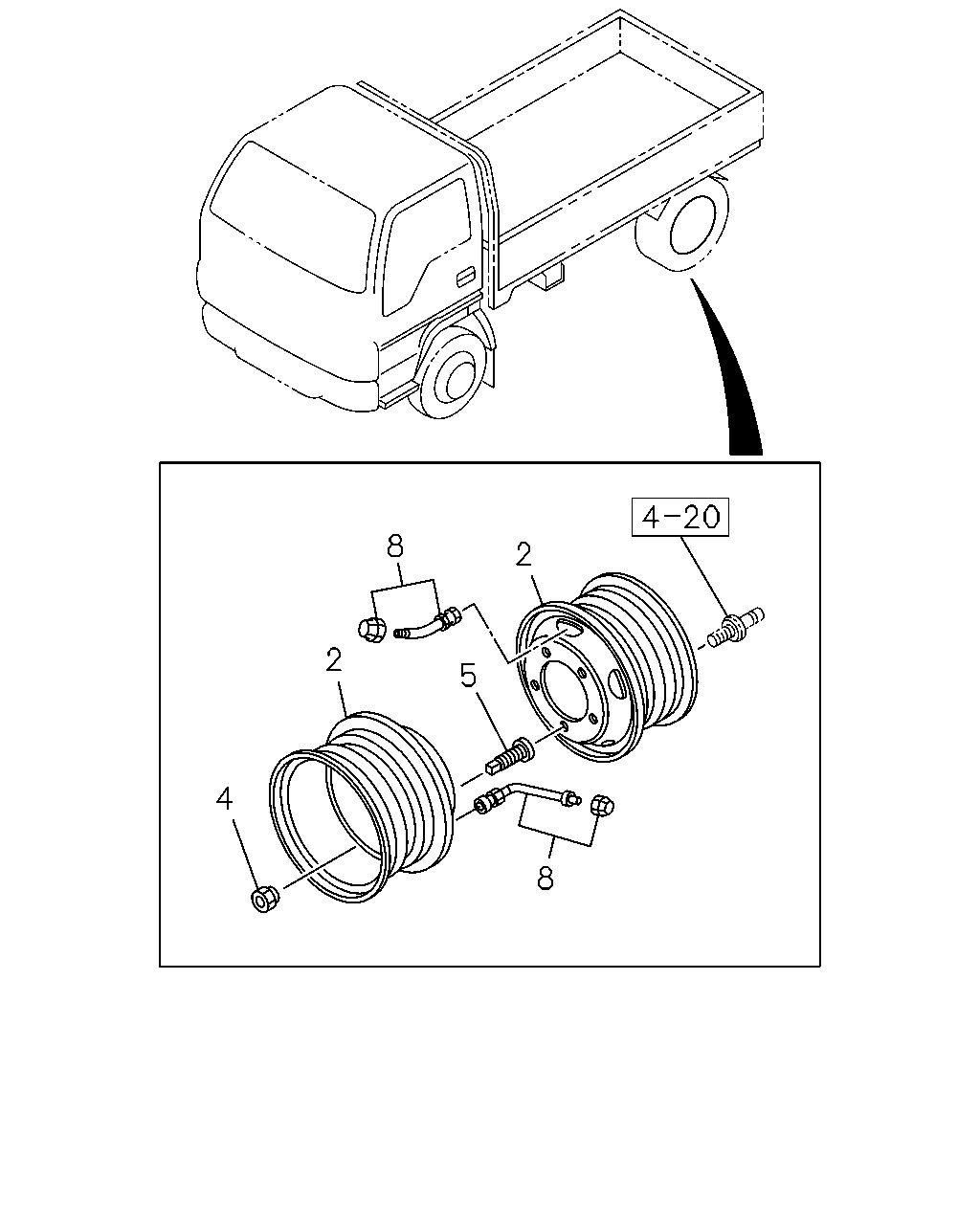

[480A] REAR (12 parça)

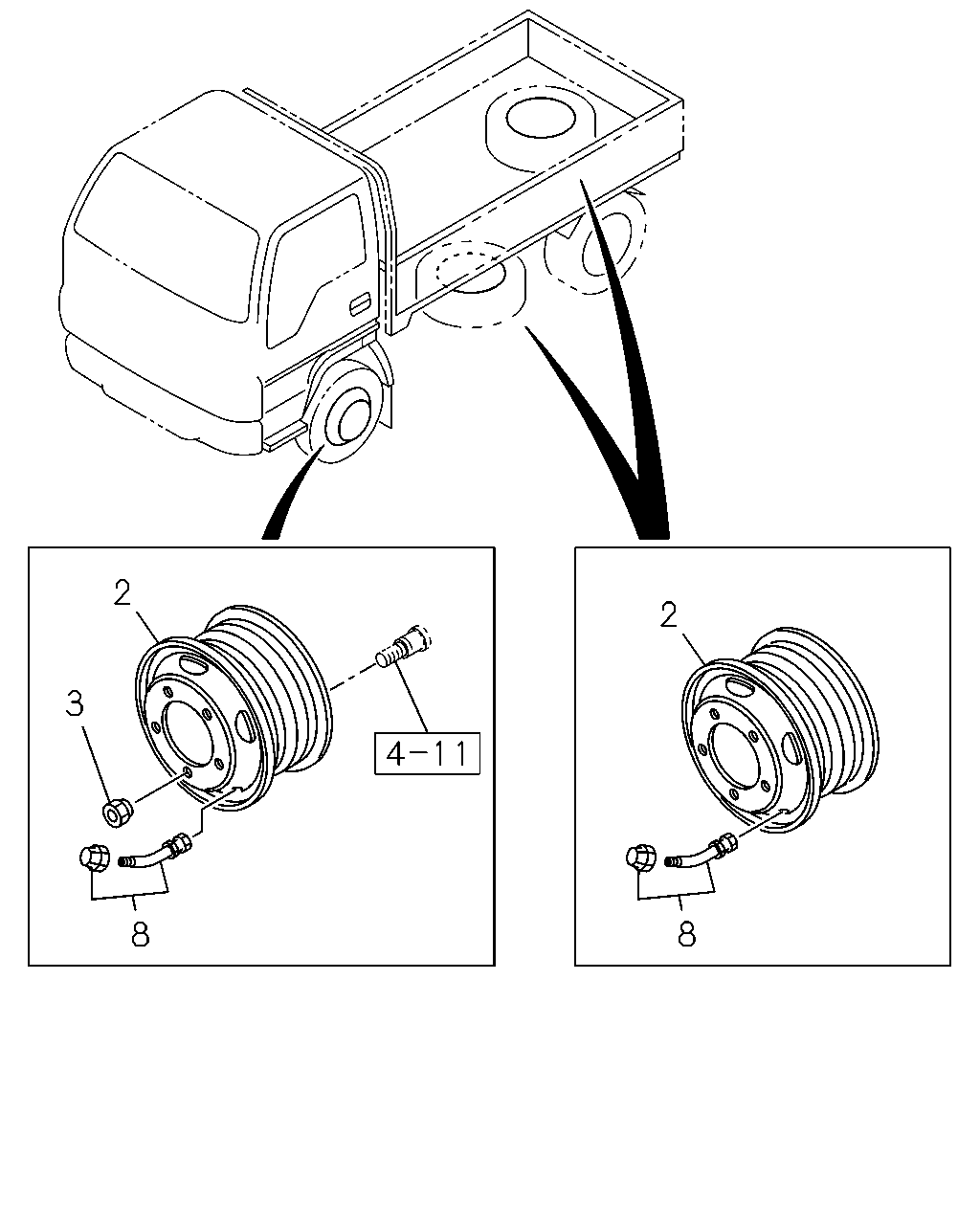

[480A] FRONT AND SPARE (10 parça)
▶
8
4
2
8
2
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE-REAR 13X4J OFFSET=98 SILVER 6-HOLE
8-97145-127-0
01
1
1412-
2
05.803 WHEEL; DISC
REAR 13X4J OFFSET=98 SILVER 6-HOLE
8-97145-127-0
04
1
1412-
2
05.803 WHEEL; DISC
SPARE-FRONT 15X5J OFFSET=116.5 PLATINUM SILVER
8-98002-072-0
01
1
1412-
2
05.803 WHEEL; DISC
FRONT 15X5J OFFSET=116.5 PLATINUM SILVER
8-98002-072-0
02
1
1412-
4
05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD
8-98007-830-0
06
1
1412-
4
05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD
8-98007-831-0
06
1
1412-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD
8-98007-828-0
06
1
1412-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD
8-98007-829-0
06
1
1412-
8
05.875 VALVE; TIRE
SPARE-FRONT
8-98221-106-0
01
1
1412-
8
05.875 VALVE; TIRE
FRONT
8-98221-106-0
02
1
1412-
8
05.875 VALVE; TIRE
SPARE-REAR
8-98221-108-0
01
1
1412-
8
05.875 VALVE; TIRE
REAR
8-98221-108-0
04
1
1412-
8
2
2
3
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE-REAR 13X4J OFFSET=98 SILVER 6-HOLE
8-97145-127-0
01
1
1412-
2
05.803 WHEEL; DISC
REAR 13X4J OFFSET=98 SILVER 6-HOLE
8-97145-127-0
04
1
1412-
2
05.803 WHEEL; DISC
SPARE-FRONT 15X5J OFFSET=116.5 PLATINUM SILVER
8-98002-072-0
01
1
1412-
2
05.803 WHEEL; DISC
FRONT 15X5J OFFSET=116.5 PLATINUM SILVER
8-98002-072-0
02
1
1412-
3
05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-98007-907-0
05
1
1412-
3
05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-98007-908-0
05
1
1412-
8
05.875 VALVE; TIRE
SPARE-FRONT
8-98221-106-0
01
1
1412-
8
05.875 VALVE; TIRE
FRONT
8-98221-106-0
02
1
1412-
8
05.875 VALVE; TIRE
SPARE-REAR
8-98221-108-0
01
1
1412-
8
05.875 VALVE; TIRE
REAR
8-98221-108-0
04
1
1412-
