◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51596 - NHR RHD EURO5 WB 2400MM ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#153752) — 19 parça
çizim 459672
1 29 29 20
BalonParca AdiParca NoAdetTipApplied Date
1 06.609 REPAIR KIT; OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98159-585-0 01 1 -
20 06.635 GASKET; FRT,OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-424-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98043-205-4, 98043205 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98043-205-4, 98043205 		8-98061-422-0 01 1 -

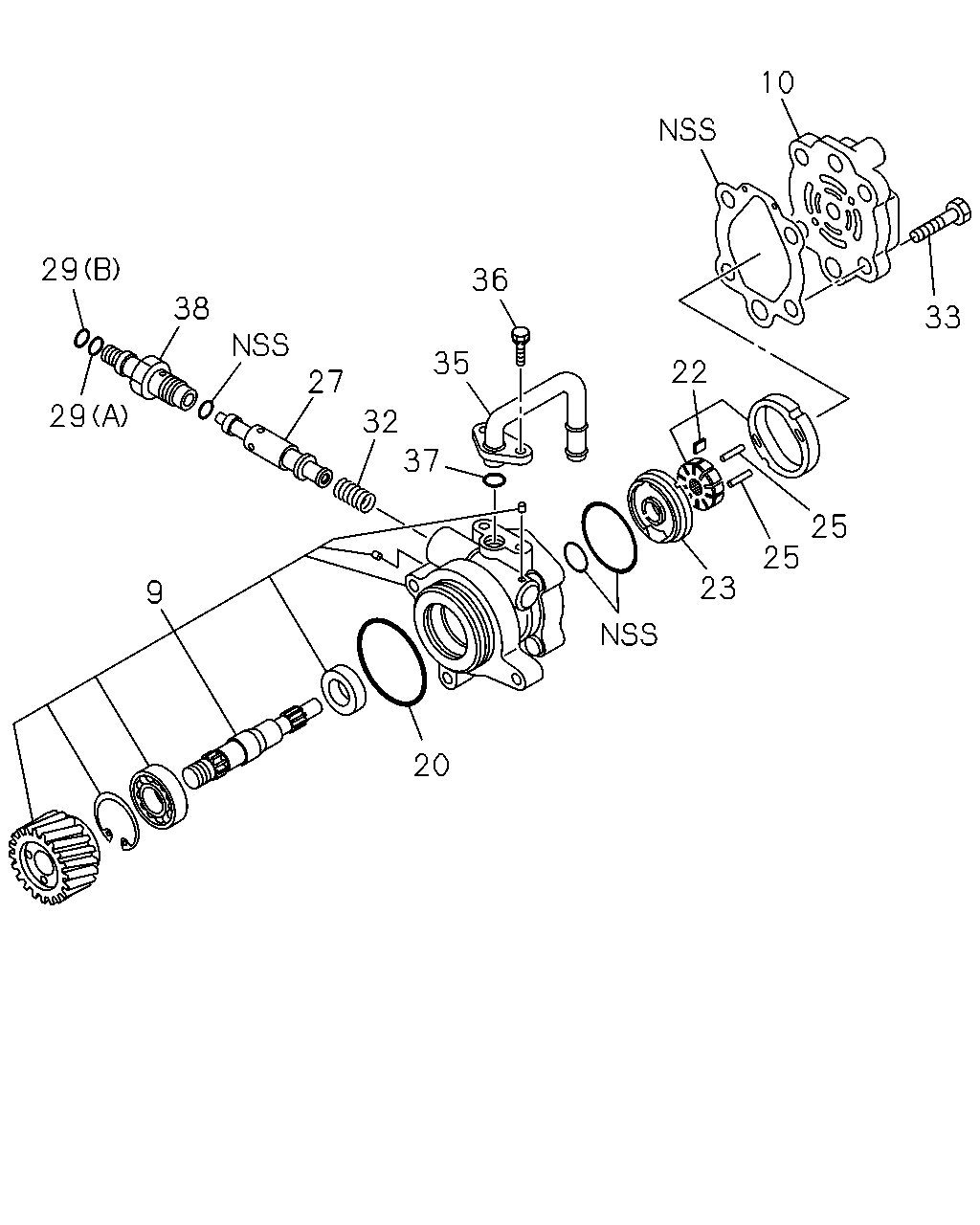

çizim 459700
10 33 25 25 23 20 9 29 29 38 36 35 32 27 37 22
BalonParca AdiParca NoAdetTipApplied Date
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-428-1 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
06.609 ASM PART: A = 8-98043-205-4, 98043205 		8-98159-587-0 01 1 -
20 06.635 GASKET; FRT,OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-424-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-406-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-404-0 01 1 -
25 06.608 PIN; HSG,P/S
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-412-0 02 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-409-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98043-205-4, 98043205 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98043-205-4, 98043205 		8-98061-422-0 01 1 -
32 06.606 SPRING; OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-411-0 01 1 -
33 06.606 BOLT; COVER
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-385-0 04 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-419-0 01 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-418-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-417-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
ASM PART: A = 8-98043-205-4, 98043205 		8-98061-407-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
