Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#153745) — 27 parça
◀

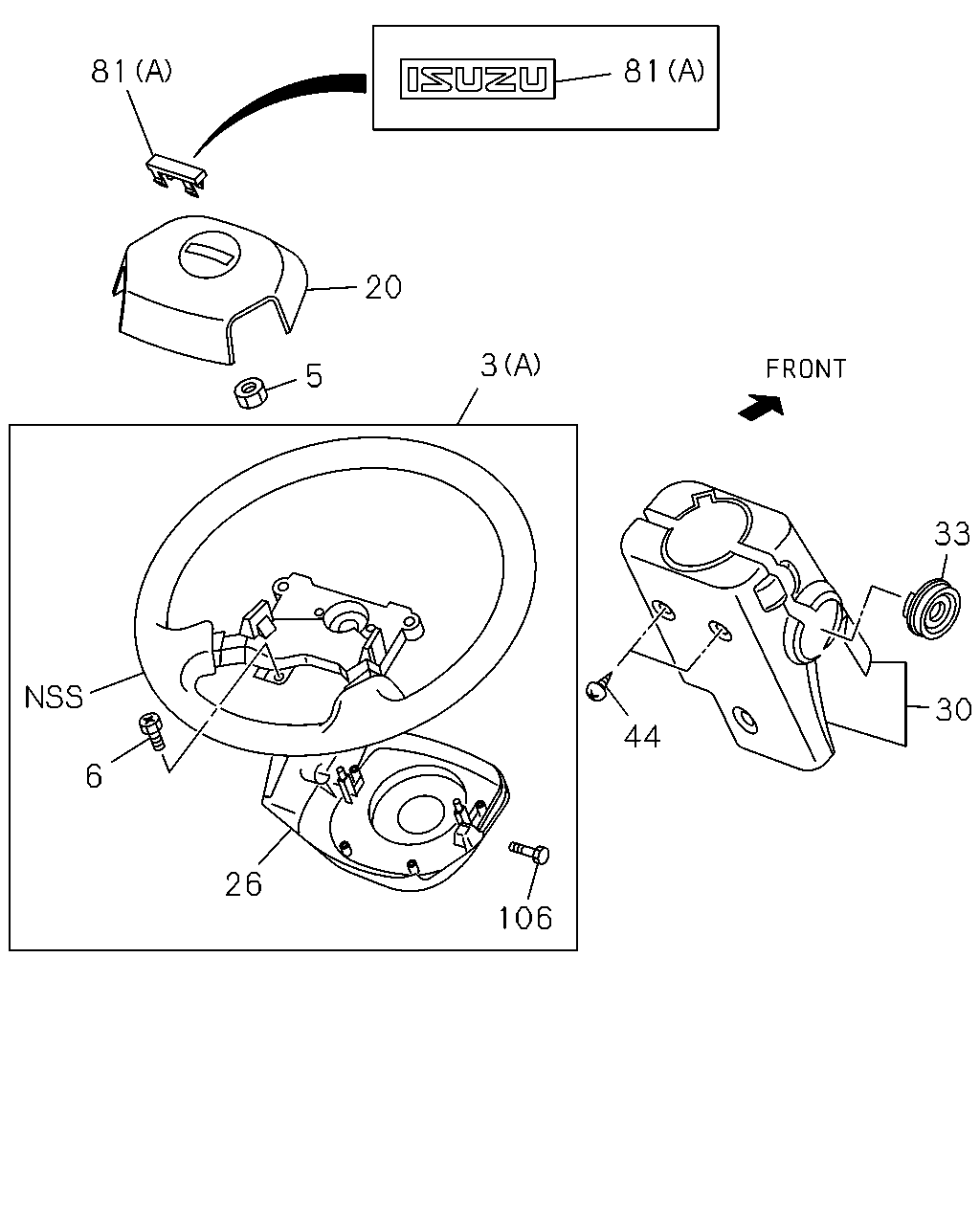

[430A] EXC.FACE LIFT MODEL (14 parça)

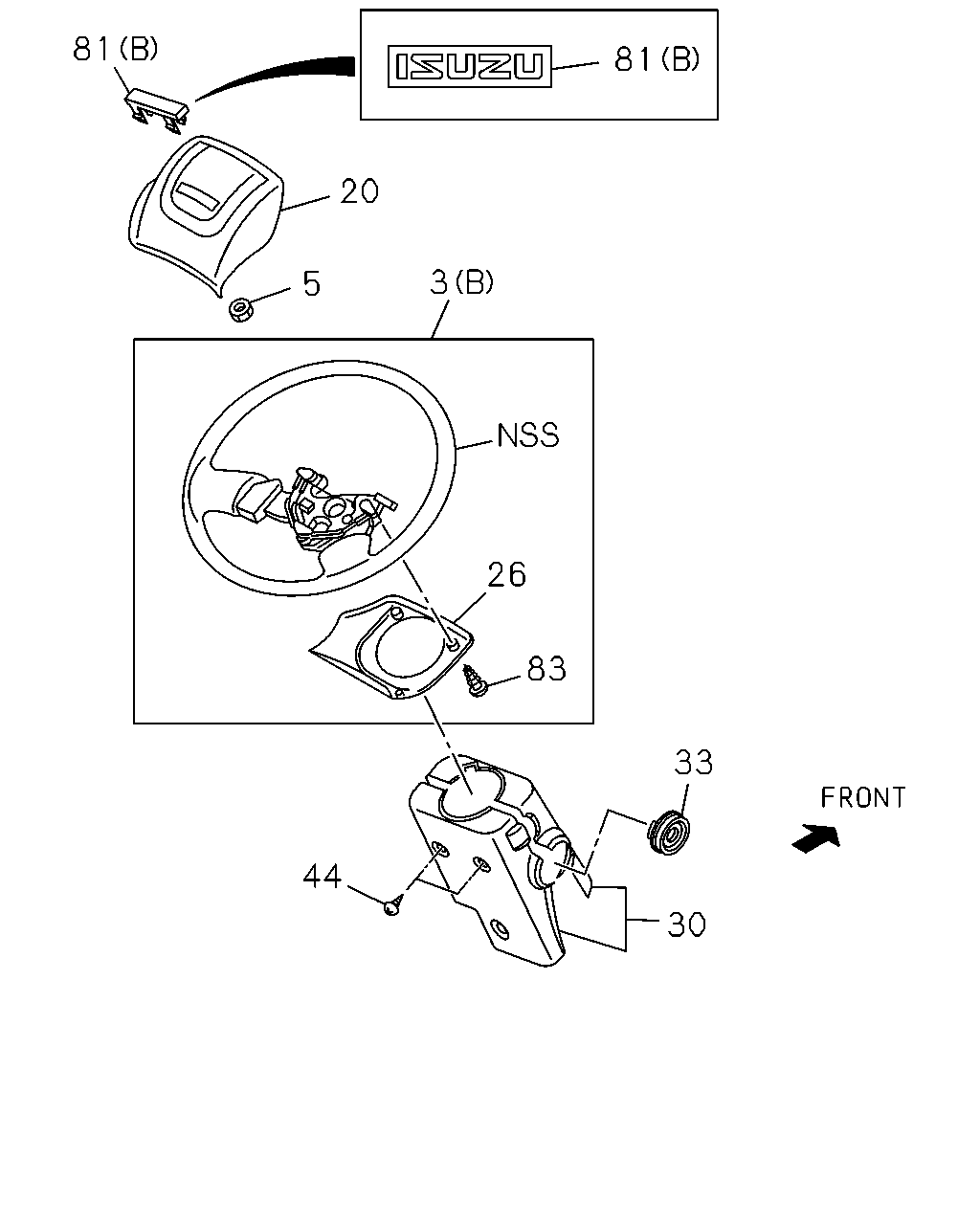

[430A] FACE LIFT MODEL (13 parça)
▶
81
20
81
3
5
6
26
106
44
33
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
SPECIAL PACKAGE<7BB> (B) DARK GRAY
8-97465-649-2
01
1
1412-
3
06.513 WHEEL; STRG
EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY
8-97412-556-1
01
1
1412-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1412-
6
02.820 SCREW; HORN SPR CONTACT
EXC. SPECIAL PACKAGE<7BB> M4X12
8-97167-588-0
04
1
1412-
20
06.512 SHROUD; PAD,STRG WHEEL
SPECIAL PACKAGE<7BB> DARK GRAY
8-97465-647-0
01
1
1412-
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. SPECIAL PACKAGE<7BB> DARK GRAY
8-97405-985-1
01
1
1412-
26
06.514 COVER; STRG WHEEL,LWR
SPECIAL PACKAGE<7BB> DARK GRAY
8-97465-650-0
01
1
1412-
26
06.514 COVER; STRG WHEEL,LWR
EXC. SPECIAL PACKAGE<7BB> DARK GRAY
8-97409-275-2
01
1
1412-
30
06.518 COWL; STEERING
DARK GRAY
8-97405-356-5
01
1
1412-
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1412-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1412-
81
02.820 EMBLEM; STRG WHEEL
SPECIAL PACKAGE<7BB> (B) DARK GRAY
8-97465-648-0
01
1
1412-
81
02.820 EMBLEM; STRG WHEEL
EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY
8-97405-986-0
01
1
1412-
106
05.453 BOLT; TORX
EXC. SPECIAL PACKAGE<7BB>
8-98231-397-0
02
1
1412-
81
20
81
3
5
26
83
33
30
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
SPECIAL PACKAGE<7BB> (B) DARK GRAY
8-97465-649-2
01
1
1412-
3
06.513 WHEEL; STRG
EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY
8-97412-556-1
01
1
1412-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1412-
20
06.512 SHROUD; PAD,STRG WHEEL
SPECIAL PACKAGE<7BB> DARK GRAY
8-97465-647-0
01
1
1412-
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. SPECIAL PACKAGE<7BB> DARK GRAY
8-97405-985-1
01
1
1412-
26
06.514 COVER; STRG WHEEL,LWR
SPECIAL PACKAGE<7BB> DARK GRAY
8-97465-650-0
01
1
1412-
26
06.514 COVER; STRG WHEEL,LWR
EXC. SPECIAL PACKAGE<7BB> DARK GRAY
8-97409-275-2
01
1
1412-
30
06.518 COWL; STEERING
DARK GRAY
8-97405-356-5
01
1
1412-
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1412-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1412-
81
02.820 EMBLEM; STRG WHEEL
SPECIAL PACKAGE<7BB> (B) DARK GRAY
8-97465-648-0
01
1
1412-
81
02.820 EMBLEM; STRG WHEEL
EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY
8-97405-986-0
01
1
1412-
83
06.514 SCREW; LWR COVER TO WHEEL
SPECIAL PACKAGE<7BB> 09.242 M4X10 TAPPING
0-71240-410-0
03
1
1412-
