Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#153730) — 42 parça
◀

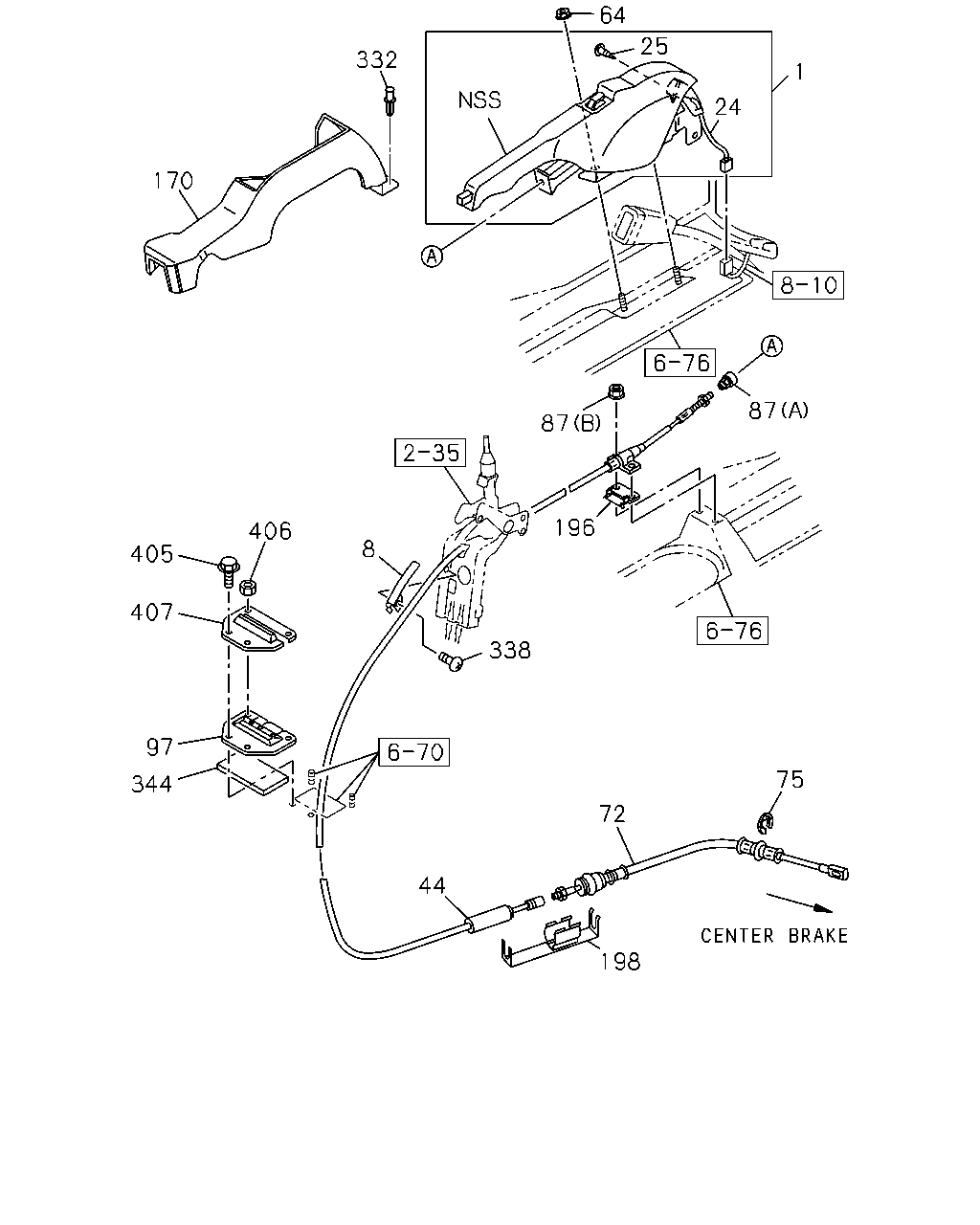

[311A] STEM AND CABLE (21 parça)
[311A] FIXING PARTS(NO.2) (9 parça)
[311A] FIXING PARTS(NO.1) (12 parça)
▶
198
44
72
75
338
196
87
1
24
25
64
332
170
8
87
406
405
407
97
344
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97426-513-0
01
1
1412-
8
04.592 GUIDE; PARKING BRK
8-97190-672-0
01
1
1412-
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1412-
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
1412-
44
04.779 CABLE; PARKING BRK,FRT
8-98189-201-0
01
1
1412-1412
44
04.779 CABLE; PARKING BRK,FRT
8-98292-910-0
01
1
1412-
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
1412-
72
04.779 CABLE; PARKING BRK
8-98172-382-1
01
1
1412-
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
1412-
87
04.785 NUT
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
1412-
87
04.785 NUT
(A) M6
8-98034-313-1
01
1
1412-
97
04.785 GROMMET; PARKING BRK CABLE
04.010
8-97061-403-2
01
1
1412-
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97406-168-1
01
1
1412-
196
04.784 SPACER; CABLE TO LEVER
8-98034-201-0
01
1
1412-
198
04.785 BRACKET; CABLE
8-98034-364-0
01
1
1412-
332
04.785 CLIP; COVER
03.602 D6X12.5
8-94146-425-0
01
1
1412-
338
04.785 SCREW; GUIDE
M6X10
0-34218-610-0
01
1
1412-
344
04.595 GASKET; DASH LWR
04.047
8-97096-753-0
01
1
1412-
405
04.785 BOLT; GROMMET
00.785 M6X20 FLANGE
0-28450-620-0
02
1
1412-
406
04.785 NUT; GROMMET
01.062 M6 FLANGE
0-91180-106-0
02
1
1412-
407
04.785 RETAINER; GROMMET
04.047
8-97048-319-1
01
1
1412-
225
85
237
235
241
324
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
04.785 CLIP; BRKT
ID=14.5 L=20
1-09701-012-0
01
1
1412-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
02
1
1412-
235
04.785 BRACKET; CONT CABLE TO FRAME
8-98034-352-0
01
1
1412-
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1412-
237
04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE
0-91180-108-0
01
1
1412-
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1412-
324
04.785 BRACKET
(A)
8-98003-642-1
01
1
1412-
324
04.785 BRACKET
(B)
8-98185-361-2
01
1
1412-
324
04.785 BRACKET
(C)
8-98185-678-0
01
1
1412-
324
241
181
91
238
181
91
238
324
225
91
91
238
72
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
04.779 CABLE; PARKING BRK,FRT
8-98189-201-0
01
1
1412-1412
44
04.779 CABLE; PARKING BRK,FRT
8-98292-910-0
01
1
1412-
72
04.779 CABLE; PARKING BRK
8-98172-382-1
01
1
1412-
91
04.785 CLIP; PARKING BRK CABLE
04.047 (B)
8-97036-333-1
03
1
1412-
91
04.785 CLIP; PARKING BRK CABLE
(A)
8-98023-622-0
01
1
1412-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1412-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
02
1
1412-
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
03
1
1412-
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1412-
324
04.785 BRACKET
(A)
8-98003-642-1
01
1
1412-
324
04.785 BRACKET
(B)
8-98185-361-2
01
1
1412-
324
04.785 BRACKET
(C)
8-98185-678-0
01
1
1412-
