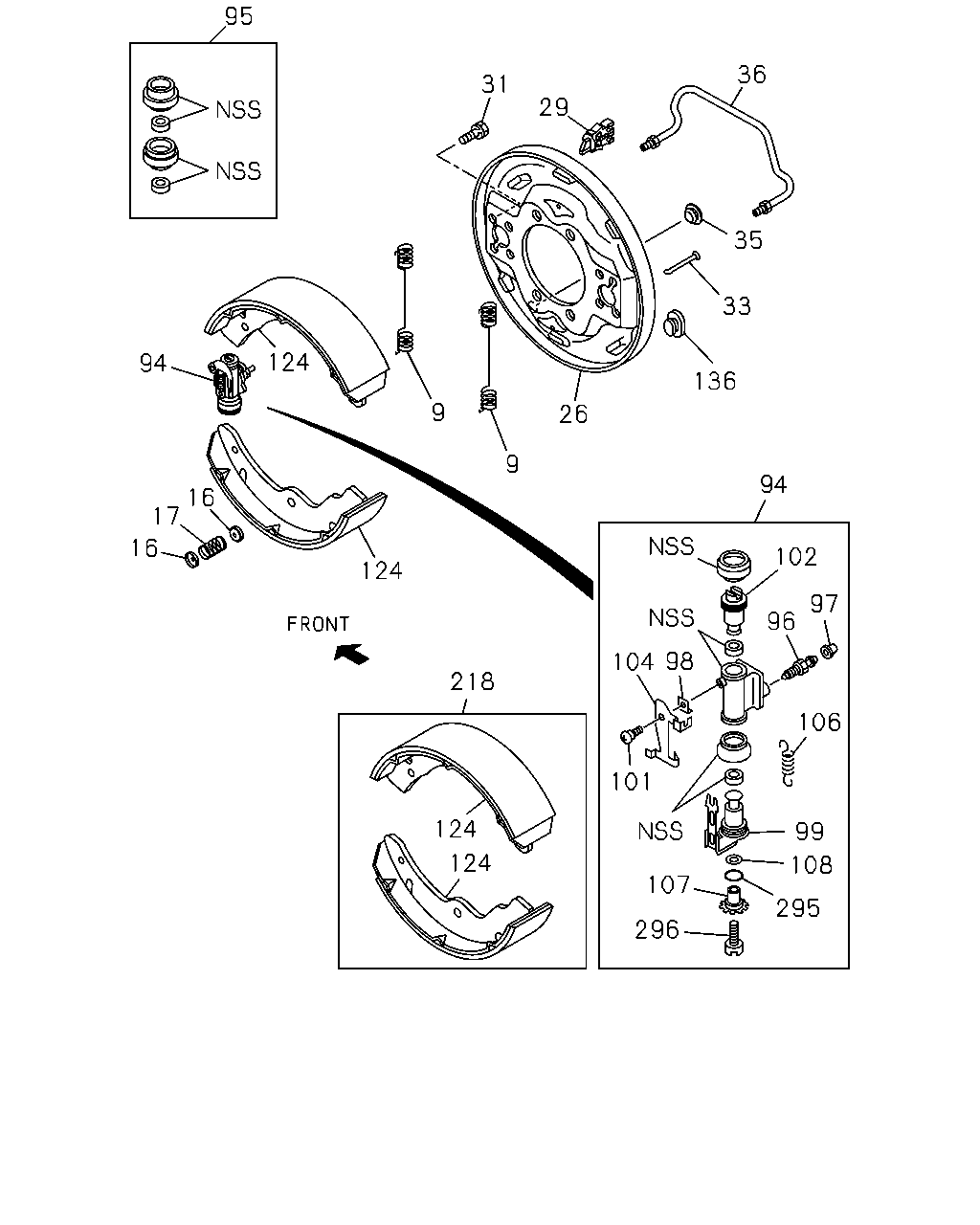

9 |
05.026 SPRING; RETURN,BRK SHOE
REAR
|
8-97191-705-0 |
02 |
1 |
1412- |
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
FRONT
|
8-97191-706-0 |
02 |
1 |
1412- |
| |
16 |
05.043 CUP; SHOE HOLDING
|
8-97191-712-0 |
08 |
1 |
1412- |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
|
8-97191-708-0 |
04 |
1 |
1412- |
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97191-493-1 |
01 |
1 |
1412- |
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97191-494-1 |
01 |
1 |
1412- |
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-97191-703-0 |
02 |
1 |
1412- |
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
8-97192-214-0 |
16 |
1 |
1412- |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
8-97191-710-0 |
04 |
1 |
1412- |
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-97191-720-0 |
02 |
1 |
1412- |
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-97191-701-0 |
02 |
1 |
1412- |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FRONT
|
8-97191-722-0 |
01 |
1 |
1412- |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR
|
8-97191-723-0 |
01 |
1 |
1412- |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
|
8-97191-724-0 |
02 |
1 |
1412- |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87831-776-0 |
01 |
1 |
1412- |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
8-97191-759-0 |
01 |
1 |
1412- |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
8-97191-774-0 |
01 |
1 |
1412- |
| |
98 |
04.669 SPRING; RR WHEEL CYL
|
8-97191-768-0 |
04 |
1 |
1412- |
| |
99 |
04.668 PISTON; RR WHEEL CYL
|
8-97191-729-0 |
02 |
1 |
1412- |
| |
99 |
04.668 PISTON; RR WHEEL CYL
|
8-97191-730-0 |
02 |
1 |
1412- |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
|
8-97191-770-0 |
04 |
1 |
1412- |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
|
8-97191-756-0 |
04 |
1 |
1412- |
| |
104 |
05.103 LEVER; ADJ
|
8-97191-741-0 |
02 |
1 |
1412- |
| |
104 |
05.103 LEVER; ADJ
|
8-97191-742-0 |
02 |
1 |
1412- |
| |
106 |
05.107 SPRING; ADJ LEVER
|
8-97191-745-0 |
02 |
1 |
1412- |
| |
106 |
05.107 SPRING; ADJ LEVER
|
8-97191-746-0 |
02 |
1 |
1412- |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
8-97191-749-0 |
02 |
1 |
1412- |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
8-97191-750-0 |
02 |
1 |
1412- |
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
|
8-97241-310-0 |
04 |
1 |
1412- |
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97171-439-0 |
04 |
1 |
1412- |
| |
136 |
05.002 GROMMET
|
8-97191-718-0 |
04 |
1 |
1412- |
| |
218 |
05.017 SHOE KIT; BRK,RR
|
5-87832-109-0 |
01 |
1 |
1412- |
| |
295 |
05.110 SEAL; DUST
|
8-97191-751-0 |
04 |
1 |
1412- |
| |
296 |
05.125 BOLT; ADJ,RR WHEEL CYL
|
8-97191-766-0 |
02 |
1 |
1412- |
| |
296 |
05.125 BOLT; ADJ,RR WHEEL CYL
|
8-97191-767-0 |
02 |
1 |
1412- |
