2-26 — MANUAL TRANSMISSION GEAR (#153722) — 73 parça

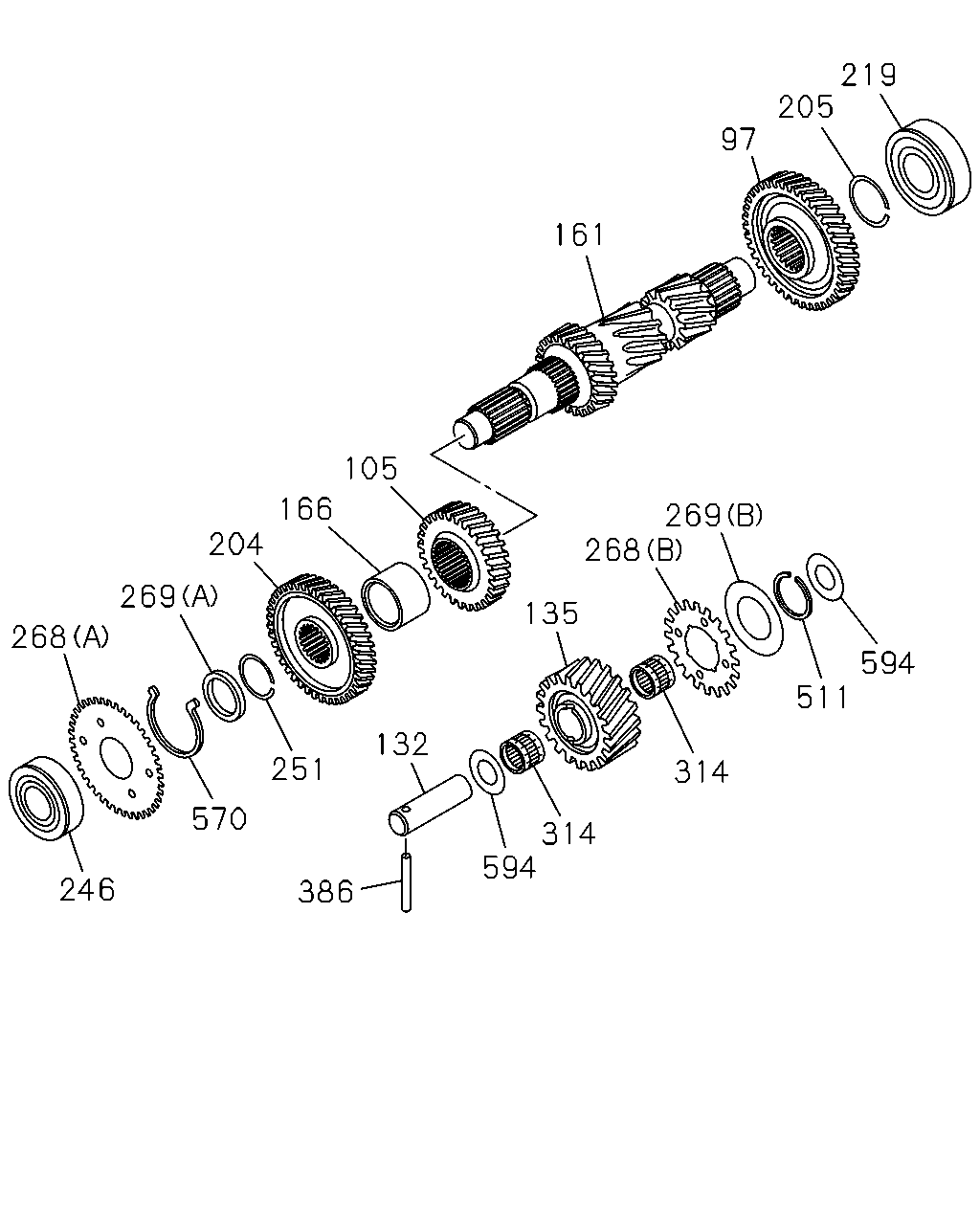

çizim 458635
246 268 204 269 570 132 594 386 314 314 511 269 268 135 105 166 161 97 205 219 594 251
BalonParca AdiParca NoAdetTipApplied Date
97 04.415 GEAR; 5TH,COUNTER 8-98183-377-0 01 1 1412-
105 04.415 GEAR; 3RD,COUNTER 8-98183-374-0 01 1 1412-
132 04.433 SHAFT; REV 8-98184-691-0 01 1 1412-
135 04.430 GEAR; REV IDLER 8-98184-686-0 01 1 1412-
161 04.428 SHAFT; COUNTER,TRANSFER 8-98183-373-0 01 1 1412-
166 04.435 PIECE; DIST 8-98183-378-0 01 1 1412-
204 04.423 WASHER; THRUST,COUNTER GEAR 8-98183-375-0 01 1 1412-
205 04.422 RING; SNAP,COUNTER GEAR 8-98183-409-0 01 1 1412-
219 04.422 BEARING; BALL,CLUSTER,RR 8-98183-387-0 01 1 1412-
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR 8-98183-389-0 01 1 1412-
251 04.412 RING; SNAP
04.416 T=1.47 		8-98183-423-0 01 1 1412-
251 04.412 RING; SNAP
04.416 T=1.56 		8-98183-424-0 01 1 1412-
251 04.412 RING; SNAP
04.416 T=1.65 		8-98183-425-0 01 1 1412-
268 04.537 PLATE; ANTI LASH,COUNTER
(A) 		8-98183-403-0 01 1 1412-
268 04.537 PLATE; ANTI LASH,COUNTER
(B) 		8-98184-687-0 01 1 1412-
269 04.537 SPACER; ANTI LASH PLATE,COUNTER
(A) 		8-98183-408-0 01 1 1412-
269 04.537 SPACER; ANTI LASH PLATE,COUNTER
(B) 		8-98184-689-0 01 1 1412-
314 04.419 BEARING; NEEDLE,REV GEAR 8-98184-692-0 02 1 1412-
386 04.435 PIN; REV SHAFT 8-98184-694-0 01 1 1412-
511 04.416 RING; SNAP,ANTI LASH PLATE 8-98184-690-0 01 1 1412-
570 04.422 SPRING; PLATE 8-98183-405-0 01 1 1412-
594 04.437 WASHER; THRUST,REV IDLE 8-98184-693-0 02 1 1412-

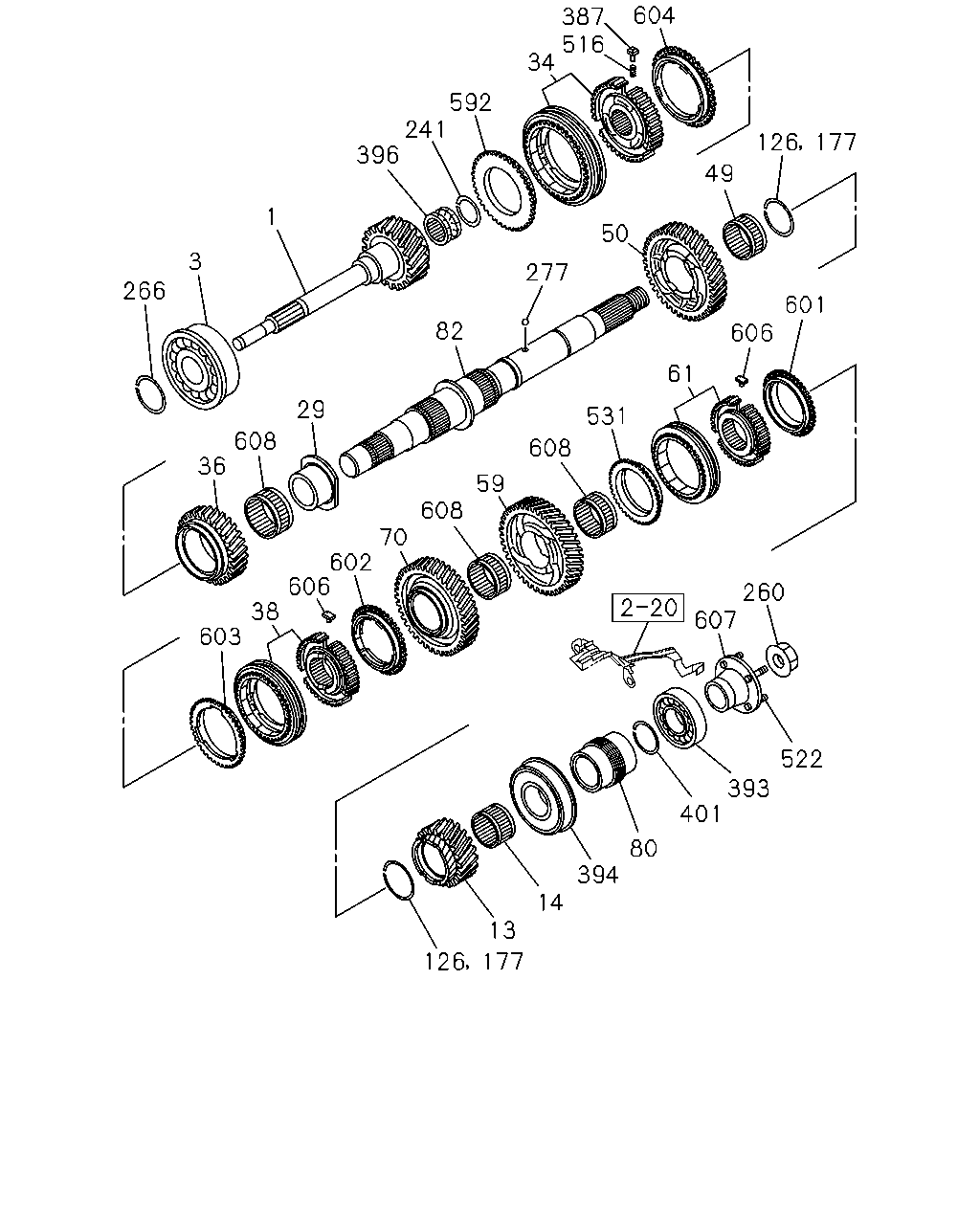

çizim 459123
126 177 13 394 14 80 393 607 401 59 608 70 602 606 38 603 36 608 29 266 3 1 396 241 592 34 516 387 604 49 50 277 82 608 531 61 606 601 126 177 260 522
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS 8-98183-365-0 01 1 1412-
3 04.403 BEARING; TOP GEAR SHAFT 8-98183-367-0 01 1 1412-
13 04.415 GEAR; 5TH,MAINSHAFT 8-98183-415-0 01 1 1412-
14 04.419 BEARING; NEEDLE,5TH 8-98183-419-0 01 1 1412-
29 04.416 COLLAR; 3RD GEAR 8-98183-422-0 01 1 1412-
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-98183-439-0 01 1 1412-
36 04.415 GEAR; 3RD,MAINSHAFT 8-98183-414-0 01 1 1412-
38 04.384 SYNCHRONIZER; LOW & 2ND 8-98183-438-0 01 1 1412-
49 04.352 BEARING; NEEDLE,2ND GEAR 8-98183-421-0 01 1 1412-
50 04.395 GEAR; 2ND,MAINSHAFT 8-98183-413-0 01 1 1412-
59 04.417 GEAR; REV MAINSHAFT 8-98183-411-0 01 1 1412-
61 04.380 SYNCHRONIZER; REV & 5TH 8-98183-440-0 01 1 1412-
70 04.417 GEAR; 1ST,MAINSHAFT 8-98183-412-0 01 1 1412-
80 04.343 GEAR; SPD DRIVE 8-98183-432-0 01 1 1412-
82 04.403 SHAFT; MAIN,TRANS 8-98183-410-0 01 1 1412-
126 04.422 RING; SNAP,CLU HUB
T=1.83 		8-98183-429-0 01 1 1412-
126 04.422 RING; SNAP,CLU HUB
T=1.92 		8-98183-430-0 01 1 1412-
126 04.422 RING; SNAP,CLU HUB
T=2.01 		8-98183-431-0 01 1 1412-
177 04.384 RING; SNAP,CLU HUB
04.422 T=1.83 		8-98183-429-0 01 1 1412-
177 04.384 RING; SNAP,CLU HUB
04.422 T=1.92 		8-98183-430-0 01 1 1412-
177 04.384 RING; SNAP,CLU HUB
04.422 T=2.01 		8-98183-431-0 01 1 1412-
241 04.416 RING; SNAP
T=1.47 		8-98183-423-0 01 1 1412-
241 04.416 RING; SNAP
T=1.56 		8-98183-424-0 01 1 1412-
241 04.416 RING; SNAP
T=1.65 		8-98183-425-0 01 1 1412-
241 04.416 RING; SNAP
T=1.52 		8-98183-426-0 01 1 1412-
241 04.416 RING; SNAP
T=1.61 		8-98183-427-0 01 1 1412-
241 04.416 RING; SNAP
T=1.70 		8-98183-428-0 01 1 1412-
260 04.412 NUT; MAINSHAFT END 8-98184-684-0 01 1 1412-
266 04.525 RING; SNAP,BRG INNER
T=1.86 		8-98183-368-0 01 1 1412-
266 04.525 RING; SNAP,BRG INNER
T=1.95 		8-98183-369-0 01 1 1412-
266 04.525 RING; SNAP,BRG INNER
T=2.04 		8-98183-370-0 01 1 1412-
277 04.345 BALL; SPD DRIVE GEAR 8-98183-433-0 01 1 1412-
387 04.384 INSERT; SYN,4TH & 3RD 8-98183-442-0 03 1 1412-
393 04.352 BEARING; MAINSHAFT END 8-98183-417-0 01 1 1412-
394 04.419 BEARING; BALL,MAINSHAFT RR 8-98183-416-0 01 1 1412-
396 04.352 BEARING; NEEDLE,MAINSHAFT 8-98183-418-0 01 1 1412-
401 04.345 RING; SNAP,SPD DRIVE GEAR
T=1.88 		8-98183-434-0 01 1 1412-
401 04.345 RING; SNAP,SPD DRIVE GEAR
T=1.98 		8-98183-435-0 01 1 1412-
401 04.345 RING; SNAP,SPD DRIVE GEAR
T=2.08 		8-98183-436-0 01 1 1412-
401 04.345 RING; SNAP,SPD DRIVE GEAR
T=2.18 		8-98183-437-0 01 1 1412-
516 04.384 SPRING; SYNCHRO,INDEX 8-98183-441-0 03 1 1412-
522 05.586 BOLT; FLANGE 8-97062-766-0 04 1 1412-
531 04.383 RING; BLOCK,REV 8-98183-449-0 01 1 1412-
592 04.383 RING; BLOCK,4TH 8-98183-447-0 01 1 1412-
601 04.383 RING; BLOCK,5TH 8-98183-448-0 01 1 1412-
602 04.380 SYNCHRONIZER; 1ST 8-98183-444-0 01 1 1412-
603 04.380 SYNCHRONIZER; 2ND 8-98183-445-0 01 1 1412-
604 04.380 SYNCHRONIZER; 3RD 8-98183-446-0 01 1 1412-
606 04.384 INSERT; SYN,LOW & 2ND,5TH & REV 8-98183-443-0 06 1 1412-
607 05.545 FLANGE; COUPLING 8-98184-683-0 01 1 1412-
608 04.419 BEARING; NEEDLE,1ST,3RD,REV 8-98183-420-0 03 1 1412-
