Isuzu WW
▶
TRUCKS
▶
NHR
▶
51596 - NHR RHD EURO5 WB 2400MM
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶
2-20 — MANUAL TRANSMISSION ASM AND CASE
(#153720) — 33 parça
◀

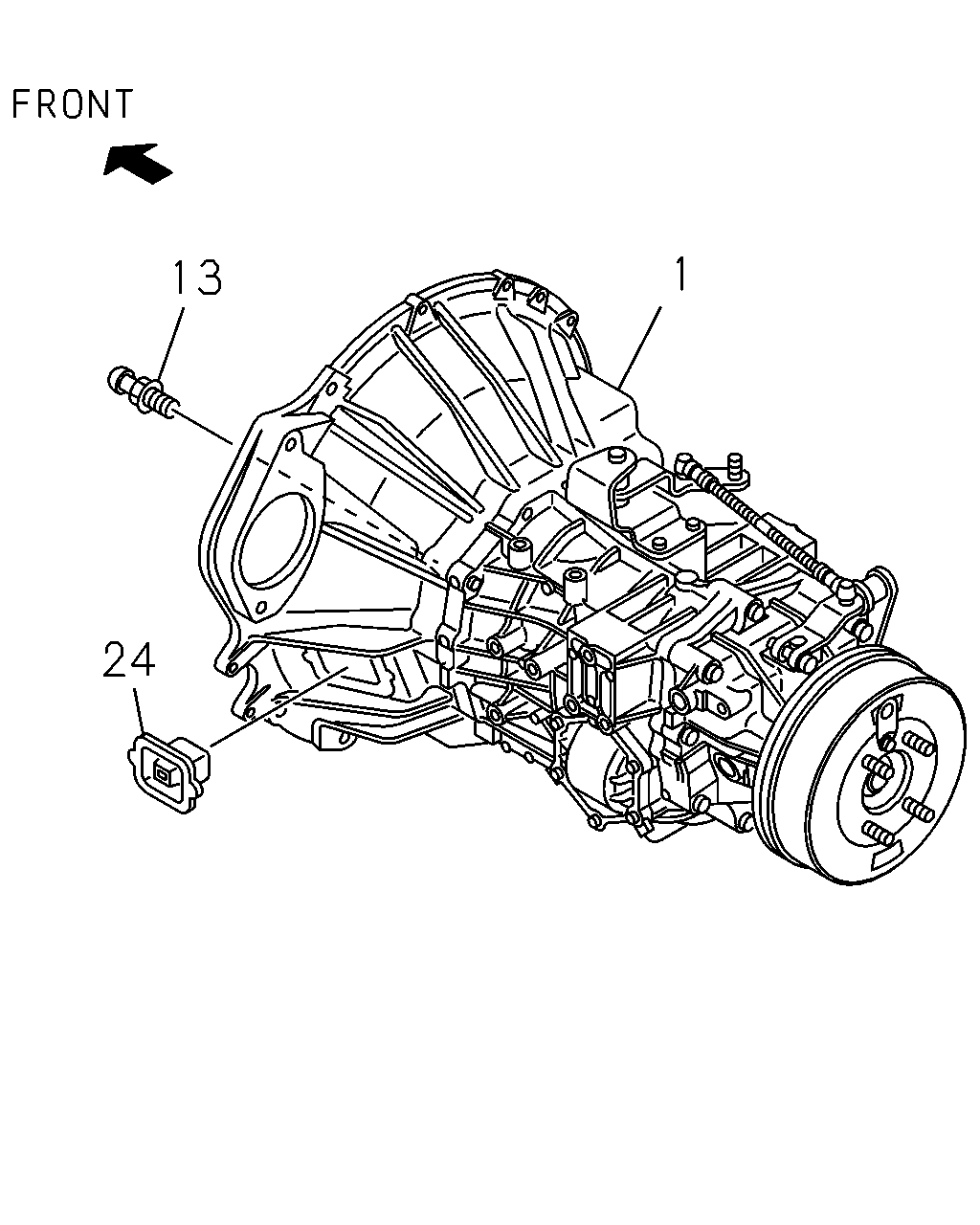

[220A] NO.1 (4 parça)
[220A] NO.2 (29 parça)
▶
1
13
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.003 TRANSMISSION ASM; MANUAL
8-98179-757-0
01
1
1412-1505
1
04.003 TRANSMISSION ASM; MANUAL
8-98311-973-0
01
1
1506-
13
04.302 SUPPORT; SHIFT FORK
8-97255-384-1
01
1
1412-
24
00.797 COVER; CHECK HOLE,DUST
8-97255-201-0
01
1
1412-
366
257
609
33
261
28
609
434
366
417
651
430
41
42
83
83
429
435
701
608
611
421
86
86
62
86
610
429
317
319
86
149
319
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
28
04.356 COVER; FRT,TRANS CASE
8-98183-362-0
01
1
1412-
33
04.318 SEAL; OIL,FRT COVER,T/M
8-98184-698-0
01
1
1412-
41
04.311 SPRING; DETENT BALL
8-98184-553-0
03
1
1412-
42
04.311 BALL; DETENT,GEAR SHIFT
8-98184-359-0
03
1
1412-
62
04.318 GASKET; RR COVER
8-98184-560-0
01
1
1412-
83
04.105 GASKET; PLUG
8-98184-544-0
02
1
1412-
86
04.317 BOLT; RR COVER
(A)
8-98184-542-0
05
1
1412-
86
04.317 BOLT; RR COVER
(B)
8-98184-570-0
01
1
1412-
86
04.317 BOLT; RR COVER
(C)
8-98184-571-0
03
1
1412-
149
04.105 WASHER; LK
8-98184-697-0
02
1
1412-
257
02.559 CLIP; HARNESS
8-98184-539-0
01
1
1412-
261
04.109 BOLT; COVER
8-98184-695-0
08
1
1412-
317
04.109 COVER; CASE
8-98184-685-0
01
1
1412-
319
04.109 BOLT; COVER
(A)
8-98184-695-0
04
1
1412-
319
04.109 BOLT; COVER
(B)
8-98184-696-0
02
1
1412-
366
04.105 BOLT; BRKT,HARNESS
8-98184-541-0
02
1
1412-
417
04.105 PLUG; OIL FILLER,TRANS
8-98184-545-0
01
1
1412-
421
04.317 COVER; RR,TRANS
8-98183-364-0
01
1
1412-
429
04.105 PIN; STRAIGHT
8-98184-349-0
04
1
1412-
430
04.105 PLUG; OIL DRAIN
8-98184-543-0
01
1
1412-
434
00.683 HOUSING; CLU
8-98183-361-0
01
1
1412-
435
04.103 CASE; TRANS
8-98183-363-0
01
1
1412-
608
04.317 GUTTER; OIL
8-98184-548-0
01
1
1412-
609
04.104 BOLT; HSG TO CASE
04.317 (A)
8-98184-542-0
02
1
1412-
609
04.104 BOLT; HSG TO CASE
(B)
8-98184-699-0
08
1
1412-
610
04.412 RETAINER; BRG
8-98184-546-0
01
1
1412-
611
04.104 SCREW
8-98184-533-0
04
1
1412-
651
04.105 BRACKET; T/M HARNESS
8-98184-538-0
01
1
1412-
701
04.105 BREATHER
8-98184-701-0
01
1
1412-
