Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#15372) — 55 parça
◀

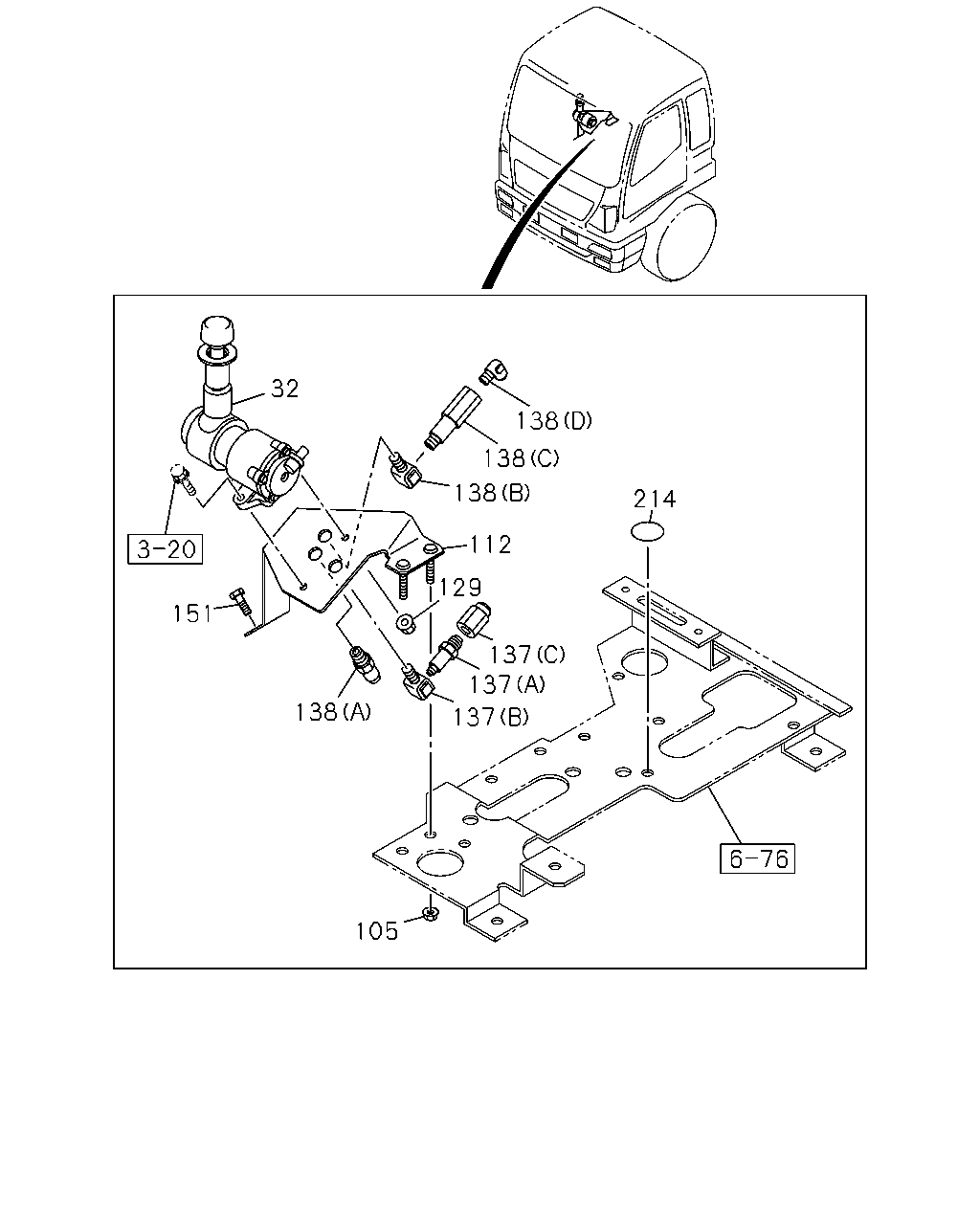

[326A] FIXING;CAB SIDE (13 parça)

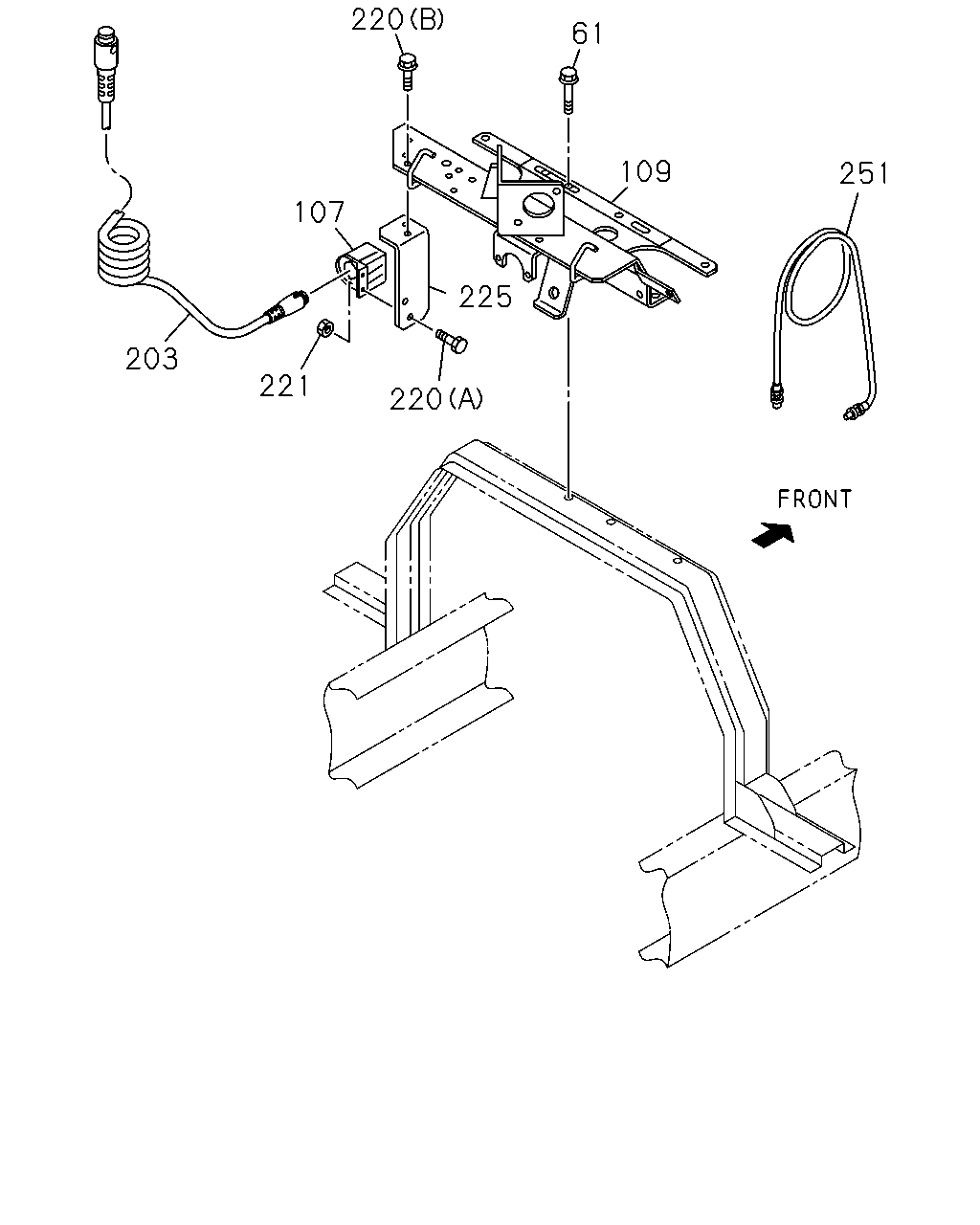

[326A] FRAME SIDE NO.2 (10 parça)

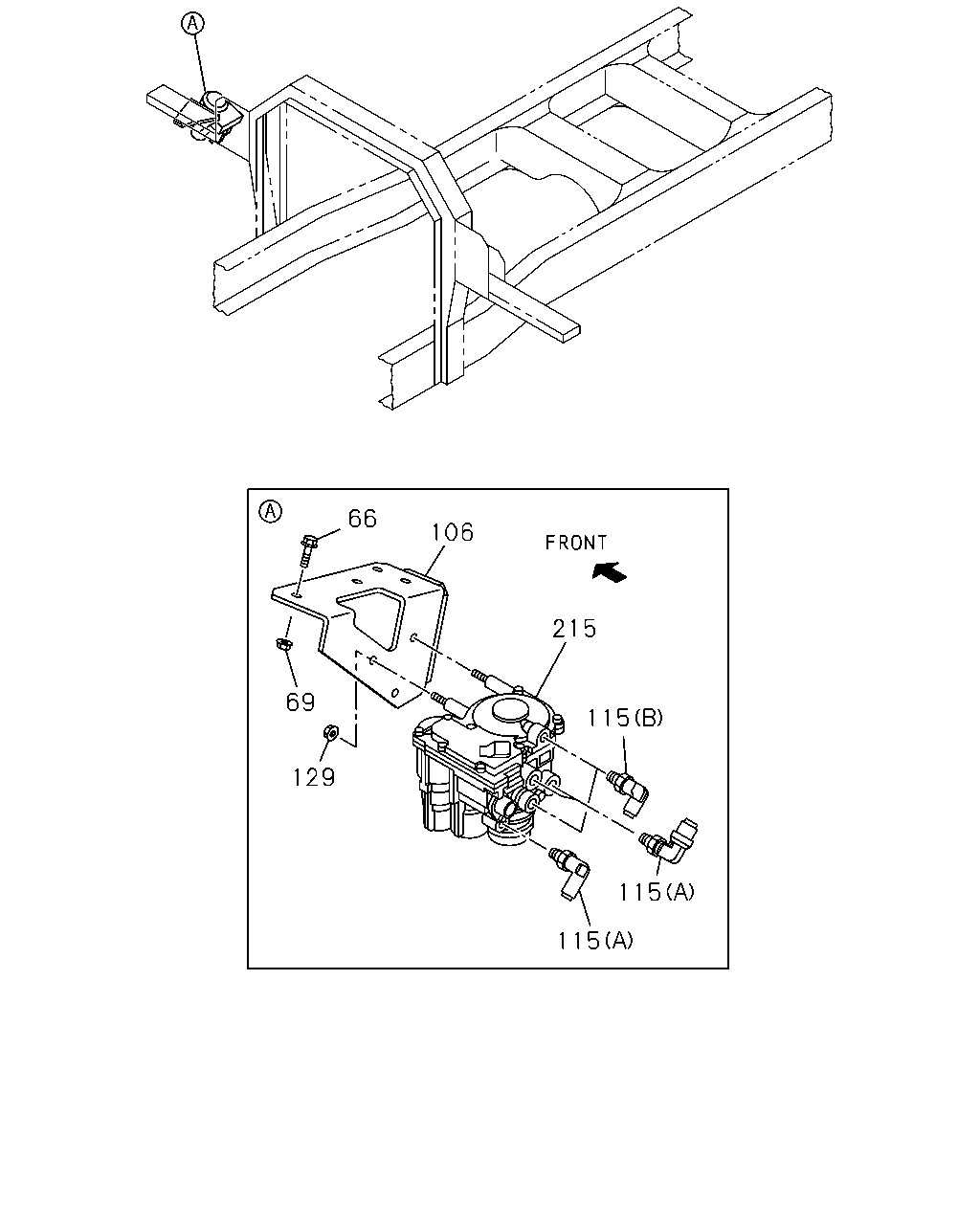

[326A] FRAME SIDE NO.1 (7 parça)

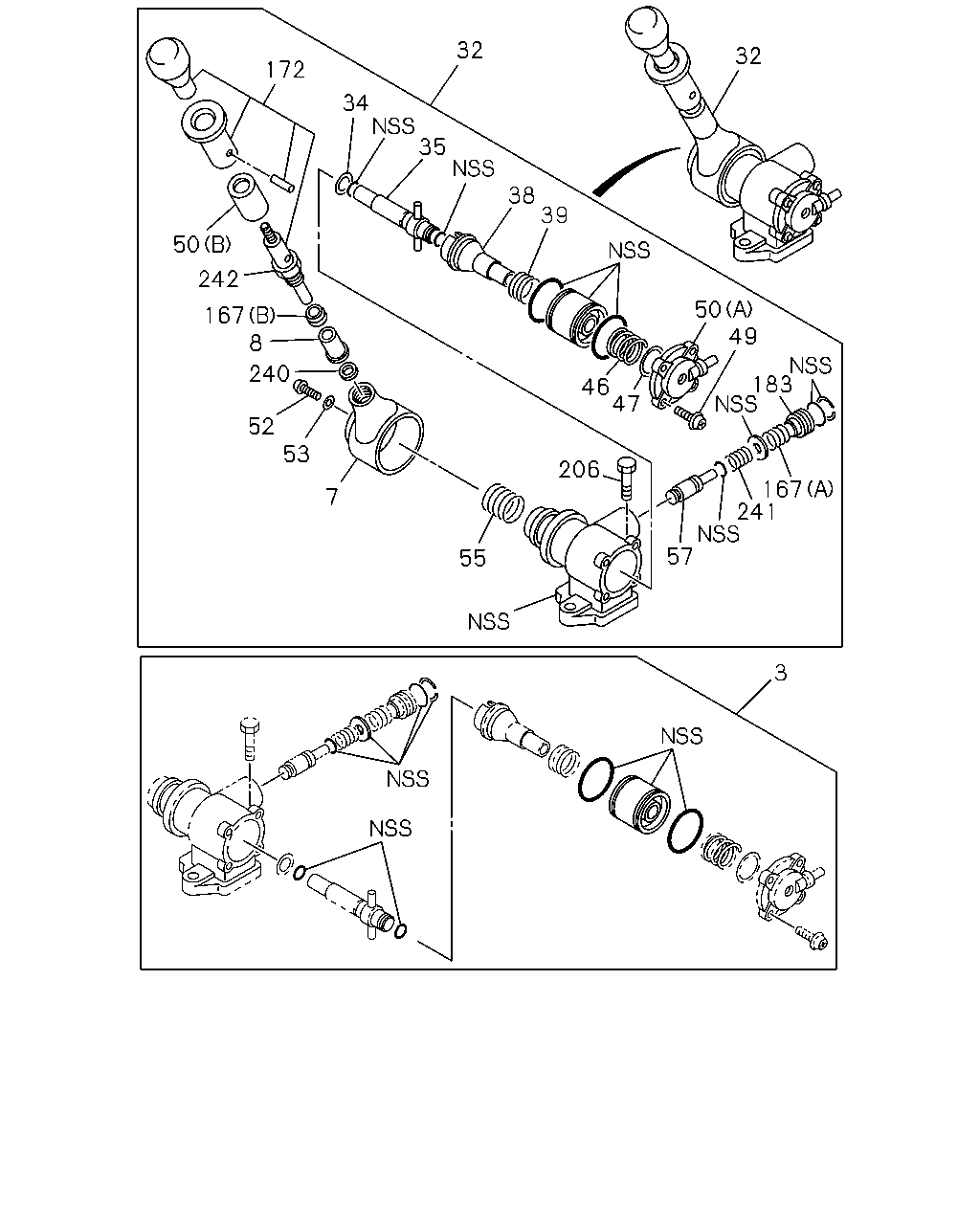

[326A] HAND CONT VALVE (25 parça)
▶
32
138
138
138
214
112
129
151
137
137
138
137
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-339-1
01
1
0804-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0804-
112
BRACKET; CONT VLV
1-79996-387-0
01
1
0804-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
04
1
0804-
137
CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
0804-
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
0804-
137
CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0804-
138
CONNECTOR; DELIVERY
(C)
1-09660-335-1
01
1
0804-
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
01
1
0804-
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0804-
138
CONNECTOR; DELIVERY
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0804-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0804-
214
SEAL; COVER,HAND BRK
OD=25 BLACK
1-76798-019-0
02
1
0804-
220
61
109
251
107
225
203
221
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BOLT; STEP BOARD
M10X30 FLANGE
0-28651-030-0
06
1
0804-
107
HANGER; JUMPER HOSE
1-57550-022-2
01
1
0804-
109
BRACKET; HOSE HANGER
8-98092-035-0
01
1
0804-
203
CABLE; JUMPER
L=5500
1-82659-201-2
01
1
0804-1009
203
CABLE; JUMPER
L=5500
8-98107-178-0
01
1
1010-
220
BOLT; HANGER
(A) M6X16 FLANGE
0-28650-616-0
02
1
0804-
220
BOLT; HANGER
(B) M8X25 FLANGE
0-28650-825-0
02
1
0804-
221
NUT; HANGER
M6 FLANGE
0-91180-106-0
02
1
0804-
225
BRACKET; HANGER
1-82698-657-0
01
1
0804-
251
CABLE; JUMPER,EBS
1-82659-210-2
01
1
0804-
66
106
215
69
115
129
115
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
66
BOLT; VLV BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0804-
69
NUT; VLV BRKT
M8 FLANGE
0-91180-108-0
01
1
0804-
106
BRACKET; VLV
1-48495-281-0
01
1
0804-
115
CONNECTOR; DUAL RELAY VLV
(A) DIN12 & M22 ELBOW
1-09661-521-0
03
1
0804-
115
CONNECTOR; DUAL RELAY VLV
(B) DIN8 & M16 ELBOW
1-09661-531-0
02
1
0804-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
04
1
0804-
215
VALVE; TRAILER CONT
1-48240-191-1
01
1
0804-
32
32
172
34
35
38
39
50
242
50
49
167
8
183
240
46
47
52
53
206
167
241
57
7
55
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-85576-376-0
01
1
0804-
7
HEAD; BRK VLV
1-48469-201-0
01
1
0804-
8
STOPPER; BRK VLV
1-48469-200-0
01
1
0804-
32
VALVE; BRK,HAND CONT
1-48460-339-1
01
1
0804-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0804-
35
HOLDER; CAM
1-48469-171-0
01
1
0804-
38
SEAT; EXH VLV
1-48469-172-0
01
1
0804-
39
SPRING; RETURN,CAM RING
1-48469-150-0
01
1
0804-
46
SPRING; MAIN,PISTON
1-48469-173-0
01
1
0804-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0804-
49
SCREW; COVER
1-48469-169-0
04
1
0804-
50
COVER; HAND BRK VLV
(A)
1-48469-153-0
01
1
0804-
50
COVER; HAND BRK VLV
(B)
1-48469-196-0
01
1
0804-
52
SCREW; HANDLE
1-48469-062-0
01
1
0804-
53
WASHER; HANDLE
1-48469-061-0
01
1
0804-
55
SPRING; RETURN,HANDLE
1-48469-155-0
01
1
0804-
57
PLUNGER; HAND BRK VLV
1-48469-180-0
01
1
0804-
167
SPRING; VALVE
(A)
1-48469-177-0
01
1
0804-
167
SPRING; VALVE
(B)
1-48469-184-0
01
1
0804-
172
KNOB; VALVE
1-48469-203-0
01
1
0804-
183
RETAINER; VALVE
1-48469-185-0
01
1
0804-
206
BOLT; HAND BRK VALVE
1-48469-160-0
01
1
0804-
240
RING; STOPPER
1-48469-199-0
01
1
0804-
241
SPRING; RETURN
1-48469-182-0
01
1
0804-
242
NUT; LK
1-48469-179-0
01
1
0804-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
