1-41 — FUEL PIPING; CHASSIS (#153711) — 40 parça
çizim 458419
313 629 640 640 628
BalonParca AdiParca NoAdetTipApplied Date
313 03.163 COOLER ASM; FUEL 8-98175-112-0 01 1 1412-
628 03.162 NUT; FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1412-
629 03.162 BRACKET; FUEL CLR 8-98175-093-3 01 1 1412-
640 03.162 NUT; BRKT,FUEL CLR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1412-

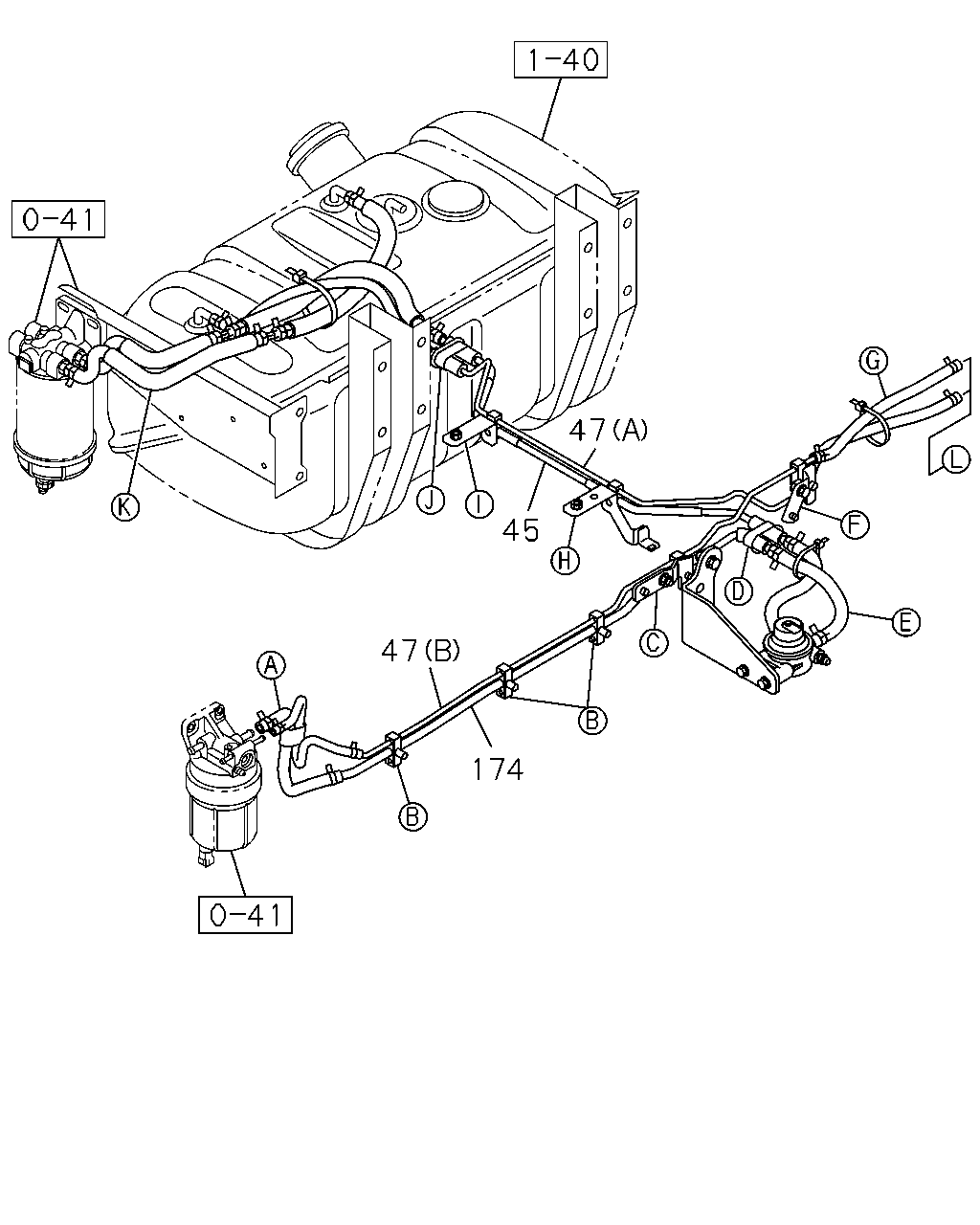

çizim 458907
47 45 47 174
BalonParca AdiParca NoAdetTipApplied Date
45 03.163 PIPE; FUEL,DELIVERY 8-98250-861-0 01 1 1412-
47 03.163 PIPE; FUEL,RETURN
(A) 		8-98299-877-0 01 1 1412-
47 03.163 PIPE; FUEL,RETURN
(B) L=971 		8-98137-013-2 01 1 1412-
174 03.163 PIPE; FUEL,FEED,FRT 8-98239-998-0 01 1 1412-

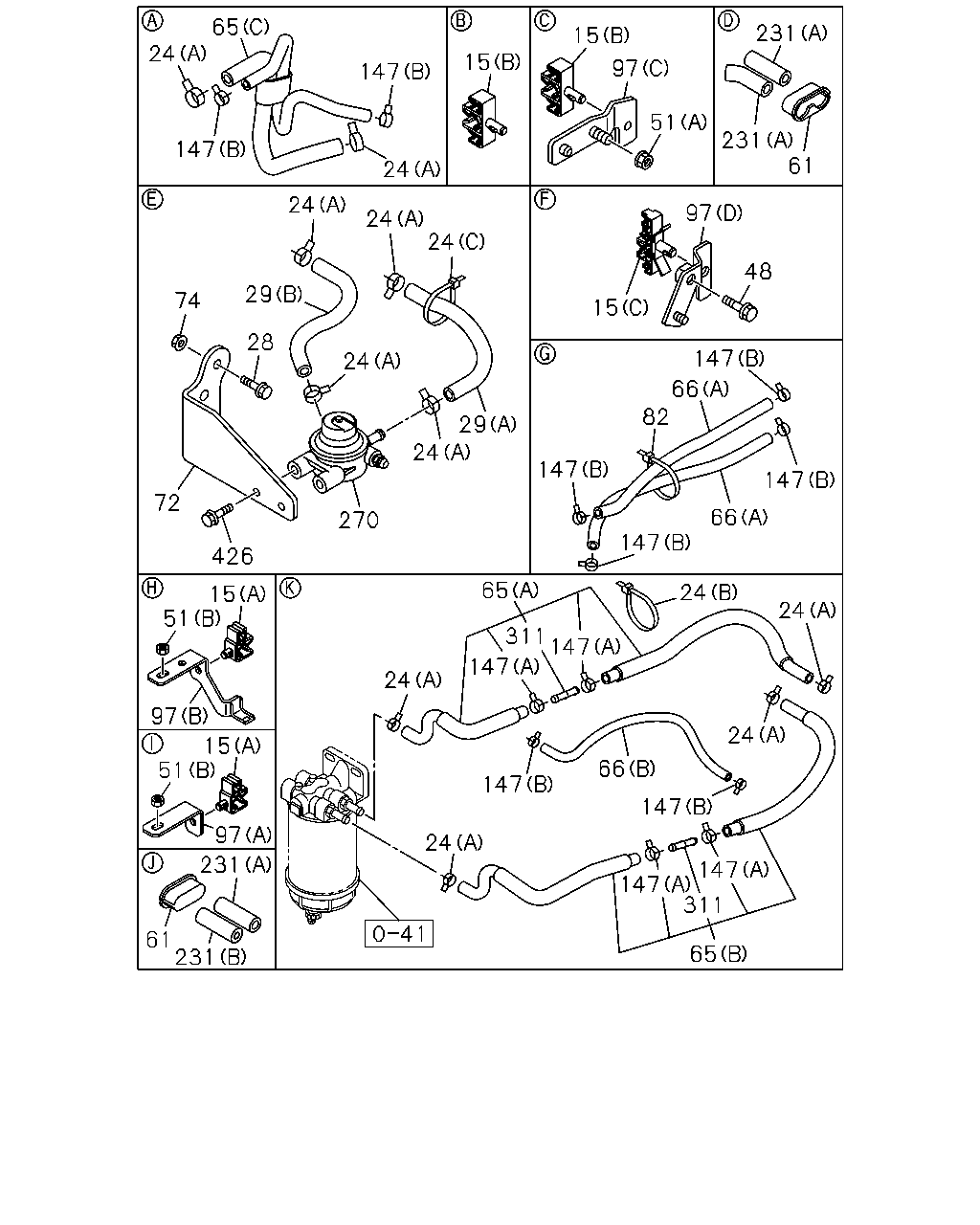

çizim 459151
65 24 147 147 24 24 24 24 29 28 74 72 426 270 24 29 24 15 51 97 15 51 97 231 61 231 24 147 24 147 65 311 147 66 147 24 147 147 311 65 24 24 66 147 147 82 66 147 147 48 97 15 51 97 15 15 231 231 61
BalonParca AdiParca NoAdetTipApplied Date
15 03.162 CLIP; FUEL PIPE
(A) ID=12 & 6.35 		8-97215-437-0 02 1 1412-
15 03.162 CLIP; FUEL PIPE
04.686 (B) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 1412-
15 03.162 CLIP; FUEL PIPE
(C) ID=10 OR 12 & 6.35X2 & 4.76 		8-97326-156-2 01 1 1412-
24 03.162 CLIP; FUEL HOSE
02.559 (B) L=250 		5-09707-030-1 01 1 1412-
24 03.162 CLIP; FUEL HOSE
(C) L=140 		5-09707-031-1 01 1 1412-
24 03.162 CLIP; FUEL HOSE
(A) ID=16 		8-98008-098-0 10 1 1412-
28 03.330 BOLT; BRKT,FUEL PUMP
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1412-
29 03.163 HOSE; FUEL
03.003 (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 1412-
29 03.163 HOSE; FUEL
(B) L=200 		8-98081-038-0 01 1 1412-
48 03.162 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1412-
51 03.162 NUT; CLIP,PIPE
00.787 (B) M10 		0-91111-510-0 02 1 1412-
51 03.162 NUT; CLIP,PIPE
(A) M10 FLANGE 		0-91180-110-0 01 1 1412-
61 03.162 GROMMET; PIPE TO FRAME 8-98038-801-0 02 1 1412-
65 03.163 HOSE; FUEL,DELIVERY PIPE
(A) 		8-98098-175-1 01 1 1412-
65 03.163 HOSE; FUEL,DELIVERY PIPE
(B) 		8-98098-176-1 01 1 1412-
65 03.163 HOSE; FUEL,DELIVERY PIPE
(C) 		8-98286-162-0 01 1 1412-
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=350 SERVICED BY L=3000 		0-01855-300-0 02 1 1412-
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 1412-
72 03.901 BRACKET; FUEL PUMP & FILTER 8-98107-370-0 01 1 1412-
74 03.901 NUT; BRKT,FUEL PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 1412-
82 03.163 CLIP; FUEL HOSE
03.162 L=140 		5-09707-031-1 01 1 1412-
97 03.162 BRACKET; CLIP
(A) 		8-98006-480-1 01 1 1412-
97 03.162 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 1412-
97 03.162 BRACKET; CLIP
(C) 		8-98064-442-1 01 1 1412-
97 03.162 BRACKET; CLIP
04.686 (D) 		8-98136-287-1 01 1 1412-
147 03.162 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 04 1 1412-
147 03.162 CLIP; FUEL PIPE TO HOSE
01.240 (B) ID=12 		8-98150-358-0 08 1 1412-
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 		8-94157-054-1 01 1 1412-
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 03 1 1412-
270 03.900 PUMP ASM; FUEL 8-97948-892-0 01 1 1412-
311 03.163 JOINT; HOSE 8-97353-668-0 02 1 1412-
426 03.330 BOLT; FUEL PUMP
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1412-
