0-52 — OIL AND VACUUM PIPING; ENGINE (#153698) — 41 parça

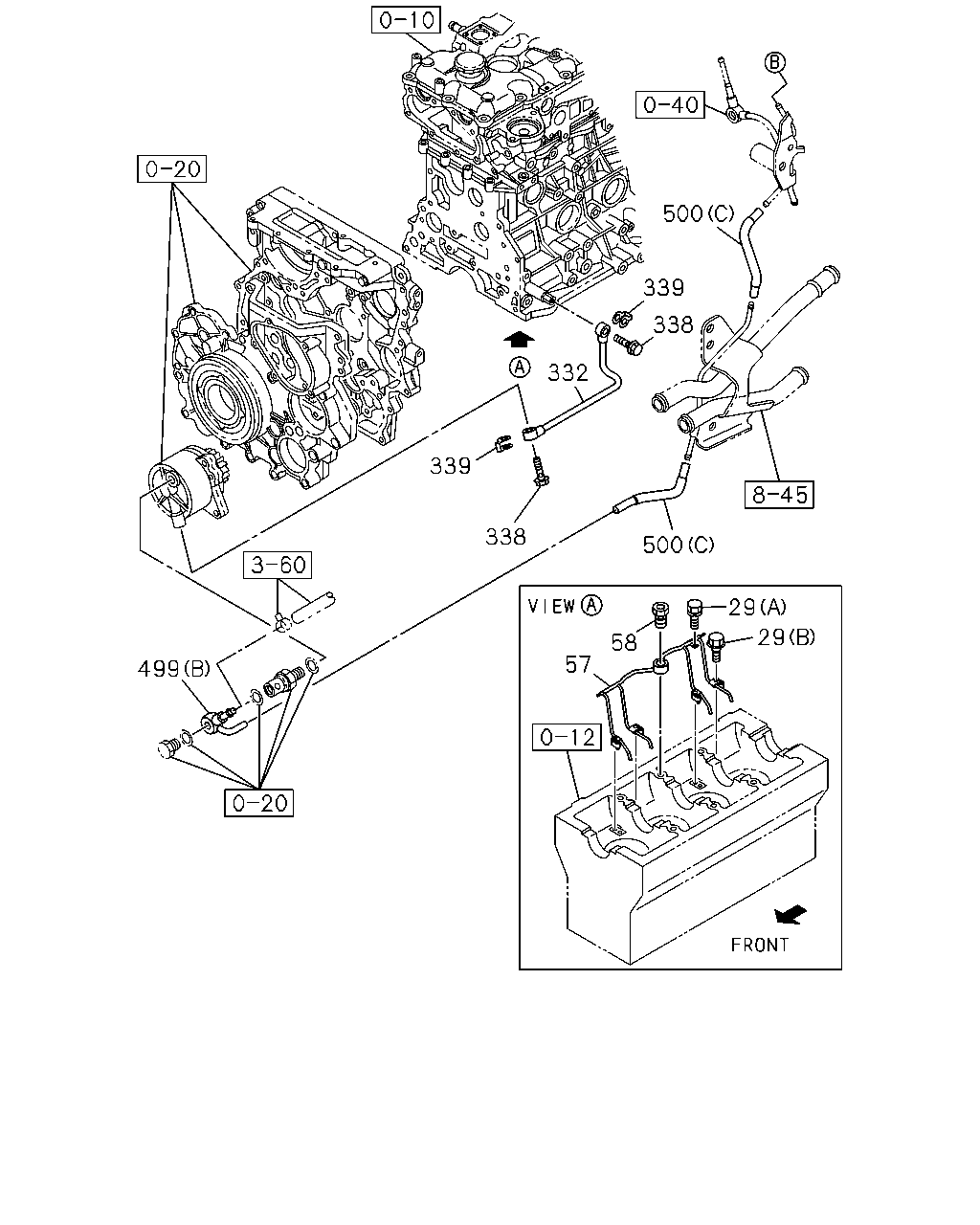

çizim 458338
500 339 332 338 339 338 500 29 29 58 57 499
BalonParca AdiParca NoAdetTipApplied Date
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1412-
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1412-
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1412-
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1412-
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98201-785-0 01 1 1412-
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 02 1 1412-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 ID=8.3 OD=15.0 		8-98065-992-0 02 1 1412-
499 04.681 PIPE; VACUUM
(B) 		8-97381-661-3 01 1 1412-
499 04.681 PIPE; VACUUM
(A) 		8-98253-339-1 01 1 1412-
500 04.681 HOSE; VACUUM
03.675 (A) 		8-98115-246-1 01 1 1412-
500 04.681 HOSE; VACUUM
(C) 		8-98135-007-0 02 1 1412-
500 04.681 HOSE; VACUUM
(B) 		8-98254-074-1 01 1 1412-

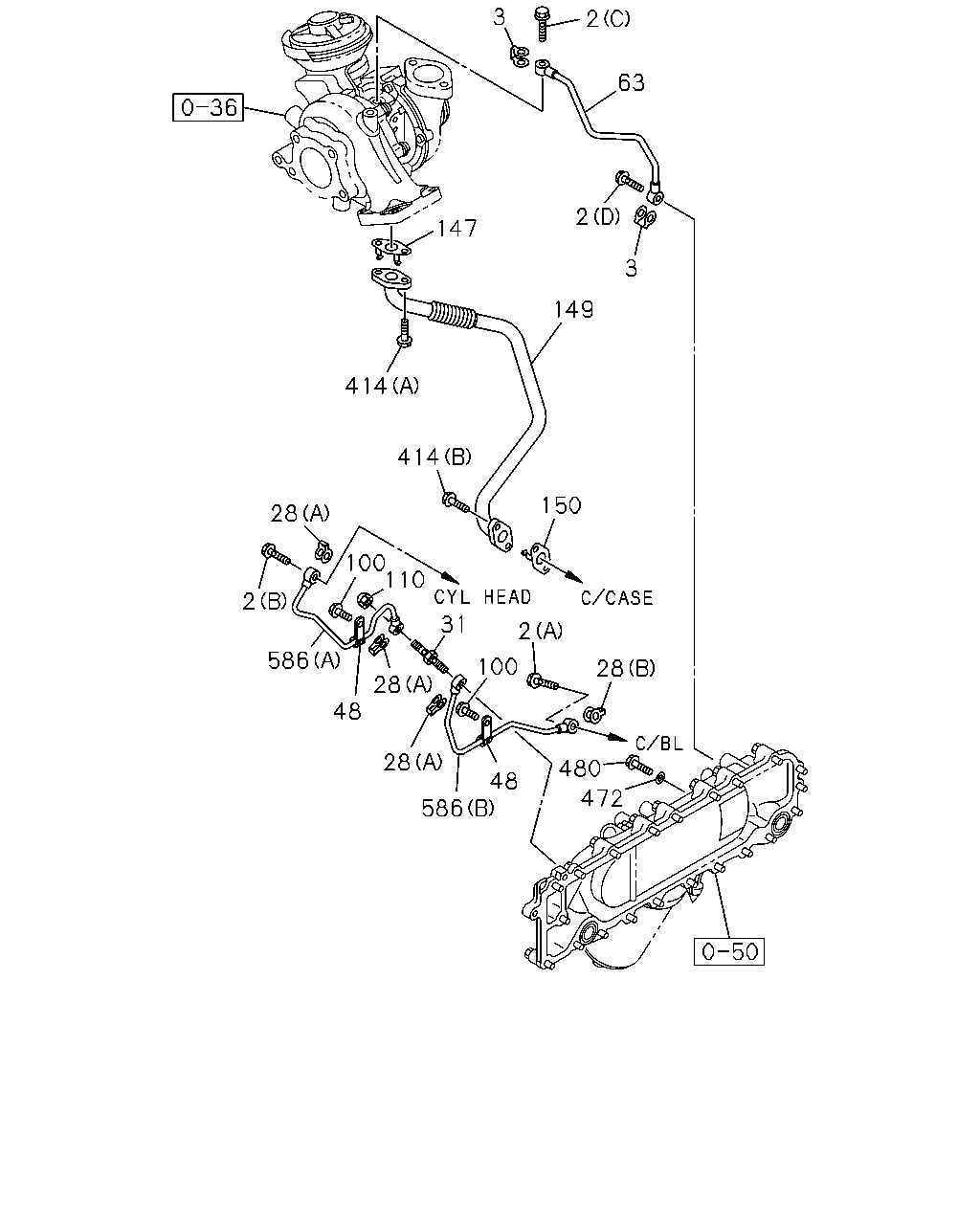

çizim 458348
472 586 28 48 586 2 28 110 100 31 100 28 480 2 150 414 414 147 149 2 63 2 3 3 28 48
BalonParca AdiParca NoAdetTipApplied Date
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1412-
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1412-
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X23 FLANGE 		8-98108-689-0 01 1 1412-
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1412-
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 		8-98136-142-0 02 1 1412-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 03 1 1412-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1412-
31 01.540 NIPPLE; OIL PIPE 8-98130-410-1 01 1 1412-
48 01.531 CLIP; OIL PIPE
ID=7 L=28 		8-98121-233-0 02 1 1412-
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 1412-
100 01.531 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1412-
110 01.531 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1412-
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16 		8-98029-475-0 01 1 1412-
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98201-786-3 01 1 1412-1509
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98320-802-0 01 1 1510-
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98201-788-1 01 1 1412-
414 01.531 BOLT; OIL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1412-
414 01.531 BOLT; OIL PIPE
00.724 (A) M6X16 HEX SOCKET 		0-58330-616-0 02 1 1412-
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0 		9-09571-410-0 01 1 1412-
480 01.519 PLUG; OIL FILTER
M10X10 		1-09604-074-0 01 1 1412-
586 01.519 PIPE; OIL,TENSIONER
(A) 		8-98074-743-1 01 1 1412-
586 01.519 PIPE; OIL,TENSIONER
(B) 		8-98130-165-0 01 1 1412-
çizim 459066
585 131 500 500 499
BalonParca AdiParca NoAdetTipApplied Date
131 01.531 NUT; UNION
06.164 M8 FLANGE 		5-09440-010-0 01 1 1412-
499 04.681 PIPE; VACUUM
(B) 		8-97381-661-3 01 1 1412-
499 04.681 PIPE; VACUUM
(A) 		8-98253-339-1 01 1 1412-
500 04.681 HOSE; VACUUM
03.675 (A) 		8-98115-246-1 01 1 1412-
500 04.681 HOSE; VACUUM
(C) 		8-98135-007-0 02 1 1412-
500 04.681 HOSE; VACUUM
(B) 		8-98254-074-1 01 1 1412-
585 01.531 STUD; CLIP
01.428 M8X18 L=30 		0-41010-818-0 01 1 1412-
