◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53B - TRANSMISSION OIL COOLER SYSTEM ▶
2-53B — TRANSMISSION OIL COOLER SYSTEM (#153670) — 60 parça

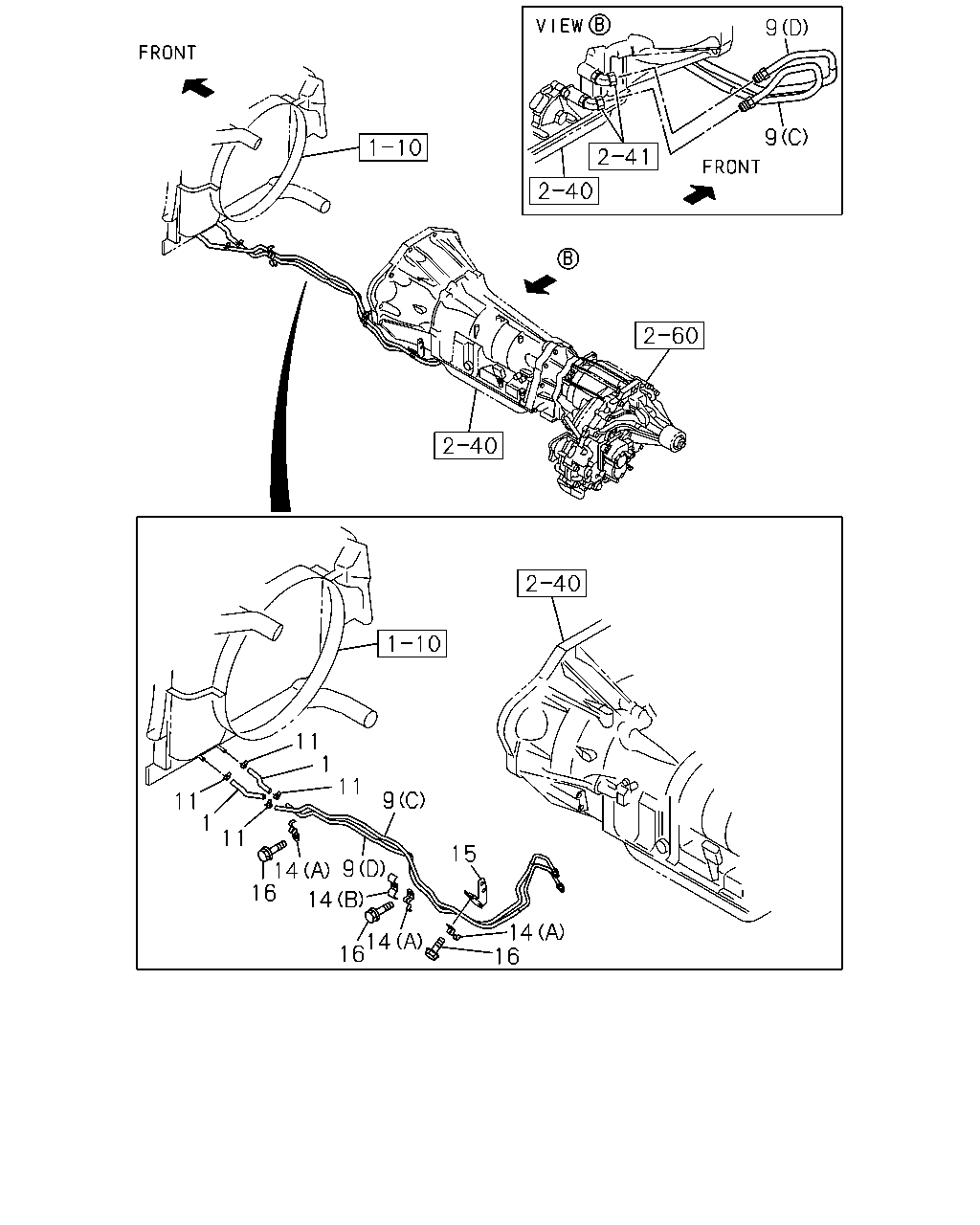

çizim 458031
9 9 11 1 11 9 15 14 16 11 1 11 16 14 14 16 9 14
BalonParca AdiParca NoAdetTipApplied Date
1 04.128 HOSE; ATF
L=180 SERVICED BY L=3000 		0-02259-300-0 02 1 1409-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCY ENG(RDX) (A) INLET 		8-98289-239-1 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCY ENG(RDX) (B) RETURN 		8-98289-242-1 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C) INLET 		8-98289-240-1 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN 		8-98289-243-1 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) (A) INLET 		8-98100-272-2 01 1 1409-1411
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) INLET 		8-98100-272-2 01 1 1412-1509
9 04.128 PIPE; ATF,INL,A/T
4X2 EXTENDED CAB(TFB*C*) 4JJ1-TCX ENG(LS0) (A) INLET 		8-98100-272-2 01 1 1510-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) INLET 		8-98100-272-2 01 1 1510-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) (B) RETURN 		8-98100-274-2 01 1 1409-1411
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) RETURN 		8-98100-274-2 01 1 1412-1509
9 04.128 PIPE; ATF,INL,A/T
4X2 EXTENDED CAB(TFB*C*) 4JJ1-TCX ENG(LS0) (B) RETURN 		8-98100-274-2 01 1 1510-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) RETURN 		8-98100-274-2 01 1 1510-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) INLET 		8-98221-531-2 01 1 1409-1411
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (C) INLET 		8-98221-531-2 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCX ENG(LS0) (D) RETURN 		8-98221-532-2 01 1 1409-1411
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN 		8-98221-532-2 01 1 1412-
11 04.128 CLIP; PIPE 8-98008-165-0 04 1 1409-
14 04.128 CLIP; PIPE TO ENG SIDE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) (A) 		8-98008-163-0 03 1 1409-1411
14 04.128 CLIP; PIPE TO ENG SIDE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) 		8-98008-163-0 03 1 1412-1509
14 04.128 CLIP; PIPE TO ENG SIDE
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98008-163-0 03 1 1412-1509
14 04.128 CLIP; PIPE TO ENG SIDE
4X2 EXTENDED CAB(TFB*C*) 4JJ1-TCX ENG(LS0) (A) 		8-98008-163-0 03 1 1510-
14 04.128 CLIP; PIPE TO ENG SIDE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) 		8-98008-163-0 03 1 1510-
14 04.128 CLIP; PIPE TO ENG SIDE
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98008-163-0 03 1 1510-
14 04.128 CLIP; PIPE TO ENG SIDE
4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) 		8-98008-163-0 02 1 1409-1411
14 04.128 CLIP; PIPE TO ENG SIDE
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98008-163-0 02 1 1412-
14 04.128 CLIP; PIPE TO ENG SIDE
4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) 		8-98232-374-0 01 1 1409-1411
14 04.128 CLIP; PIPE TO ENG SIDE
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98232-374-0 01 1 1412-
15 04.128 BRACKET; ATF PIPE 8-98100-277-0 01 1 1409-
16 04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1409-

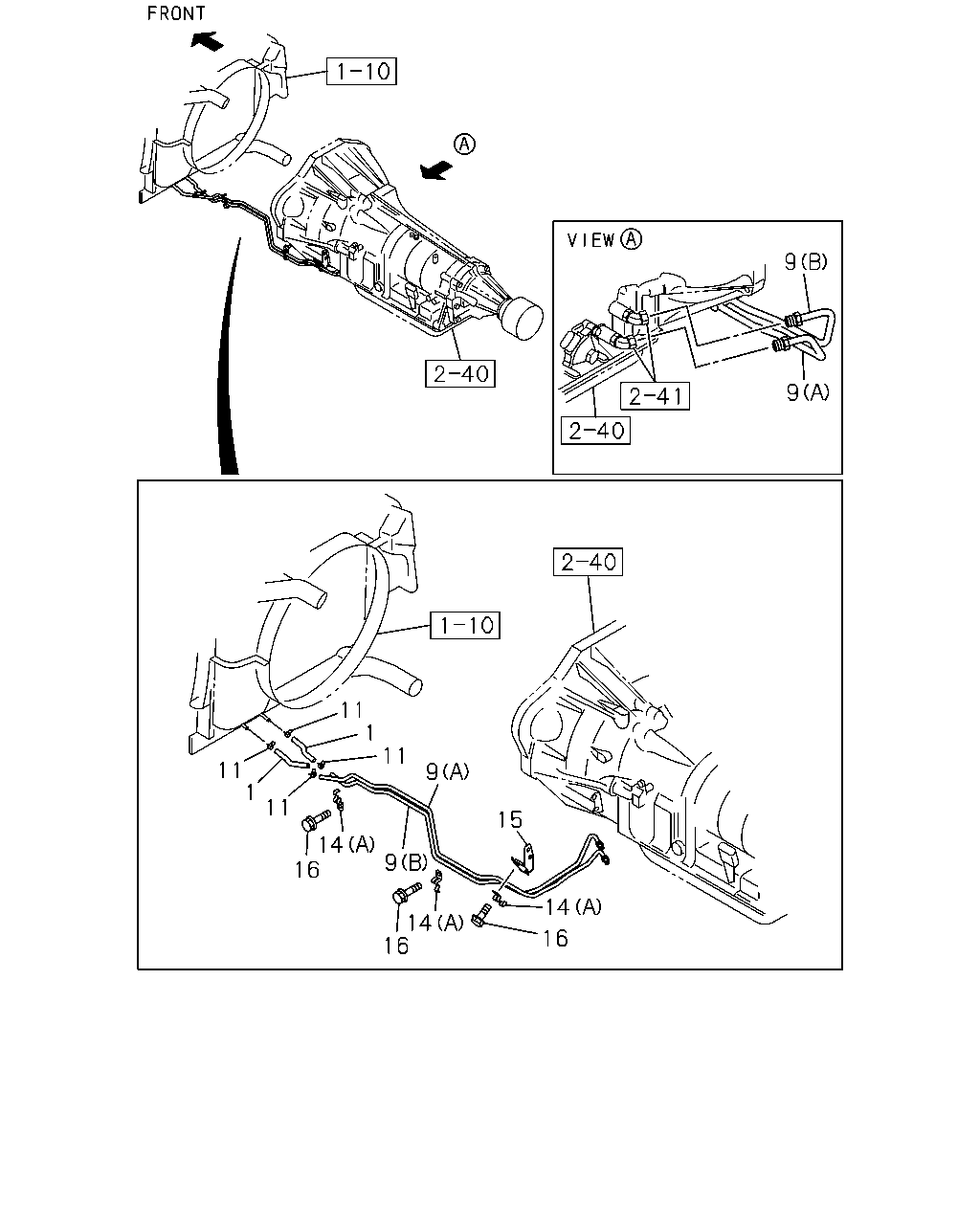

çizim 458048
9 9 11 1 11 9 15 14 16 14 16 14 9 16 11 1 11
BalonParca AdiParca NoAdetTipApplied Date
1 04.128 HOSE; ATF
L=180 SERVICED BY L=3000 		0-02259-300-0 02 1 1409-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCY ENG(RDX) (A) INLET 		8-98289-239-1 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCY ENG(RDX) (B) RETURN 		8-98289-242-1 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C) INLET 		8-98289-240-1 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN 		8-98289-243-1 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) (A) INLET 		8-98100-272-2 01 1 1409-1411
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) INLET 		8-98100-272-2 01 1 1412-1509
9 04.128 PIPE; ATF,INL,A/T
4X2 EXTENDED CAB(TFB*C*) 4JJ1-TCX ENG(LS0) (A) INLET 		8-98100-272-2 01 1 1510-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) INLET 		8-98100-272-2 01 1 1510-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) (B) RETURN 		8-98100-274-2 01 1 1409-1411
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) RETURN 		8-98100-274-2 01 1 1412-1509
9 04.128 PIPE; ATF,INL,A/T
4X2 EXTENDED CAB(TFB*C*) 4JJ1-TCX ENG(LS0) (B) RETURN 		8-98100-274-2 01 1 1510-
9 04.128 PIPE; ATF,INL,A/T
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) RETURN 		8-98100-274-2 01 1 1510-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) INLET 		8-98221-531-2 01 1 1409-1411
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (C) INLET 		8-98221-531-2 01 1 1412-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCX ENG(LS0) (D) RETURN 		8-98221-532-2 01 1 1409-1411
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (D) RETURN 		8-98221-532-2 01 1 1412-
11 04.128 CLIP; PIPE 8-98008-165-0 04 1 1409-
14 04.128 CLIP; PIPE TO ENG SIDE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) (A) 		8-98008-163-0 03 1 1409-1411
14 04.128 CLIP; PIPE TO ENG SIDE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) 		8-98008-163-0 03 1 1412-1509
14 04.128 CLIP; PIPE TO ENG SIDE
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98008-163-0 03 1 1412-1509
14 04.128 CLIP; PIPE TO ENG SIDE
4X2 EXTENDED CAB(TFB*C*) 4JJ1-TCX ENG(LS0) (A) 		8-98008-163-0 03 1 1510-
14 04.128 CLIP; PIPE TO ENG SIDE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) 		8-98008-163-0 03 1 1510-
14 04.128 CLIP; PIPE TO ENG SIDE
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98008-163-0 03 1 1510-
14 04.128 CLIP; PIPE TO ENG SIDE
4X4(TFS***) 4JJ1-TCX ENG(LS0) (A) 		8-98008-163-0 02 1 1409-1411
14 04.128 CLIP; PIPE TO ENG SIDE
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (A) 		8-98008-163-0 02 1 1412-
14 04.128 CLIP; PIPE TO ENG SIDE
4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) 		8-98232-374-0 01 1 1409-1411
14 04.128 CLIP; PIPE TO ENG SIDE
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98232-374-0 01 1 1412-
15 04.128 BRACKET; ATF PIPE 8-98100-277-0 01 1 1409-
16 04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1409-
