3-08 — PARKING BRAKE (#15367) — 66 parça
çizim 61227
155 196 85 85 91 85 155 196 101 113 102
BalonParca AdiParca NoAdetTipApplied Date
85 CONNECTOR; RETARDER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0804-
85 CONNECTOR; RETARDER
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
85 CONNECTOR; RETARDER
(C) PT3/8 		1-09664-210-0 01 1 0804-
91 GASKET
(A) 		8-98103-686-0 01 1 0804-
91 GASKET
(B) 		8-98103-690-0 01 1 0804-
91 GASKET
(C) 		8-98103-693-0 01 1 0804-
91 GASKET
(D) 		8-98103-698-0 01 1 0804-
91 GASKET
(E) 		8-98103-702-0 01 1 0804-
91 GASKET
(F) 		8-98103-707-0 01 1 0804-
91 GASKET
(G) ID=22.5 		9-09571-422-0 01 1 0804-
101 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0804-
102 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0804-
113 CLIP; HOSE
(A) ID=16 H=25 L=25 		1-09701-162-0 02 1 0804-
113 CLIP; HOSE
(B) ID=58-79 		1-09707-136-0 04 1 0804-
155 TUBE
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0804-
155 TUBE
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0804-
196 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0804-

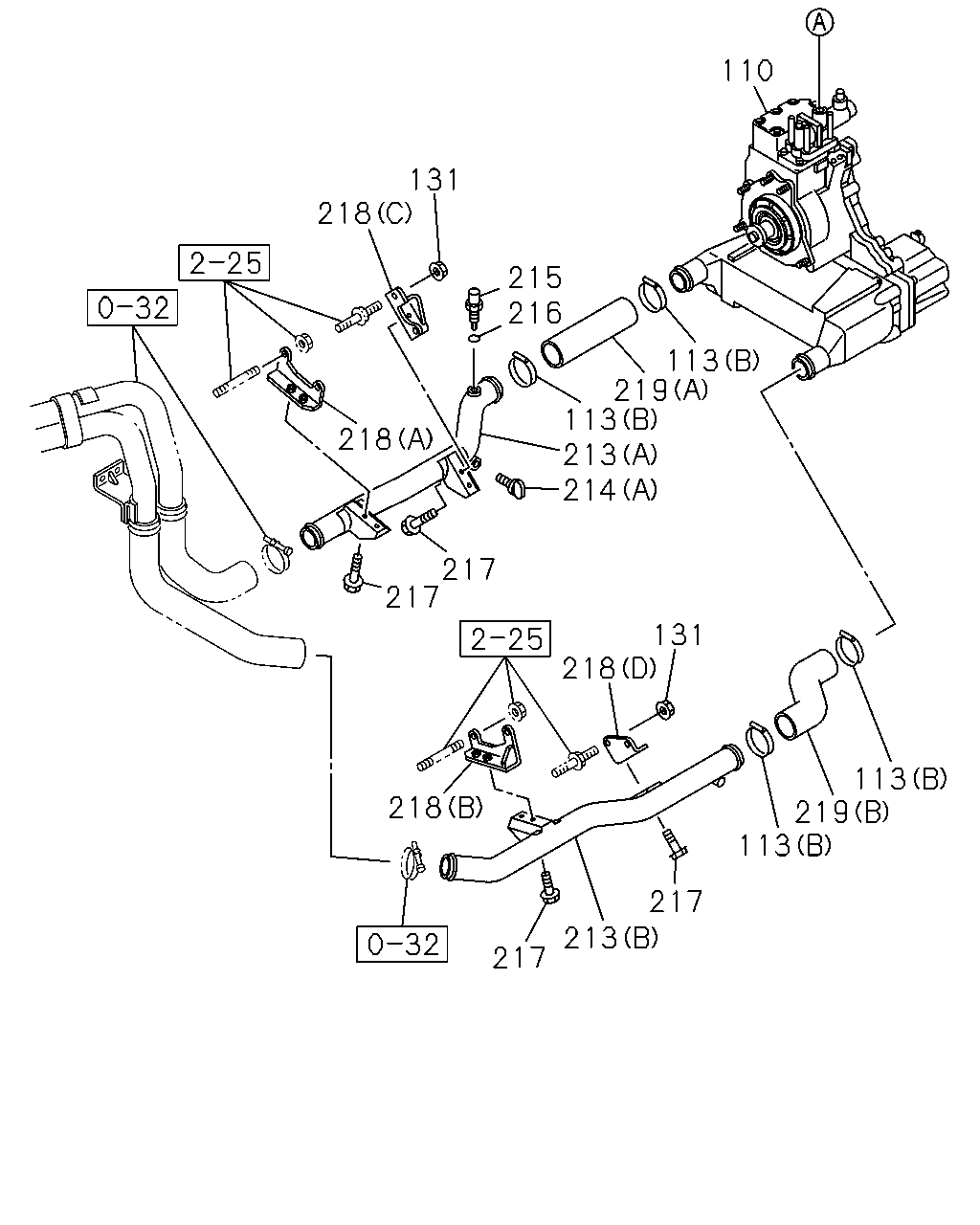

çizim 61271
110 131 218 215 216 113 219 113 213 214 218 217 217 131 218 113 219 113 218 217 213 217
BalonParca AdiParca NoAdetTipApplied Date
110 BRAKE ASM; PARKING 8-98063-474-1 01 1 0804-
113 CLIP; HOSE
(A) ID=16 H=25 L=25 		1-09701-162-0 02 1 0804-
113 CLIP; HOSE
(B) ID=58-79 		1-09707-136-0 04 1 0804-
131 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0804-
213 PIPE; WATER,RETARDER
(A) 		8-98061-771-2 01 1 0804-
213 PIPE; WATER,RETARDER
(B) 		8-98061-772-2 01 1 0804-
214 PLUG; DRAIN
(A) W/GASKET 		1-09609-009-0 02 1 0804-
214 PLUG; DRAIN
(B) 		8-98103-687-0 01 1 0804-
215 SENSOR; WATER TEMP 8-98091-500-0 01 1 0804-
216 GASKET; SENSOR
ID=14.2 OD=20.0 		9-09571-414-0 01 1 0804-
217 BOLT; PIPE
M10X30 FLANGE 		0-28051-030-0 08 1 0804-
218 BRACKET; WATER PIPE
(A) 		8-98061-773-1 01 1 0804-
218 BRACKET; WATER PIPE
(B) 		8-98061-774-2 01 1 0804-
218 BRACKET; WATER PIPE
(C) 		8-98061-775-2 01 1 0804-
218 BRACKET; WATER PIPE
(D) 		8-98061-776-3 01 1 0804-
219 HOSE; WATER,RETARDER
(A) 		8-98063-271-0 01 1 0804-1006
219 HOSE; WATER,RETARDER
(A) 		8-98172-289-0 01 1 1007-
219 HOSE; WATER,RETARDER
(B) 		8-98063-272-1 01 1 0804-1006
219 HOSE; WATER,RETARDER
(B) 		8-98172-290-0 01 1 1007-

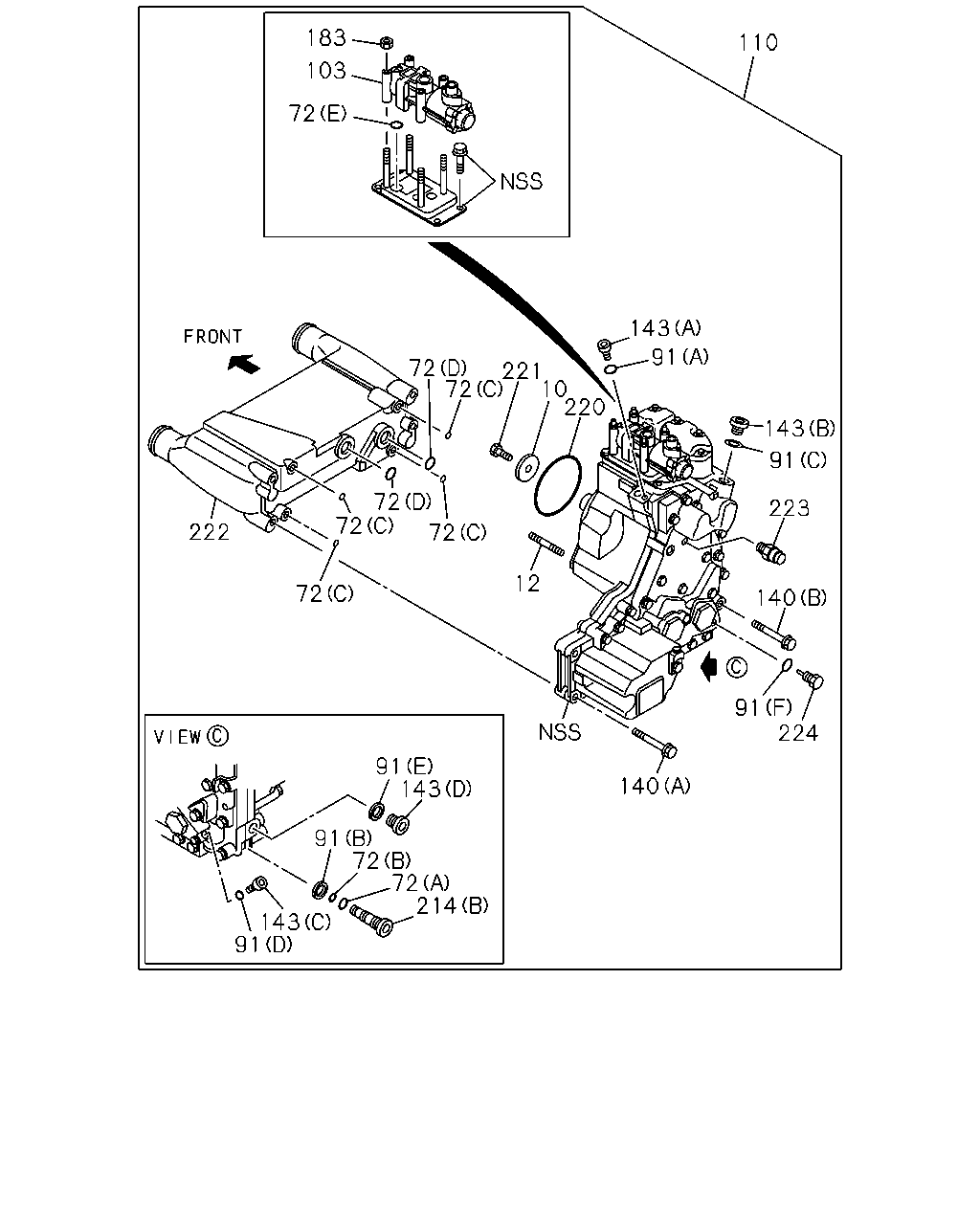

çizim 61591
183 110 103 72 143 91 72 221 72 10 220 143 91 72 72 223 222 72 12 72 140 91 224 91 143 140 91 72 72 214 143 91
BalonParca AdiParca NoAdetTipApplied Date
10 PLATE; LOCK 8-98091-536-0 01 1 0804-
12 BOLT; FIX 8-98091-535-0 05 1 0804-
72 RING; SNAP
(A) 		8-98103-688-0 01 1 0804-
72 RING; SNAP
(B) 		8-98103-689-0 01 1 0804-
72 RING; SNAP
(C) 		8-98103-696-0 04 1 0804-
72 RING; SNAP
(D) 		8-98103-697-0 02 1 0804-
72 RING; SNAP
(E) 		8-98103-704-0 01 1 0804-
91 GASKET
(A) 		8-98103-686-0 01 1 0804-
91 GASKET
(B) 		8-98103-690-0 01 1 0804-
91 GASKET
(C) 		8-98103-693-0 01 1 0804-
91 GASKET
(D) 		8-98103-698-0 01 1 0804-
91 GASKET
(E) 		8-98103-702-0 01 1 0804-
91 GASKET
(F) 		8-98103-707-0 01 1 0804-
91 GASKET
(G) ID=22.5 		9-09571-422-0 01 1 0804-
103 VALVE; MAGNETIC,RETARDER 8-98103-703-0 01 1 0804-
110 BRAKE ASM; PARKING 8-98063-474-1 01 1 0804-
140 BOLT
(A) 		8-98103-714-0 02 1 0804-
140 BOLT
(B) 		8-98103-715-0 02 1 0804-
143 PLUG
(A) 		8-98103-685-0 01 1 0804-
143 PLUG
(B) 		8-98103-692-0 01 1 0804-
143 PLUG
(C) 		8-98103-695-0 01 1 0804-
143 PLUG
(D) 		8-98103-701-0 01 1 0804-
183 NUT; VLV 8-98103-705-0 04 1 0804-
214 PLUG; DRAIN
(A) W/GASKET 		1-09609-009-0 02 1 0804-
214 PLUG; DRAIN
(B) 		8-98103-687-0 01 1 0804-
220 GASKET 8-98091-538-0 01 1 0804-
221 BOLT; PLATE 8-98091-537-0 01 1 0804-
222 EXCHANGER; HEAT 8-98103-699-0 01 1 0804-
223 SENSOR; AIR PRESSURE 8-98103-706-0 01 1 0804-
224 SENSOR; OIL TEMP 8-98091-500-0 01 1 0804-
