2-41B — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#153663) — 65 parça

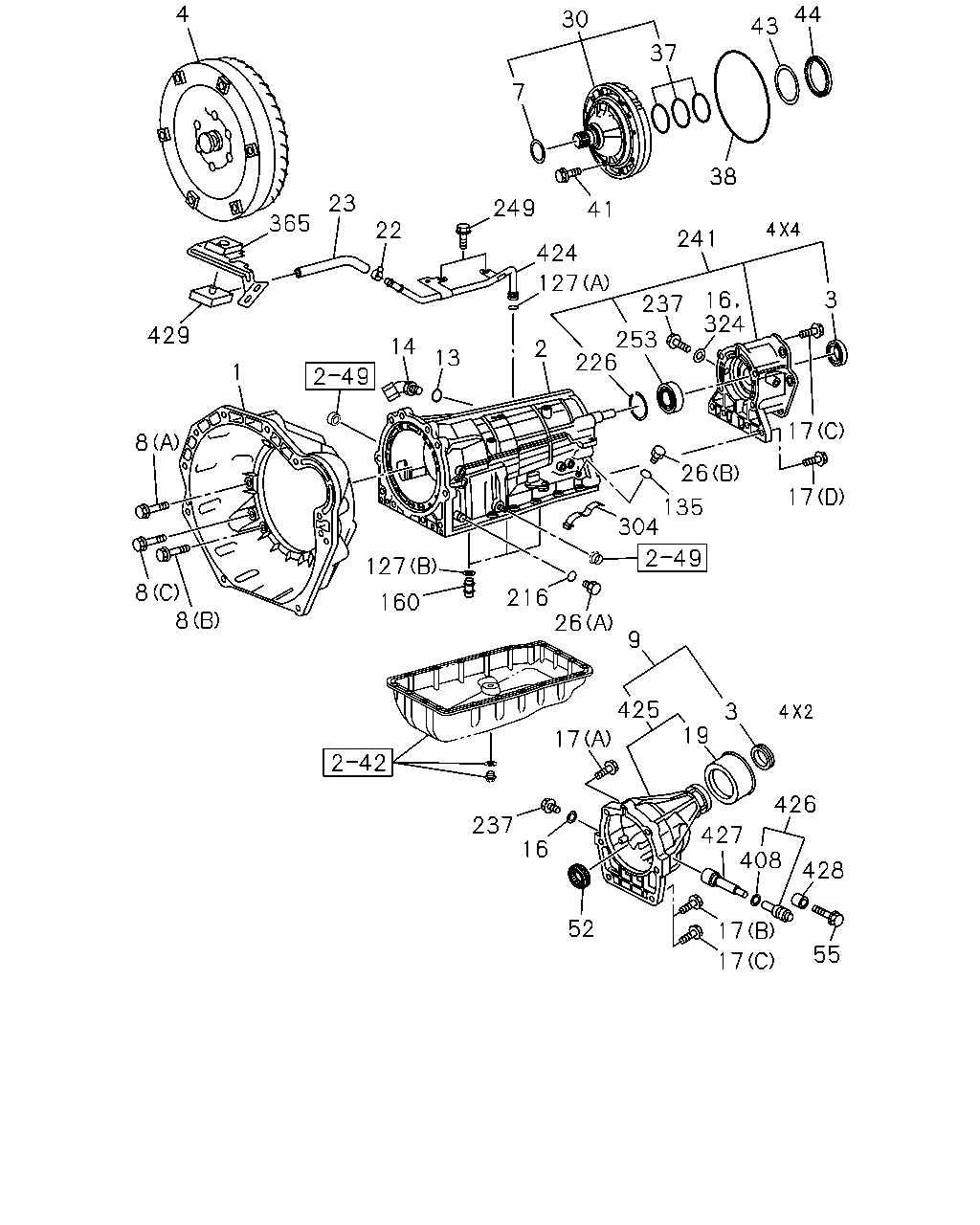

çizim 459238
4 30 7 37 43 44 38 41 241 249 23 22 365 429 424 127 14 13 1 8 8 8 127 160 216 26 9 425 3 19 17 237 16 52 427 408 428 17 17 55 426 16 237 253 226 2 324 3 17 17 26 304 135
BalonParca AdiParca NoAdetTipApplied Date
1 04.103 HOUSING; CONV,A/T 8-98189-468-0 01 1 1409-
2 04.103 CASE ASM; A/T
4X2(TFB***) 		8-98189-485-0 01 1 1409-1411
2 04.103 CASE ASM; A/T
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98189-485-0 01 1 1412-
2 04.103 CASE ASM; A/T
4X4(TFS***) 		8-98189-783-0 01 1 1409-1411
2 04.103 CASE ASM; A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) 		8-98189-783-0 01 1 1412-
2 04.103 CASE ASM; A/T
4X4(TFS***) 		8-98189-783-0 01 1 1412-
3 04.241 SEAL; OIL,RR COVER,A/T 8-98189-757-0 01 1 1409-
4 04.115 CONVERTER ASM; TORQUE,A/T
4JK1-TCX ENG(LR0) 		8-98189-761-0 01 1 1412-
4 04.115 CONVERTER ASM; TORQUE,A/T 8-98189-467-0 01 1 1409-1411
4 04.115 CONVERTER ASM; TORQUE,A/T
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 		8-98189-467-0 01 1 1412-
7 04.226 SEAL; OIL,LIP,A/T 8-98189-493-0 01 1 1409-
8 04.217 BOLT; HSG TO CASE
(A) M10X35 		8-90257-082-0 06 1 1409-
8 04.217 BOLT; HSG TO CASE
(B) M10X35 		8-98189-486-0 02 1 1409-
8 04.217 BOLT; HSG TO CASE
(C) M12X38 		8-98189-487-0 02 1 1409-
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-777-0 01 1 1412-
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) 		8-98197-898-0 01 1 1412-
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 		8-98189-754-0 01 1 1409-1411
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-754-0 01 1 1412-
13 04.205 GASKET; OIL COOLER PIPE
04.265 ID=11.7 		8-94479-724-0 02 1 1409-
14 04.205 UNION; OIL COOLER RETURN PIPE 8-98189-473-0 02 1 1409-
16 04.318 GASKET; EXT HSG
4X2(TFB***) ID=15.4 		8-98189-759-0 01 1 1409-1411
16 04.318 GASKET; EXT HSG
ID=15.4 		8-98189-759-0 01 1 1412-
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) (A) M10X45 		8-94473-632-0 04 1 1409-
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) (B) M10X35 		8-94479-951-0 02 1 1409-
17 04.319 BOLT; REAR COVER TO CASE
4X4(TFS***) 04.472 (C) M8X45 		8-94479-858-0 01 1 1409-1411
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) 4JK1-TCY ENG(RDX) 04.472 (C) M8X45 		8-94479-858-0 01 1 1412-
17 04.319 BOLT; REAR COVER TO CASE
4X4(TFS***) 04.472 (C) M8X45 		8-94479-858-0 01 1 1412-
17 04.319 BOLT; REAR COVER TO CASE
4X4(TFS***) (D) M10X50 		8-94479-935-0 08 1 1409-
19 04.241 COVER; DUST,REAR COVER
4X2(TFB***) 		8-98189-756-0 01 1 1409-
22 04.101 CLIP; BREATHER HOSE,A/T
03.163 ID=11 		8-97173-219-0 01 1 1409-
23 04.101 HOSE; BREATHER,A/T
04.104 L=220 SERVICED BY L=3000 		0-02857-300-0 01 1 1409-
26 04.195 PLUG; TRANS CASE
04.103 (A) 		5-34119-002-0 05 1 1409-
26 04.195 PLUG; TRANS CASE
(B) M14X12 		8-98189-490-0 01 1 1409-
30 04.224 PUMP ASM; OIL,A/T 8-98189-491-0 01 1 1409-
37 04.226 RING; SEAL,OIL PUMP,A/T
ID=63 		8-98189-492-0 03 1 1409-
38 04.226 GASKET; OIL PUMP,A/T
ID=218 		8-98189-494-0 01 1 1409-
41 04.226 BOLT; OIL PUMP HSG,A/T
M8X40 		8-97141-759-0 10 1 1409-
43 04.226 RACE; THRUST BRG,OIL PUMP,A/T
ID=74 		8-98189-495-0 01 1 1409-
44 04.226 BEARING; THRUST,OIL PUMP,A/T 8-98189-496-0 01 1 1409-
52 04.175 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-771-0 01 1 1412-
55 04.226 BOLT; COVER
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X14 W/WASHER 		8-94480-043-0 01 1 1412-
127 04.103 GASKET; CASE TO COVER
(A) ID=5 		8-98189-476-0 01 1 1409-
127 04.103 GASKET; CASE TO COVER
(B) ID=10 		8-98189-488-0 03 1 1409-
135 04.195 GASKET; PLUG,A/T CASE
04.265 ID=11.7 		8-94479-724-0 01 1 1409-
160 04.265 GASKET; BRK DRUM,A/T 8-98189-489-0 03 1 1409-
216 04.265 GASKET; SOLENOID OUTER
04.103 ID=6 		5-34119-001-0 05 1 1409-
226 04.052 RING; SNAP
4X4(TFS***) ID=67 		8-98189-790-0 01 1 1409-
237 04.216 PLUG; COVER 8-98189-760-0 01 1 1409-
241 04.317 ADAPTER; A/T
4X4(TFS***) 		8-98189-788-0 01 1 1409-
249 04.166 BOLT; BRKT
04.050 M6X10 		8-94252-680-0 02 1 1409-
253 04.317 BEARING; BALL,COVER
4X4(TFS***) 		8-98189-789-0 01 1 1409-
304 04.205 SPRING; LEAF,A/T 8-98189-484-0 01 1 1409-
324 04.195 GASKET; PLUG,REAR COVER
4X4(TFS***) 04.318 ID=15.4 		8-98189-759-0 01 1 1409-1411
324 04.195 GASKET; PLUG,REAR COVER
4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.318 ID=15.4 		8-98189-759-0 01 1 1412-
365 04.104 BRACKET; BREATHER HOSE,A/T
04.047 		8-98161-920-1 01 1 1409-
408 04.329 GASKET; SPEED SENSOR
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 ID=19 		8-97181-545-0 01 1 1412-
424 04.226 TUBE; BREATHER 8-98189-475-0 01 1 1409-
425 04.317 COVER SUB ASM; RR,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-778-0 01 1 1412-
425 04.317 COVER SUB ASM; RR,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) 		8-98197-899-0 01 1 1412-
425 04.317 COVER SUB ASM; RR,A/T
4X2(TFB***) 		8-98189-755-0 01 1 1409-1411
425 04.317 COVER SUB ASM; RR,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-755-0 01 1 1412-
426 04.119 SLEEVE; SPEED METER
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.345 		8-97181-543-0 01 1 1412-
427 04.175 GEAR; SPEED METER
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=19 		8-98189-772-0 01 1 1412-
428 04.224 PLATE; SLEEVE
4X2(TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-773-0 01 1 1412-
429 04.104 CLIP; BREATHER HOSE 8-98161-881-0 01 1 1409-
