◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-40B - AUTO TRANS ASM AND REPAIR KIT ▶
2-40B — AUTO TRANS ASM AND REPAIR KIT (#153662) — 12 parça

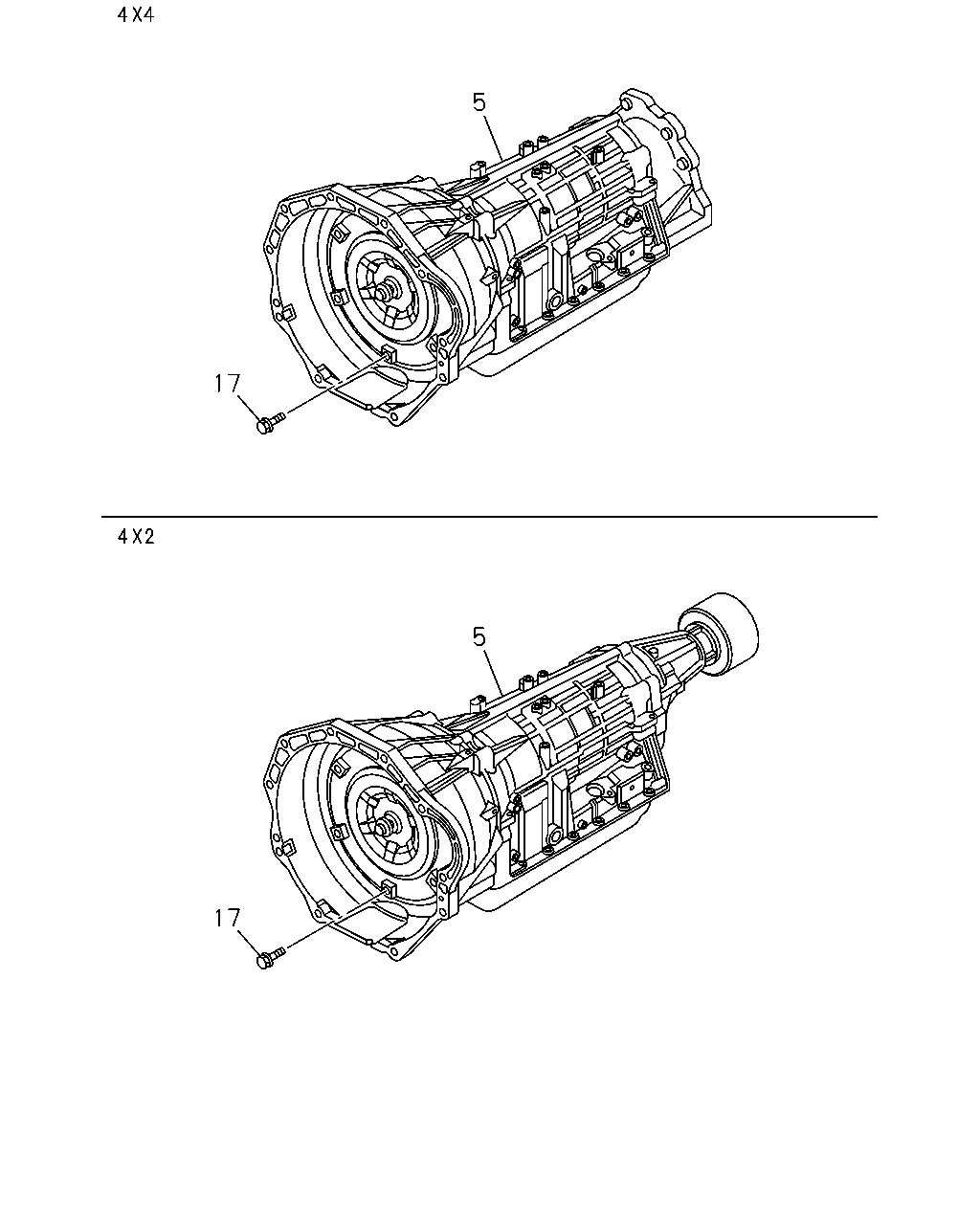

çizim 458071
5 17 5 17
BalonParca AdiParca NoAdetTipApplied Date
5 04.003 TRANSMISSION ASM; AUTO
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98187-479-0 01 1 1412-
5 04.003 TRANSMISSION ASM; AUTO
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98187-481-0 01 1 1412-
5 04.003 TRANSMISSION ASM; AUTO
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98187-480-0 01 1 1412-
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JK1-TCY ENG(RDX) 		8-98155-046-0 01 1 1412-
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 4JK1-TCX ENG(LR0) 		8-98196-461-0 01 1 1412-
5 04.003 TRANSMISSION ASM; AUTO
4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) 		8-98181-915-0 01 1 1412-
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 		8-98187-478-0 01 1 1409-1411
5 04.003 TRANSMISSION ASM; AUTO
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98187-478-0 01 1 1412-1509
5 04.003 TRANSMISSION ASM; AUTO
4X2 EXTENDED CAB(TFB*C*) 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-98187-478-0 01 1 1510-
5 04.003 TRANSMISSION ASM; AUTO
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98187-478-0 01 1 1510-
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 4JJ1-TCX ENG(LS0) 		8-98187-482-0 01 1 1409-
17 04.008 BOLT; PLATE TO CONV 8-98100-577-0 06 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
