Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#153660) — 297 parça

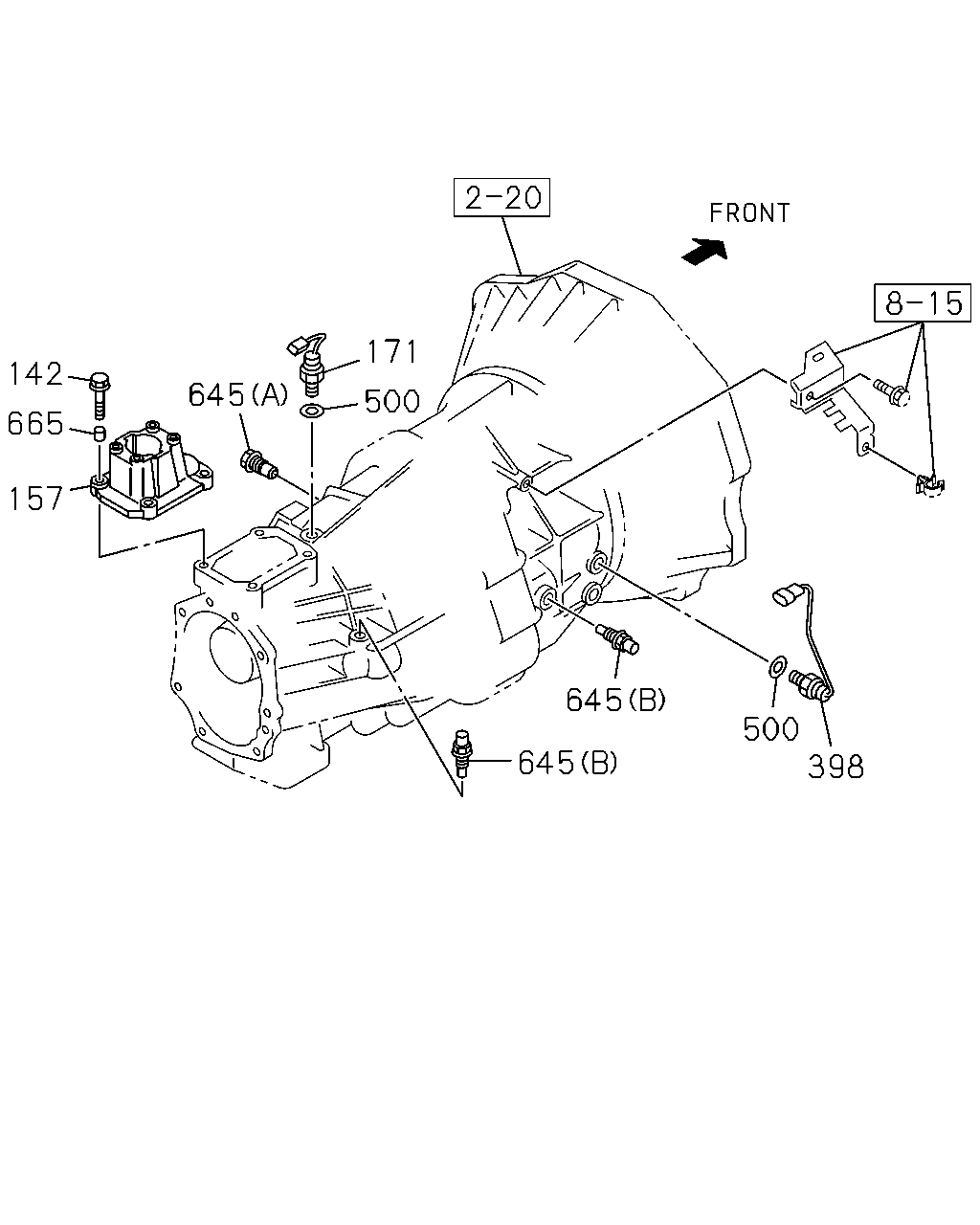

142 665 157 645 171 500 500 398 645 645

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1412-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1409-					●
157	04.105 BOX; QUAD,TRANS 4JJ1-TCX ENG(LS0)	8-98094-798-1	01	1	1409-					●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1412-		●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1412-						●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1409-					●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-		●		●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1412-						●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1412-	●	●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0)	8-98180-973-0	01	1	1409-					●
500	04.075 GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1409-					●
645	04.311 DETENT ASM 4JJ1-TCX ENG(LS0) (A)	8-97362-469-2	01	1	1409-					●
645	04.311 DETENT ASM 4JJ1-TCX ENG(LS0) 04.307 (B)	8-98019-536-0	02	1	1409-					●
665	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	02	1	1409-					●

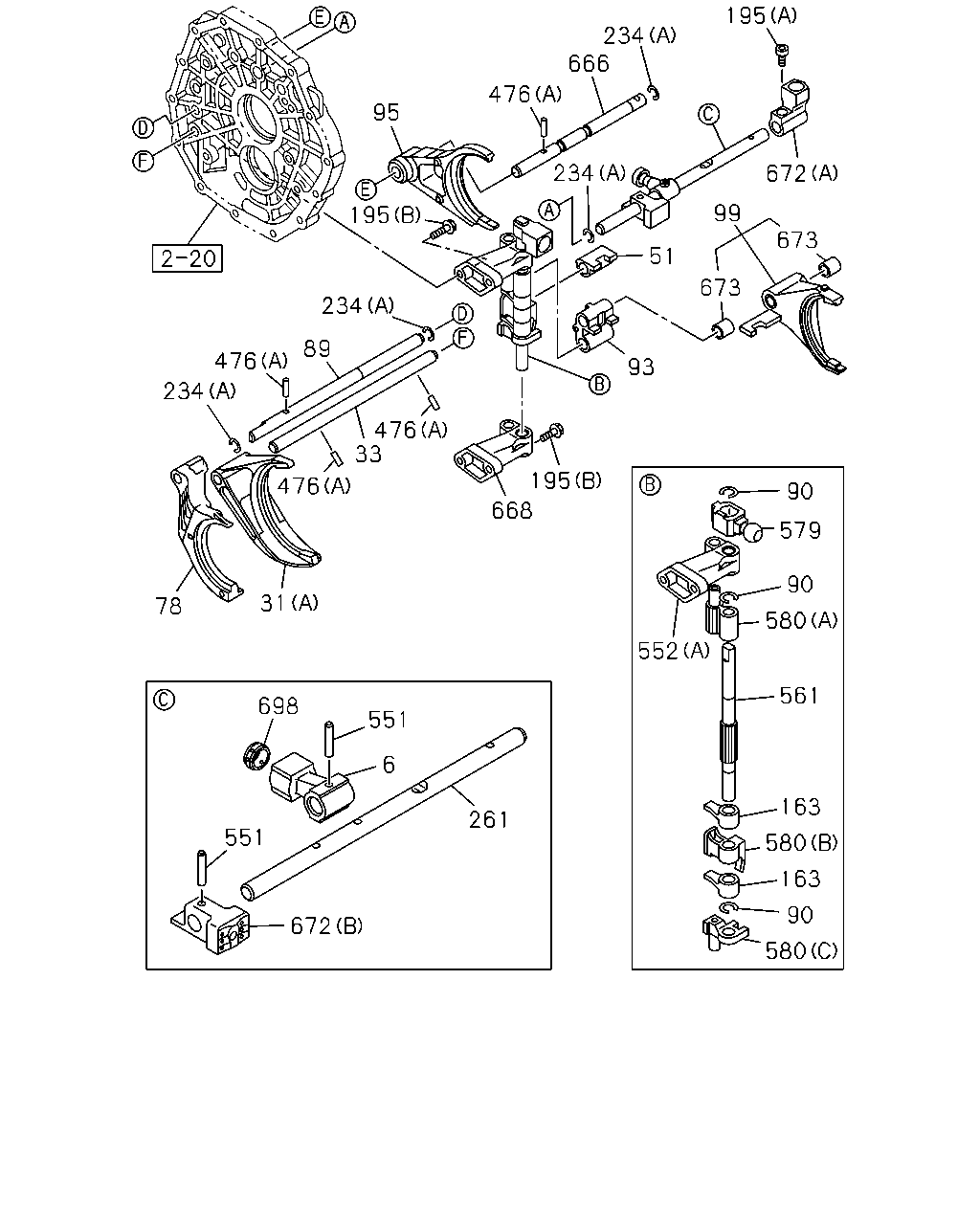

195 234 666 476 234 672 99 673 673 51 93 195 95 234 89 476 234 78 31 476 668 195 33 476 90 579 90 580 561 163 580 163 90 580 672 261 6 551 698 551 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	04.302 LEVER; RELAY 4JJ1-TCX ENG(LS0)	8-98095-658-1	01	1	1409-					●
31	04.302 ARM; SHIFT,LOW & 2ND (B)	8-97024-503-1	01	1	1412-	●
31	04.302 ARM; SHIFT,LOW & 2ND (C)	8-94421-912-2	01	1	1412-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (A)	8-97362-435-0	01	1	1409-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1412-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1412-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1412-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	1409-					●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JJ1-TCX ENG(LS0) 04.302	8-98186-703-0	01	1	1409-					●
78	04.302 ARM; SHIFT,REV	8-98203-149-0	01	1	1412-						●
78	04.302 ARM; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-434-1	01	1	1409-					●
89	04.309 ROD; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-98106-032-0	01	1	1409-					●
90	04.307 RING; SNAP,SHIFT ROD 4JJ1-TCX ENG(LS0) ID=12	8-94460-357-0	03	1	1409-					●
93	04.303 BLOCK; SHIFT,REV & 5TH 4JJ1-TCX ENG(LS0)	8-98106-035-0	01	1	1409-					●
95	04.302 ARM; SHIFT,5TH 4JJ1-TCX ENG(LS0)	8-97362-436-1	01	1	1409-					●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1412-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1412-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	1409-					●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCX ENG(LS0)	8-98052-461-0	02	1	1409-					●
195	04.105 BOLT (E)	8-97164-962-0	02	1	1412-						●
195	04.105 BOLT (D)	8-98203-146-0	04	1	1412-						●
195	04.105 BOLT (C)	8-98203-167-0	02	1	1412-						●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (A) M8X8.5 TAPER	8-97250-975-0	01	1	1409-					●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (B) M8X30 FLANGE	8-98034-764-0	04	1	1409-					●
234	04.311 RING; SNAP (C)	8-98203-175-0	01	1	1412-						●
234	04.311 RING; SNAP (B)	8-98203-176-0	01	1	1412-						●
234	04.311 RING; SNAP 4JJ1-TCX ENG(LS0) 04.307 (A) ID=12	8-94460-357-0	04	1	1409-					●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1412-	●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1412-		●	●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	1409-					●
476	04.311 PIN; SHIFT ROD 04.303 (D)	8-97164-925-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD (B)	8-98203-172-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD (C)	8-98203-173-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.303 (A) D=4.2 L=25	8-94171-541-0	04	1	1409-					●
551	04.303 PIN; SPRING 4JJ1-TCX ENG(LS0) D=4.2 L=25	8-94171-541-0	02	1	1409-					●
552	04.105 BRACKET (C)	8-98203-147-0	01	1	1412-						●
552	04.105 BRACKET (B)	8-98203-151-0	01	1	1412-						●
552	04.105 BRACKET 4JJ1-TCX ENG(LS0) (A)	8-97362-465-1	01	1	1409-					●
561	04.309 ROD; SHIFT 4X2(TFB***)	8-98203-163-0	01	1	1412-						●
561	04.309 ROD; SHIFT 4X4(TFS***)	8-98203-162-0	01	1	1412-						●
561	04.309 ROD; SHIFT 4JJ1-TCX ENG(LS0)	8-98095-659-1	01	1	1409-					●
579	04.303 BLOCK; SHIFT,ROD GUIDE 4JJ1-TCX ENG(LS0)	8-98095-657-0	01	1	1409-					●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (A)	8-97362-461-1	01	1	1409-					●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (B)	8-98052-462-0	01	1	1409-					●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (C)	8-98186-700-0	01	1	1409-					●
666	04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH 4JJ1-TCX ENG(LS0)	8-97362-442-2	01	1	1409-					●
668	04.309 BRACKET; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.105	8-97362-465-1	01	1	1409-					●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (A)	8-97362-467-0	01	1	1409-					●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (B)	8-98095-689-1	01	1	1409-					●
673	04.309 BEARING; SHIFT ARM 4JJ1-TCX ENG(LS0) 00.683	8-97362-853-0	02	1	1409-					●
698	04.303 SEAT; SHIFT CONT 4JJ1-TCX ENG(LS0) 04.307	8-98073-812-0	01	1	1409-					●

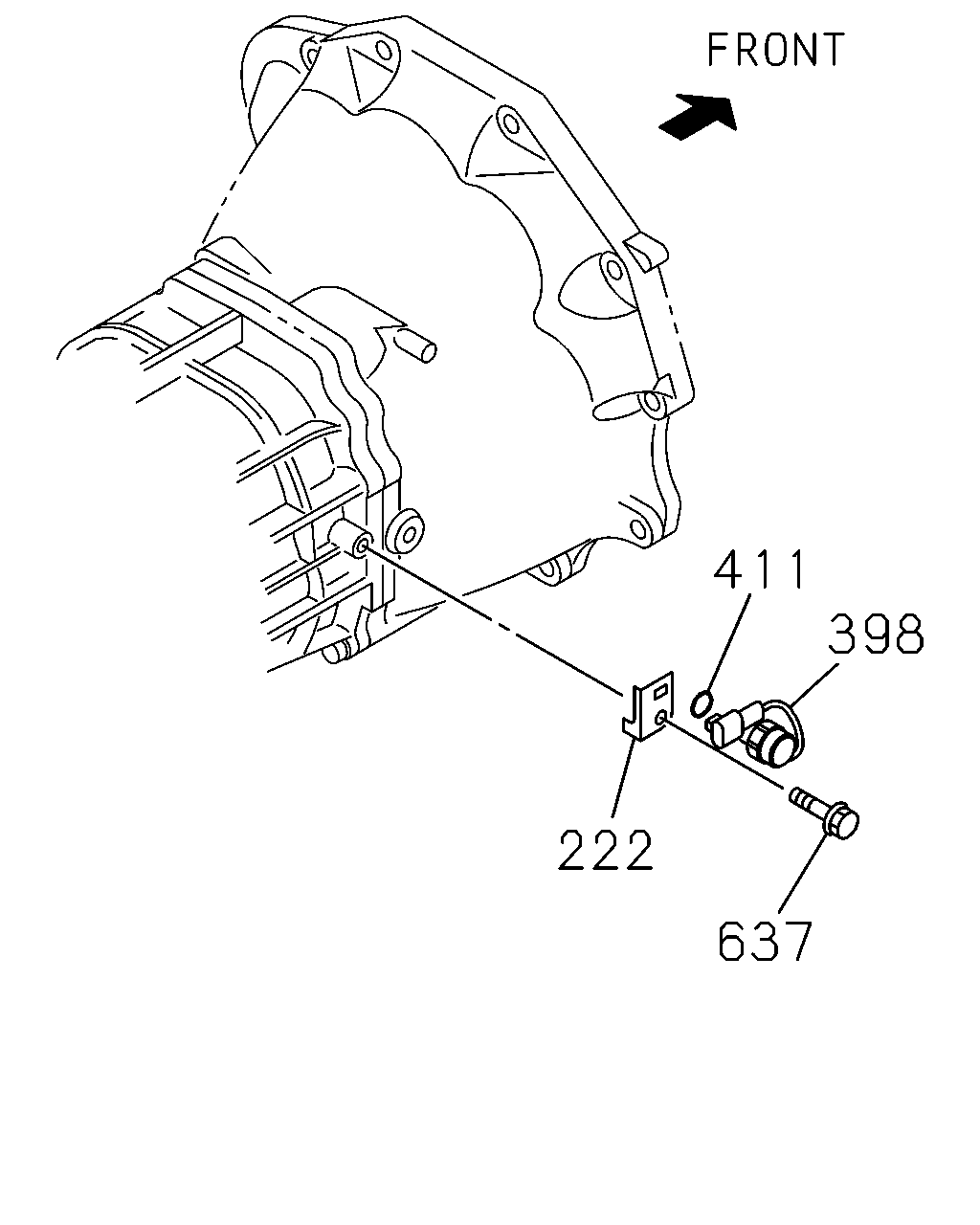

411 398 637 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
222	04.057 BRACKET; CLIP	8-98203-246-0	01	1	1412-						●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-		●		●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1412-						●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1412-	●	●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0)	8-98180-973-0	01	1	1409-					●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1412-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.054	8-98210-376-0	01	1	1412-						●
637	04.105 BOLT; BRACKET	8-98203-256-0	01	1	1412-						●

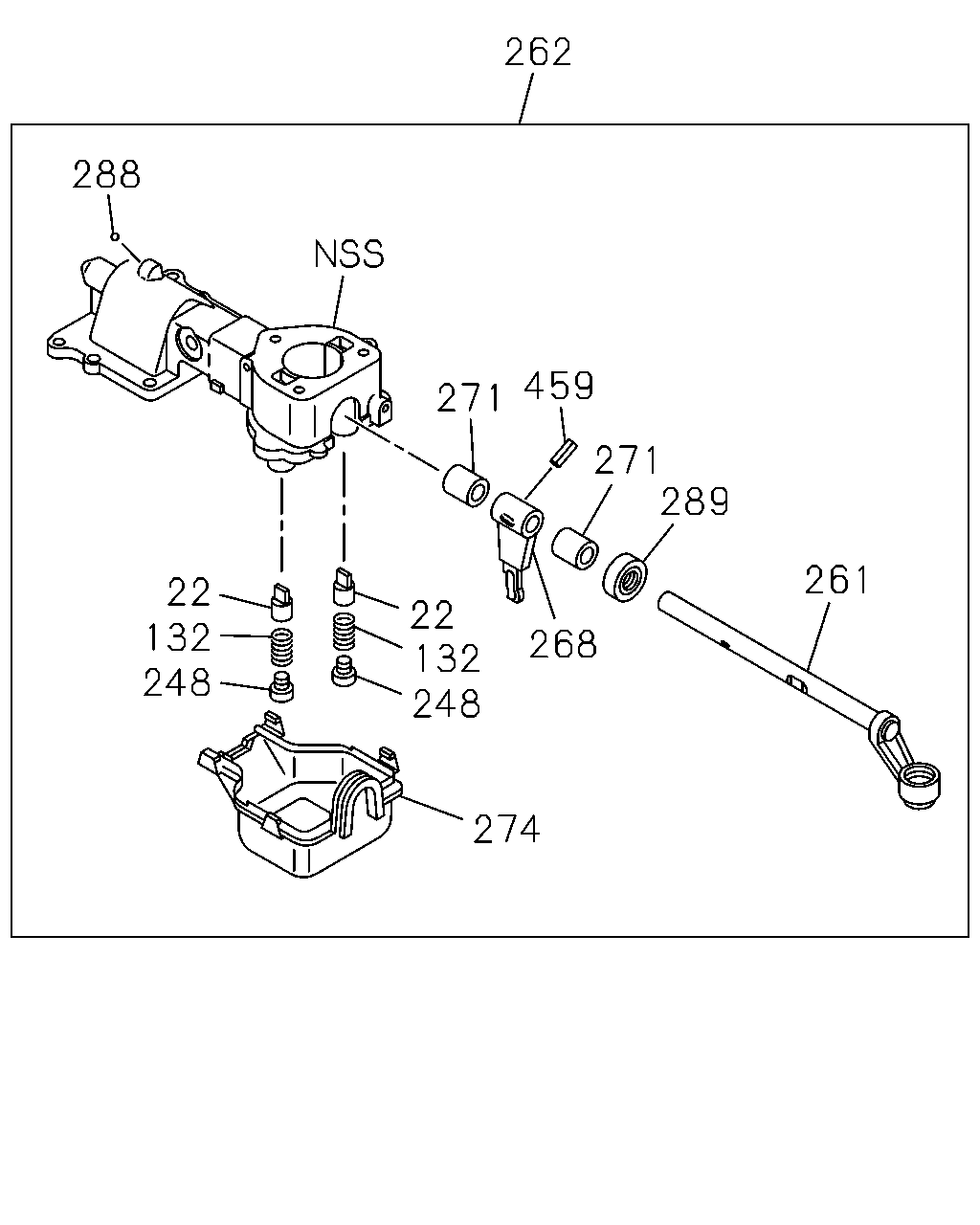

262 288 271 271 268 289 459 261 22 22 132 248 248 274 132 391 172 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1412-	●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1412-	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1412-		●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1412-						●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1409-					●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1412-		●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1412-						●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1412-						●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1412-	●	●	●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1412-	●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1412-		●	●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	1409-					●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1412-	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1412-		●	●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	1412-	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1412-		●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1412-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1412-	●	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1412-	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1412-	●	●	●	●
391	04.104 PLUG; SW HOLE M14X11	8-98035-674-0	01	1	1412-			●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1412-	●	●	●	●

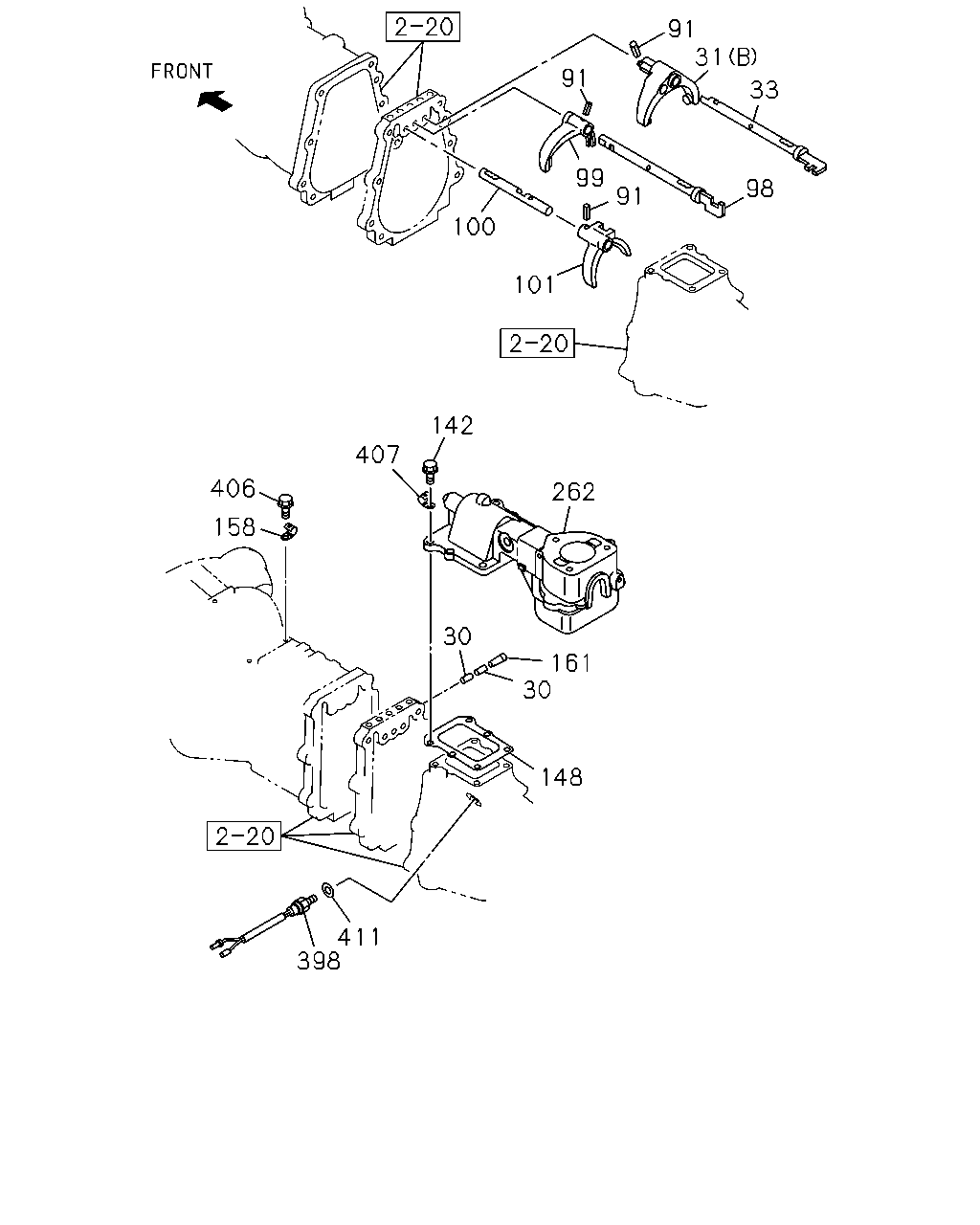

148 411 398 30 30 262 161 142 407 406 158 101 100 91 99 98 33 31 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1412-	●	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND (B)	8-97024-503-1	01	1	1412-	●
31	04.302 ARM; SHIFT,LOW & 2ND (C)	8-94421-912-2	01	1	1412-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (A)	8-97362-435-0	01	1	1409-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1412-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1412-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1412-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	1409-					●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1412-						●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1412-	●	●	●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	1412-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1412-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1412-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1412-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	1409-					●
100	04.309 ROD; SHIFT,REV & 5TH	8-97232-885-0	01	1	1412-	●
101	04.302 ARM; SHIFT,REV & 5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-894-0	01	1	1412-		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-755-2	01	1	1412-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	1412-	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1412-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1409-					●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	1412-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1412-		●	●	●
158	04.105 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1412-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1412-	●	●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1412-	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1412-		●	●	●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-		●		●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1412-						●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1412-	●	●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0)	8-98180-973-0	01	1	1409-					●
406	02.559 BOLT; HARNESS CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-	●
407	02.698 CLIP; SWITCH HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1412-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1412-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.054	8-98210-376-0	01	1	1412-						●

262 288 271 459 289 271 261 268 22 132 248 274 248 22 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1412-	●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1412-	●	●	●	●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1412-						●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1412-	●	●	●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1412-	●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1412-		●	●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	1409-					●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1412-	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1412-		●	●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	1412-	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1412-		●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1412-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1412-	●	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1412-	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1412-	●	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1412-	●	●	●	●

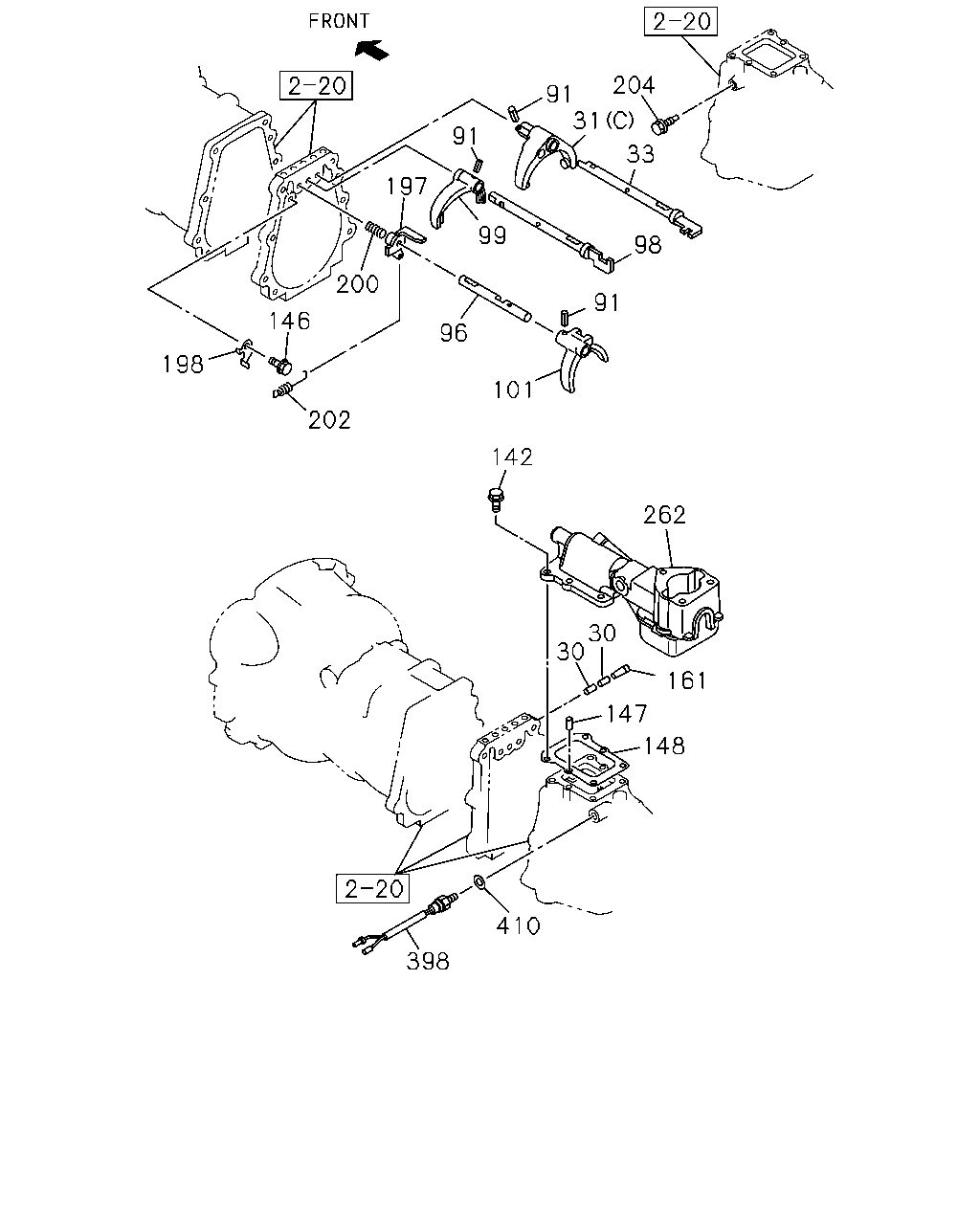

410 398 148 161 147 30 30 142 262 101 91 98 99 96 202 198 146 200 197 91 33 31 91 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1412-	●	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND (B)	8-97024-503-1	01	1	1412-	●
31	04.302 ARM; SHIFT,LOW & 2ND (C)	8-94421-912-2	01	1	1412-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (A)	8-97362-435-0	01	1	1409-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1412-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1412-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1412-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	1409-					●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1412-						●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1412-	●	●	●	●
96	04.309 ROD; SHIFT,5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-886-0	01	1	1412-		●	●	●
96	04.309 ROD; SHIFT,5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94440-079-1	01	1	1412-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	1412-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1412-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1412-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1412-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	1409-					●
101	04.302 ARM; SHIFT,REV & 5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-894-0	01	1	1412-		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-755-2	01	1	1412-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	1412-	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1412-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1409-					●
146	04.032 BOLT; REV INHIBITOR IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1412-		●	●	●
146	04.032 BOLT; REV INHIBITOR EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1412-		●	●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	1412-		●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	1412-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1412-		●	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1412-	●	●	●	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	1412-		●	●	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	1412-		●	●	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	1412-		●	●	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	1412-		●	●	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	1412-		●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1412-	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1412-		●	●	●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-		●		●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1412-						●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1412-	●	●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0)	8-98180-973-0	01	1	1409-					●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1412-		●	●	●

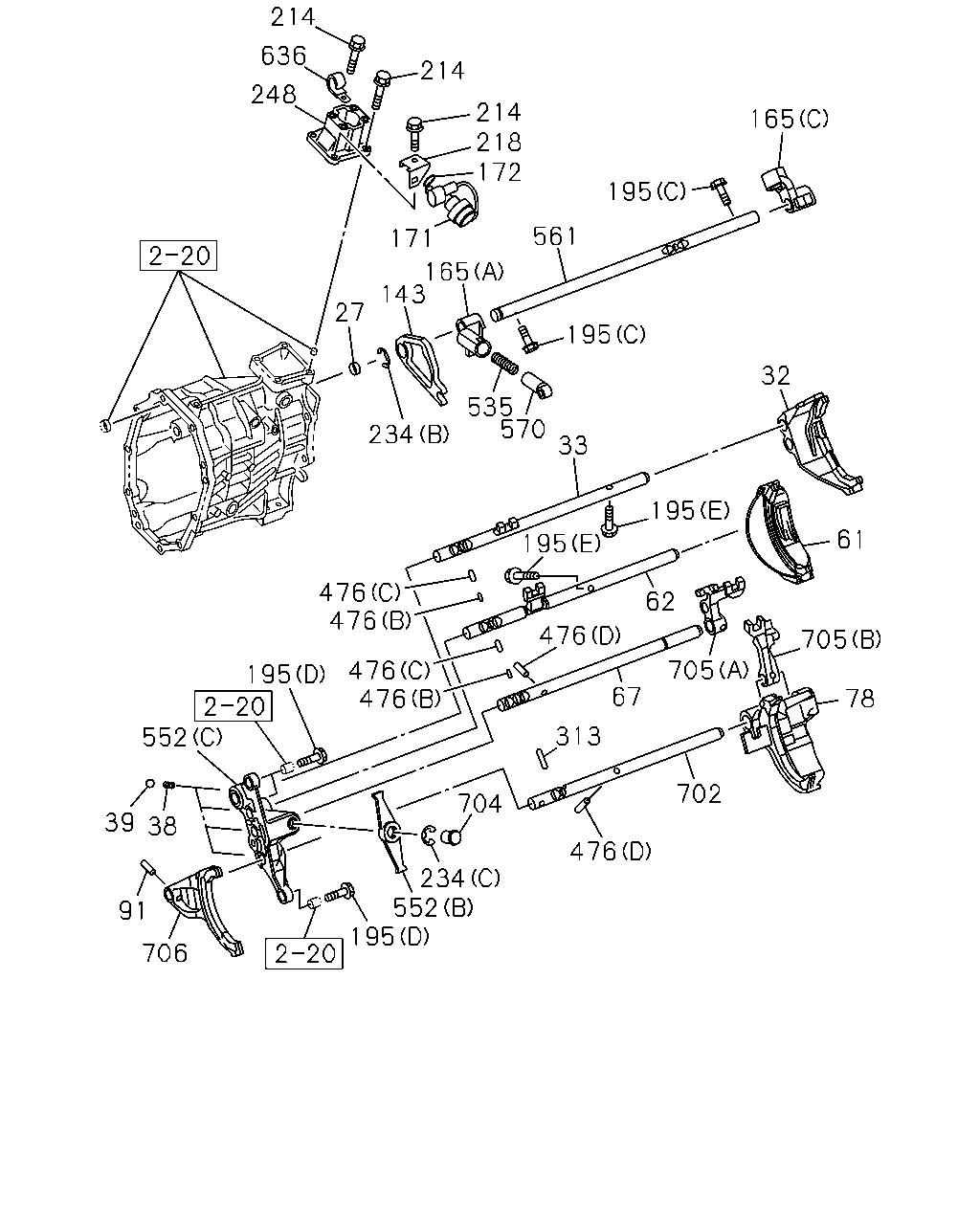

706 91 39 38 552 195 476 476 476 476 313 704 234 552 195 476 702 78 705 61 195 62 705 67 476 195 234 535 195 570 32 33 27 143 165 171 561 195 165 172 218 214 214 214 248 636

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
27	04.302 BUSHING; SHIFT ROD 04.317	8-89048-304-0	01	1	1412-						●
32	04.303 ARM; SHIFT,1ST & 2ND	8-98203-153-0	01	1	1412-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1412-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1412-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1412-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	1409-					●
38	04.311 SPRING; DETENT	8-98203-171-0	04	1	1412-						●
39	04.307 BALL; DETENT	8-97165-089-0	04	1	1412-						●
61	04.303 ARM; SHIFT,3RD & 4TH	8-98203-150-0	01	1	1412-						●
62	04.309 ROD; SHIFT,3RD & 4TH	8-98203-157-0	01	1	1412-						●
67	04.309 ROD; SHIFT,5TH & 6TH	8-98203-158-0	01	1	1412-						●
78	04.302 ARM; SHIFT,REV	8-98203-149-0	01	1	1412-						●
78	04.302 ARM; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-434-1	01	1	1409-					●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1412-						●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1412-	●	●	●	●
143	04.030 CAM; STOPPER,REV INHIBITOR	8-98203-148-0	01	1	1412-						●
165	04.302 LEVER; SHIFT 4X2(TFB***) (B)	8-98203-142-0	01	1	1412-						●
165	04.302 LEVER; SHIFT (A)	8-98203-160-0	01	1	1412-						●
165	04.302 LEVER; SHIFT 4X4(TFS***) (C)	8-98203-141-0	01	1	1412-						●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1412-		●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1412-						●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1409-					●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1412-		●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1412-						●
195	04.105 BOLT (E)	8-97164-962-0	02	1	1412-						●
195	04.105 BOLT (D)	8-98203-146-0	04	1	1412-						●
195	04.105 BOLT (C)	8-98203-167-0	02	1	1412-						●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (A) M8X8.5 TAPER	8-97250-975-0	01	1	1409-					●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (B) M8X30 FLANGE	8-98034-764-0	04	1	1409-					●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105	8-98203-146-0	04	1	1412-						●
218	04.057 BRACKET; HARNESS CLIP,QUAD BOX	8-98203-245-0	01	1	1412-						●
234	04.311 RING; SNAP (C)	8-98203-175-0	01	1	1412-						●
234	04.311 RING; SNAP (B)	8-98203-176-0	01	1	1412-						●
234	04.311 RING; SNAP 4JJ1-TCX ENG(LS0) 04.307 (A) ID=12	8-94460-357-0	04	1	1409-					●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1412-						●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1412-	●	●	●	●
313	04.309 ROLLER; SHAFT	8-98203-168-0	01	1	1412-						●
476	04.311 PIN; SHIFT ROD 04.303 (D)	8-97164-925-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD (B)	8-98203-172-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD (C)	8-98203-173-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.303 (A) D=4.2 L=25	8-94171-541-0	04	1	1409-					●
535	04.302 SPRING; LEVER	8-98203-170-0	01	1	1412-						●
552	04.105 BRACKET (C)	8-98203-147-0	01	1	1412-						●
552	04.105 BRACKET (B)	8-98203-151-0	01	1	1412-						●
552	04.105 BRACKET 4JJ1-TCX ENG(LS0) (A)	8-97362-465-1	01	1	1409-					●
561	04.309 ROD; SHIFT 4X2(TFB***)	8-98203-163-0	01	1	1412-						●
561	04.309 ROD; SHIFT 4X4(TFS***)	8-98203-162-0	01	1	1412-						●
561	04.309 ROD; SHIFT 4JJ1-TCX ENG(LS0)	8-98095-659-1	01	1	1409-					●
570	04.311 PIN; SHIFT LEVER	8-98203-166-0	01	1	1412-						●
636	04.057 BRACKET; CLIP 02.343 ID=22 L=35	8-97375-643-0	01	1	1412-						●
702	04.309 ROD; REVERSE	8-98203-159-0	01	1	1412-						●
704	04.105 PIVOT	8-98203-152-0	01	1	1412-						●
705	04.309 HEAD; GEAR SHIFT (B)	8-98203-155-0	01	1	1412-						●
705	04.309 HEAD; GEAR SHIFT (A)	8-98236-473-0	01	1	1412-						●
706	04.309 FORK; GEAR SHIFT	8-98203-161-0	01	1	1412-						●

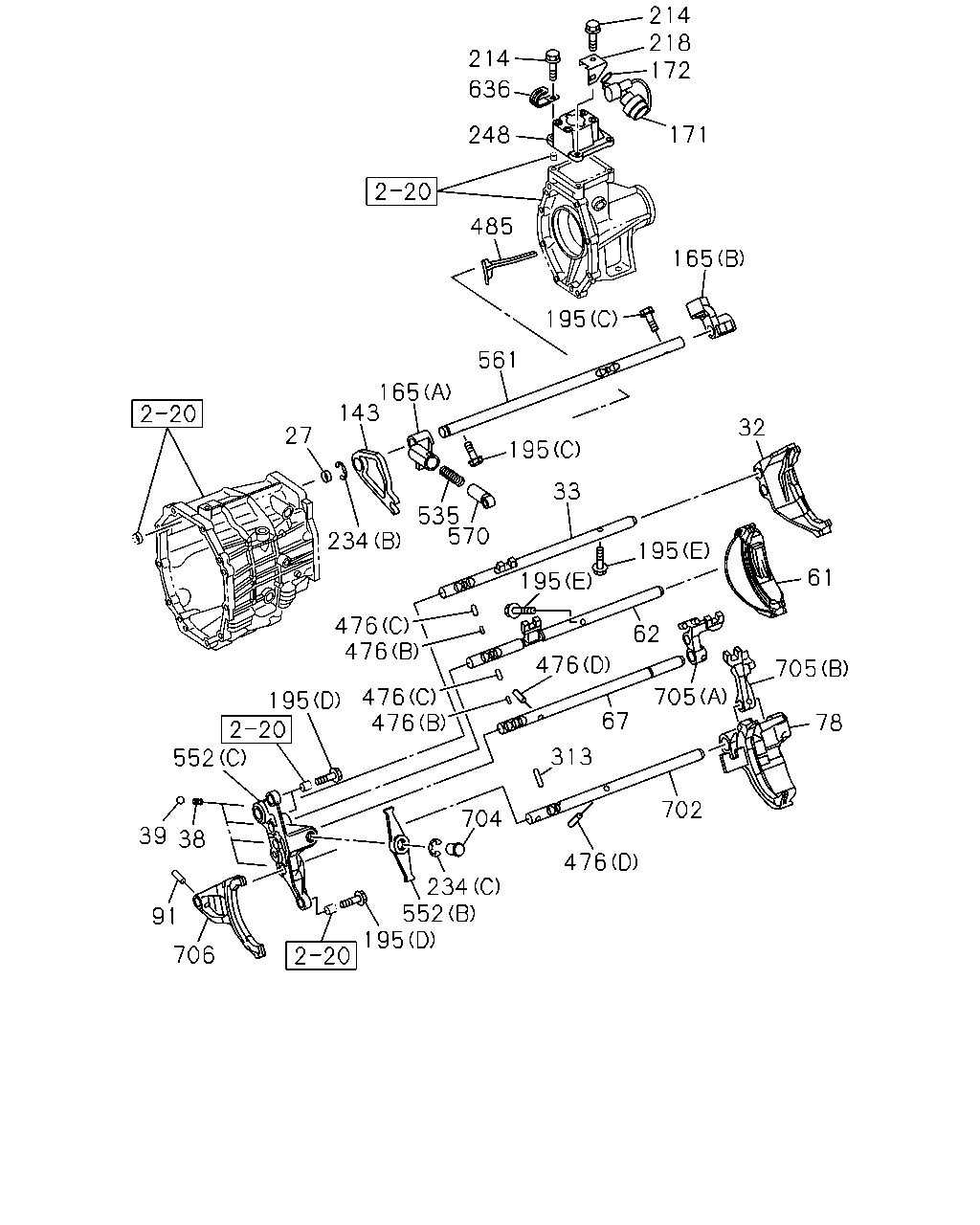

214 172 218 171 165 214 248 636 485 195 561 165 143 27 195 535 234 570 33 32 61 195 705 78 702 313 705 67 476 704 476 195 62 476 476 476 476 195 552 39 38 91 706 234 552 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
27	04.302 BUSHING; SHIFT ROD 04.317	8-89048-304-0	01	1	1412-						●
32	04.303 ARM; SHIFT,1ST & 2ND	8-98203-153-0	01	1	1412-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1412-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1412-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1412-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	1409-					●
38	04.311 SPRING; DETENT	8-98203-171-0	04	1	1412-						●
39	04.307 BALL; DETENT	8-97165-089-0	04	1	1412-						●
61	04.303 ARM; SHIFT,3RD & 4TH	8-98203-150-0	01	1	1412-						●
62	04.309 ROD; SHIFT,3RD & 4TH	8-98203-157-0	01	1	1412-						●
67	04.309 ROD; SHIFT,5TH & 6TH	8-98203-158-0	01	1	1412-						●
78	04.302 ARM; SHIFT,REV	8-98203-149-0	01	1	1412-						●
78	04.302 ARM; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-434-1	01	1	1409-					●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1412-						●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1412-	●	●	●	●
143	04.030 CAM; STOPPER,REV INHIBITOR	8-98203-148-0	01	1	1412-						●
165	04.302 LEVER; SHIFT 4X2(TFB***) (B)	8-98203-142-0	01	1	1412-						●
165	04.302 LEVER; SHIFT (A)	8-98203-160-0	01	1	1412-						●
165	04.302 LEVER; SHIFT 4X4(TFS***) (C)	8-98203-141-0	01	1	1412-						●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1412-		●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1412-						●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1409-					●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1412-		●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1412-						●
195	04.105 BOLT (E)	8-97164-962-0	02	1	1412-						●
195	04.105 BOLT (D)	8-98203-146-0	04	1	1412-						●
195	04.105 BOLT (C)	8-98203-167-0	02	1	1412-						●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (A) M8X8.5 TAPER	8-97250-975-0	01	1	1409-					●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (B) M8X30 FLANGE	8-98034-764-0	04	1	1409-					●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105	8-98203-146-0	04	1	1412-						●
218	04.057 BRACKET; HARNESS CLIP,QUAD BOX	8-98203-245-0	01	1	1412-						●
234	04.311 RING; SNAP (C)	8-98203-175-0	01	1	1412-						●
234	04.311 RING; SNAP (B)	8-98203-176-0	01	1	1412-						●
234	04.311 RING; SNAP 4JJ1-TCX ENG(LS0) 04.307 (A) ID=12	8-94460-357-0	04	1	1409-					●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1412-						●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1412-	●	●	●	●
313	04.309 ROLLER; SHAFT	8-98203-168-0	01	1	1412-						●
476	04.311 PIN; SHIFT ROD 04.303 (D)	8-97164-925-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD (B)	8-98203-172-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD (C)	8-98203-173-0	02	1	1412-						●
476	04.311 PIN; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.303 (A) D=4.2 L=25	8-94171-541-0	04	1	1409-					●
485	04.105 TROUGH; OIL 4X2(TFB***)	8-98203-178-0	01	1	1412-						●
535	04.302 SPRING; LEVER	8-98203-170-0	01	1	1412-						●
552	04.105 BRACKET (C)	8-98203-147-0	01	1	1412-						●
552	04.105 BRACKET (B)	8-98203-151-0	01	1	1412-						●
552	04.105 BRACKET 4JJ1-TCX ENG(LS0) (A)	8-97362-465-1	01	1	1409-					●
561	04.309 ROD; SHIFT 4X2(TFB***)	8-98203-163-0	01	1	1412-						●
561	04.309 ROD; SHIFT 4X4(TFS***)	8-98203-162-0	01	1	1412-						●
561	04.309 ROD; SHIFT 4JJ1-TCX ENG(LS0)	8-98095-659-1	01	1	1409-					●
570	04.311 PIN; SHIFT LEVER	8-98203-166-0	01	1	1412-						●
636	04.057 BRACKET; CLIP 02.343 ID=22 L=35	8-97375-643-0	01	1	1412-						●
702	04.309 ROD; REVERSE	8-98203-159-0	01	1	1412-						●
704	04.105 PIVOT	8-98203-152-0	01	1	1412-						●
705	04.309 HEAD; GEAR SHIFT (B)	8-98203-155-0	01	1	1412-						●
705	04.309 HEAD; GEAR SHIFT (A)	8-98236-473-0	01	1	1412-						●
706	04.309 FORK; GEAR SHIFT	8-98203-161-0	01	1	1412-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
