Sayfa 2-26A - Isuzu EPC

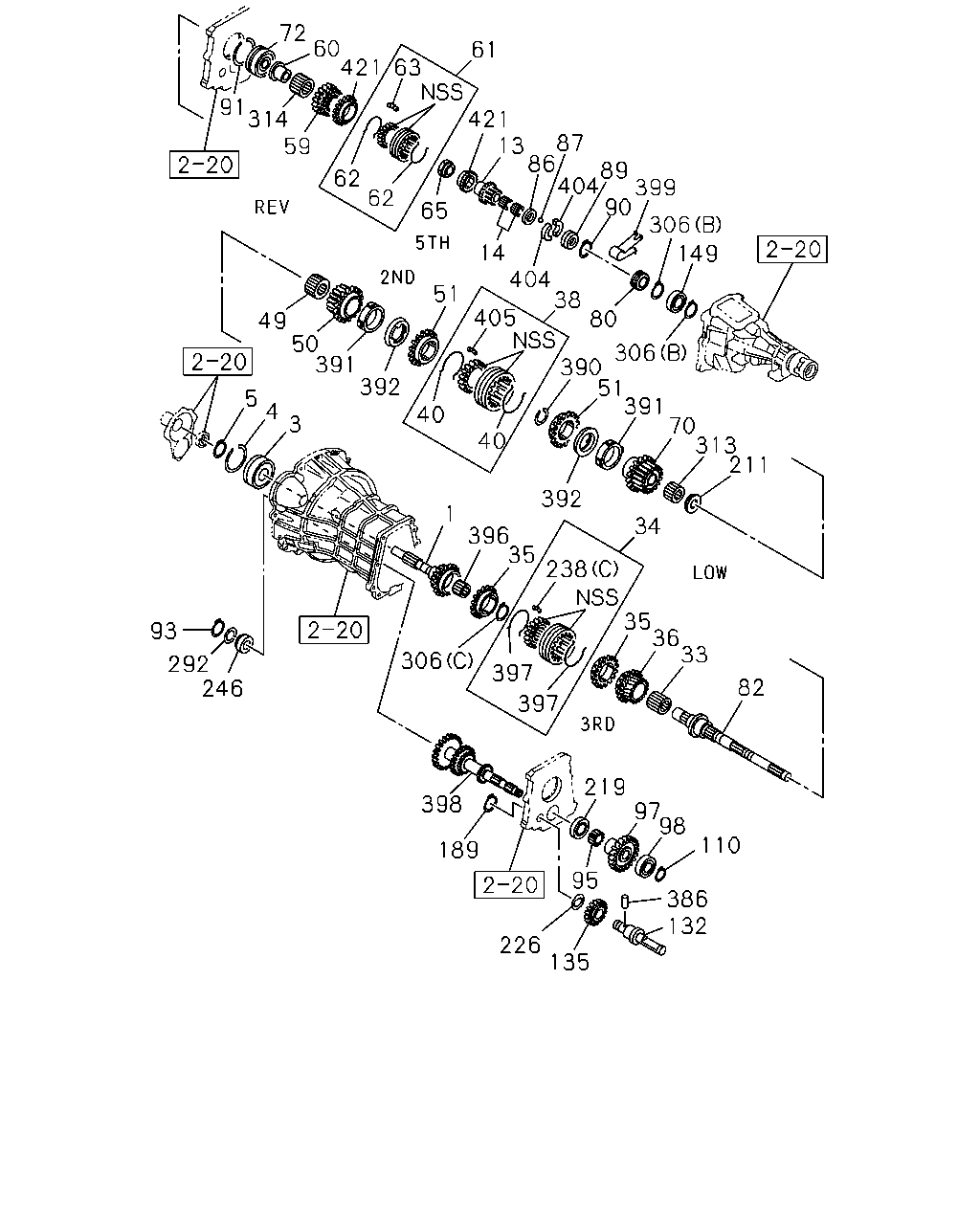

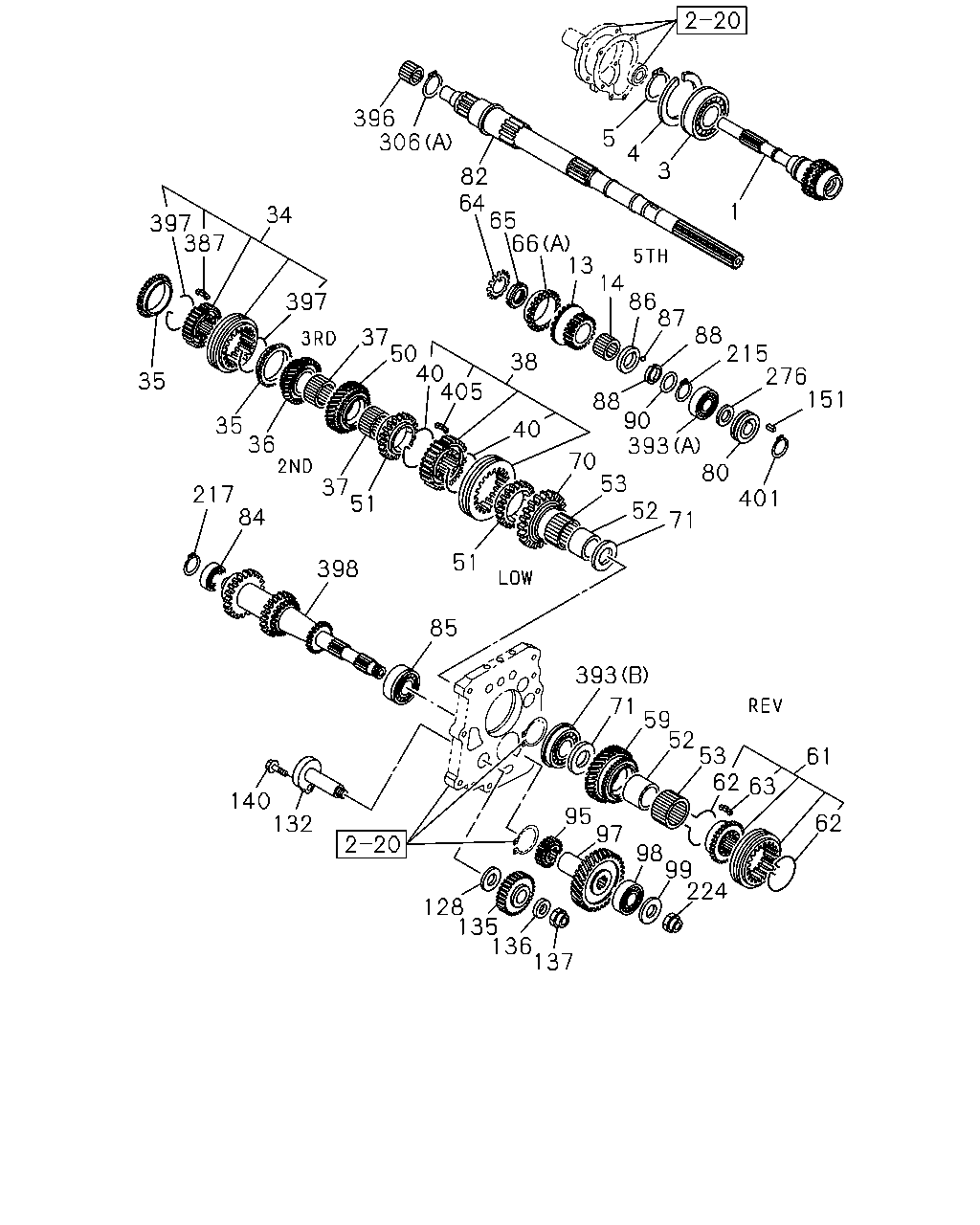

2-26A — MANUAL TRANSMISSION GEAR (#153658) — 799 parça

1 3 4 5 13 66 65 64 82 306 396 34 397 397 387 37 405 38 40 50 40 88 71 53 70 52 90 87 276 215 88 151 86 14 393 393 71 59 52 53 62 63 62 61 224 99 98 97 95 137 136 135 128 132 140 85 398 84 217 51 37 36 35 35 51 80 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=25	8-98210-240-0	01	1	1412-				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1412-		●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1412-	●	●		●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1412-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1412-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1412-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1412-	●	●		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1412-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1412-	●	●		●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1412-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24	8-98210-254-0	01	1	1412-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1412-			●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1412-	●	●		●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	1409-					●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1412-	●	●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1412-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1412-			●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	1409-					●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1412-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1412-	●	●		●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1412-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1412-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1412-			●
36	04.415 GEAR; 3RD,MAINSHAFT CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=31	8-98210-249-0	01	1	1412-				●
37	04.352 BEARING; NEEDLE,2ND & 3RD NTN	8-94161-988-2	02	1	1412-			●
37	04.352 BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	1412-			●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1412-	●	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1412-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1412-			●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	1409-					●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1412-			●
40	04.384 SPRING; INSERT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	1409-1411					●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1412-	●	●		●	●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1412-	●	●		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1412-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1412-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1412-			●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=36	8-98115-804-0	02	1	1409-1411					●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1412-	●	●		●	●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-97238-834-0	02	1	1412-			●
53	04.419 BEARING; NEEDLE,LOW & REV NTN	8-94161-990-2	02	1	1412-			●
53	04.419 BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	1412-			●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-	●	●		●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1412-			●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1412-			●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1412-	●	●		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1412-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1412-	●	●		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1412-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1412-	●	●		●
64	04.419 WASHER; LK,LOW 04.412	8-94238-095-0	01	1	1412-			●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1412-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1412-	●	●		●
66	04.383 RING; BLOCK,SYN (A) Z=30	8-94463-830-1	01	1	1412-			●
66	04.383 RING; BLOCK,SYN (C)	8-98203-181-0	01	1	1412-						●
66	04.383 RING; BLOCK,SYN (B)	8-98203-194-0	01	1	1412-						●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1412-	●	●		●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1412-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1412-			●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	1412-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1412-	●	●		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1412-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7	8-98123-463-0	01	1	1412-					●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1412-	●	●		●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1412-			●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1412-		●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	1412-			●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-98203-206-0	01	1	1412-						●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	1409-					●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1412-	●	●		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1412-	●	●	●	●
88	04.416 RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	1412-			●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	1412-	●	●		●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	1412-			●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●		●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-			●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1412-						●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-98210-237-0	01	1	1409-					●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1412-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49	8-97216-154-0	01	1	1412-	●
97	04.415 GEAR; 5TH,COUNTER EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	1409-					●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-	●	●		●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1412-			●
99	04.429 WASHER; PL,COUNTER 5TH GEAR ID=17 OD=30	0-91610-516-0	01	1	1412-			●
128	04.437 WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	1412-			●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-	●	●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-			●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1412-						●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	1409-					●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-	●	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-			●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1412-						●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1409-					●
136	04.437 WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	1412-			●
137	04.429 NUT; REV GEAR M16	8-98035-678-0	01	1	1412-			●
140	04.435 BOLT; LK PIECE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1412-			●
151	04.345 KEY; FEATHER,SPD DRIVE GEAR 08.960	9-08020-510-0	01	1	1412-			●
215	04.416 RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	1412-			●
217	04.376 RING; SNAP,COUNTER FRT BRG 04.422 ID=18.5	9-09180-020-0	01	1	1412-			●
224	04.429 NUT; SELF LK,COUNTER M16	8-98035-678-0	01	1	1412-			●
276	04.419 SPACER; BRG TO DRIVE GEAR 04.423	8-94161-087-0	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT (D)	8-98203-220-0	01	1	1412-						●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1412-		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1412-	●	●		●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	1412-			●
387	04.384 INSERT; SYN,4TH & 3RD	8-98203-192-0	03	1	1412-						●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	1412-			●
393	04.352 BEARING; MAINSHAFT END 04.422 (A) NSK	8-94173-863-0	01	1	1412-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1412-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1412-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1412-	●	●		●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1412-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1412-	●	●		●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1412-	●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1412-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1412-			●
398	04.421 GEAR; COUNTER CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=46-32-25-19	8-97209-758-1	01	1	1412-				●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=23	8-98106-584-0	01	1	1409-					●
401	04.345 RING; SNAP,SPD DRIVE GEAR 04.416 ID=27.9	9-09180-030-0	01	1	1412-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1412-						●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1409-1411					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-	●	●		●	●

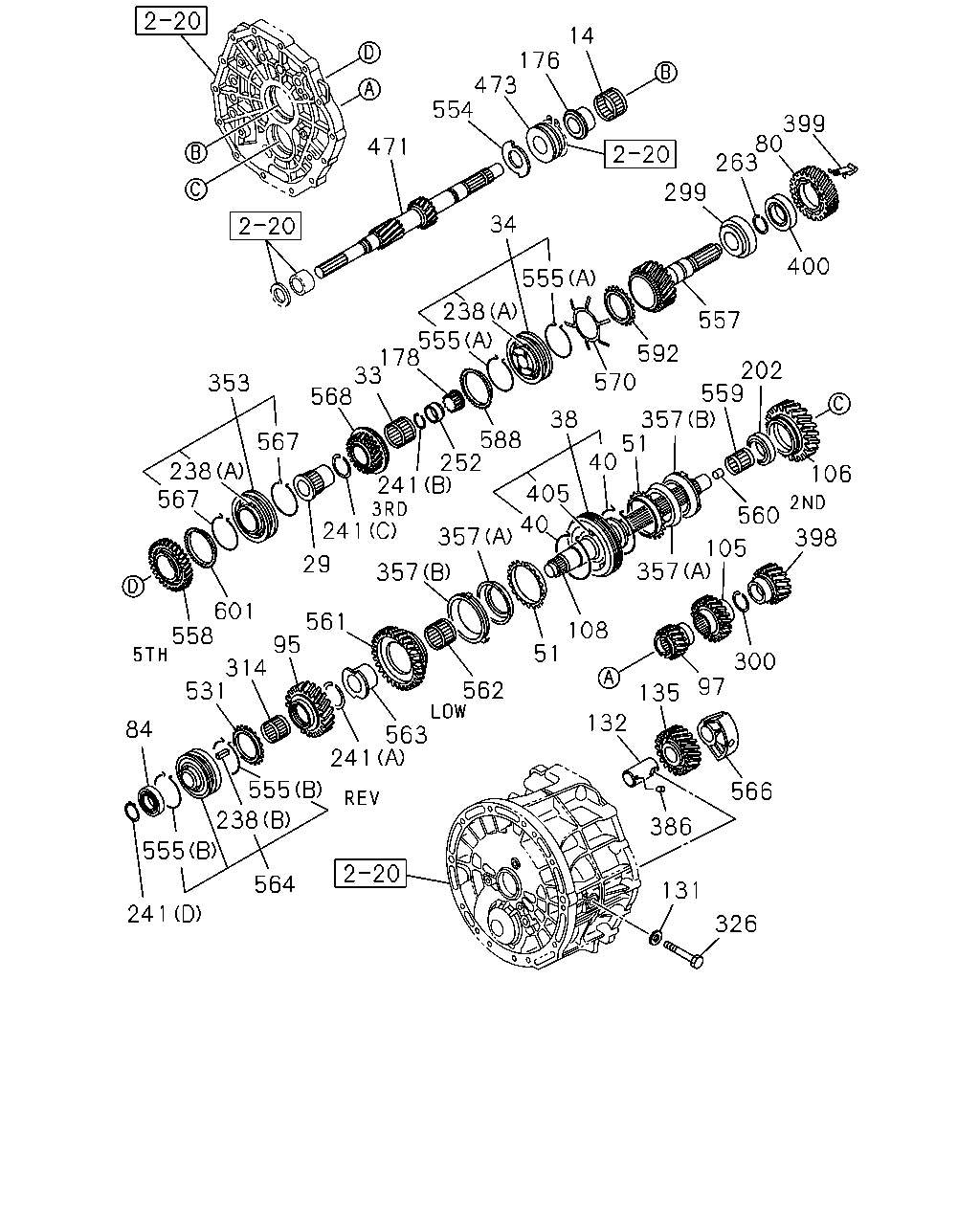

471 554 473 176 14 299 263 80 399 400 557 592 570 38 588 252 241 241 29 601 558 531 84 314 357 561 95 555 238 555 241 564 241 562 357 33 568 567 238 567 353 178 555 238 34 555 559 202 357 51 40 405 51 132 300 398 560 105 357 108 563 326 131 386 135 566 97 106 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1412-			●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1412-	●	●		●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	1409-					●
29	04.416 COLLAR; 3RD GEAR 4JJ1-TCX ENG(LS0)	8-97362-568-1	01	1	1409-					●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98203-209-0	01	1	1412-						●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1409-1411					●

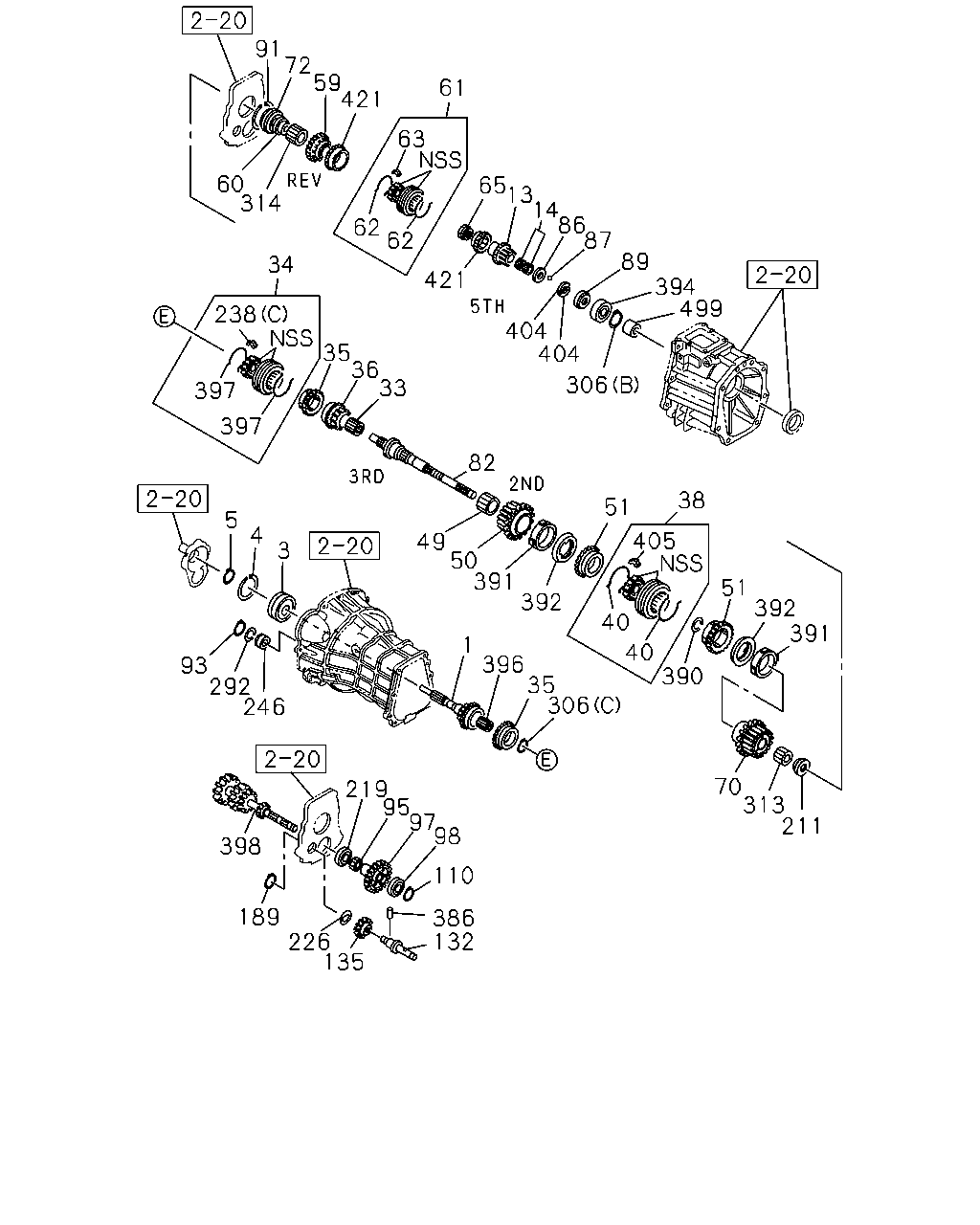

33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1412-	●	●		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1412-	●	●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1412-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1412-			●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	1409-					●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1412-	●	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1412-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1412-			●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	1409-					●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1412-			●
40	04.384 SPRING; INSERT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	1409-1411					●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1412-	●	●		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1412-			●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=36	8-98115-804-0	02	1	1409-1411					●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1412-	●	●		●	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1412-	●	●		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1412-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7	8-98123-463-0	01	1	1412-					●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	1412-			●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-98203-206-0	01	1	1412-						●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	1409-					●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●		●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-			●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1412-						●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-98210-237-0	01	1	1409-					●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1412-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49	8-97216-154-0	01	1	1412-	●
97	04.415 GEAR; 5TH,COUNTER EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	1409-					●
105	04.415 GEAR; 3RD,COUNTER 4JJ1-TCX ENG(LS0) Z=31	8-98233-612-0	01	1	1409-					●
106	04.395 GEAR; 2ND,COUNTER	8-98203-237-0	01	1	1412-						●
106	04.395 GEAR; 2ND,COUNTER 4JJ1-TCX ENG(LS0) Z=38	8-98210-236-0	01	1	1409-					●
108	04.428 SHAFT; COUNTER	8-98203-235-0	01	1	1412-						●
108	04.428 SHAFT; COUNTER 4JJ1-TCX ENG(LS0) Z=26-34-26-26	8-98023-108-1	01	1	1409-					●
131	04.435 GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=12.2	9-09571-412-0	01	1	1409-					●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-	●	●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-			●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1412-						●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	1409-					●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-	●	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-			●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1412-						●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1409-					●
176	04.415 COLLAR; 5TH GEAR 4JJ1-TCX ENG(LS0)	8-97362-567-0	01	1	1409-					●
178	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCX ENG(LS0)	8-97362-869-0	01	1	1409-					●
202	04.422 BEARING; COUNTER GEAR 4JJ1-TCX ENG(LS0)	8-97362-725-0	01	1	1409-					●
238	04.384 INSERT (C)	8-94448-202-2	03	1	1412-	●	●		●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	1409-					●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (A)	8-98004-522-0	06	1	1409-					●
241	04.416 RING; SNAP (E)	8-98203-218-0	01	1	1412-						●
241	04.416 RING; SNAP (F)	8-98203-223-0	01	1	1412-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (A) ID=34.4 T=1.9	8-97254-735-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=1.9	8-97362-871-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=2.1	8-97362-872-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=2.3	8-97362-873-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (C) ID=37 T=1.95	8-98004-523-1	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (C) ID=37 T=2.1	8-98004-524-1	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (D) ID=27.9	9-09180-030-0	01	1	1409-					●
252	04.412 SPACER	8-98203-226-0	01	1	1412-						●
252	04.412 SPACER 4JJ1-TCX ENG(LS0)	8-98024-456-0	01	1	1409-					●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.1	8-98004-525-0	01	1	1409-					●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.2	8-98004-526-0	01	1	1409-					●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.3	8-98004-527-0	01	1	1409-					●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.4	8-98004-528-0	01	1	1409-					●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.5	8-98004-529-0	01	1	1409-					●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.6	8-98004-530-0	01	1	1409-					●
299	04.422 BEARING; OUTPUT SHAFT FRT 4JJ1-TCX ENG(LS0)	8-97362-722-0	01	1	1409-					●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.416	8-98203-218-0	01	1	1412-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.3	8-98024-222-1	01	1	1409-					●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.5	8-98024-223-1	01	1	1409-					●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.7	8-98024-224-1	01	1	1409-					●
314	04.419 BEARING; NEEDLE,REV GEAR	8-98203-212-0	01	1	1412-						●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	1409-					●
326	04.412 BOLT; REV SHAFT 4JJ1-TCX ENG(LS0) 04.439 M12X70	9-92621-270-0	01	1	1409-					●
353	04.380 SYNCHRONIZER; 5TH 4JJ1-TCX ENG(LS0)	8-98004-511-1	01	1	1409-					●
357	04.383 RING (C)	8-98203-182-0	01	1	1412-						●
357	04.383 RING 4JJ1-TCX ENG(LS0) (B) OD=95.8	8-94363-056-0	02	1	1409-					●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-98115-793-0	02	1	1409-					●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1412-	●	●		●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	1409-					●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1412-	●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1412-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1412-			●
398	04.421 GEAR; COUNTER CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=46-32-25-19	8-97209-758-1	01	1	1412-				●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=23	8-98106-584-0	01	1	1409-					●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94310-229-0	01	1	1412-					●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1412-	●	●		●
400	04.408 BEARING; OUTPUT SHAFT RR 4JJ1-TCX ENG(LS0)	8-97362-723-0	01	1	1409-					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1412-						●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1409-1411					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-	●	●		●	●
471	04.530 SHAFT; INPUT	8-98203-234-0	01	1	1412-						●
471	04.530 SHAFT; INPUT 4JJ1-TCX ENG(LS0) Z=24-14-20-27	8-98106-034-0	01	1	1409-					●
473	04.352 BEARING; INPUT SHAFT	8-98203-205-0	01	1	1412-						●
473	04.352 BEARING; INPUT SHAFT 4JJ1-TCX ENG(LS0)	8-97362-721-1	01	1	1409-					●
531	04.383 RING; BLOCK,REV	8-98203-197-0	01	1	1412-						●
531	04.383 RING; BLOCK,REV 4JJ1-TCX ENG(LS0) OD=74	8-98037-846-0	01	1	1409-					●
554	04.422 IMPELLER; OIL 4JJ1-TCX ENG(LS0)	8-97362-730-0	01	1	1409-					●
555	04.384 SPRING; INSERT 4JJ1-TCX ENG(LS0) (A)	5-33264-012-0	02	1	1409-					●
555	04.384 SPRING; INSERT 4JJ1-TCX ENG(LS0) (B)	8-97109-690-0	02	1	1409-					●
557	04.535 GEAR; OUTPUT 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=31-27	8-98210-238-0	01	1	1409-					●
557	04.535 GEAR; OUTPUT 4X4(TFS***) 4JJ1-TCX ENG(LS0) Z=31-27	8-98210-239-0	01	1	1409-					●
558	04.415 GEAR; 5TH,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=46	8-98233-610-0	01	1	1409-					●
559	04.352 BEARING; NEEDLE,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-727-0	01	1	1409-					●
560	04.416 RING; DUM 4JJ1-TCX ENG(LS0)	8-97078-729-1	01	1	1409-					●
561	04.395 GEAR; LOW,COUNTER 4JJ1-TCX ENG(LS0) Z=45	8-98210-235-0	01	1	1409-					●
562	04.422 BEARING; NEEDLE,LOW & 2ND 4JJ1-TCX ENG(LS0) 04.352	8-97362-727-0	01	1	1409-					●
563	04.419 COLLAR; 1ST GEAR 4JJ1-TCX ENG(LS0)	8-97362-569-1	01	1	1409-					●
564	04.380 SYNCHRONIZER; REV 4JJ1-TCX ENG(LS0)	8-97362-496-1	01	1	1409-					●
566	04.342 BRACKET; REV IDLER 4JJ1-TCX ENG(LS0)	8-97362-516-0	01	1	1409-					●
567	04.384 SPRING; INSERT,5TH 4JJ1-TCX ENG(LS0)	5-33264-012-0	02	1	1409-					●
568	04.415 GEAR; 3RD,INPUT SHAFT	8-98203-229-0	01	1	1412-						●
568	04.415 GEAR; 3RD,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=28	8-98233-608-0	01	1	1409-					●
570	04.422 SPRING; PLATE 4JJ1-TCX ENG(LS0)	8-98072-467-2	01	1	1409-					●
588	04.383 RING; BLOCK,3RD 4JJ1-TCX ENG(LS0) Z=36	8-98052-559-0	01	1	1409-					●
592	04.383 RING; BLOCK,4TH 4JJ1-TCX ENG(LS0)	8-98197-460-0	01	1	1409-					●
601	04.383 RING; BLOCK,5TH 4JJ1-TCX ENG(LS0)	8-98283-241-0	01	1	1409-					●

259 152 376 377 377 145 376 376

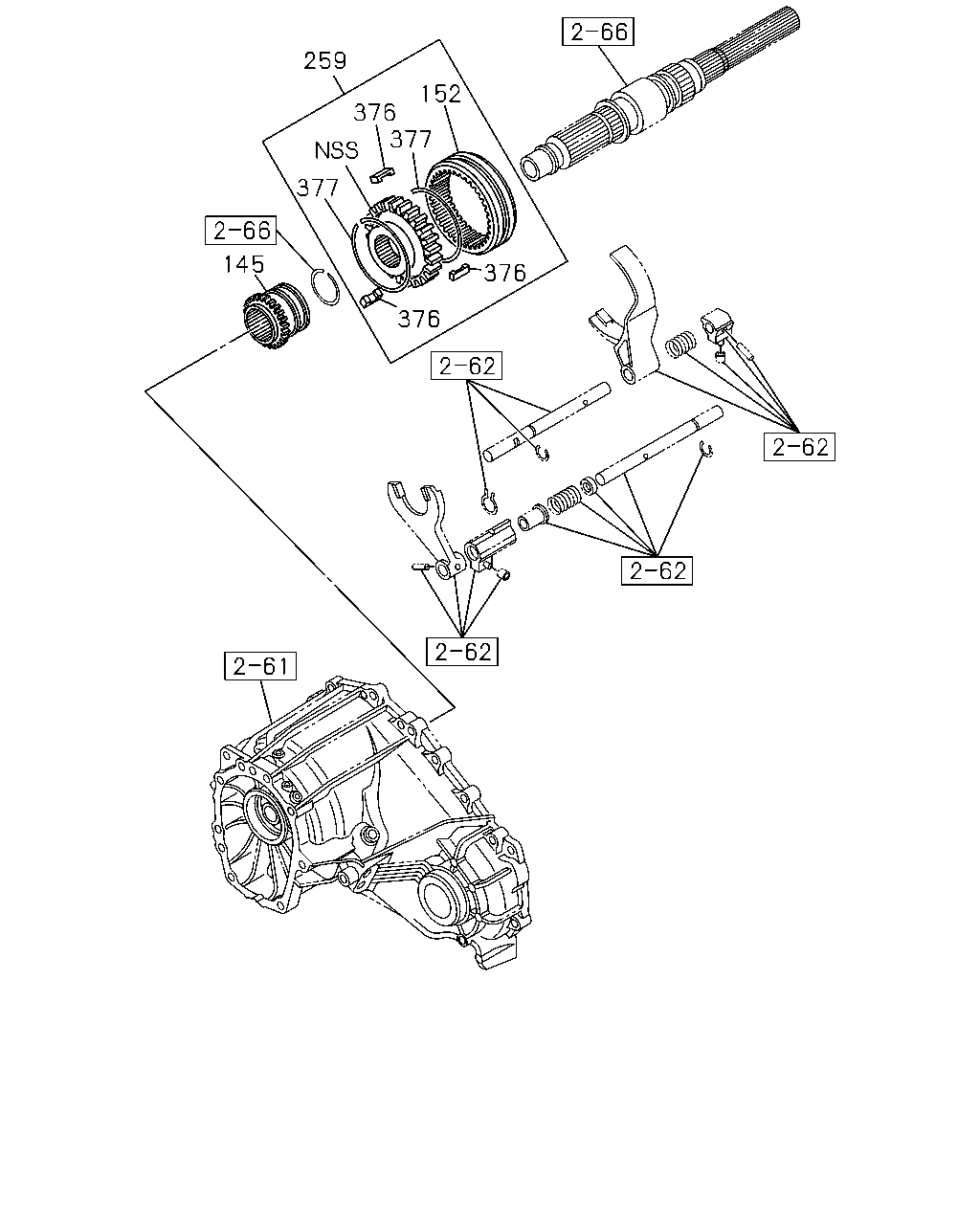

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	E	F
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1409-1411		●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1412-	●	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1409-1411		●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1412-	●	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1409-1411		●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1412-	●	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1409-1411		●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1412-	●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1409-1411		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	1412-	●	●	●

241 265 84 329 314 95 404 57 408 531 166 56 404 361 405 517 39 535 110 66 598 517 405 408 405 408 517 408 357 106 49 300 250 108 492 437

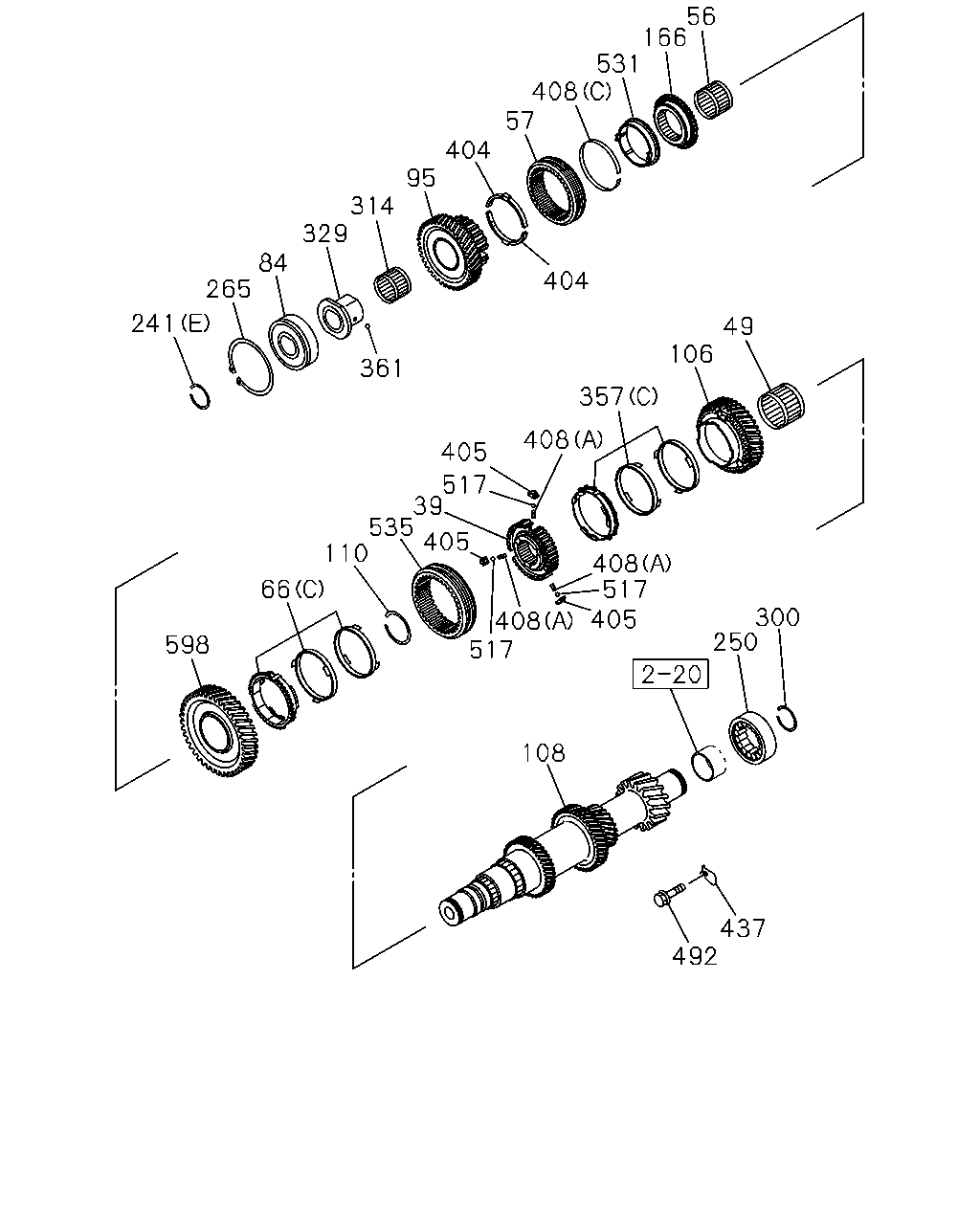

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
39	04.384 HUB; CLU,LOW & 2ND	8-98203-187-0	01	1	1412-						●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-98203-208-0	01	1	1412-						●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1412-	●	●		●
56	04.419 BEARING; NEEDLE,1ST,REV	8-98203-207-0	01	1	1412-						●
57	04.419 SLEEVE; REV	8-98203-203-0	01	1	1412-						●
66	04.383 RING; BLOCK,SYN (A) Z=30	8-94463-830-1	01	1	1412-			●
66	04.383 RING; BLOCK,SYN (C)	8-98203-181-0	01	1	1412-						●
66	04.383 RING; BLOCK,SYN (B)	8-98203-194-0	01	1	1412-						●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	1412-			●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-98203-206-0	01	1	1412-						●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	1409-					●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●		●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-			●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1412-						●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-98210-237-0	01	1	1409-					●
106	04.395 GEAR; 2ND,COUNTER	8-98203-237-0	01	1	1412-						●
106	04.395 GEAR; 2ND,COUNTER 4JJ1-TCX ENG(LS0) Z=38	8-98210-236-0	01	1	1409-					●
108	04.428 SHAFT; COUNTER	8-98203-235-0	01	1	1412-						●
108	04.428 SHAFT; COUNTER 4JJ1-TCX ENG(LS0) Z=26-34-26-26	8-98023-108-1	01	1	1409-					●
110	04.422 RING; SNAP,COUNTER BRG	8-98203-219-0	01	1	1412-						●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1412-	●	●		●
166	04.435 PIECE; DIST	8-98203-184-0	01	1	1412-						●
241	04.416 RING; SNAP (E)	8-98203-218-0	01	1	1412-						●
241	04.416 RING; SNAP (F)	8-98203-223-0	01	1	1412-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (A) ID=34.4 T=1.9	8-97254-735-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=1.9	8-97362-871-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=2.1	8-97362-872-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=2.3	8-97362-873-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (C) ID=37 T=1.95	8-98004-523-1	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (C) ID=37 T=2.1	8-98004-524-1	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (D) ID=27.9	9-09180-030-0	01	1	1409-					●
250	04.352 BEARING; COUNTER SHAFT RR	8-98203-215-0	01	1	1412-						●
265	04.525 RING; SNAP,BRG OUTER	8-98203-224-0	01	1	1412-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.416	8-98203-218-0	01	1	1412-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.3	8-98024-222-1	01	1	1409-					●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.5	8-98024-223-1	01	1	1409-					●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.7	8-98024-224-1	01	1	1409-					●
314	04.419 BEARING; NEEDLE,REV GEAR	8-98203-212-0	01	1	1412-						●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	1409-					●
329	04.352 COLLAR; BEARING	8-98203-186-0	01	1	1412-						●
357	04.383 RING (C)	8-98203-182-0	01	1	1412-						●
357	04.383 RING 4JJ1-TCX ENG(LS0) (B) OD=95.8	8-94363-056-0	02	1	1409-					●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-98115-793-0	02	1	1409-					●
361	04.419 BALL; LK,THRUST WASHER,REV GEAR 04.345	8-89048-423-0	01	1	1412-						●
404	04.307 PLATE; THRUST	8-98203-202-0	02	1	1412-						●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1412-	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1412-						●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1409-1411					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-	●	●		●	●
408	04.384 SPRING (A)	8-98203-195-0	03	1	1412-						●
408	04.384 SPRING (B)	8-98203-196-0	06	1	1412-						●
408	04.384 SPRING (C)	8-98203-198-0	01	1	1412-						●
437	04.435 PLATE; LOCK	8-98203-107-0	01	1	1412-						●
492	04.435 BOLT; PLATE	8-98203-122-0	01	1	1412-						●
517	04.384 BALL; SYNCHRO,INDEX	8-98203-204-0	09	1	1412-						●
531	04.383 RING; BLOCK,REV	8-98203-197-0	01	1	1412-						●
531	04.383 RING; BLOCK,REV 4JJ1-TCX ENG(LS0) OD=74	8-98037-846-0	01	1	1409-					●
535	04.395 SLEEVE; HUB,LOW-2ND	8-98203-189-0	01	1	1412-						●
598	04.421 GEAR; 1ST,COUNTER	8-98203-236-0	01	1	1412-						●

135 129 132 471 241 292 473 568 125 408 420 66 475 528 396 481 43 572 296 160 33 288 306 264 390 264 462 510 28 252 77 481 121 517 125 387 408 517 387 517 408 534 387 517 408 408 517 125 408 517 609 483 417 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
28	04.416 RING; SNAP,3RD GEAR	8-98203-222-0	01	1	1412-						●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98203-209-0	01	1	1412-						●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1409-1411					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1412-	●	●		●	●
43	04.384 HUB; CLU,3RD & 4TH,MAIN	8-98203-188-0	01	1	1412-						●
66	04.383 RING; BLOCK,SYN (A) Z=30	8-94463-830-1	01	1	1412-			●
66	04.383 RING; BLOCK,SYN (C)	8-98203-181-0	01	1	1412-						●
66	04.383 RING; BLOCK,SYN (B)	8-98203-194-0	01	1	1412-						●
77	04.421 GEAR; 6TH,MAINSHAFT	8-98203-231-0	01	1	1412-						●
121	04.384 HUB; CLU,6TH	8-98203-199-0	01	1	1412-						●
125	04.384 INSERT; 6TH SYN	8-98203-192-0	03	1	1412-						●
129	04.431 BEARING; NEEDLE,IDLER	8-98203-213-0	01	1	1412-						●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-	●	●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-			●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1412-						●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	1409-					●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-	●	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-			●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1412-						●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1409-					●
160	04.525 NUT; OUTPUT SHAFT END	8-98203-252-0	01	1	1412-						●
241	04.416 RING; SNAP (E)	8-98203-218-0	01	1	1412-						●
241	04.416 RING; SNAP (F)	8-98203-223-0	01	1	1412-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (A) ID=34.4 T=1.9	8-97254-735-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=1.9	8-97362-871-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=2.1	8-97362-872-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (B) ID=27.1 T=2.3	8-97362-873-0	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (C) ID=37 T=1.95	8-98004-523-1	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (C) ID=37 T=2.1	8-98004-524-1	01	1	1409-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (D) ID=27.9	9-09180-030-0	01	1	1409-					●
252	04.412 SPACER	8-98203-226-0	01	1	1412-						●
252	04.412 SPACER 4JJ1-TCX ENG(LS0)	8-98024-456-0	01	1	1409-					●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT (A)	8-98203-214-0	01	1	1412-						●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT (B)	8-98203-216-0	01	1	1412-						●
288	04.399 SPACER; BRG,MAINSHAFT	8-98203-227-0	01	1	1412-						●
292	04.422 RING; SNAP,BRG OUTER	8-98203-225-0	01	1	1412-						●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1412-	●	●		●
294	04.530 SHAFT; OUTPUT 4X2(TFB***)	8-98203-233-0	01	1	1412-						●
294	04.530 SHAFT; OUTPUT 4X4(TFS***)	8-98203-232-0	01	1	1412-						●
296	04.406 WASHER; THRUST	8-98203-185-0	01	1	1412-						●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT (D)	8-98203-220-0	01	1	1412-						●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1412-		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1412-	●	●		●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	1412-			●
387	04.384 INSERT; SYN,4TH & 3RD	8-98203-192-0	03	1	1412-						●
390	04.383 RING; SNAP,CLU HUB	8-98203-221-0	01	1	1412-						●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1412-	●	●		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1412-	●	●		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1412-	●	●		●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1412-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1412-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1412-	●	●		●
408	04.384 SPRING (A)	8-98203-195-0	03	1	1412-						●
408	04.384 SPRING (B)	8-98203-196-0	06	1	1412-						●
408	04.384 SPRING (C)	8-98203-198-0	01	1	1412-						●
417	04.384 SPACER; OUTPUT SHAFT 4X2(TFB***)	8-98203-255-0	01	1	1412-						●
417	04.384 SPACER; OUTPUT SHAFT 4X4(TFS***)	8-98203-254-0	01	1	1412-						●
420	04.416 RING; SNAP,OUTPUT SHAFT	8-98203-257-0	01	1	1412-						●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER	8-98203-183-0	01	1	1412-						●
471	04.530 SHAFT; INPUT	8-98203-234-0	01	1	1412-						●
471	04.530 SHAFT; INPUT 4JJ1-TCX ENG(LS0) Z=24-14-20-27	8-98106-034-0	01	1	1409-					●
473	04.352 BEARING; INPUT SHAFT	8-98203-205-0	01	1	1412-						●
473	04.352 BEARING; INPUT SHAFT 4JJ1-TCX ENG(LS0)	8-97362-721-1	01	1	1409-					●
475	04.419 BEARING; 6TH	8-98203-211-0	01	1	1412-						●
481	04.383 RING; BLOCK	8-98203-193-0	02	1	1412-						●
483	04.352 BEARING; TAPER	8-98203-217-0	01	1	1412-						●
510	04.540 PIN; STRAIGHT,ANTI LASH	8-98203-228-0	01	1	1412-						●
517	04.384 BALL; SYNCHRO,INDEX	8-98203-204-0	09	1	1412-						●
528	04.384 SLEEVE; 6TH	8-98203-190-0	01	1	1412-						●
534	04.395 SLEEVE; HUB,4TH-3RD 04.384	8-98203-190-0	01	1	1412-						●
568	04.415 GEAR; 3RD,INPUT SHAFT	8-98203-229-0	01	1	1412-						●
568	04.415 GEAR; 3RD,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=28	8-98233-608-0	01	1	1409-					●
572	04.415 GEAR; 4TH,INPUT	8-98203-230-0	01	1	1412-						●
609	04.384 PIPE; OUTPUT SHAFT 4X2(TFB***)	8-98203-250-0	01	1	1412-						●
609	04.384 PIPE; OUTPUT SHAFT 4X4(TFS***)	8-98203-249-0	01	1	1412-						●

91 72 59 421 61 63 65 13 14 86 87 89 394 499 306 404 404 421 62 62 60 314 34 238 35 36 33 397 397 49 50 391 392 40 40 390 51 405 51 38 392 391 70 313 211 82 5 4 3 93 292 246 219 95 97 98 110 386 132 135 226 189 398 1 396 35 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=25	8-98210-240-0	01	1	1412-				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1412-		●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1412-	●	●		●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1412-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1412-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1412-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1412-	●	●		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1412-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1412-	●	●		●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1412-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24	8-98210-254-0	01	1	1412-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1412-			●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1412-	●	●		●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	1409-					●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98203-209-0	01	1	1412-						●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1409-1411					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1412-	●	●		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1412-	●	●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1412-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1412-			●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	1409-					●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1412-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1412-	●	●		●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1412-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1412-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1412-			●
36	04.415 GEAR; 3RD,MAINSHAFT CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=31	8-98210-249-0	01	1	1412-				●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1412-	●	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1412-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1412-			●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	1409-					●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1412-			●
40	04.384 SPRING; INSERT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	1409-1411					●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1412-	●	●		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-98203-208-0	01	1	1412-						●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1412-	●	●		●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1412-	●	●		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1412-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1412-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1412-			●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=36	8-98115-804-0	02	1	1409-1411					●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1412-	●	●		●	●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-	●	●		●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1412-			●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1412-	●	●		●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1412-			●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1412-	●	●		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1412-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1412-	●	●		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1412-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1412-	●	●		●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1412-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1412-	●	●		●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1412-	●	●		●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1412-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1412-			●
72	04.352 BEARING; BALL,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1412-	●	●		●
72	04.352 BEARING; BALL,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1412-	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1412-	●	●		●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1412-			●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1412-		●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1412-	●	●		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1412-	●	●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1412-	●	●		●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1412-	●	●		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1412-	●	●		●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●		●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-			●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1412-						●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-98210-237-0	01	1	1409-					●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1412-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49	8-97216-154-0	01	1	1412-	●
97	04.415 GEAR; 5TH,COUNTER EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	1409-					●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-	●	●		●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1412-			●
110	04.422 RING; SNAP,COUNTER BRG	8-98203-219-0	01	1	1412-						●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1412-	●	●		●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-	●	●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-			●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1412-						●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	1409-					●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-	●	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-			●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1412-						●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1409-					●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1412-	●	●		●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1412-	●	●		●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1412-	●	●		●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1412-	●	●		●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1412-	●	●		●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1412-	●	●		●
238	04.384 INSERT (C)	8-94448-202-2	03	1	1412-	●	●		●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	1409-					●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (A)	8-98004-522-0	06	1	1409-					●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1412-	●	●		●
292	04.422 RING; SNAP,BRG OUTER	8-98203-225-0	01	1	1412-						●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT (D)	8-98203-220-0	01	1	1412-						●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1412-		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1412-	●	●		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR	8-98203-212-0	01	1	1412-						●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	1409-					●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1412-	●	●		●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	1409-					●
390	04.383 RING; SNAP,CLU HUB	8-98203-221-0	01	1	1412-						●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1412-	●	●		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1412-	●	●		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1412-	●	●		●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1412-	●	●		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1412-	●	●		●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK	8-97018-921-1	01	1	1412-		●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK	8-97018-921-1	01	1	1412-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1412-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1412-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1412-	●	●		●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1412-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1412-	●	●		●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1412-	●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1412-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1412-			●
398	04.421 GEAR; COUNTER CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=46-32-25-19	8-97209-758-1	01	1	1412-				●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=23	8-98106-584-0	01	1	1409-					●
404	04.307 PLATE; THRUST	8-98203-202-0	02	1	1412-						●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1412-	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1412-						●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1409-1411					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-	●	●		●	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1412-	●	●		●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>	8-97300-954-0	01	1	1412-		●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97300-954-0	01	1	1412-		●

91 72 314 60 49 59 5 93 292 246 398 189 226 135 132 110 98 386 97 219 397 397 396 1 35 238 35 36 33 82 211 313 70 391 51 390 306 80 38 404 14 306 399 90 404 149 89 392 34 40 40 392 391 50 4 3 95 421 61 421 86 65 51 87 63 62 62 13 405 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-225-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	1412-			●
1	04.351 SHAFT; TOP GEAR,TRANS CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=25	8-98210-240-0	01	1	1412-				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98233-594-0	01	1	1412-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26	8-98210-247-0	01	1	1412-		●
3	04.403 BEARING; TOP GEAR SHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97943-879-0	01	1	1412-	●	●		●
3	04.403 BEARING; TOP GEAR SHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-015-1	01	1	1412-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	1412-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	1412-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1412-	●	●		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1412-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1412-	●	●		●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●		●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22	8-98210-227-0	01	1	1412-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	1412-			●
13	04.415 GEAR; 5TH,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24	8-98210-254-0	01	1	1412-	●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24	8-98210-254-0	01	1	1412-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	1412-			●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1412-	●	●		●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	1409-					●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98203-209-0	01	1	1412-						●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JJ1-TCX ENG(LS0) 04.419 NSK	1-09811-028-1	01	1	1409-1411					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1412-	●	●		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD IDENTIFICATION LABEL FOR KD<6UT>	8-97977-991-0	01	1	1412-	●	●		●
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-027-0	01	1	1412-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	1412-			●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	1409-					●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	1412-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1412-	●	●		●
36	04.415 GEAR; 3RD,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98233-597-0	01	1	1412-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27	8-98210-226-0	01	1	1412-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	1412-			●
36	04.415 GEAR; 3RD,MAINSHAFT CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=31	8-98210-249-0	01	1	1412-				●
38	04.384 SYNCHRONIZER; LOW & 2ND IDENTIFICATION LABEL FOR KD<6UT>	8-97977-989-0	01	1	1412-	●	●		●
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94363-059-1	01	1	1412-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	1412-			●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	1409-					●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	1412-			●
40	04.384 SPRING; INSERT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94448-045-0	02	1	1409-1411					●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1412-	●	●		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-98203-208-0	01	1	1412-						●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1412-	●	●		●
50	04.395 GEAR; 2ND,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97301-183-1	01	1	1412-	●	●		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34	8-97300-953-1	01	1	1412-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	1412-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	1412-			●
51	04.383 RING; BLOCK,LOW & 2ND 4JJ1-TCX ENG(LS0) Z=36	8-98115-804-0	02	1	1409-1411					●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1412-	●	●		●	●
59	04.417 GEAR; REV MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-	●	●		●
59	04.417 GEAR; REV MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41	8-98210-228-0	01	1	1412-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	1412-			●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1412-	●	●		●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	1412-			●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1412-	●	●		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	1412-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1412-	●	●		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	1412-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1412-	●	●		●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	1412-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1412-	●	●		●
70	04.417 GEAR; 1ST,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97301-182-1	01	1	1412-	●	●		●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45	8-97300-952-1	01	1	1412-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	1412-			●
72	04.352 BEARING; BALL,MAINSHAFT IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1412-	●	●		●
72	04.352 BEARING; BALL,MAINSHAFT EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-94380-017-1	01	1	1412-	●	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1412-	●	●		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	1412-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7	8-98123-463-0	01	1	1412-					●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1412-	●	●		●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	1412-			●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1412-		●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	1412-			●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1412-	●	●		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1412-	●	●		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1412-	●	●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1412-	●	●		●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	1412-	●	●		●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	1412-			●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1412-	●	●		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1412-	●	●		●
95	04.417 GEAR; REV,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●		●
95	04.417 GEAR; REV,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19	8-94377-433-0	01	1	1412-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	1412-			●
95	04.417 GEAR; REV,COUNTER	8-98203-243-0	01	1	1412-						●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-98210-237-0	01	1	1409-					●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●		●
97	04.415 GEAR; 5TH,COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50	8-94377-434-0	01	1	1412-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	1412-			●
97	04.415 GEAR; 5TH,COUNTER IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49	8-97216-154-0	01	1	1412-	●
97	04.415 GEAR; 5TH,COUNTER EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49	8-97216-154-0	01	1	1412-	●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	1409-					●
98	04.422 BEARING; BALL,COUNTER END IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-	●	●		●
98	04.422 BEARING; BALL,COUNTER END EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK	8-97018-535-1	01	1	1412-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	1412-			●
110	04.422 RING; SNAP,COUNTER BRG	8-98203-219-0	01	1	1412-						●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1412-	●	●		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1412-	●	●		●
132	04.433 SHAFT; REV IDENTIFICATION LABEL FOR KD<6UT>	8-98245-493-0	01	1	1412-	●	●		●
132	04.433 SHAFT; REV EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98249-849-0	01	1	1412-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	1412-			●
132	04.433 SHAFT; REV	8-98203-238-0	01	1	1412-						●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	1409-					●
135	04.430 GEAR; REV IDLER IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98233-606-0	01	1	1412-	●	●		●
135	04.430 GEAR; REV IDLER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33	8-98146-726-1	01	1	1412-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1412-			●
135	04.430 GEAR; REV IDLER	8-98203-240-0	01	1	1412-						●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-98233-615-0	01	1	1409-					●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1412-	●	●		●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK	8-94173-863-0	01	1	1412-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1412-	●	●		●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1412-	●	●		●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1412-	●	●		●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1412-	●	●		●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1412-	●	●		●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1412-	●	●		●
238	04.384 INSERT (C)	8-94448-202-2	03	1	1412-	●	●		●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	1409-					●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (A)	8-98004-522-0	06	1	1409-					●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1412-	●	●		●
292	04.422 RING; SNAP,BRG OUTER	8-98203-225-0	01	1	1412-						●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	1412-			●
306	04.416 RING; SNAP,MAINSHAFT (D)	8-98203-220-0	01	1	1412-						●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1412-		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.90 BLUE	8-97129-615-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.85 YELLOW	8-97129-616-0	01	1	1412-	●	●		●
306	04.416 RING; SNAP,MAINSHAFT (C) T=1.80 WHITE	8-97129-617-0	01	1	1412-	●	●		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR	8-98203-212-0	01	1	1412-						●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1412-	●	●		●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	1409-					●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1412-	●	●		●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	1409-					●
390	04.383 RING; SNAP,CLU HUB	8-98203-221-0	01	1	1412-						●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1412-	●	●		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1412-	●	●		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1412-	●	●		●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1412-	●	●		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1412-	●	●		●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	1412-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-98203-210-0	01	1	1412-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1412-	●	●		●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	1412-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1412-	●	●		●
398	04.421 GEAR; COUNTER IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97301-186-2	01	1	1412-	●	●
398	04.421 GEAR; COUNTER EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19	8-97216-164-1	01	1	1412-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	1412-			●
398	04.421 GEAR; COUNTER CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT> Z=46-32-25-19	8-97209-758-1	01	1	1412-				●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=23	8-98106-584-0	01	1	1409-					●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94310-229-0	01	1	1412-					●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1412-	●	●		●
404	04.307 PLATE; THRUST	8-98203-202-0	02	1	1412-						●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1412-	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	1412-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-98203-191-0	03	1	1412-						●
405	04.384 INSERT; SYN,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-94363-062-1	03	1	1409-1411					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1412-	●	●		●	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1412-	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
