2-25B — SPEEDOMETER DRIVEN GEAR (#153657) — 19 parça

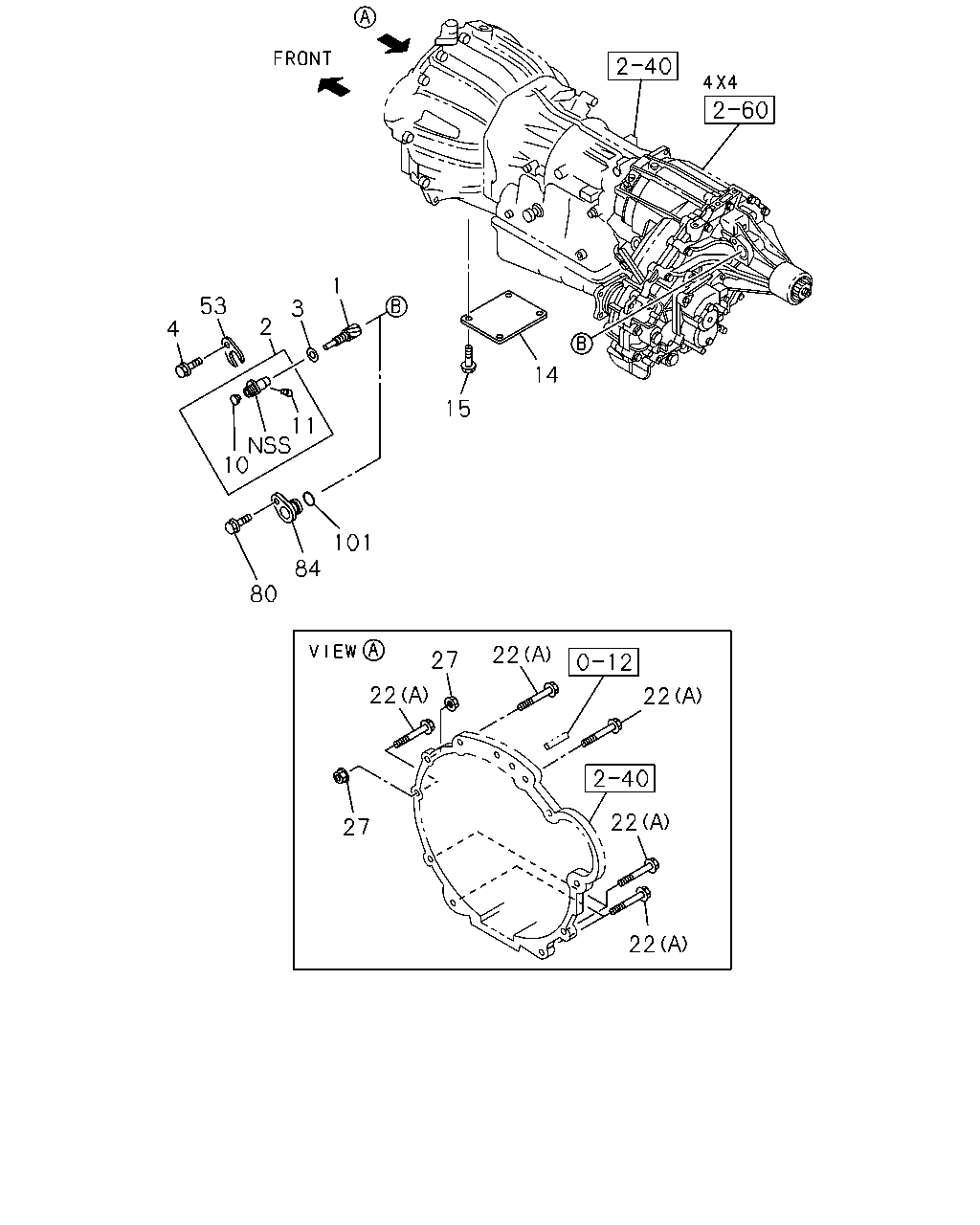

çizim 458617
4 53 2 3 1 10 11 15 14 80 84 101 27 22 27 22 22 22 22
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97238-583-0 01 1 1412-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97305-454-1 01 1 1412-
3 04.338 GASKET; BUSHING
ID=21.7 OD=28.7 		9-09921-100-0 01 1 1412-
4 04.338 BOLT; RET,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1412-
10 04.338 SEAL; OIL,DRIVE GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1412-
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94446-571-1 01 1 1412-
14 00.679 COVER; UNDER,TRANS 8-98049-857-0 01 1 1409-
15 00.685 BOLT; UNDER COVER TO TRANS
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1409-
22 00.685 BOLT; TRANS CASE TO ENG
00.724 (A) M12X50 FLANGE 		0-28051-250-0 08 1 1409-1411
22 00.685 BOLT; TRANS CASE TO ENG
00.724 (A) M12X50 FLANGE 		0-28051-250-0 08 1 1412-
27 00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE 		0-91180-112-0 02 1 1409-1411
27 00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE 		0-91180-112-0 02 1 1412-
53 04.338 PLATE; LOCK,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-572-0 01 1 1412-
80 04.329 BOLT; SPD SENSOR
4X4(TFS***) 04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1409-1411
80 04.329 BOLT; SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1412-
84 04.104 CAP; BUSH,SPEEDOMETER GEAR
4X4(TFS***) 		8-98103-318-0 01 1 1409-1411
84 04.104 CAP; BUSH,SPEEDOMETER GEAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98103-318-0 01 1 1412-
101 04.338 GASKET; CAP
4X4(TFS***) ID=21.7 OD=28.7 		9-09921-100-0 01 1 1409-1411
101 04.338 GASKET; CAP
4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1412-
