Sayfa 2-20A - Isuzu EPC

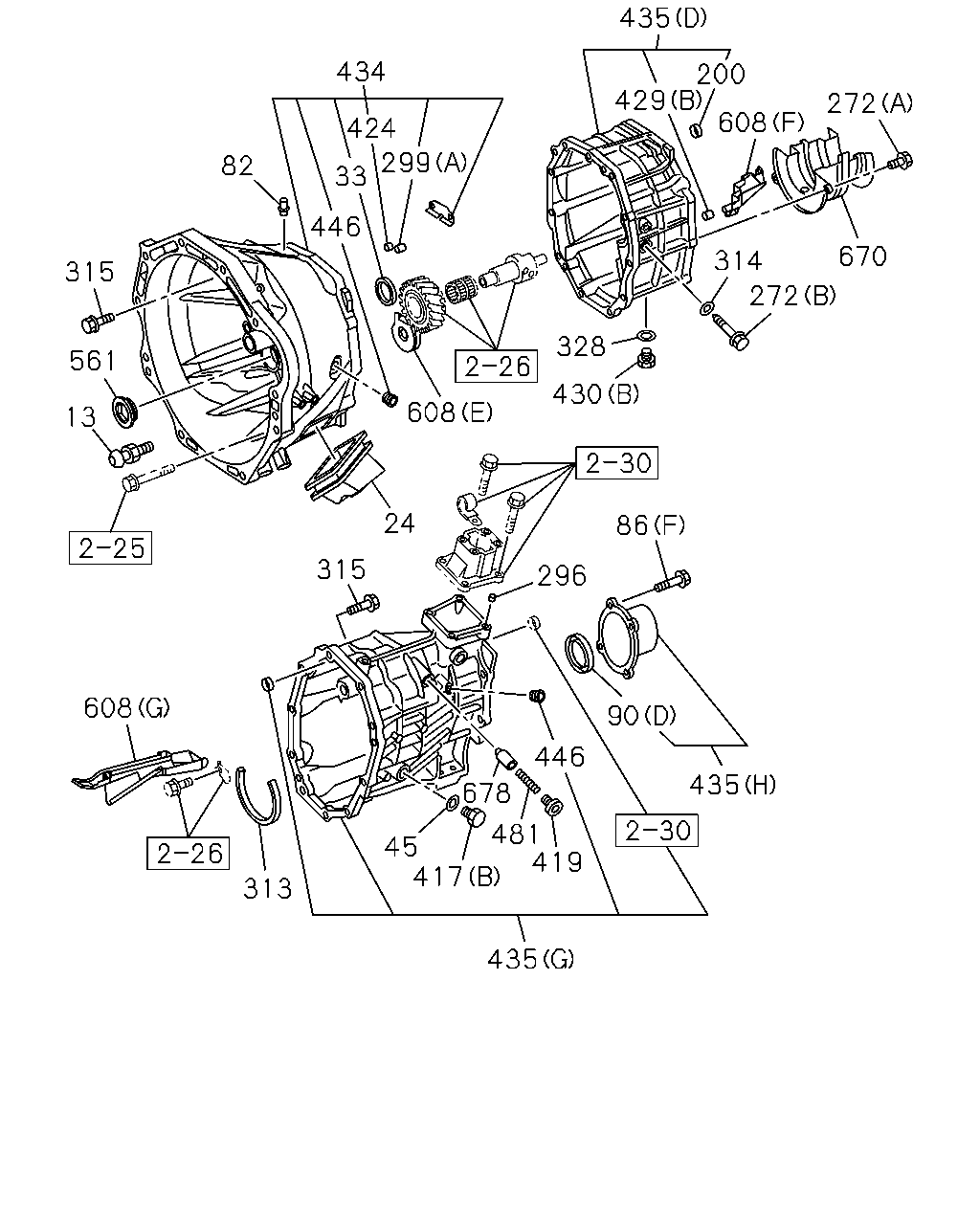

2-20A — MANUAL TRANSMISSION ASM AND CASE (#153654) — 827 parça

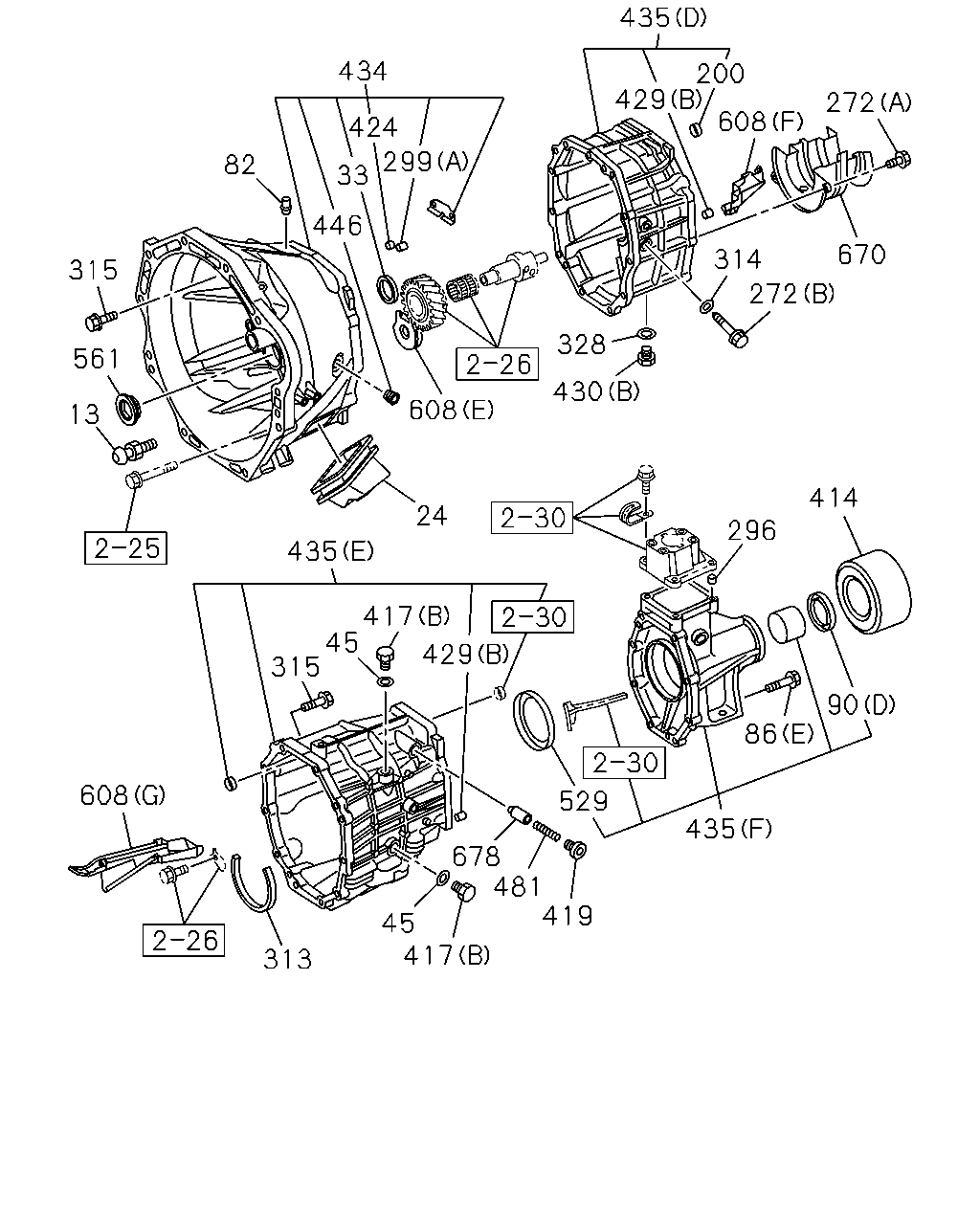

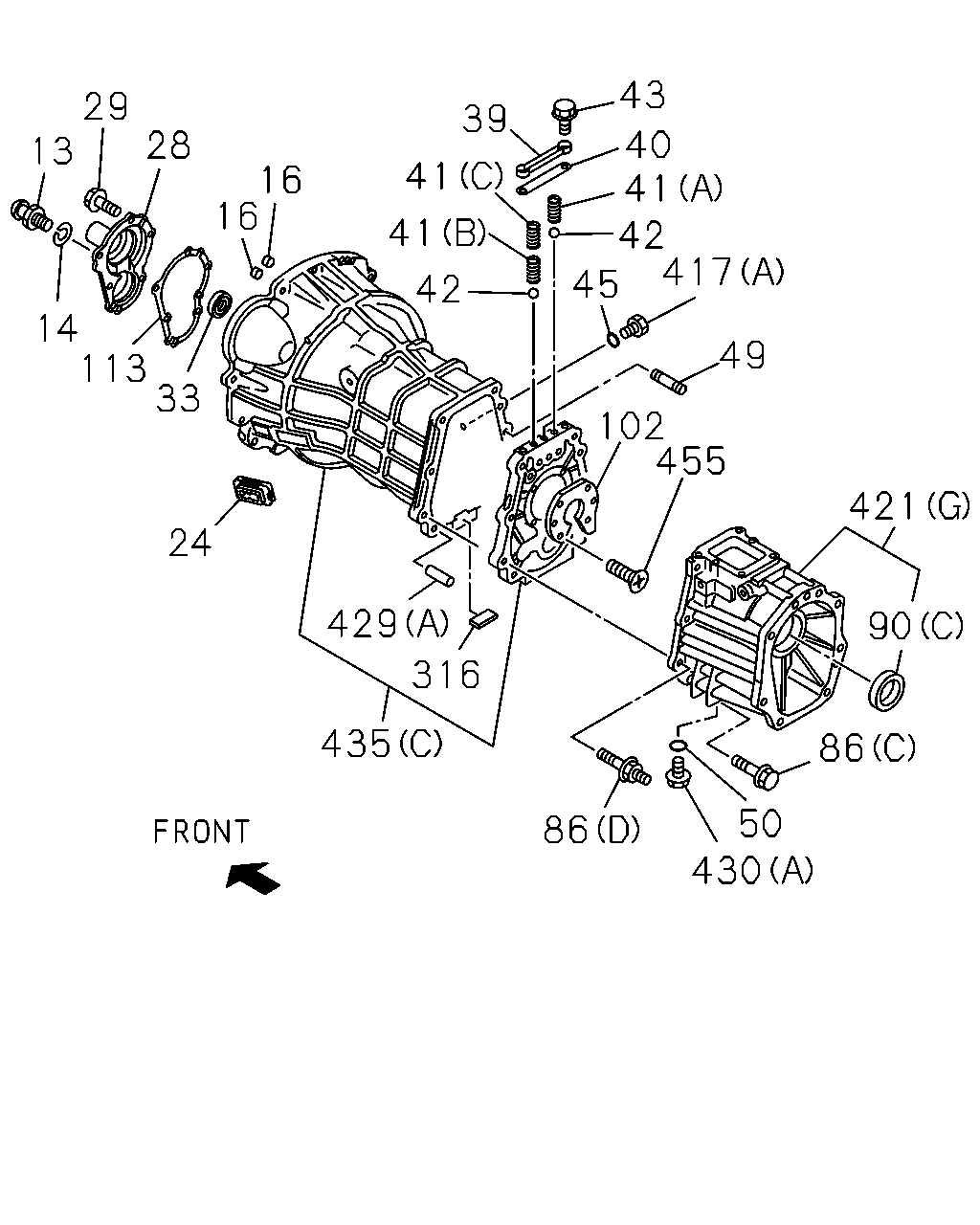

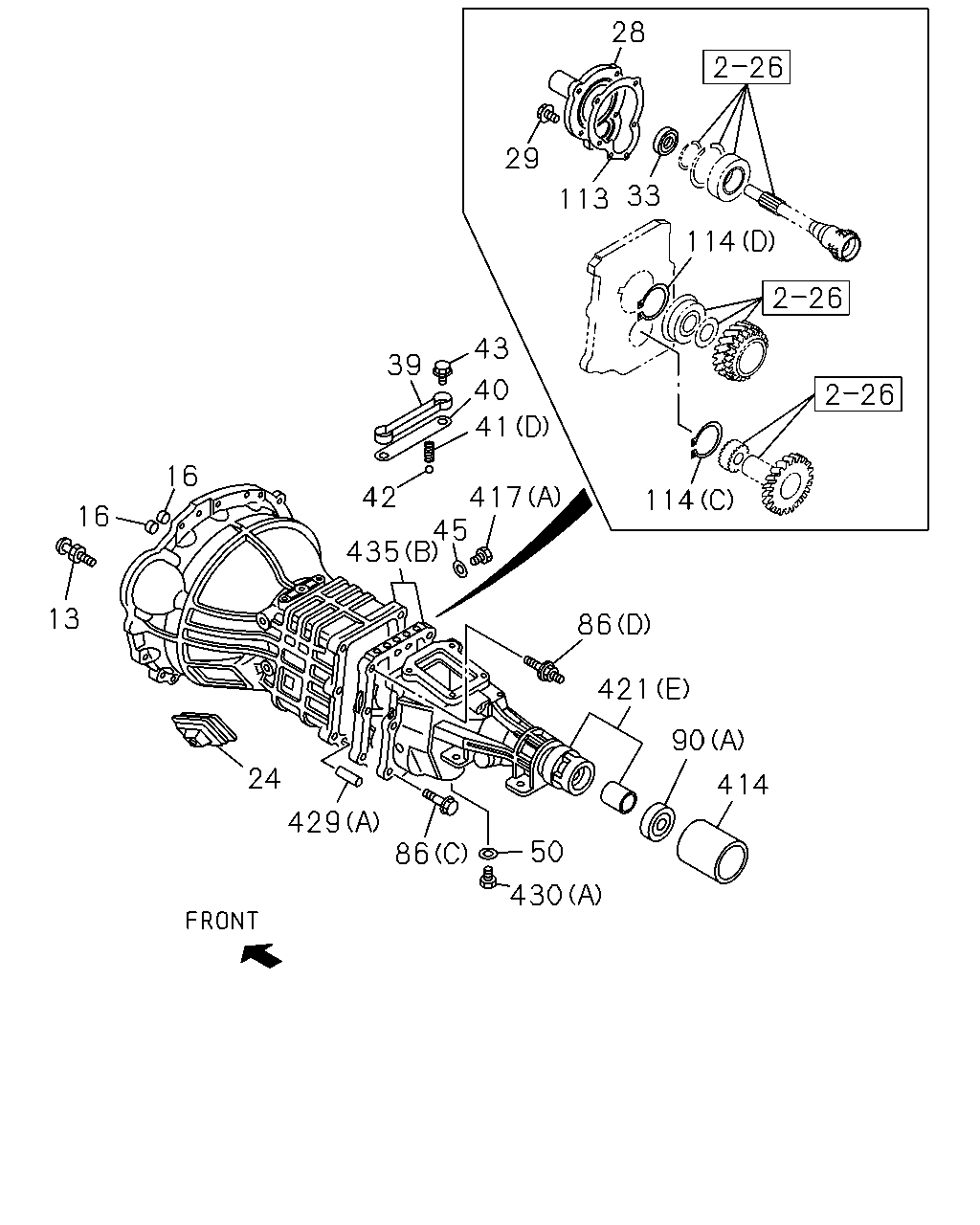

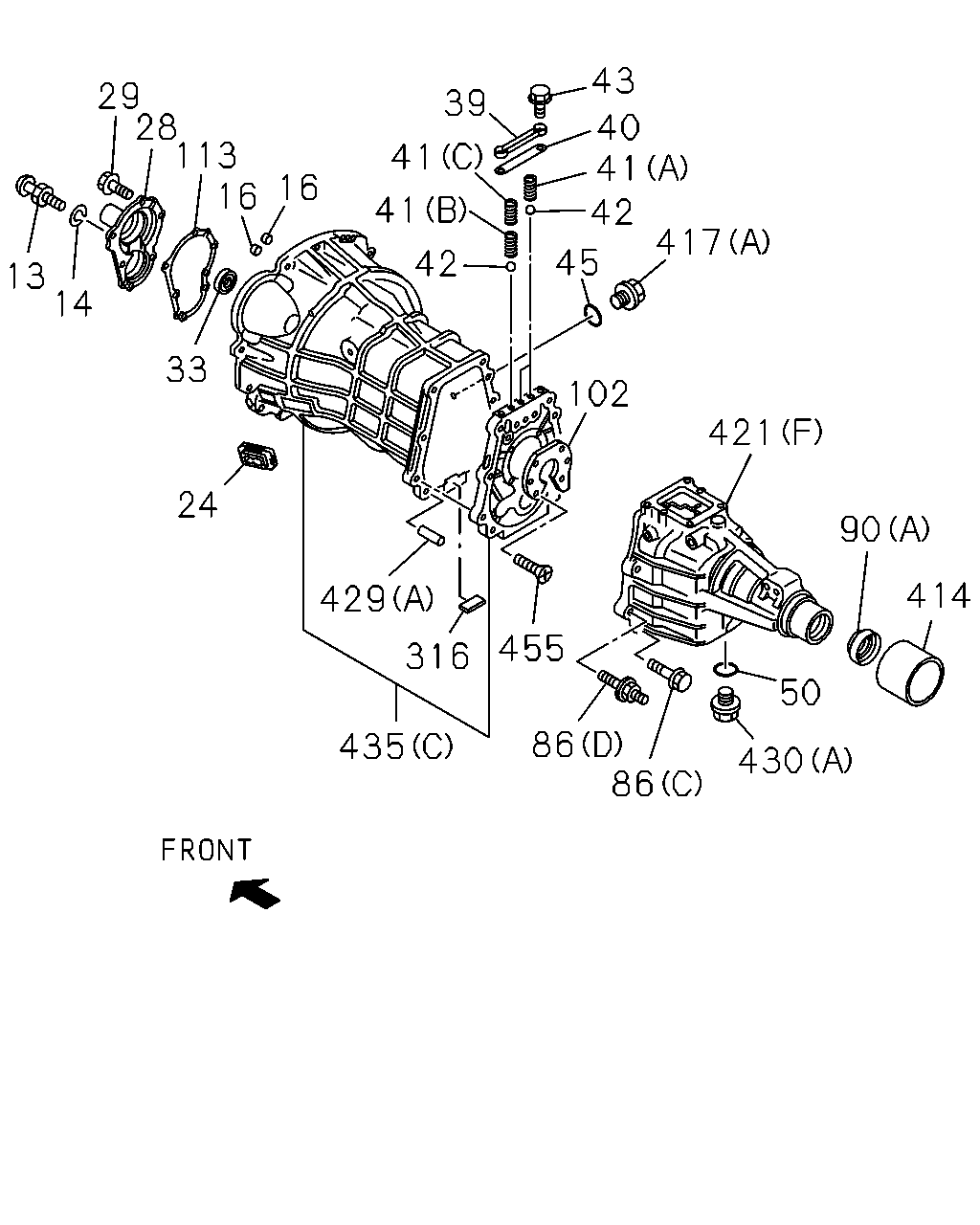

414 90 421 86 417 41 40 43 39 42 435 429 86 50 430 24 13 16 16 45 114 114 113 33 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0) L=47.5	8-97072-827-0	01	1	1409-1411	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-	●	●	●	●	●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1412-		●	●		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1412-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1412-		●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-			●		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-			●		●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-		●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-98094-800-0	01	1	1409-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-		●	●		●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1409-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1412-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1409-1411	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1412-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-			●		●	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1412-		●	●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1412-		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1412-		●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1412-			●		●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1412-		●	●		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1412-			●		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-	●		●	●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-		●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1412-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (E)	8-98203-180-0	08	1	1412-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) (F)	8-98203-112-0	04	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-			●		●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1412-			●		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1409-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1409-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1409-1411	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1412-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A) NOK	8-97947-840-0	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1412-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-			●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) JTEKT	8-98004-531-0	01	1	1409-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-			●		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1412-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1412-			●		●	●
114	04.105 RING; SNAP,BALL BRG 04.422 (C) ID=49.6	5-09589-004-0	01	1	1412-		●
114	04.105 RING; SNAP,BALL BRG 04.412 (D) ID=71.7	5-09589-005-0	01	1	1412-		●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (A) OD=77	8-98024-221-0	01	1	1409-	●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (B) OD=60.2	9-09180-156-0	01	1	1409-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1412-				●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1409-1411	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1412-	●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1412-			●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1412-			●		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A)	8-98108-318-0	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98108-411-0	01	1	1409-1411	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (D)	8-97362-423-1	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C)	8-98108-319-0	01	1	1409-	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1412-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1412-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-		●	●		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1409-1411	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1412-	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1412-				●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1412-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1412-	●		●	●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1412-		●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-111-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X2(TFB***) (F)	8-98203-177-0	01	1	1412-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (H)	8-98203-101-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-108-0	01	1	1412-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1412-			●		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (A)	8-98108-317-1	01	1	1409-	●

1 1 1 1 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

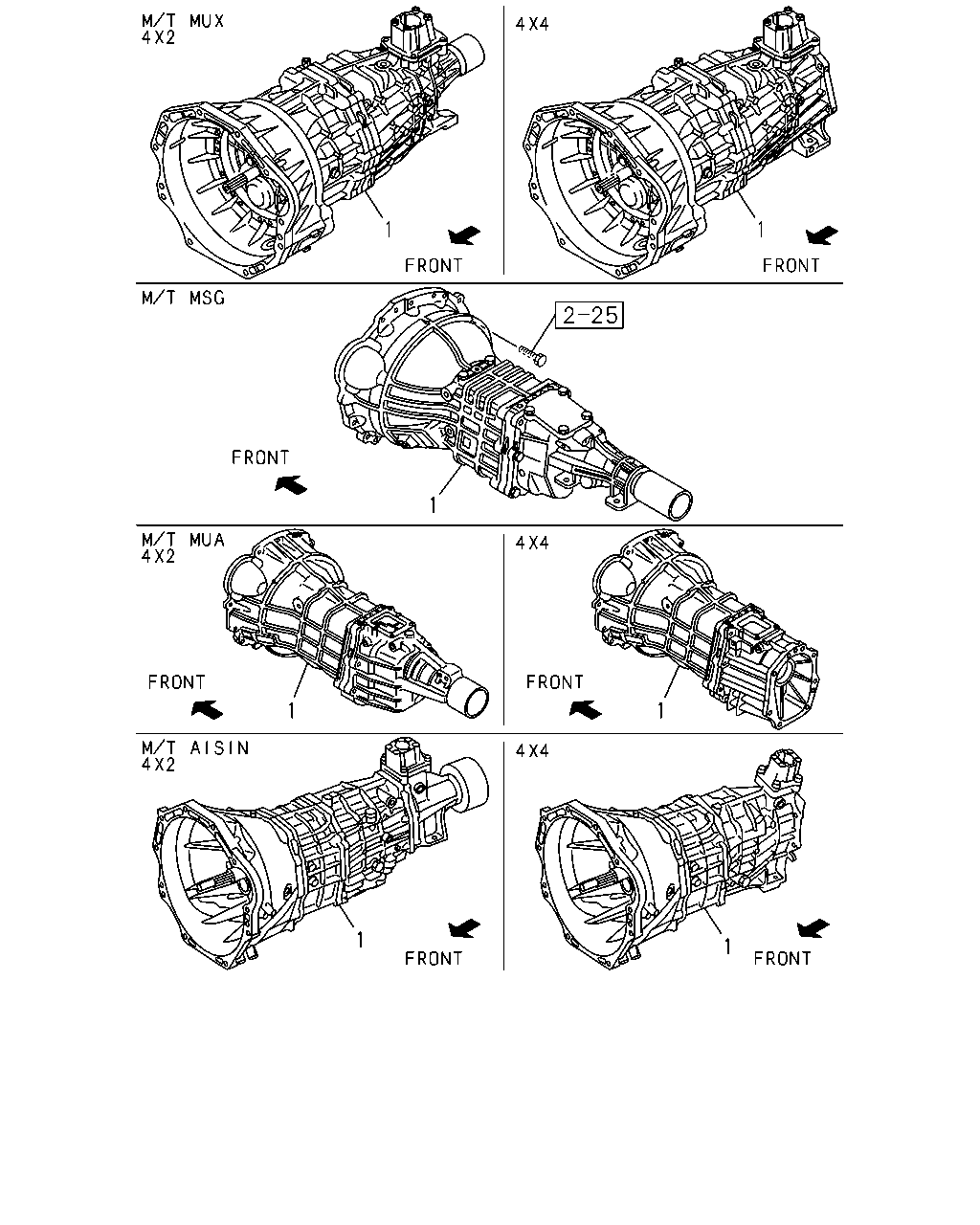

1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-97978-030-0	01	1	1501-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-97978-027-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98150-178-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98103-188-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98145-931-0	01	1	1412-		●
1	04.003 TRANSMISSION ASM; MANUAL IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98211-726-0	01	1	1412-					●
1	04.003 TRANSMISSION ASM; MANUAL EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98161-475-0	01	1	1412-					●
1	04.003 TRANSMISSION ASM; MANUAL CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-97978-028-0	01	1	1412-						●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98172-462-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98172-464-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98102-485-0	01	1	1412-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98147-061-2	01	1	1412-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98150-180-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98103-196-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-959-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98172-465-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-97978-029-0	01	1	1412-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98147-062-3	01	1	1412-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98087-608-0	01	1	1409-1411	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98087-608-0	01	1	1412-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98102-382-0	01	1	1409-	●

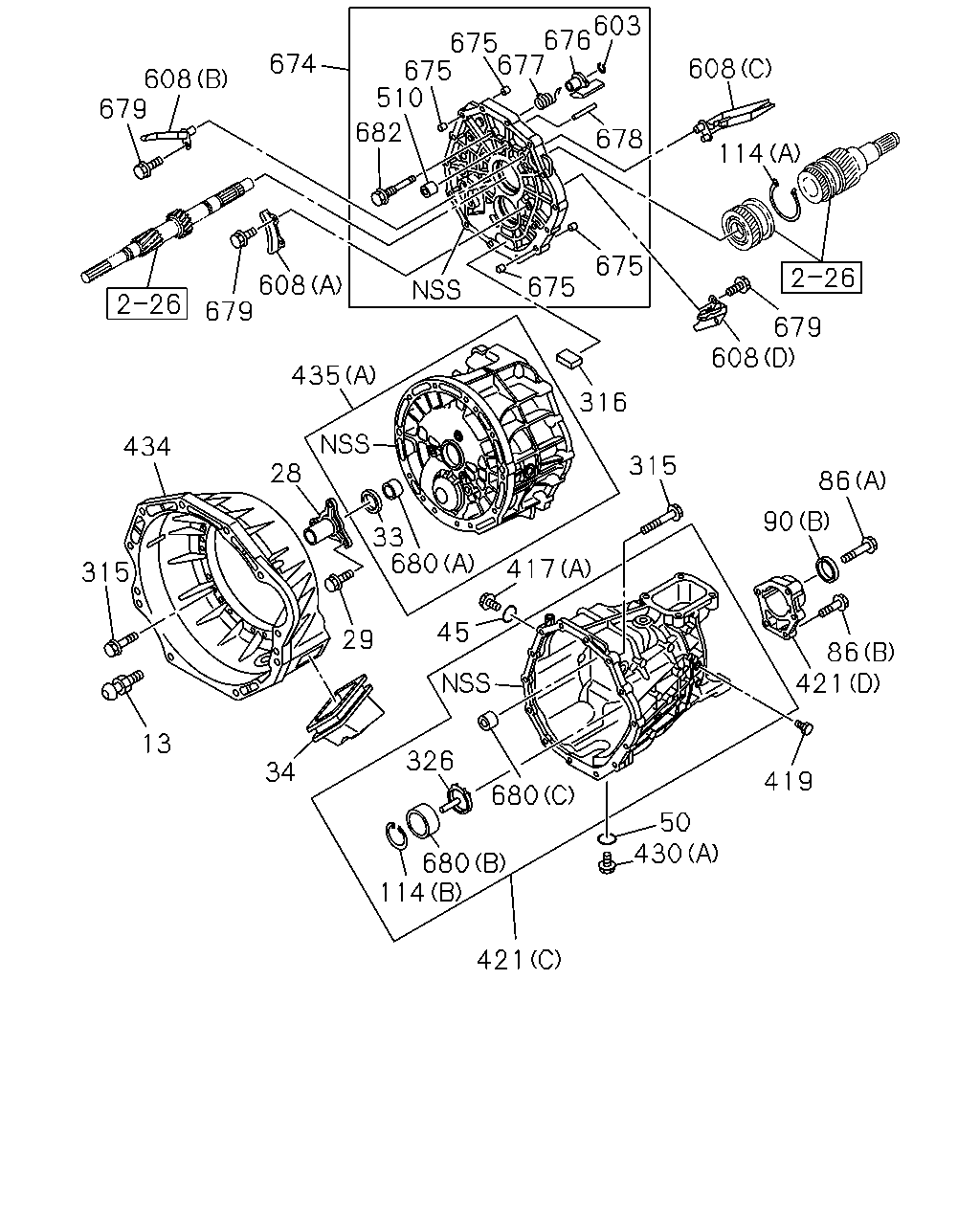

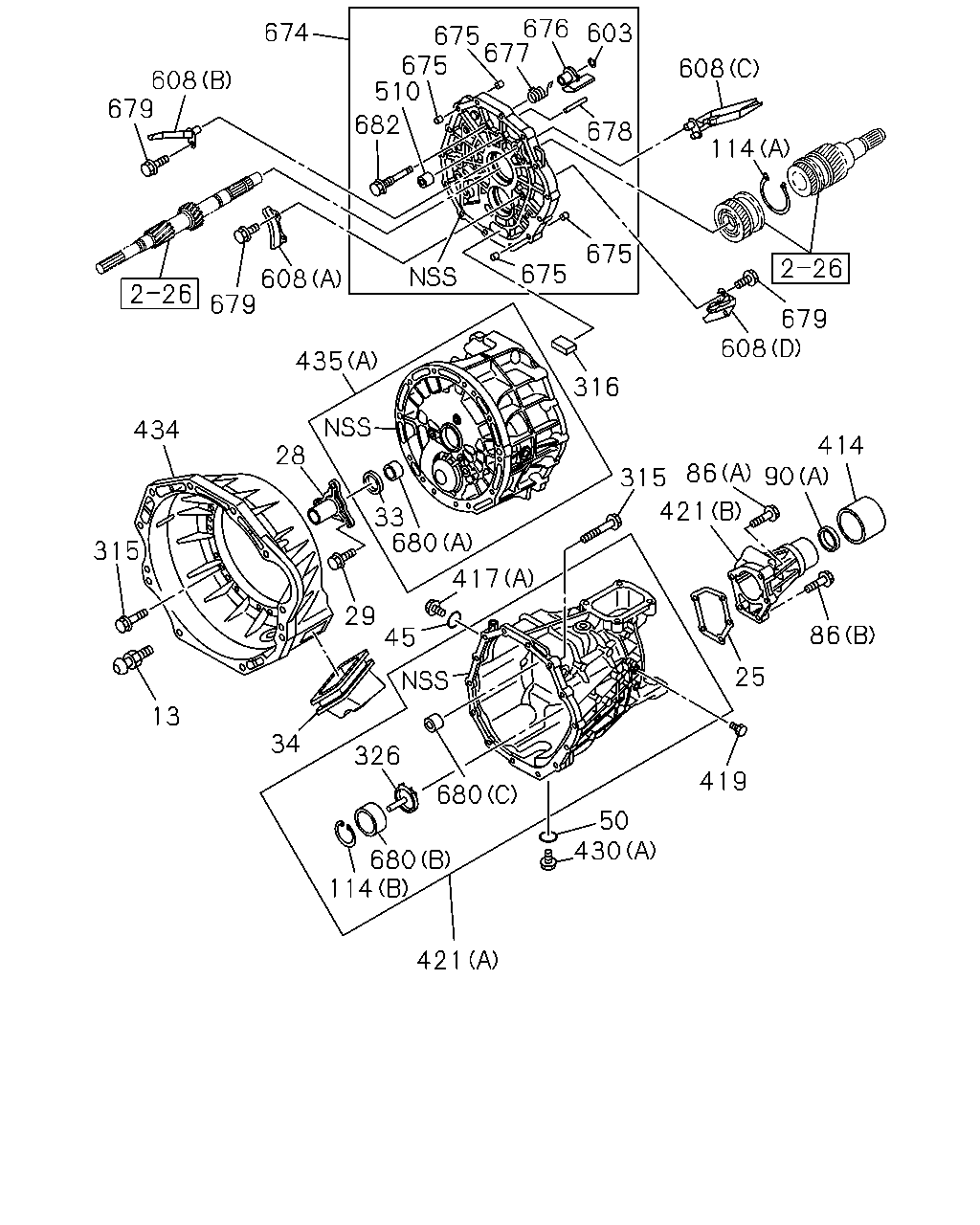

674 608 679 679 608 434 315 13 435 28 29 34 45 417 326 680 114 680 421 50 430 419 315 316 33 680 682 510 675 675 677 676 603 678 675 675 608 114 679 608 414 90 86 421 25 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0) L=47.5	8-97072-827-0	01	1	1409-1411	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-	●	●	●	●	●	●
25	00.686 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98004-774-0	01	1	1409-	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-			●		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-			●		●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-		●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-98094-800-0	01	1	1409-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-		●	●		●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1409-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1412-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1409-1411	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1412-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-			●		●	●
34	00.686 COVER; DUST,SHIFT FORK 4JJ1-TCX ENG(LS0) 00.859	8-98097-470-0	01	1	1409-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-	●		●	●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-		●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1412-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (E)	8-98203-180-0	08	1	1412-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) (F)	8-98203-112-0	04	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-			●		●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1412-			●		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1409-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1409-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1409-1411	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1412-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A) NOK	8-97947-840-0	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1412-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-			●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) JTEKT	8-98004-531-0	01	1	1409-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-			●		●
114	04.105 RING; SNAP,BALL BRG 04.422 (C) ID=49.6	5-09589-004-0	01	1	1412-		●
114	04.105 RING; SNAP,BALL BRG 04.412 (D) ID=71.7	5-09589-005-0	01	1	1412-		●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (A) OD=77	8-98024-221-0	01	1	1409-	●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (B) OD=60.2	9-09180-156-0	01	1	1409-	●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1412-				●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1409-	●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1409-	●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1409-1411	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-	●		●		●	●
326	04.020 NOZZLE; OIL,OUTLET 4JJ1-TCX ENG(LS0)	8-98023-517-0	01	1	1409-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1412-				●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1409-1411	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1412-	●		●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1412-				●
419	04.317 PLUG; RR COVER 4JJ1-TCX ENG(LS0) M12X9	8-98047-054-0	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1412-			●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1412-			●		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A)	8-98108-318-0	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98108-411-0	01	1	1409-1411	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (D)	8-97362-423-1	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C)	8-98108-319-0	01	1	1409-	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1412-				●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1412-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1412-	●		●	●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1412-				●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-98108-316-0	01	1	1409-	●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1412-		●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-111-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X2(TFB***) (F)	8-98203-177-0	01	1	1412-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (H)	8-98203-101-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-108-0	01	1	1412-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1412-			●		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (A)	8-98108-317-1	01	1	1409-	●
510	00.683 BEARING 4JJ1-TCX ENG(LS0)	8-97362-853-0	01	1	1409-	●
603	04.317 RING; SNAP 4JJ1-TCX ENG(LS0)	8-98039-270-0	01	1	1409-	●
608	04.317 GUTTER; OIL (E)	8-98203-103-0	01	1	1412-				●
608	04.317 GUTTER; OIL (F)	8-98203-104-0	01	1	1412-				●
608	04.317 GUTTER; OIL (G)	8-98203-105-0	01	1	1412-				●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (A)	8-97362-391-0	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (B)	8-97362-564-1	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (D)	8-98004-505-0	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-98142-574-0	01	1	1409-	●
674	00.886 PLATE; INTERMEDIATE 4JJ1-TCX ENG(LS0)	8-98042-863-0	01	1	1409-	●
675	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	04	1	1409-	●
676	04.439 INHIBITOR 4JJ1-TCX ENG(LS0)	8-98037-604-1	01	1	1409-	●
677	00.683 SPRING; INHIBITOR 4JJ1-TCX ENG(LS0)	8-97362-852-0	01	1	1409-	●
678	04.317 PIN	8-98203-165-0	01	1	1412-				●
678	04.317 PIN 4JJ1-TCX ENG(LS0)	9-08160-436-0	01	1	1409-	●
679	04.104 BOLT; GUTTER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (A)	8-97362-720-1	01	1	1409-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (C)	8-97362-853-0	01	1	1409-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (B)	8-98024-431-0	01	1	1409-	●
682	00.683 BOLT; INHIBITOR 4JJ1-TCX ENG(LS0) M10X50	8-98042-618-0	01	1	1409-	●

608 674 679 608 679 435 28 434 315 13 34 29 680 33 417 45 326 680 680 114 421 430 50 419 421 86 90 315 86 316 608 679 675 675 678 114 608 603 676 677 675 675 510 682

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0) L=47.5	8-97072-827-0	01	1	1409-1411	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-	●	●	●	●	●	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-			●		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-			●		●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-		●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-98094-800-0	01	1	1409-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-		●	●		●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1409-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1412-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1409-1411	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1412-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-			●		●	●
34	00.686 COVER; DUST,SHIFT FORK 4JJ1-TCX ENG(LS0) 00.859	8-98097-470-0	01	1	1409-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-	●		●	●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-		●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1412-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (E)	8-98203-180-0	08	1	1412-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) (F)	8-98203-112-0	04	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-			●		●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1412-			●		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1409-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1409-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1409-1411	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1412-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A) NOK	8-97947-840-0	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1412-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-			●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) JTEKT	8-98004-531-0	01	1	1409-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-			●		●
114	04.105 RING; SNAP,BALL BRG 04.422 (C) ID=49.6	5-09589-004-0	01	1	1412-		●
114	04.105 RING; SNAP,BALL BRG 04.412 (D) ID=71.7	5-09589-005-0	01	1	1412-		●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (A) OD=77	8-98024-221-0	01	1	1409-	●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (B) OD=60.2	9-09180-156-0	01	1	1409-	●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1412-				●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1409-	●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1409-	●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1409-1411	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-	●		●		●	●
326	04.020 NOZZLE; OIL,OUTLET 4JJ1-TCX ENG(LS0)	8-98023-517-0	01	1	1409-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1412-	●		●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1412-				●
419	04.317 PLUG; RR COVER 4JJ1-TCX ENG(LS0) M12X9	8-98047-054-0	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1412-			●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1412-			●		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A)	8-98108-318-0	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98108-411-0	01	1	1409-1411	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (D)	8-97362-423-1	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C)	8-98108-319-0	01	1	1409-	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1412-				●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1412-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1412-	●		●	●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1412-				●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-98108-316-0	01	1	1409-	●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1412-		●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-111-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X2(TFB***) (F)	8-98203-177-0	01	1	1412-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (H)	8-98203-101-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-108-0	01	1	1412-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1412-			●		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (A)	8-98108-317-1	01	1	1409-	●
510	00.683 BEARING 4JJ1-TCX ENG(LS0)	8-97362-853-0	01	1	1409-	●
603	04.317 RING; SNAP 4JJ1-TCX ENG(LS0)	8-98039-270-0	01	1	1409-	●
608	04.317 GUTTER; OIL (E)	8-98203-103-0	01	1	1412-				●
608	04.317 GUTTER; OIL (F)	8-98203-104-0	01	1	1412-				●
608	04.317 GUTTER; OIL (G)	8-98203-105-0	01	1	1412-				●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (A)	8-97362-391-0	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (B)	8-97362-564-1	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (D)	8-98004-505-0	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-98142-574-0	01	1	1409-	●
674	00.886 PLATE; INTERMEDIATE 4JJ1-TCX ENG(LS0)	8-98042-863-0	01	1	1409-	●
675	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	04	1	1409-	●
676	04.439 INHIBITOR 4JJ1-TCX ENG(LS0)	8-98037-604-1	01	1	1409-	●
677	00.683 SPRING; INHIBITOR 4JJ1-TCX ENG(LS0)	8-97362-852-0	01	1	1409-	●
678	04.317 PIN	8-98203-165-0	01	1	1412-				●
678	04.317 PIN 4JJ1-TCX ENG(LS0)	9-08160-436-0	01	1	1409-	●
679	04.104 BOLT; GUTTER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (A)	8-97362-720-1	01	1	1409-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (C)	8-97362-853-0	01	1	1409-	●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (B)	8-98024-431-0	01	1	1409-	●
682	00.683 BOLT; INHIBITOR 4JJ1-TCX ENG(LS0) M10X50	8-98042-618-0	01	1	1409-	●

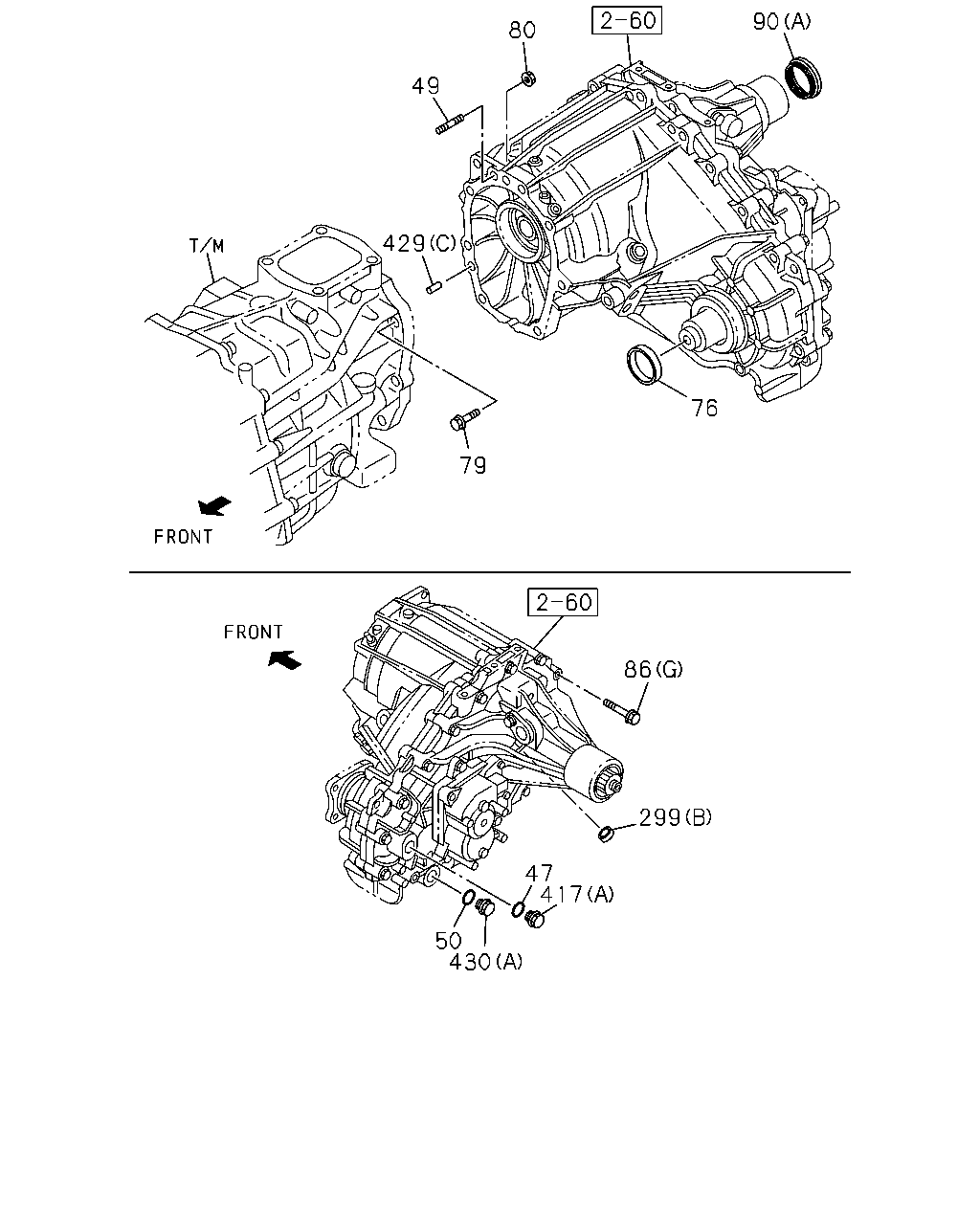

90 80 49 76 429 79 86 299 47 417 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1409-1411	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1412-	●		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1412-			●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) M10X30 L=45	8-98035-675-0	01	1	1409-1411	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1412-	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1412-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-	●		●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1409-1411	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1412-	●		●	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1409-1411	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1412-	●		●	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-1411	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1412-	●		●	●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-		●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1412-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (E)	8-98203-180-0	08	1	1412-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) (F)	8-98203-112-0	04	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-			●		●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1412-			●		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1409-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1409-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1409-1411	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1412-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A) NOK	8-97947-840-0	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1412-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-			●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) JTEKT	8-98004-531-0	01	1	1409-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-			●		●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1412-				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1409-1411	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1412-	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1412-	●		●	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1412-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1412-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-		●	●		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1409-1411	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1412-	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1412-				●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1412-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1412-	●		●	●

43 39 29 28 113 16 16 13 14 33 24 41 41 42 40 41 42 45 417 102 429 435 316 455 86 86 421 90 414 430 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0) L=47.5	8-97072-827-0	01	1	1409-1411	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-	●	●	●	●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1412-			●		●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1412-		●	●		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1412-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1412-		●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-			●		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-			●		●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-		●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-98094-800-0	01	1	1409-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-		●	●		●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1409-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1412-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1409-1411	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1412-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-			●		●	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1412-		●	●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1412-		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1412-		●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1412-			●		●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1412-		●	●		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1412-			●		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-	●		●	●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-		●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1412-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (E)	8-98203-180-0	08	1	1412-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) (F)	8-98203-112-0	04	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-			●		●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1412-			●		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1409-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1409-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1409-1411	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1412-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A) NOK	8-97947-840-0	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1412-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-			●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) JTEKT	8-98004-531-0	01	1	1409-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-			●		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1412-			●		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1412-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1412-			●		●	●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1409-1411	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-	●		●		●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1412-				●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1409-1411	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1412-	●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1412-			●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1412-			●		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A)	8-98108-318-0	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98108-411-0	01	1	1409-1411	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (D)	8-97362-423-1	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C)	8-98108-319-0	01	1	1409-	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1412-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1412-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-		●	●		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1409-1411	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1412-	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1412-				●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1412-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1412-	●		●	●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1412-		●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-111-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X2(TFB***) (F)	8-98203-177-0	01	1	1412-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (H)	8-98203-101-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-108-0	01	1	1412-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1412-			●		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (A)	8-98108-317-1	01	1	1409-	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1412-			●		●	●

421 86 430 90 86 50 435 316 429 24 33 113 14 13 29 16 16 42 41 41 39 43 455 102 49 45 417 42 41 40 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0) L=47.5	8-97072-827-0	01	1	1409-1411	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-	●	●	●	●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1412-			●		●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1412-		●	●		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1412-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1412-		●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1412-			●		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1412-			●		●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1412-		●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-98094-800-0	01	1	1409-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1412-		●	●		●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1409-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1412-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1409-1411	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1412-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-			●		●	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1412-		●	●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1412-		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1412-		●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1412-			●		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1412-			●		●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1412-		●	●		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1412-			●		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-	●	●	●		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1412-			●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) M10X30 L=45	8-98035-675-0	01	1	1409-1411	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1412-	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1412-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1409-1411	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1412-	●	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1412-	●		●	●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-		●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1412-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (E)	8-98203-180-0	08	1	1412-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) (F)	8-98203-112-0	04	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-			●		●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1412-			●		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1409-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1409-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1409-1411	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1412-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A) NOK	8-97947-840-0	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1412-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-			●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) JTEKT	8-98004-531-0	01	1	1409-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-			●		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1412-			●		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1412-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1412-			●		●	●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1409-1411	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-	●		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1412-	●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-97978-059-0	01	1	1412-			●		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98191-921-0	01	1	1412-			●		●
421	04.317 COVER; RR,TRANS (E)	8-98193-595-0	01	1	1412-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97382-905-2	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (G)	8-97978-061-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G)	8-98277-853-0	01	1	1412-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A)	8-98108-318-0	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98108-411-0	01	1	1409-1411	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98108-411-0	01	1	1412-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (D)	8-97362-423-1	01	1	1409-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C)	8-98108-319-0	01	1	1409-	●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1412-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1412-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-		●	●		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1409-1411	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1412-	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1412-				●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1412-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1412-	●		●	●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1412-		●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-111-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X2(TFB***) (F)	8-98203-177-0	01	1	1412-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (H)	8-98203-101-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-108-0	01	1	1412-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1412-			●		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (A)	8-98108-317-1	01	1	1409-	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1412-			●		●	●

315 561 13 608 446 82 434 424 33 299 435 200 429 272 608 328 430 314 670 272 24 435 608 313 417 45 419 481 678 315 435 529 45 429 417 296 414 90 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0) L=47.5	8-97072-827-0	01	1	1409-1411	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-	●	●	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1412-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1412-		●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1412-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1409-1411	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1412-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-			●		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-	●	●	●		●	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-		●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1412-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (E)	8-98203-180-0	08	1	1412-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) (F)	8-98203-112-0	04	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-			●		●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1412-			●		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1409-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1409-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1409-1411	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1412-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A) NOK	8-97947-840-0	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1412-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-			●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) JTEKT	8-98004-531-0	01	1	1409-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-			●		●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1412-				●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1412-				●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1412-				●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1412-				●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1412-				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1409-1411	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1412-	●		●	●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1412-				●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1412-				●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1412-				●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1409-	●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1409-	●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1412-				●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1412-				●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1409-1411	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1412-	●		●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1412-				●
419	04.317 PLUG; RR COVER 4JJ1-TCX ENG(LS0) M12X9	8-98047-054-0	01	1	1409-	●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1412-				●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1412-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1412-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-		●	●		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1409-1411	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1412-	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1412-				●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1412-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1412-	●		●	●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1412-				●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-98108-316-0	01	1	1409-	●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1412-		●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-111-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X2(TFB***) (F)	8-98203-177-0	01	1	1412-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (H)	8-98203-101-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-108-0	01	1	1412-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1412-			●		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (A)	8-98108-317-1	01	1	1409-	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***)	8-98203-100-0	01	1	1412-				●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***)	8-98203-100-0	02	1	1412-				●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1412-				●
529	04.083 BRACKET; MISSION CASE 4X2(TFB***)	8-98203-179-0	01	1	1412-				●
561	04.104 PLUG	8-98203-114-0	01	1	1412-				●
608	04.317 GUTTER; OIL (E)	8-98203-103-0	01	1	1412-				●
608	04.317 GUTTER; OIL (F)	8-98203-104-0	01	1	1412-				●
608	04.317 GUTTER; OIL (G)	8-98203-105-0	01	1	1412-				●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (A)	8-97362-391-0	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (B)	8-97362-564-1	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (D)	8-98004-505-0	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-98142-574-0	01	1	1409-	●
670	04.457 BAFFLE	8-98203-106-0	01	1	1412-				●
678	04.317 PIN	8-98203-165-0	01	1	1412-				●
678	04.317 PIN 4JJ1-TCX ENG(LS0)	9-08160-436-0	01	1	1409-	●

315 434 424 33 446 561 13 24 608 299 435 429 200 608 272 670 314 328 272 430 86 296 315 608 313 435 417 45 419 481 678 435 446 90 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0) L=47.5	8-97072-827-0	01	1	1409-1411	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1412-	●	●	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1412-				●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1412-		●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1412-			●		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1412-			●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1412-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1412-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1409-1411	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97947-839-0	01	1	1412-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1412-			●		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1412-				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1409-1411	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-	●	●	●		●	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1412-		●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	03	1	1412-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) (E)	8-98203-180-0	08	1	1412-				●
86	04.317 BOLT; RR COVER 4X4(TFS***) (F)	8-98203-112-0	04	1	1412-				●
86	04.317 BOLT; RR COVER (D) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1412-			●		●	●
86	04.317 BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1412-			●		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1409-	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1409-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1409-1411	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (G) M8X45 FLANGE	0-28050-845-0	16	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (D)	8-98203-102-0	01	1	1412-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C) NOK	8-97947-841-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) TKK	8-97046-700-0	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (C) NOK	8-97046-701-2	01	1	1412-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0) (A) NOK	8-97947-840-0	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1412-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1412-			●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (B) JTEKT	8-98004-531-0	01	1	1409-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1409-1411	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1412-	●		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1412-			●		●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1412-				●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1412-				●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1412-				●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1412-				●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1412-				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1409-1411	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1412-	●		●	●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1412-				●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1412-				●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1412-				●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1409-	●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1409-	●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1412-				●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0) (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1409-1411	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1412-	●	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1412-	●		●	●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1412-				●
419	04.317 PLUG; RR COVER 4JJ1-TCX ENG(LS0) M12X9	8-98047-054-0	01	1	1409-	●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1412-				●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1412-				●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1412-				●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1412-		●	●		●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1409-1411	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1412-	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1412-				●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0) (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1409-1411	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1412-	●	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1412-	●		●	●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1412-				●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-98108-316-0	01	1	1409-	●
435	04.103 CASE; TRANS (B)	8-97330-878-0	01	1	1412-		●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-111-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X2(TFB***) (F)	8-98203-177-0	01	1	1412-				●
435	04.103 CASE; TRANS (D)	8-98203-088-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (H)	8-98203-101-0	01	1	1412-				●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-108-0	01	1	1412-				●
435	04.103 CASE; TRANS (C)	8-98047-230-0	01	1	1412-			●		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (A)	8-98108-317-1	01	1	1409-	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***)	8-98203-100-0	01	1	1412-				●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***)	8-98203-100-0	02	1	1412-				●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1412-				●
561	04.104 PLUG	8-98203-114-0	01	1	1412-				●
608	04.317 GUTTER; OIL (E)	8-98203-103-0	01	1	1412-				●
608	04.317 GUTTER; OIL (F)	8-98203-104-0	01	1	1412-				●
608	04.317 GUTTER; OIL (G)	8-98203-105-0	01	1	1412-				●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (A)	8-97362-391-0	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (B)	8-97362-564-1	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (D)	8-98004-505-0	01	1	1409-	●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-98142-574-0	01	1	1409-	●
670	04.457 BAFFLE	8-98203-106-0	01	1	1412-				●
678	04.317 PIN	8-98203-165-0	01	1	1412-				●
678	04.317 PIN 4JJ1-TCX ENG(LS0)	9-08160-436-0	01	1	1409-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
