0-56 — EMISSION SYSTEM (#153642) — 62 parça

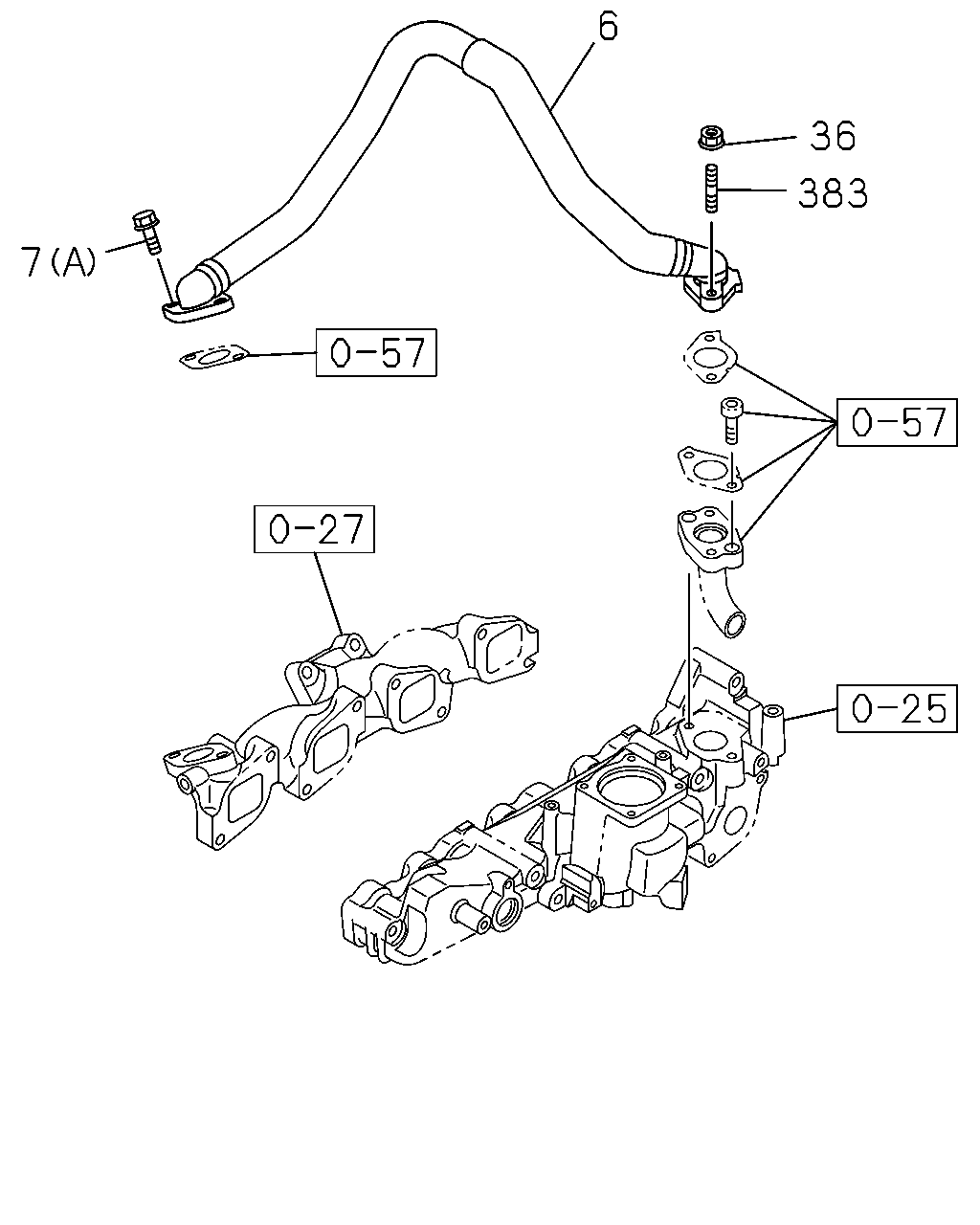

6 36 383 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	03.675 PIPE; EGR EURO2 SPECIFICATION<NT2>	8-98132-050-1	01	1	1412-1503	●
6	03.675 PIPE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-050-1	01	1	1412-1503		●
6	03.675 PIPE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-050-1	01	1	1504-		●	●
6	03.675 PIPE; EGR EURO2 SPECIFICATION<NT2>	8-98132-050-1	01	1	1504-	●
6	03.675 PIPE; EGR EURO1 SPECIFICATION<NT1>	8-97118-378-1	01	1	1412-				●
7	03.670 BOLT; BRKT,EGR PIPE EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1412-1503	●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1412-1503		●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1504-		●	●
7	03.670 BOLT; BRKT,EGR PIPE EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1504-	●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1> 03.417 (B) M8X23 FLANGE	8-97378-077-0	02	1	1412-				●
7	03.670 BOLT; BRKT,EGR PIPE 03.417 (B) M8X23 FLANGE	8-97378-077-0	02	1	1412-					●
7	03.670 BOLT; BRKT,EGR PIPE 02.277 (C) M8X40 FLANGE	0-28050-840-0	02	1	1412-					●
36	03.680 NUT; EGR PIPE 03.342 M8 FLANGE	8-97379-384-0	01	1	1412-					●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503				●
36	03.680 NUT; EGR PIPE EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503	●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503		●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-		●	●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-				●
36	03.680 NUT; EGR PIPE EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-	●
383	01.519 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.342 M8X25 L=36	8-94476-282-0	02	1	1412-1503	●
383	01.519 STUD; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 M8X25 L=36	8-94476-282-0	02	1	1412-1503		●
383	01.519 STUD; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 M8X25 L=36	8-94476-282-0	02	1	1504-		●	●
383	01.519 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.342 M8X25 L=36	8-94476-282-0	02	1	1504-	●
383	01.519 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	01	1	1412-					●

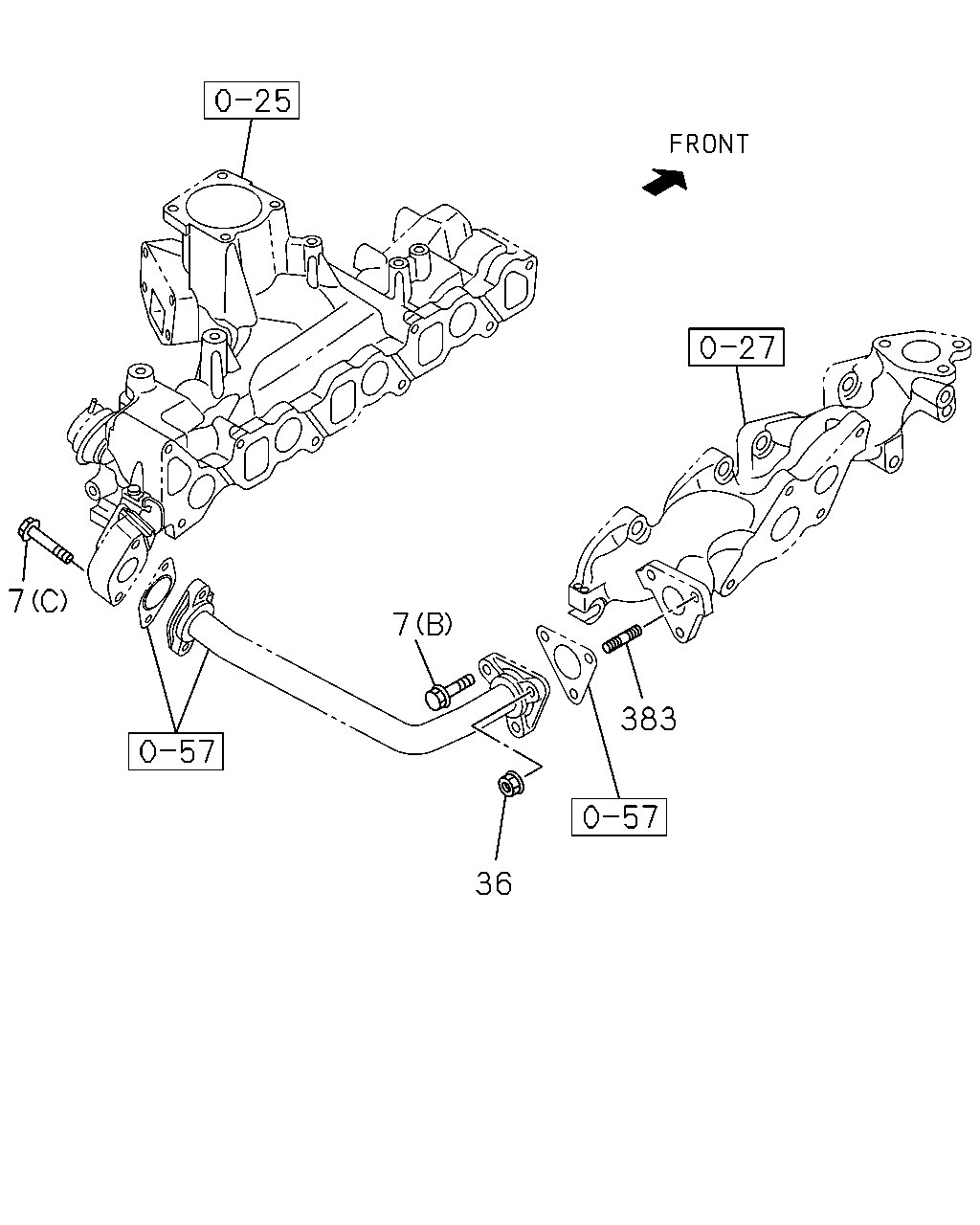

7 7 383 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	03.670 BOLT; BRKT,EGR PIPE EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1412-1503	●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1412-1503		●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1504-		●	●
7	03.670 BOLT; BRKT,EGR PIPE EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1504-	●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1> 03.417 (B) M8X23 FLANGE	8-97378-077-0	02	1	1412-				●
7	03.670 BOLT; BRKT,EGR PIPE 03.417 (B) M8X23 FLANGE	8-97378-077-0	02	1	1412-					●
7	03.670 BOLT; BRKT,EGR PIPE 02.277 (C) M8X40 FLANGE	0-28050-840-0	02	1	1412-					●
36	03.680 NUT; EGR PIPE 03.342 M8 FLANGE	8-97379-384-0	01	1	1412-					●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503				●
36	03.680 NUT; EGR PIPE EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503	●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503		●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-		●	●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-				●
36	03.680 NUT; EGR PIPE EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-	●
383	01.519 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.342 M8X25 L=36	8-94476-282-0	02	1	1412-1503	●
383	01.519 STUD; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 M8X25 L=36	8-94476-282-0	02	1	1412-1503		●
383	01.519 STUD; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 M8X25 L=36	8-94476-282-0	02	1	1504-		●	●
383	01.519 STUD; EGR PIPE EURO2 SPECIFICATION<NT2> 03.342 M8X25 L=36	8-94476-282-0	02	1	1504-	●
383	01.519 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	01	1	1412-					●

6 7 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	03.675 PIPE; EGR EURO2 SPECIFICATION<NT2>	8-98132-050-1	01	1	1412-1503	●
6	03.675 PIPE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-050-1	01	1	1412-1503		●
6	03.675 PIPE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-050-1	01	1	1504-		●	●
6	03.675 PIPE; EGR EURO2 SPECIFICATION<NT2>	8-98132-050-1	01	1	1504-	●
6	03.675 PIPE; EGR EURO1 SPECIFICATION<NT1>	8-97118-378-1	01	1	1412-				●
7	03.670 BOLT; BRKT,EGR PIPE EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1412-1503	●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1412-1503		●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1504-		●	●
7	03.670 BOLT; BRKT,EGR PIPE EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE	8-98048-437-0	02	1	1504-	●
7	03.670 BOLT; BRKT,EGR PIPE EURO1 SPECIFICATION<NT1> 03.417 (B) M8X23 FLANGE	8-97378-077-0	02	1	1412-				●
7	03.670 BOLT; BRKT,EGR PIPE 03.417 (B) M8X23 FLANGE	8-97378-077-0	02	1	1412-					●
7	03.670 BOLT; BRKT,EGR PIPE 02.277 (C) M8X40 FLANGE	0-28050-840-0	02	1	1412-					●
36	03.680 NUT; EGR PIPE 03.342 M8 FLANGE	8-97379-384-0	01	1	1412-					●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503				●
36	03.680 NUT; EGR PIPE EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503	●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-1503		●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-		●	●
36	03.680 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-				●
36	03.680 NUT; EGR PIPE EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE	0-91180-208-0	02	1	1504-	●
