Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

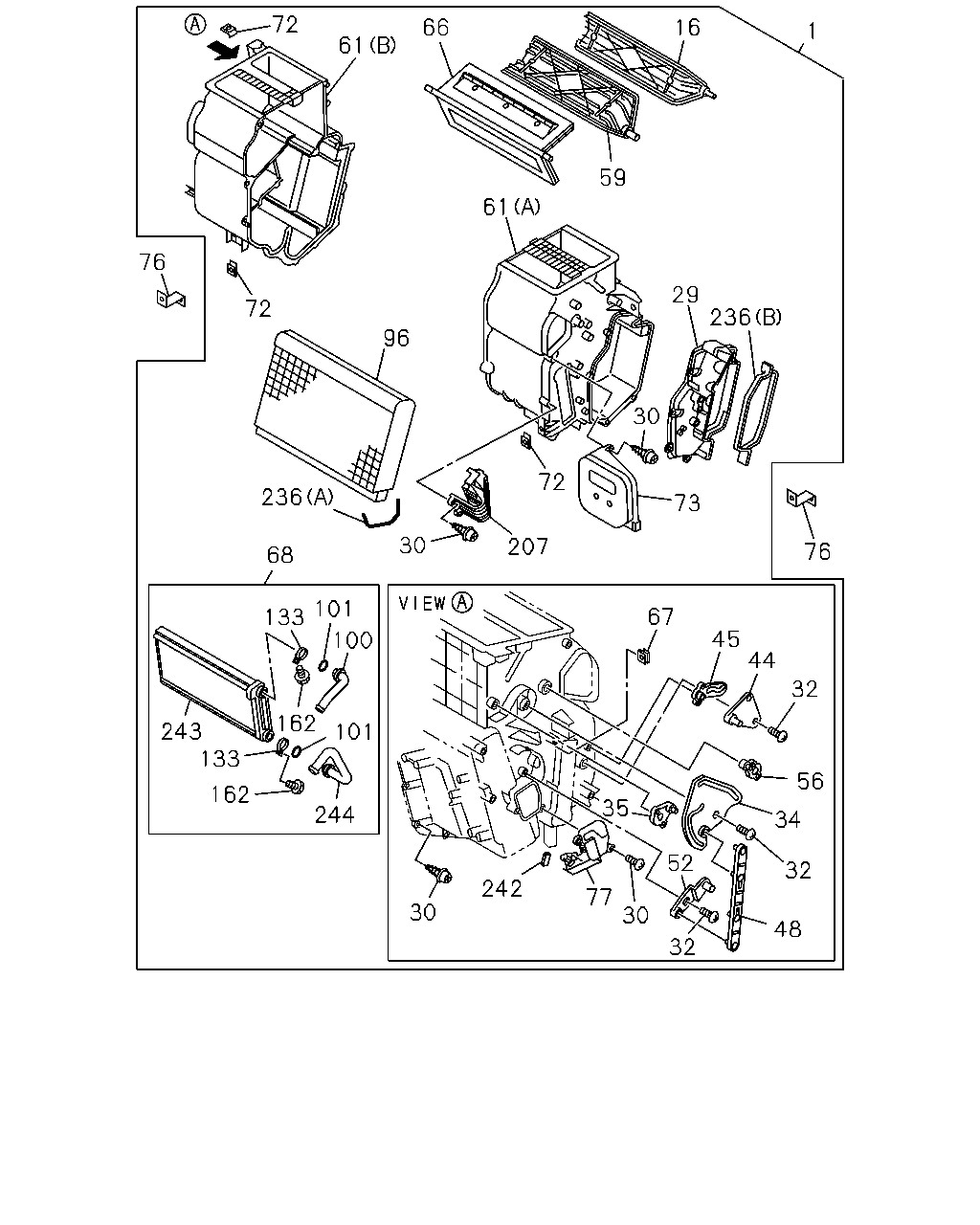

8-60 — HEATER UNIT; FRONT
(#153634) — 33 parça
1
16
59
61
66
61
72
72
76
96
236
68
30
207
72
30
29
236
73
76
32
44
45
67
56
34
32
48
32
52
30
77
35
242
30
244
101
162
100
101
133
243
133
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
8-98062-756-1
01
1
1412-
16
SHUTTER; HTR UNIT,CENTER UPR
8-98047-387-0
01
1
1412-
29
COVER; HTR UNIT
8-98074-119-0
01
1
1412-
30
SCREW; HTR UNIT
M4X16 TAPPING
8-97957-708-0
25
1
1412-
32
SCREW; HTR UNIT
M4X16
8-98047-416-0
03
1
1412-
34
LEVER; SHUTTER,HTR UNIT
8-98047-389-0
01
1
1412-
35
LEVER; SHUTTER,HTR UNIT
8-98047-392-0
01
1
1412-
44
LEVER; SHUTTER,HTR UNIT
8-98047-394-0
01
1
1412-
45
LEVER; SHUTTER,HTR UNIT
8-98047-395-0
01
1
1412-
48
LEVER; HTR UNIT
8-98047-391-0
01
1
1412-
52
LEVER; SHUTTER,HTR UNIT
8-98047-390-0
01
1
1412-
56
LEVER; SHUTTER,HTR UNIT
8-98047-393-0
01
1
1412-
59
SHUTTER; HTR UNIT,SIDE
8-98047-386-0
01
1
1412-
61
CASE; HTR UNIT
(B)
8-98047-375-0
01
1
1412-
61
CASE; HTR UNIT
(A)
8-98047-376-0
01
1
1412-
66
SHUTTER; HTR UNIT,CENTER LWR
8-98047-385-0
01
1
1412-
67
CLIP; HTR UNIT
8-98047-417-0
02
1
1412-
68
CORE; HTR UNIT
8-98047-380-0
01
1
1412-
72
NUT; CASE,HTR UNIT
M6
8-98047-428-0
03
1
1412-
73
PLATE; HTR UNIT
8-98072-542-0
01
1
1412-
76
BRACKET; HTR UNIT
8-98009-742-1
02
1
1412-
77
COVER; HTR CASE
8-98047-414-0
01
1
1412-
96
PLATE; HTR UNIT
8-98048-815-0
01
1
1412-
100
PIPE; CORE,HTR UNIT
8-98072-528-0
01
1
1412-
101
GASKET; CORE,HTR UNIT
8-98072-531-0
02
1
1412-
133
CLIP; PIPE
8-98072-530-0
02
1
1412-
162
SCREW; CLIP FIX
8-98072-529-0
02
1
1412-
207
CLAMP; HTR UNIT
8-98047-379-0
01
1
1412-
236
GASKET; HEATER
(A)
8-98047-420-0
01
1
1412-
236
GASKET; HEATER
(B)
8-98047-421-0
01
1
1412-
242
GASKET; CASE
8-98048-816-0
01
1
1412-
243
CORE
8-98048-508-0
01
1
1412-
244
PIPE; INLET
8-98048-510-0
01
1
1412-
