Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

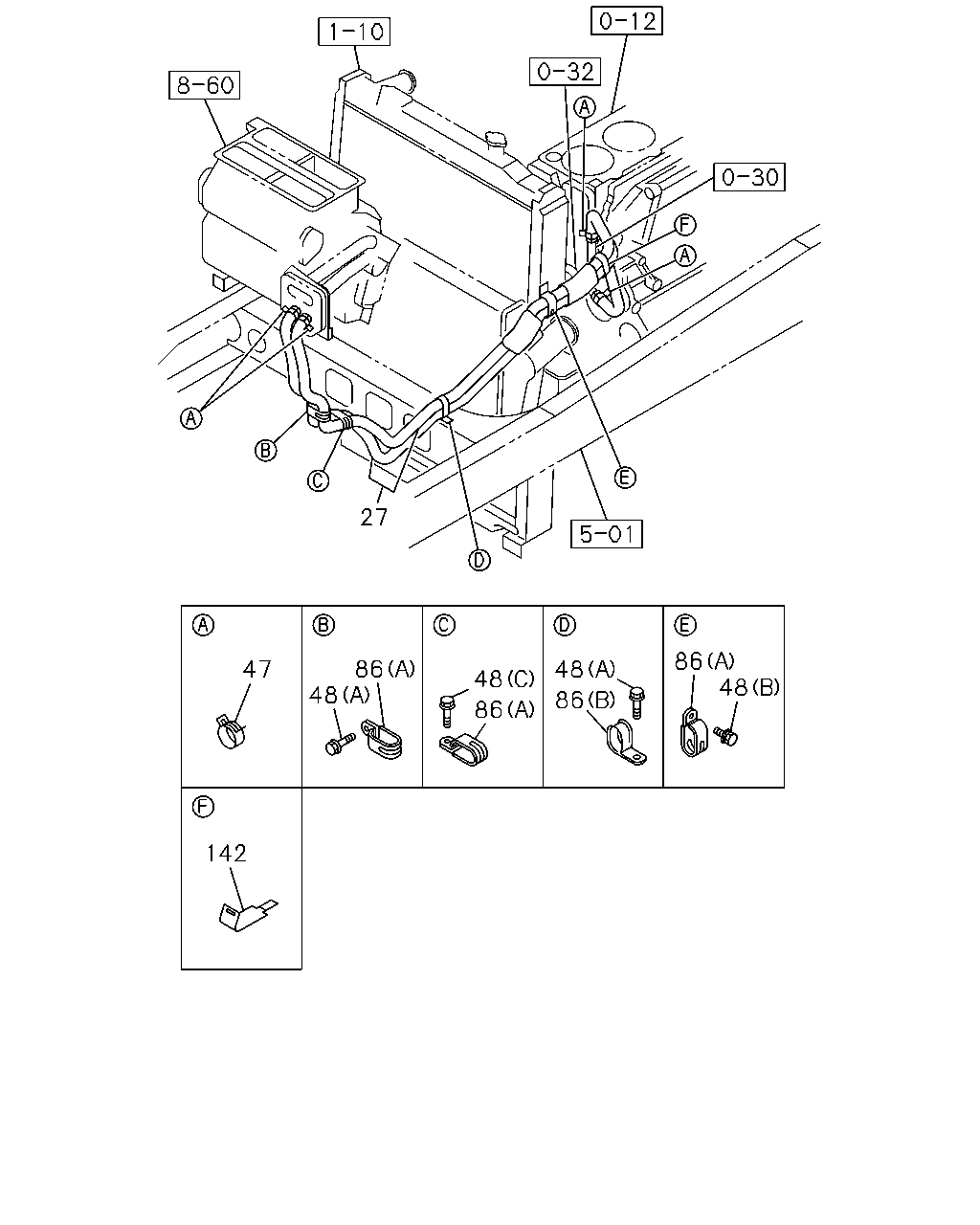

8-45 — HEATER PIPING
(#153632) — 14 parça
◀
[845A] NO.1 (8 parça)
[845A] NO.2 (6 parça)
▶
27
47
142
48
86
48
86
48
86
86
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98085-573-0
01
1
1412-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1412-
48
BOLT; CLIP FIX
(C) M8X16 FLANGE
0-28050-816-0
01
1
1412-
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
02
1
1412-
48
BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1412-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
03
1
1412-
86
CLIP; HTR HOSE
(B)
8-98029-677-0
01
1
1412-
142
CLIP; BAND
L=170
8-98166-021-0
01
1
1412-
27
56
103
56
103
56
56
63
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98085-573-0
01
1
1412-
56
CLAMP; HTR HOSE
ID=22
8-97359-141-0
04
1
1412-
63
HOSE; WATER
(A)
8-98113-054-0
01
1
1412-
63
HOSE; WATER
(B)
8-98113-055-0
01
1
1412-
63
HOSE; WATER
(C)
8-98113-056-0
01
1
1412-
103
CONNECTOR; HOSE
9-09703-048-0
02
1
1412-
