◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVW ▶ 11624 - FVW RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#153631) — 27 parça
çizim 459058
223 476 50 206
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR 8-98080-998-1 01 1 1412-
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1412-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1412-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1412-

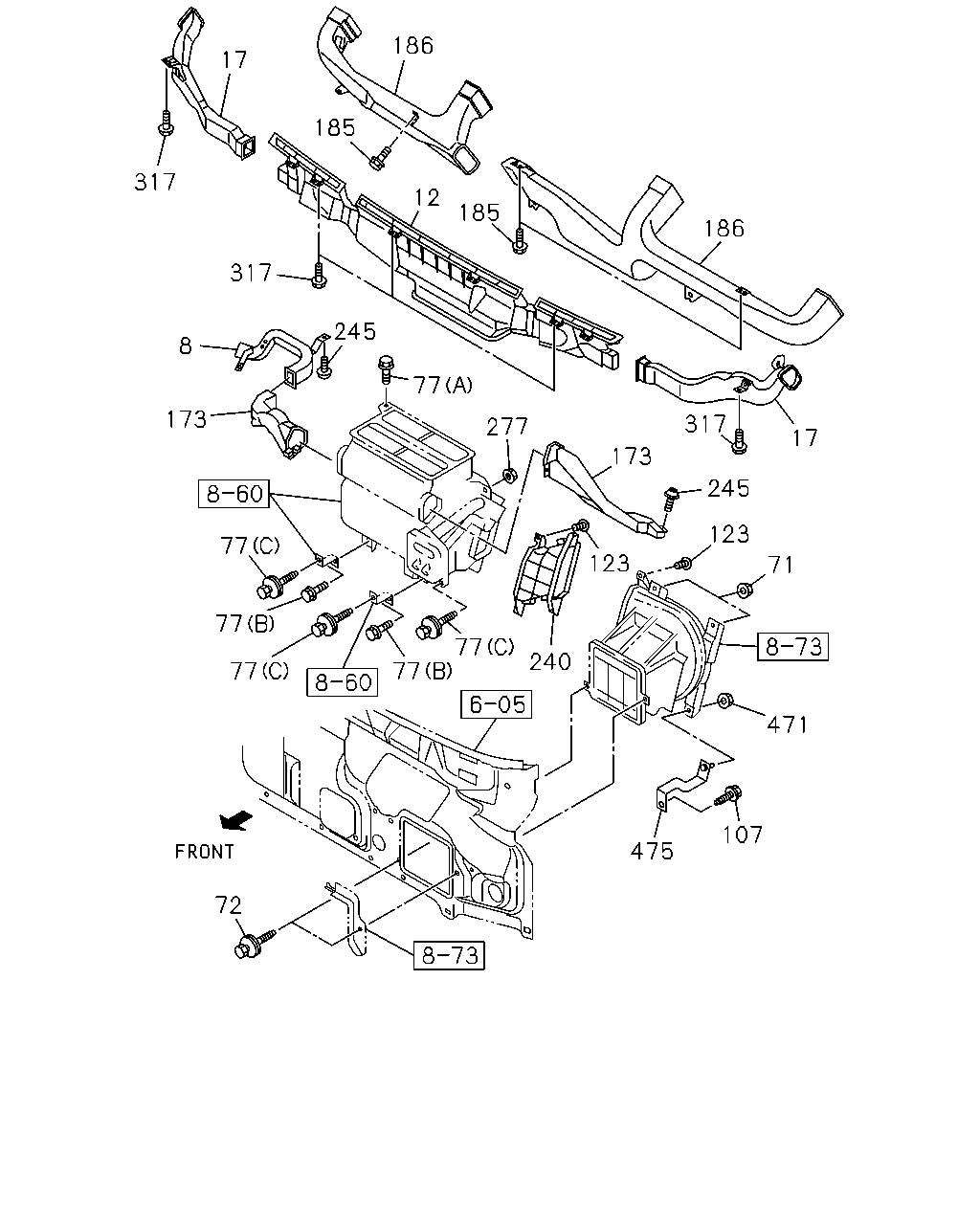

çizim 460307
17 186 185 12 317 245 8 317 173 77 77 77 77 77 77 277 173 123 240 185 186 17 317 245 71 123 471 107 475 72
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 8-98290-098-0 01 1 1412-
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1412-
17 NOZZLE; DEFROSTER,SIDE 8-98040-018-1 01 1 1412-
17 NOZZLE; DEFROSTER,SIDE 8-98040-013-1 01 1 1412-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		0-91180-106-0 02 1 1412-
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1412-
77 BOLT; HTR UNIT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1412-
77 BOLT; HTR UNIT
(B) M6X20 FLANGE 		0-28650-620-0 02 1 1412-
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1412-
107 BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1412-
123 SCREW; DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1412-
173 DUCT; FOOT,HTR 8-97585-506-2 01 1 1412-
173 DUCT; FOOT,HTR 8-98290-097-0 01 1 1412-
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1412-
186 DUCT; VENTILATOR 8-98285-571-0 01 1 1412-
186 DUCT; VENTILATOR 8-98285-574-0 01 1 1412-
240 DUCT; AIR,HTR 8-98041-402-1 01 1 1412-
245 CLIP; FOOT DUCT 8-98056-059-0 04 1 1412-
277 NUT; HTR
M6 FLANGE 		0-91180-106-0 01 1 1412-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1412-
471 NUT; BLOWER
M6 FLANGE 		0-91180-106-0 01 1 1412-
475 BRACKET; BLOWER 8-98043-500-1 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
