Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#153628) — 42 parça
◀
[825A] RELAY;DOOR LK (2 parça)
[825A] RELAY;FRAME HARNESS (1 parça)
[825A] SWITCH NO.1 (4 parça)
[825A] RELAY;CAB HARNESS (13 parça)
[825A] SWITCH NO.2 (14 parça)
[825A] SWITCH NO.3 (8 parça)
▶

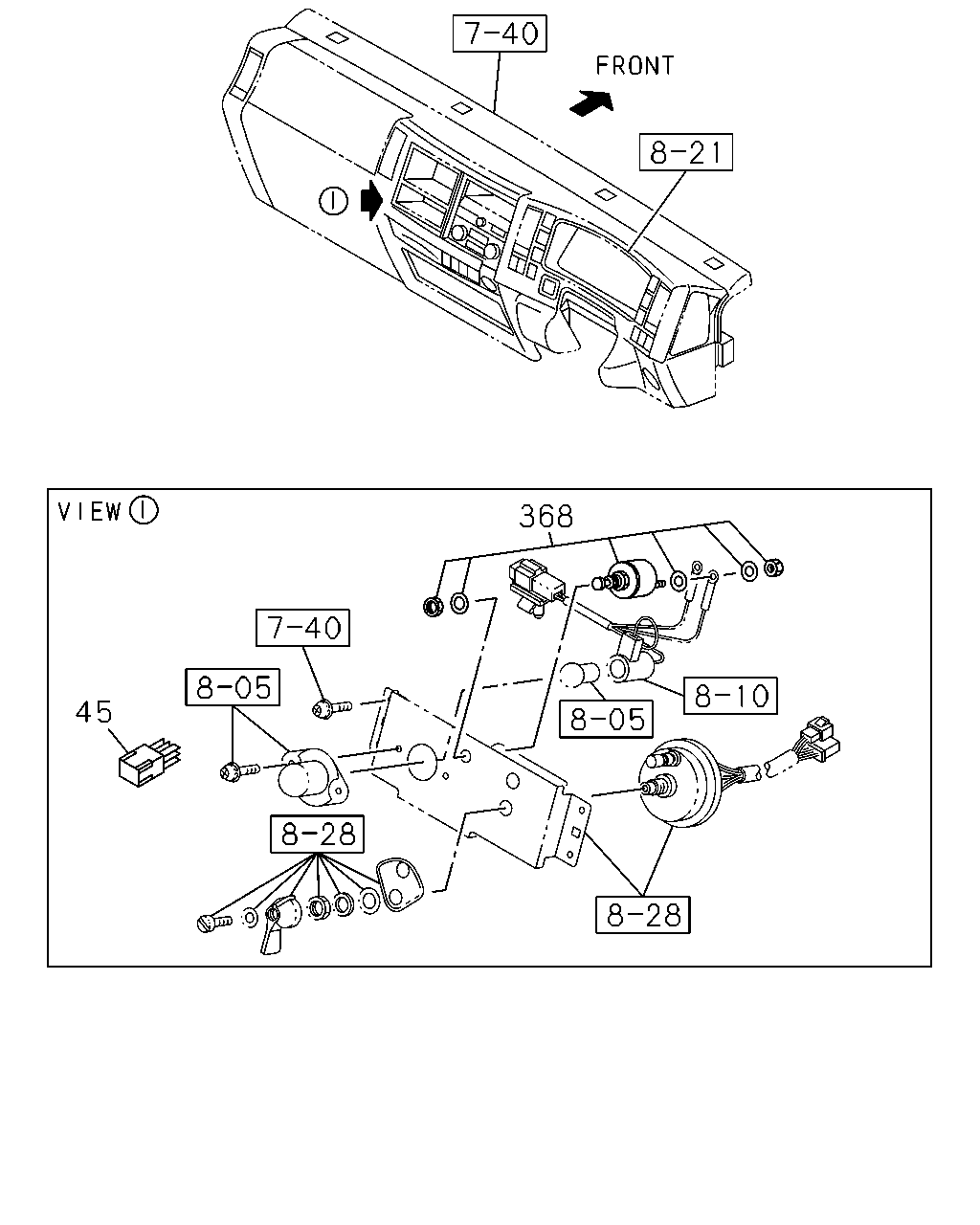

368
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
RELAY; HORN
24V 10A PANASONIC
8-97173-035-1
01
1
1412-
368
SWITCH; LAMP
9-82750-469-0
01
1
1412-
524
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
524
RELAY; LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1412-

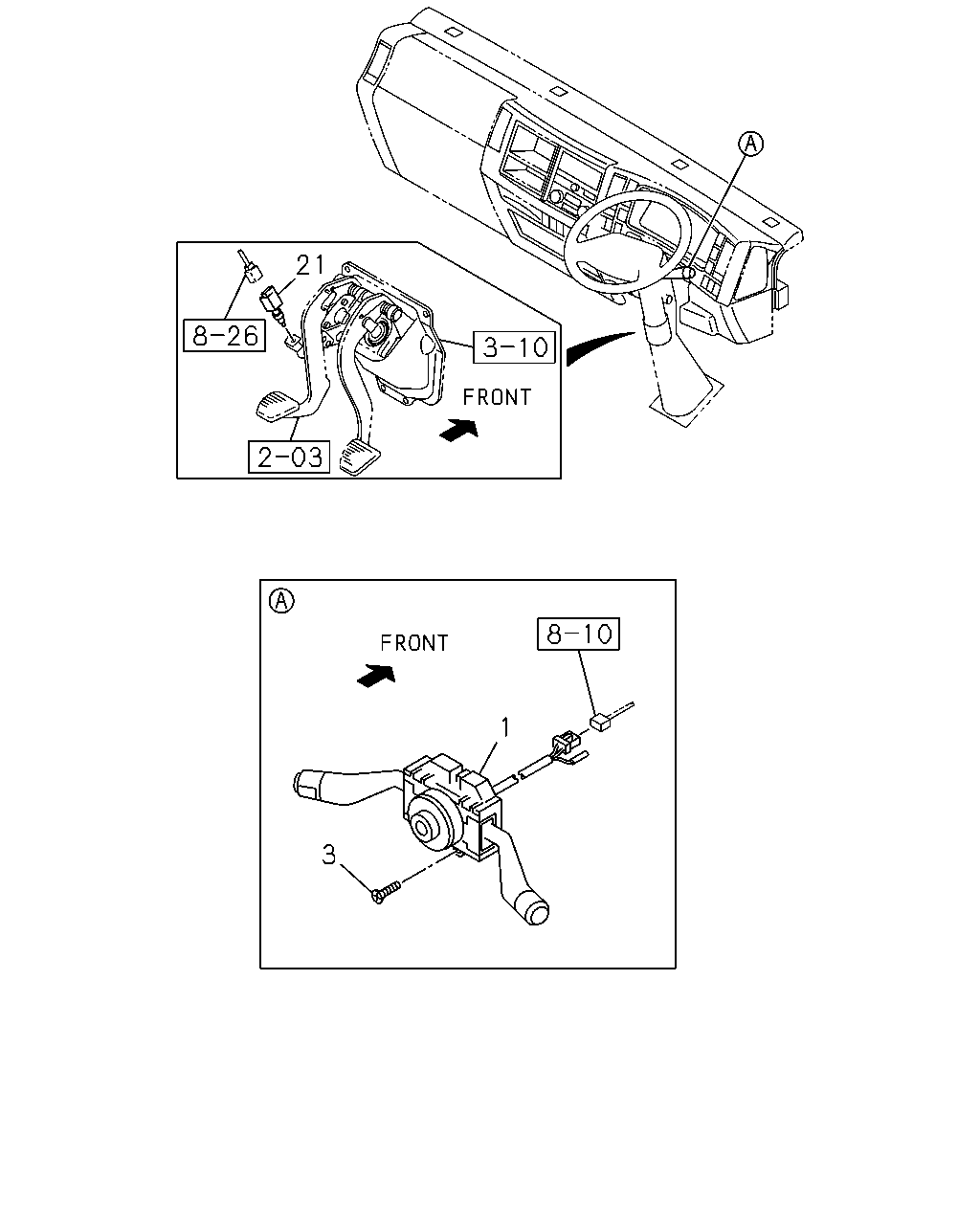

21
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98243-704-0
01
1
1412-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1412-
21
SWITCH; CLU
PTO CONTROL<SV6>
8-94337-761-0
01
1
1412-
21
SWITCH; CLU
EXC. PTO CONTROL<SV6>
8-97358-248-0
01
1
1412-

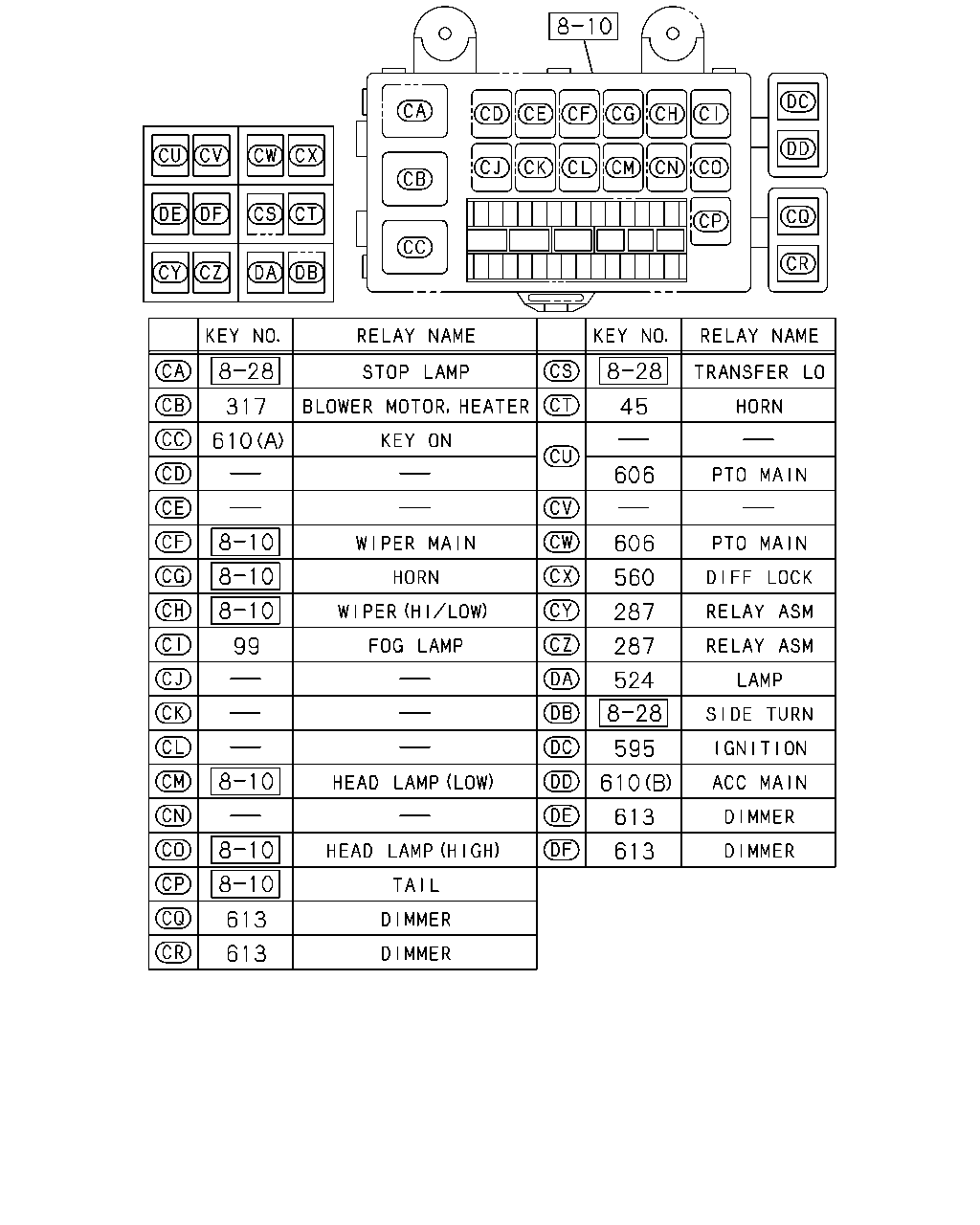

317
610
99
613
613
45
606
606
560
287
287
524
595
610
613
613
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
RELAY; HORN
24V 10A PANASONIC
8-97173-035-1
01
1
1412-
99
RELAY; FOG LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1412-
287
RELAY ASM
24V 10A PANASONIC
8-97173-035-1
02
1
1412-
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
1412-
524
RELAY; LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1412-
560
RELAY; DIFF LOCK
24V 10A PANASONIC
8-97173-035-1
01
1
1412-
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1412-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1412-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1412-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1412-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1412-
613
RELAY; DIMMER
24V 10A PANASONIC
8-97173-035-1
01
1
1412-
613
RELAY; DIMMER
24V 10A PANASONIC
8-97173-035-1
05
1
1412-

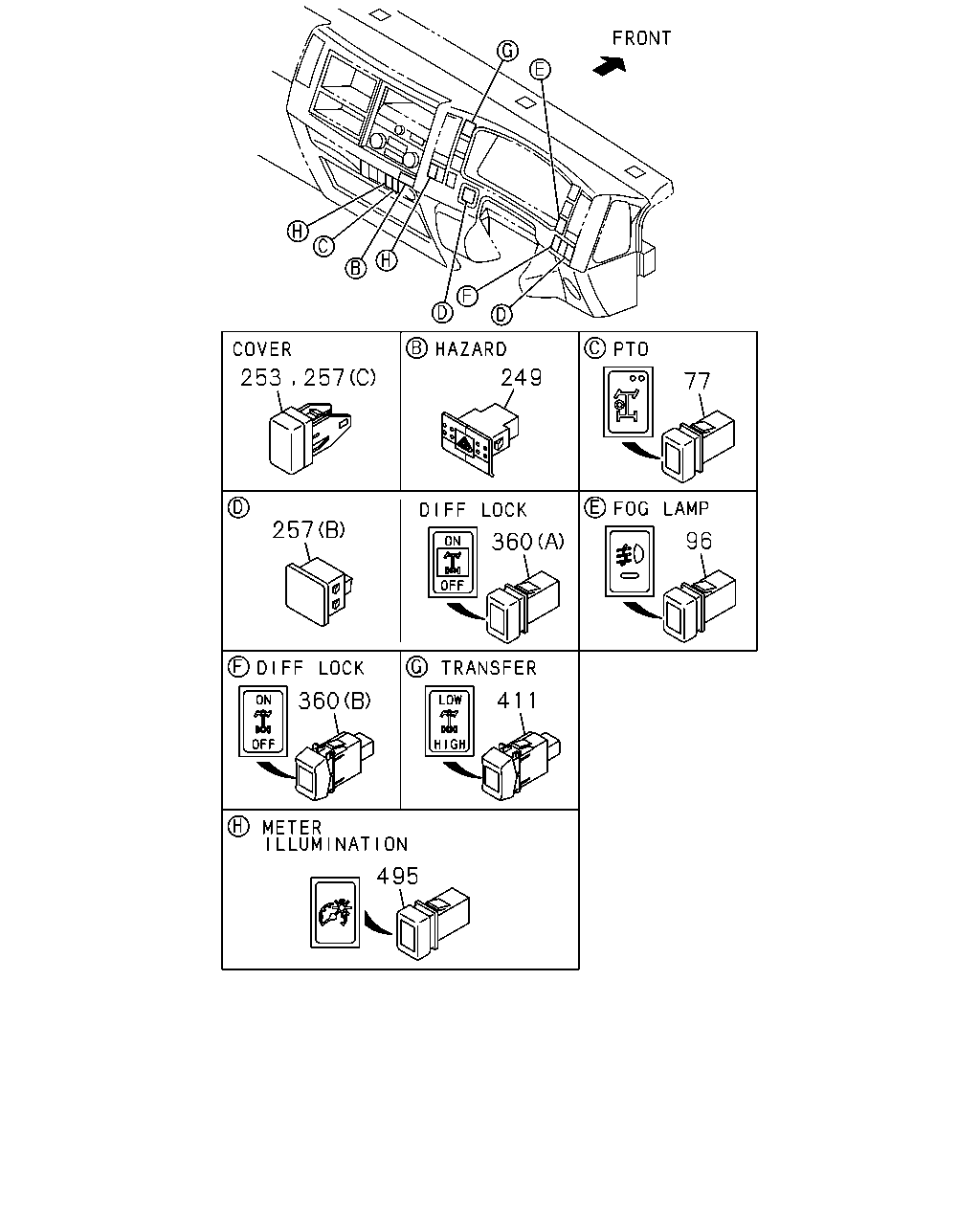

249
253
257
77
96
360
257
360
411
495
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97615-488-2
01
1
1412-
96
SWITCH; FOG LAMP
8-97387-031-4
01
1
1412-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1412-
253
COVER; SW HOLE
8-98025-954-1
01
1
1412-
253
COVER; SW HOLE
8-98025-954-1
01
1
1412-
257
COVER; HOLE,SW
(C)
8-98025-954-1
06
1
1412-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1412-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1412-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1412-
257
COVER; HOLE,SW
(A)
8-98029-917-0
01
1
1412-
360
SWITCH ASM; DIFF LK
(A)
8-97613-965-1
01
1
1412-
360
SWITCH ASM; DIFF LK
(B)
8-97616-567-2
01
1
1412-
411
SWITCH; TRANSFER
8-97613-967-1
01
1
1412-
495
SWITCH; METER,ILLUMINATION
8-97614-232-1
01
1
1412-

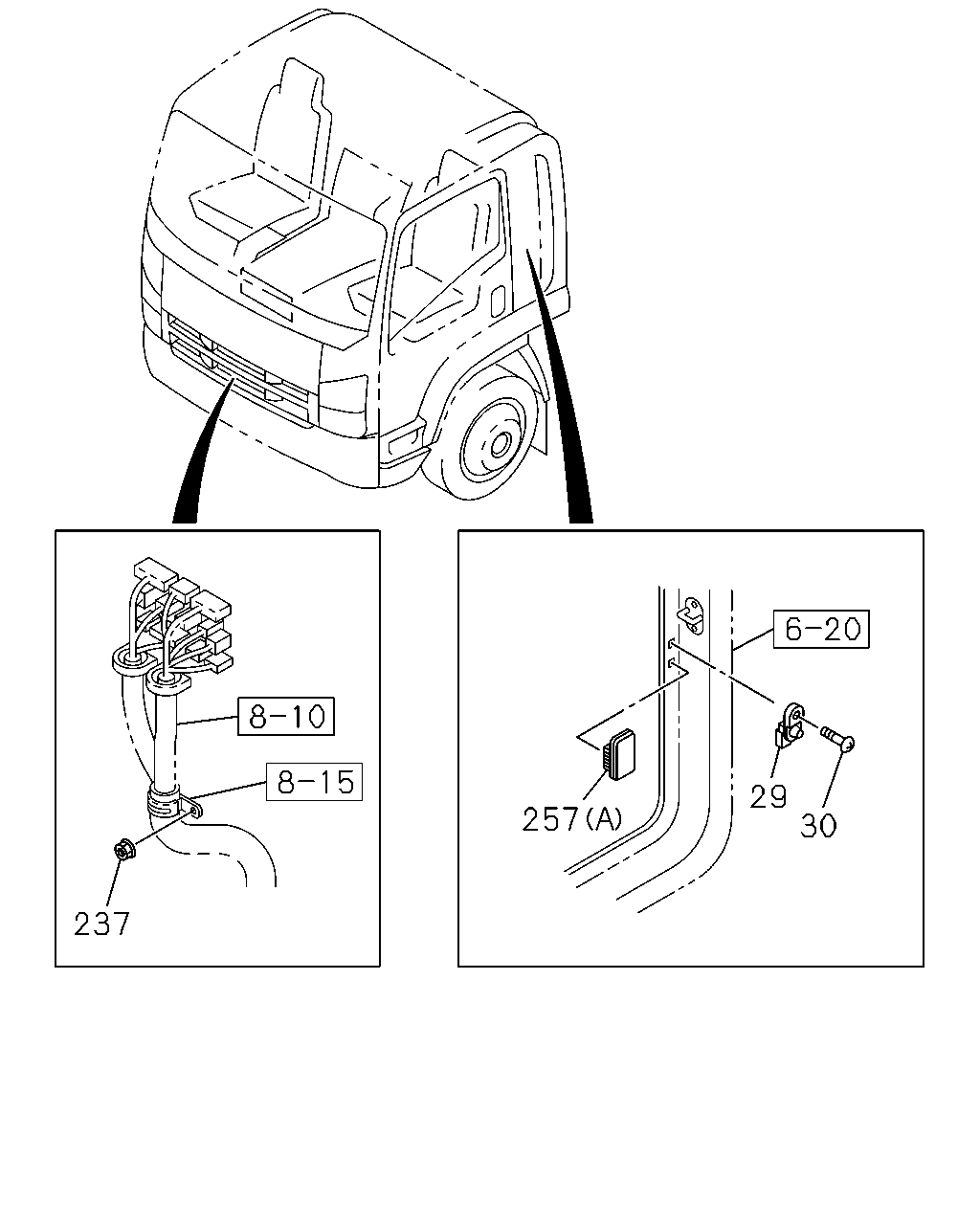

257
29
30
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1412-
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1412-
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1412-
257
COVER; HOLE,SW
(C)
8-98025-954-1
06
1
1412-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1412-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1412-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1412-
257
COVER; HOLE,SW
(A)
8-98029-917-0
01
1
1412-
