9-01 — TOOLS (#15362) — 86 parça
çizim 96040
125 126 108 12 141 124 127 128 130 129 146 145 143 144 135 158 156 153 151 154
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0710-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
108 WRENCH; SOCKET 9-85113-132-0 01 1 0710-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0710-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0710-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0710-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0710-0808
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 0809-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0710-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0710-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0710-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0710-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0710-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0710-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0710-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0710-
145 REPLACER ASM; BUSHING 1-85230-008-0 01 1 0710-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0710-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0710-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0710-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0710-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0710-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0710-

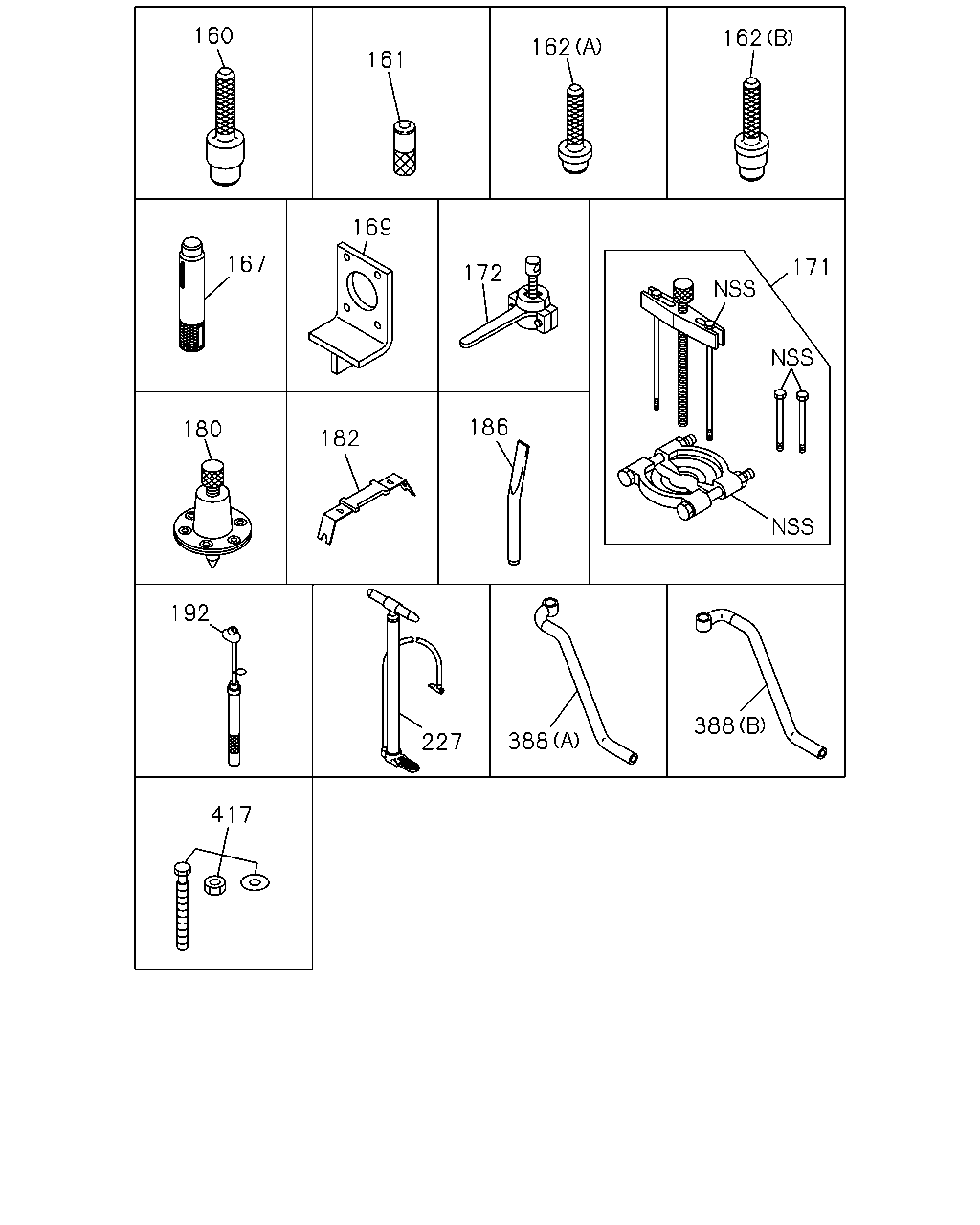

çizim 96204
160 162 162 161 169 167 171 172 186 180 182 192 388 388 227 417
BalonParca AdiParca NoAdetTipApplied Date
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0710-
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0710-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0710-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0710-
167 ALIGNER; CLU PILOT
L=300 OD=52.5 		1-85253-025-0 01 1 0710-
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0710-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0710-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0710-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0710-
182 REMOVER ASM 1-85239-008-0 01 1 0710-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0710-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0710-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0710-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 0710-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 0710-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0710-
çizim 96360
122 121 120 191 355 404 447 407 405
BalonParca AdiParca NoAdetTipApplied Date
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 0710-
121 PULLER ASM; COUNTER REAR 1-85210-069-0 01 1 0710-
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 0710-
191 ADAPTER 1-85216-009-0 01 1 0710-
355 REPLACER KIT; BUSH,V-LINK
BUSH OD=62 		1-85230-016-0 01 1 0710-
355 REPLACER KIT; BUSH,V-LINK
BUSH OD=70 		1-85230-017-0 01 1 0710-
404 TOOL; SETTING,MAIN COUNTER 1-85221-262-0 02 1 0710-
405 GUIDE; COUNTER 1-85221-264-0 01 1 0710-
407 SOCKET; SW 1-85221-267-1 01 1 0710-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=65 OD=90 L=65 		8-97608-200-0 01 1 0710-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=43.1 OD=48.6 L=65 		8-97608-274-0 01 1 0710-

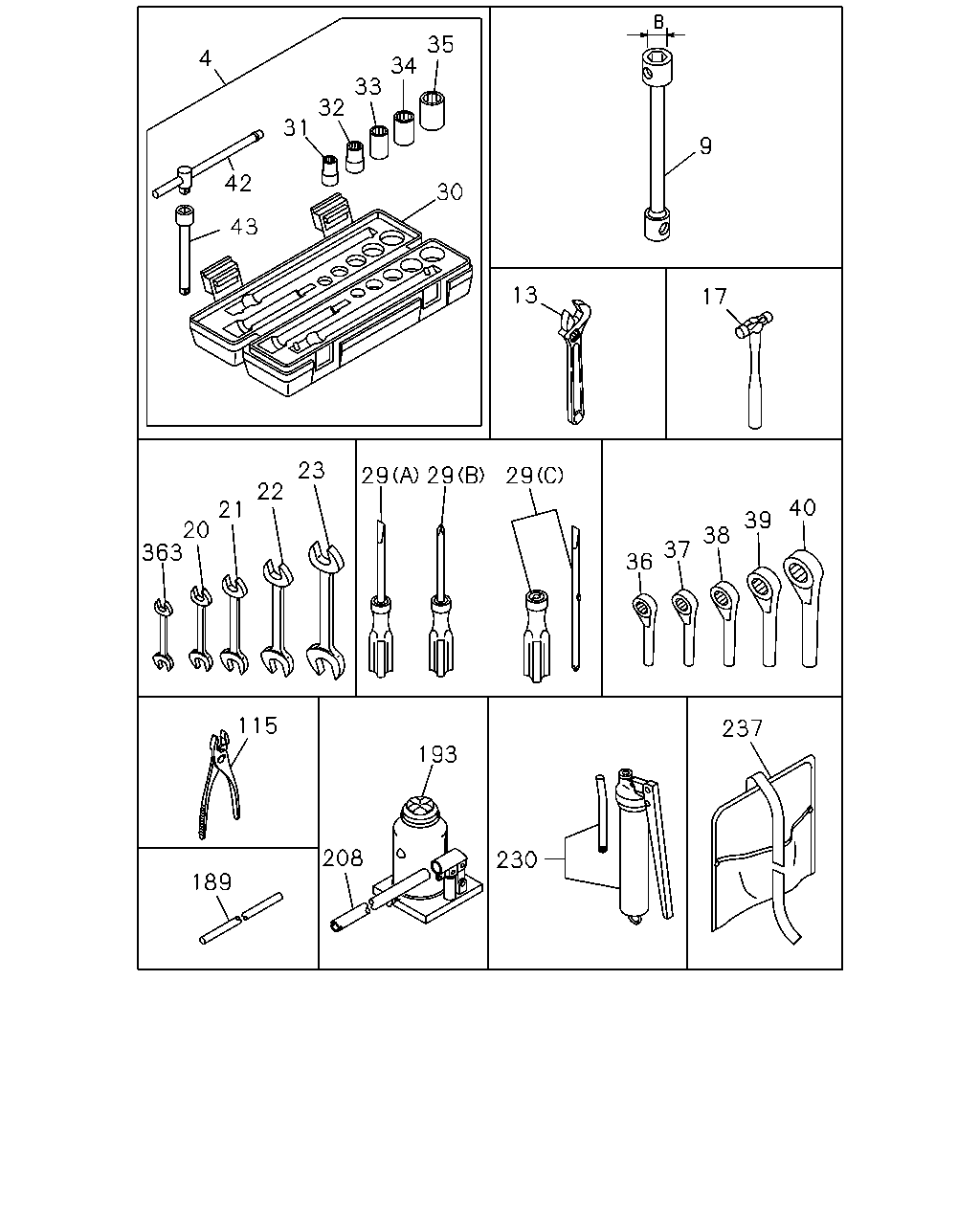

çizim 96363
4 35 34 33 32 31 42 43 30 9 17 13 23 29 29 29 22 21 20 363 40 39 38 37 36 237 193 115 189 208 230
BalonParca AdiParca NoAdetTipApplied Date
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0710-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0710-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0710-0907
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER 9-85121-406-0 01 1 0710-
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0710-
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0710-
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0710-
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0710-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0710-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0710-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0710-
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0710-
31 WRENCH; 12 1-85000-495-0 01 1 0710-
32 WRENCH; 14 1-85000-496-0 01 1 0710-
33 WRENCH; 17 1-85000-497-0 01 1 0710-
34 WRENCH; 19 1-85000-498-0 01 1 0710-
35 WRENCH; 22 1-85000-499-0 01 1 0710-
36 WRENCH; 24 9-85111-377-0 01 1 0710-
37 WRENCH; 27 9-85111-375-0 01 1 0710-
38 WRENCH; 32 9-85111-358-0 01 1 0710-
39 WRENCH; 36 9-85111-374-0 01 1 0710-
40 WRENCH; 41 9-85111-356-0 01 1 0710-
42 HANDLE; SLIDING 1-85000-500-0 01 1 0710-
43 BAR; EXTENSION,SOCKET WRENCH 1-85000-501-0 01 1 0710-
115 PLIER 5-85171-002-0 01 1 0710-1410
115 PLIER 8-98282-845-0 01 1 1411-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0710-
193 JACK ASM
15TON 		1-85510-019-2 01 1 0710-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0710-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE 1-85556-007-5 01 1 0710-
237 BAG; TOOL 8-97130-902-1 01 1 0710-
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 0710-
