Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#153619) — 76 parça
◀
[750A] OTHER PARTS (1 parça)
[750A] PASSENGER (15 parça)
[750A] DRIVER NO.2 (10 parça)
[750A] COMPONENT;PARCEL BOX (9 parça)
[750A] DRIVER NO.1 (26 parça)
[750A] CENTER (15 parça)
▶
632
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
632
GROMMET
OD=24
8-94119-796-0
01
1
1412-

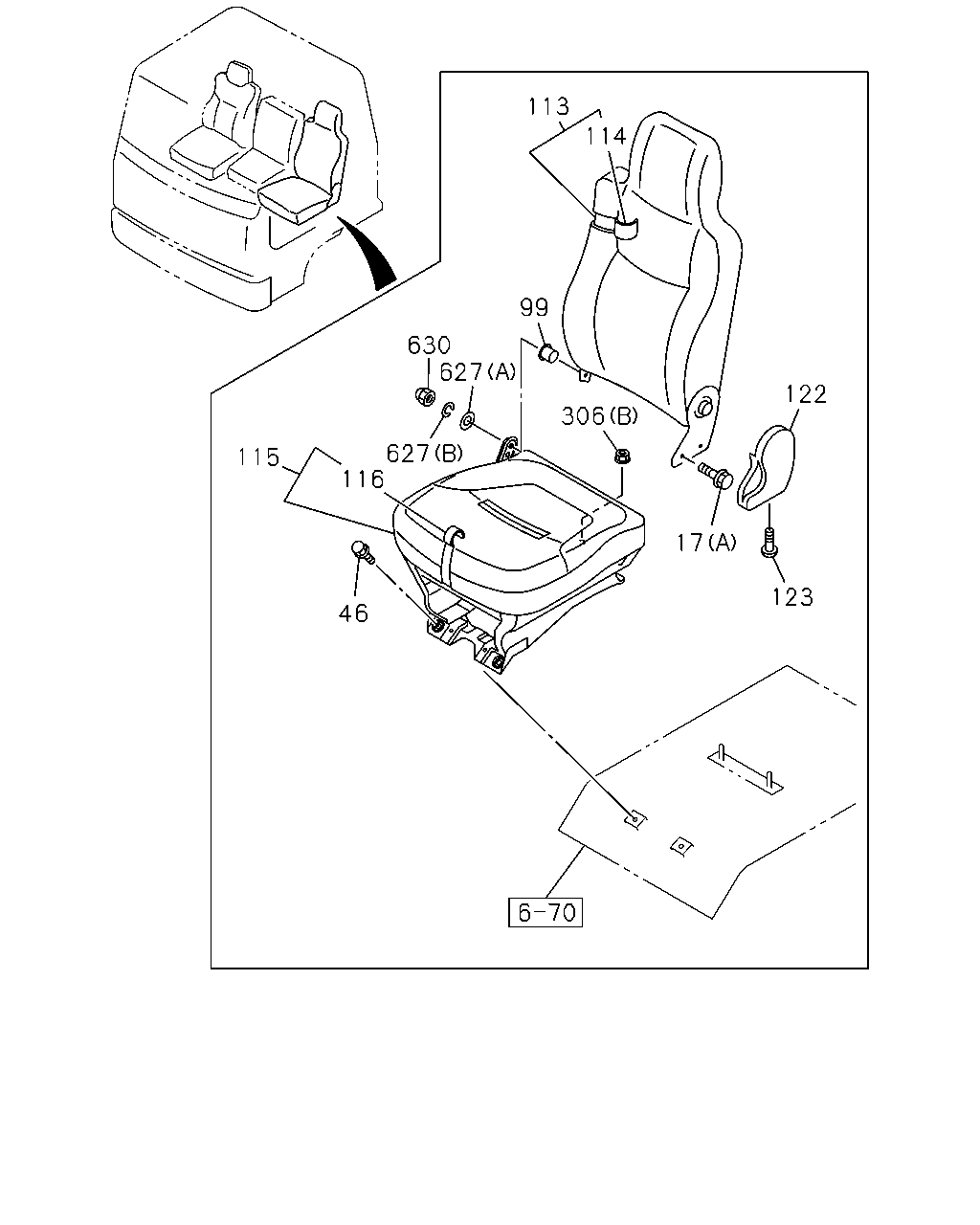

113
99
630
627
116
115
46
123
17
122
306
627
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
BOLT; RECLINING
(B) M10X20
8-98062-661-0
02
1
1412-
17
BOLT; RECLINING
(A) M8X20
8-98092-334-0
02
1
1412-
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
1412-
99
BUSHING; SEAT BACK
8-98112-751-0
01
1
1412-
113
BACK ASM; SEAT
DARK GRAY
8-97409-966-1
01
1
1412-
114
COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY
8-97411-916-0
01
1
1412-
115
CUSHION ASM; PASSENGER SEAT
DARK GRAY
8-97409-965-1
01
1
1412-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY
8-97411-915-0
01
1
1412-
122
COVER; ADJ,RECLINING
GRAY
8-97409-967-0
01
1
1412-
123
SCREW; COVER,RECLINING
M5
8-98070-026-0
01
1
1412-
306
NUT; SEAT ADJ
(B) M10 FLANGE
0-91180-110-0
02
1
1412-
306
NUT; SEAT ADJ
(A) M8 FLANGE
1-75538-207-0
08
1
1412-
627
WASHER; FRT SEAT
(A)
8-98063-223-0
01
1
1412-
627
WASHER; FRT SEAT
(B)
8-98063-224-0
01
1
1412-
630
NUT; CAP
M8
8-98063-225-0
01
1
1412-

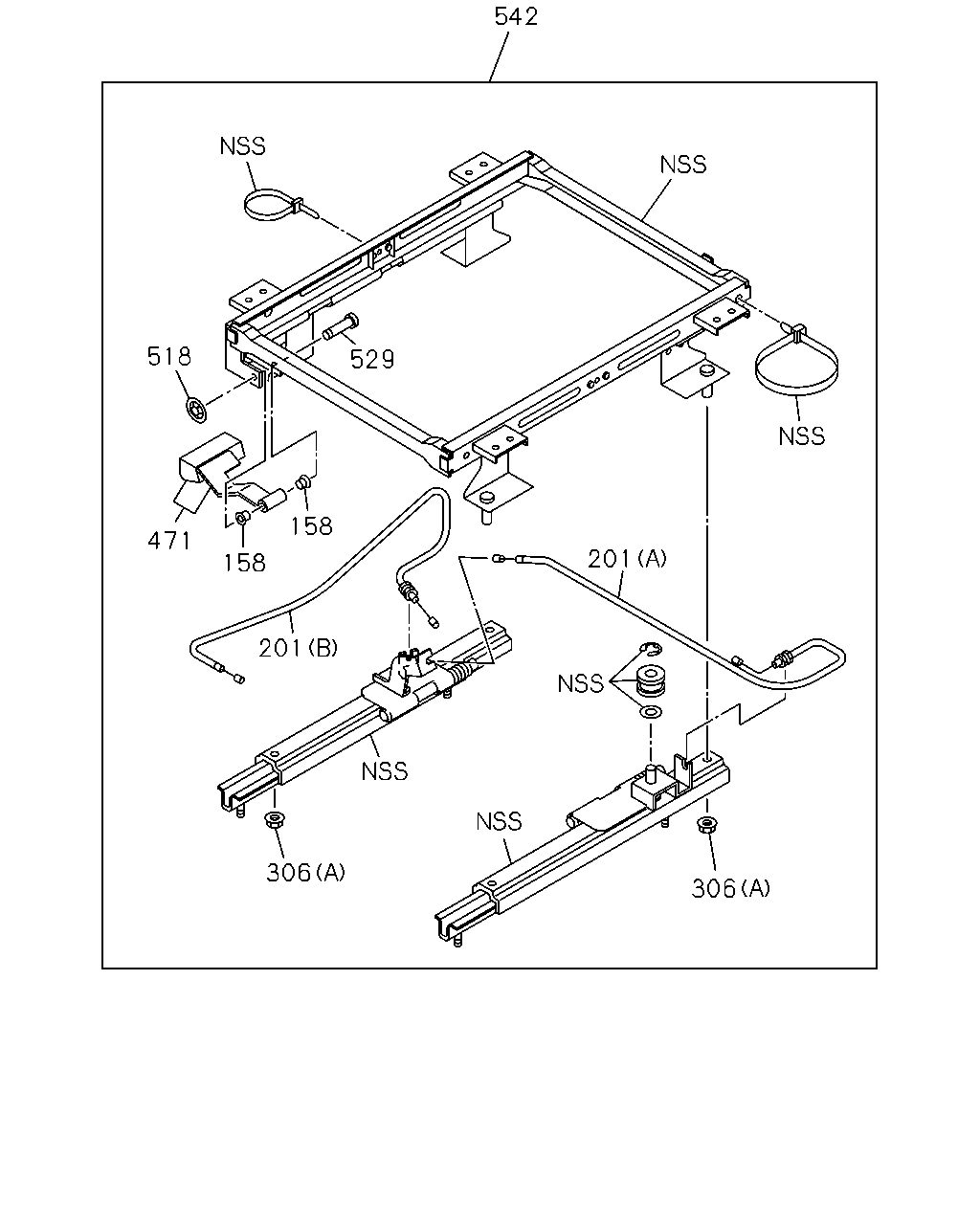

306
201
201
306
542
529
518
471
158
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
BUSHING; LINK ARM
1-75518-209-0
02
1
1412-
201
CABLE; ADJ
(A) L=667
1-75518-288-0
01
1
1412-
201
CABLE; ADJ
(B) L=605
1-75518-289-1
01
1
1412-
306
NUT; SEAT ADJ
(B) M10 FLANGE
0-91180-110-0
02
1
1412-
306
NUT; SEAT ADJ
(A) M8 FLANGE
1-75538-207-0
08
1
1412-
471
LEVER; SEAT ADJ
8-98107-869-0
01
1
1412-
518
NUT; TILT ADJ
1-75518-263-0
01
1
1412-
529
PIN; LINK
1-75518-262-0
01
1
1412-
542
ADJUSTER ASM; SEAT SLIDE
8-98093-310-0
01
1
1412-1502
542
ADJUSTER ASM; SEAT SLIDE
8-98291-653-0
01
1
1503-

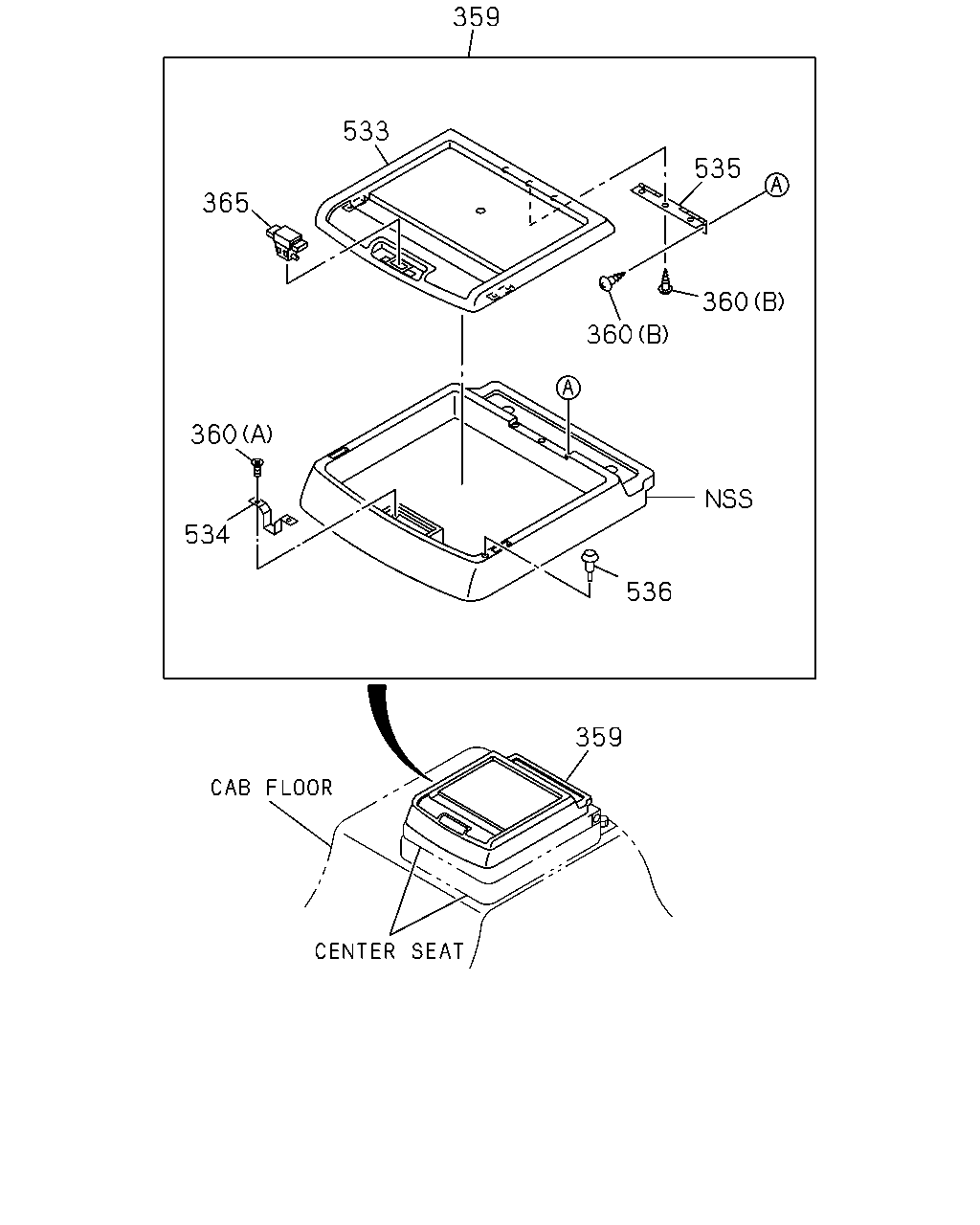

359
536
360
360
535
359
533
365
360
534
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
359
BOX; PARCEL
GRAY
8-97417-261-0
01
1
1412-
360
SCREW; PARCEL
(B) M4X16
0-70040-416-0
06
1
1412-
360
SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1412-
360
SCREW; PARCEL
(C) M5
8-98062-663-0
04
1
1412-
365
LOCK ASM; SEAT
1-72538-312-0
01
1
1412-
533
LID; PARCEL BOX
GRAY
8-97417-263-0
01
1
1412-
534
STRIKER; PARCEL BOX
1-72538-190-0
01
1
1412-
535
HINGE; PARCEL BOX
1-72447-391-1
01
1
1412-
536
RUBBER; CUSHION
1-72538-187-0
02
1
1412-

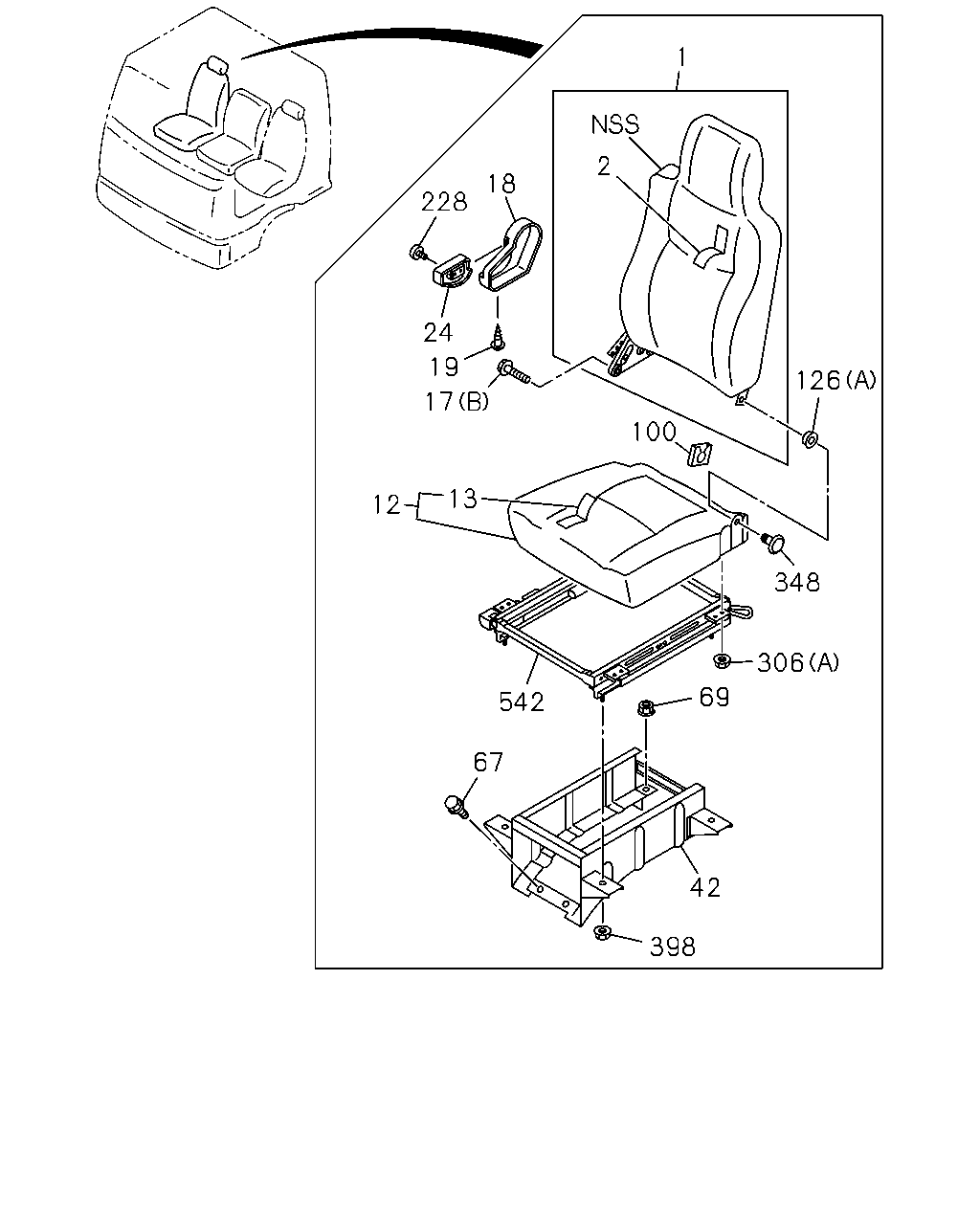

1
126
100
13
12
228
18
2
24
17
542
67
69
348
306
42
398
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
DARK GRAY
8-97409-955-5
01
1
1412-1512
1
BACK ASM; SEAT
DARK GRAY
8-97466-618-0
01
1
1601-
2
COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97411-910-2
01
1
1412-
12
CUSHION; SEAT,FRT
DARK GRAY
8-97409-954-2
01
1
1412-1512
12
CUSHION; SEAT,FRT
DARK GRAY
8-97466-606-0
01
1
1601-
13
COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97411-909-1
01
1
1412-
17
BOLT; RECLINING
(B) M10X20
8-98062-661-0
02
1
1412-
17
BOLT; RECLINING
(A) M8X20
8-98092-334-0
02
1
1412-
18
COVER; RECLINING
GRAY
8-97409-332-0
01
1
1412-
19
SCREW; COVER
M5
8-98062-663-0
01
1
1412-
24
KNOB; RECLINING,FRT,SEAT
GRAY
8-97409-333-0
01
1
1412-
42
STAND; DRIVER SEAT
1-75558-604-2
01
1
1412-
67
BOLT; FRT SEAT TO BODY
M10X20 FLANGE
0-28451-020-0
02
1
1412-
69
NUT; FRT SEAT
M10 FLANGE
0-91180-110-0
02
1
1412-
100
COVER; HINGE
8-98203-070-0
01
1
1412-1512
100
COVER; HINGE
8-98286-009-0
01
1
1601-
126
BUSHING; HINGE,RECLINING
(B)
8-97854-900-0
01
1
1412-
126
BUSHING; HINGE,RECLINING
(A)
8-98063-218-0
01
1
1412-1512
126
BUSHING; HINGE,RECLINING
(A)
8-98286-007-0
01
1
1601-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
1412-
306
NUT; SEAT ADJ
(B) M10 FLANGE
0-91180-110-0
02
1
1412-
306
NUT; SEAT ADJ
(A) M8 FLANGE
1-75538-207-0
08
1
1412-
348
BOLT; HINGE,SEAT
8-98286-008-0
01
1
1601-
398
NUT; STAND
M8 FLANGE
1-75538-207-0
04
1
1412-
542
ADJUSTER ASM; SEAT SLIDE
8-98093-310-0
01
1
1412-1502
542
ADJUSTER ASM; SEAT SLIDE
8-98291-653-0
01
1
1503-

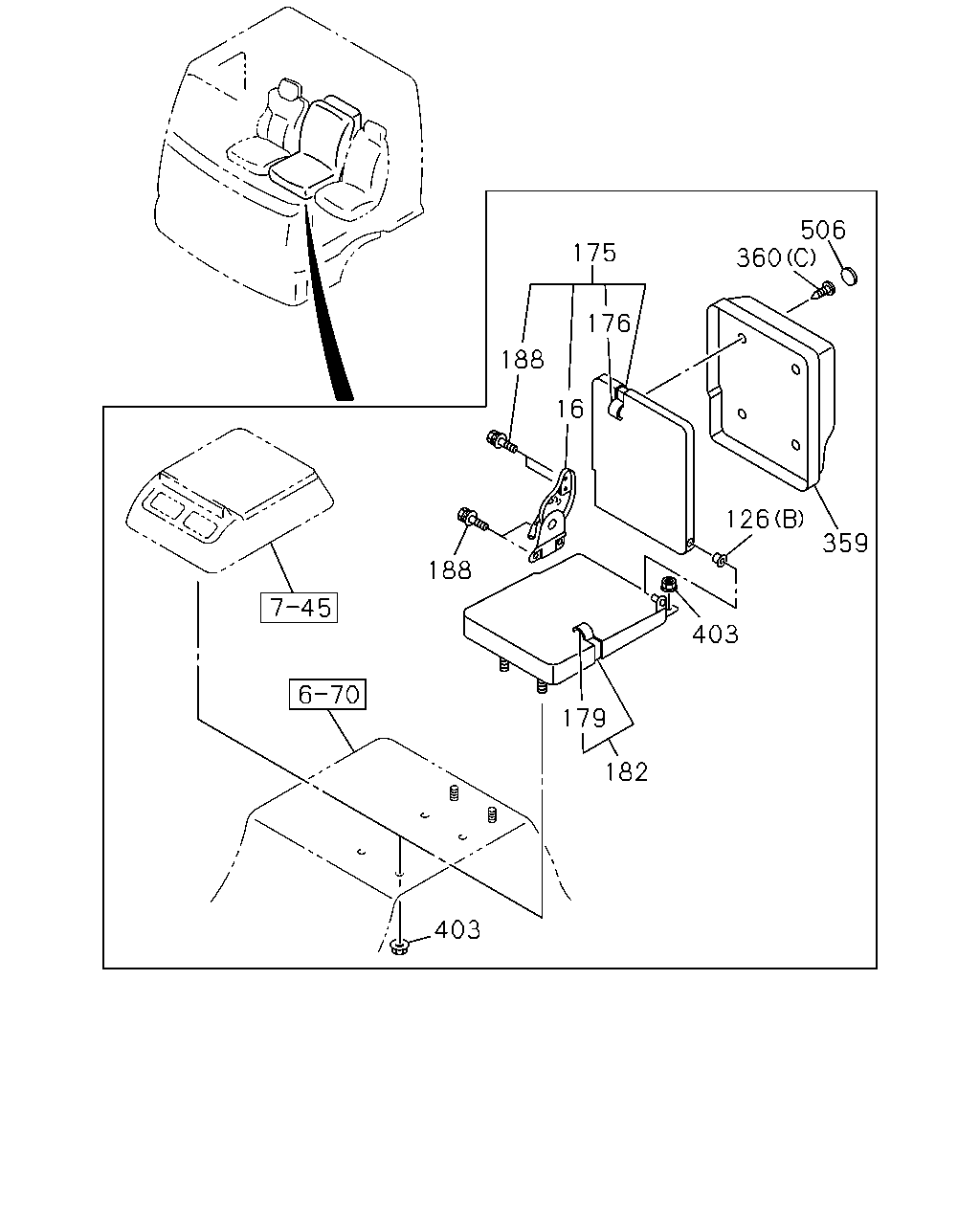

506
360
175
176
188
16
126
359
403
179
182
188
403
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
ADJUSTER ASM; RECLINING
1-75418-062-1
01
1
1412-
126
BUSHING; HINGE,RECLINING
(B)
8-97854-900-0
01
1
1412-
126
BUSHING; HINGE,RECLINING
(A)
8-98063-218-0
01
1
1412-1512
126
BUSHING; HINGE,RECLINING
(A)
8-98286-007-0
01
1
1601-
175
BACK ASM; PASSENGER CENTER SEAT
DARK GRAY
8-97409-975-1
01
1
1412-
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY
8-97409-976-1
01
1
1412-
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY
8-97409-974-1
01
1
1412-
182
CUSHION ASM; CENTER SEAT
DARK GRAY
8-97409-973-3
01
1
1412-
188
BOLT; BACK TO CUSHION
M10X16 FLANGE
1-75198-053-0
04
1
1412-
359
BOX; PARCEL
GRAY
8-97417-261-0
01
1
1412-
360
SCREW; PARCEL
(B) M4X16
0-70040-416-0
06
1
1412-
360
SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1412-
360
SCREW; PARCEL
(C) M5
8-98062-663-0
04
1
1412-
403
NUT; CENTER SEAT
M8 FLANGE
0-91180-108-0
04
1
1412-
506
CAP; PARCEL BOX
GRAY
8-97409-980-1
02
1
1412-
