Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#153614) — 285 parça

87 307 96 63 66 68 66 68 72 71 26 72 49 89 86 68 66 136 87 136 145 66 21 68 66 53 53 145 30 22 71 66 68 13 71 72 68 66 21 72 32 68 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1412-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1412-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5	1-09984-124-0	02	1	1412-
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M10 CAP NUT	1-09984-134-0	02	1	1412-
22	STAY; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98092-493-0	01	1	1412-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-806-0	01	1	1412-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-805-0	01	1	1412-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-591-1	01	1	1412-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98055-994-0	01	1	1412-1504
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M5X40 W/PL WASHER	1-71737-797-0	02	1	1412-
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	04	1	1412-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98257-748-0	01	1	1412-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98091-477-0	01	1	1412-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-195-0	01	1	1412-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-194-0	01	1	1412-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=22.2	1-71736-489-2	04	1	1412-
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=19.1	1-71737-633-2	02	1	1412-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1412-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	02	1	1412-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1412-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1412-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1412-
68	WASHER; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-535-0	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-537-1	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I)	8-98040-351-0	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-353-1	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98031-797-0	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98060-245-1	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98064-776-0	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98031-796-0	01	1	1412-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D)	8-98116-605-0	01	1	1412-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D)	8-98116-604-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1412-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	1-71737-646-2	01	1	1412-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98063-786-0	02	1	1412-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98063-789-0	02	1	1412-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	10	1	1412-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X23	8-97310-216-1	08	1	1412-
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98080-173-0	02	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=10	1-09985-180-0	01	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1412-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	03	1	1412-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 CAP NUT	8-98059-914-0	10	1	1412-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98063-785-2	01	1	1412-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98063-784-2	01	1	1412-

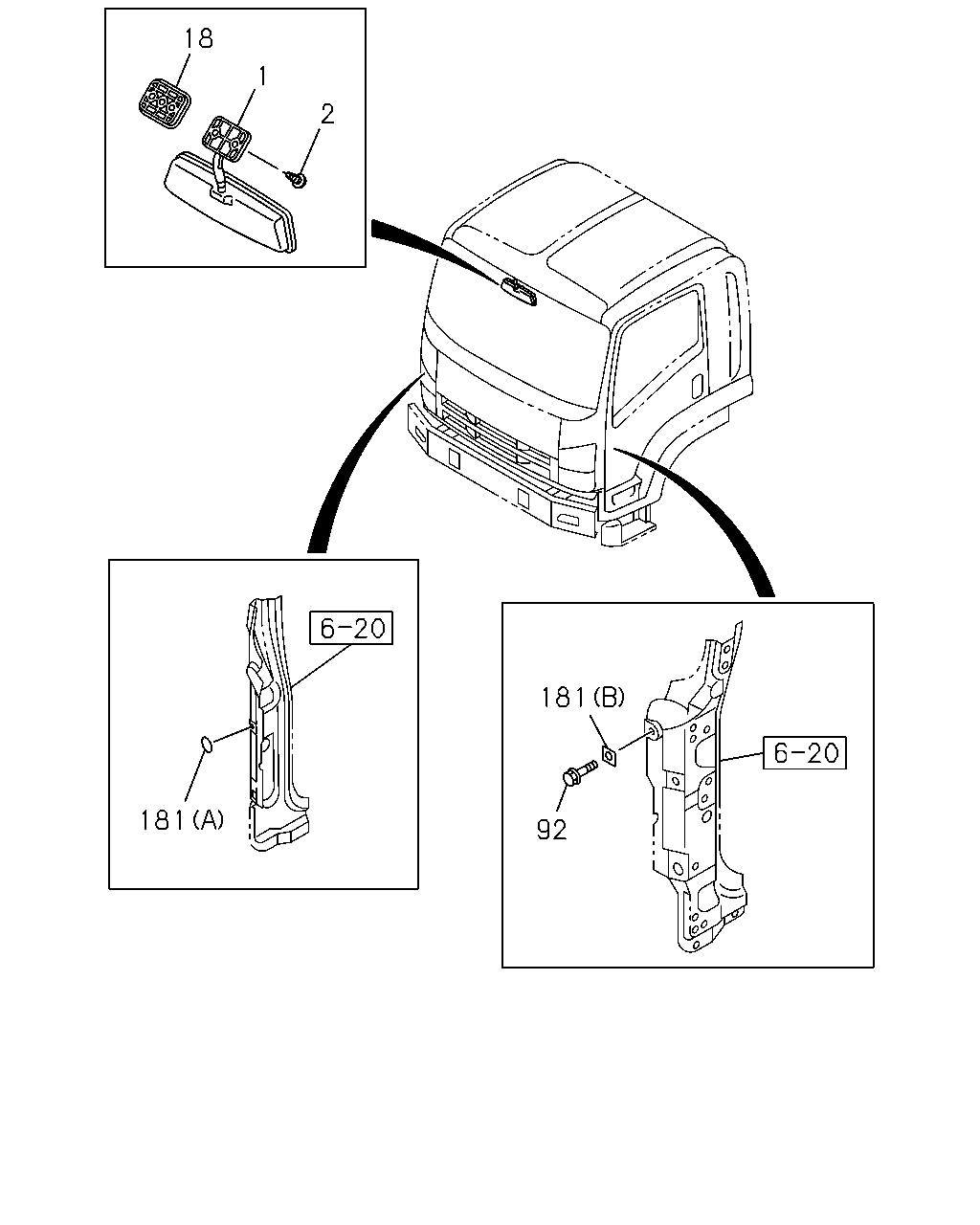

18 2 1 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1412-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1412-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1412-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE	8-98076-109-0	04	1	1412-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE	8-98076-109-0	01	1	1412-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1412-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1412-

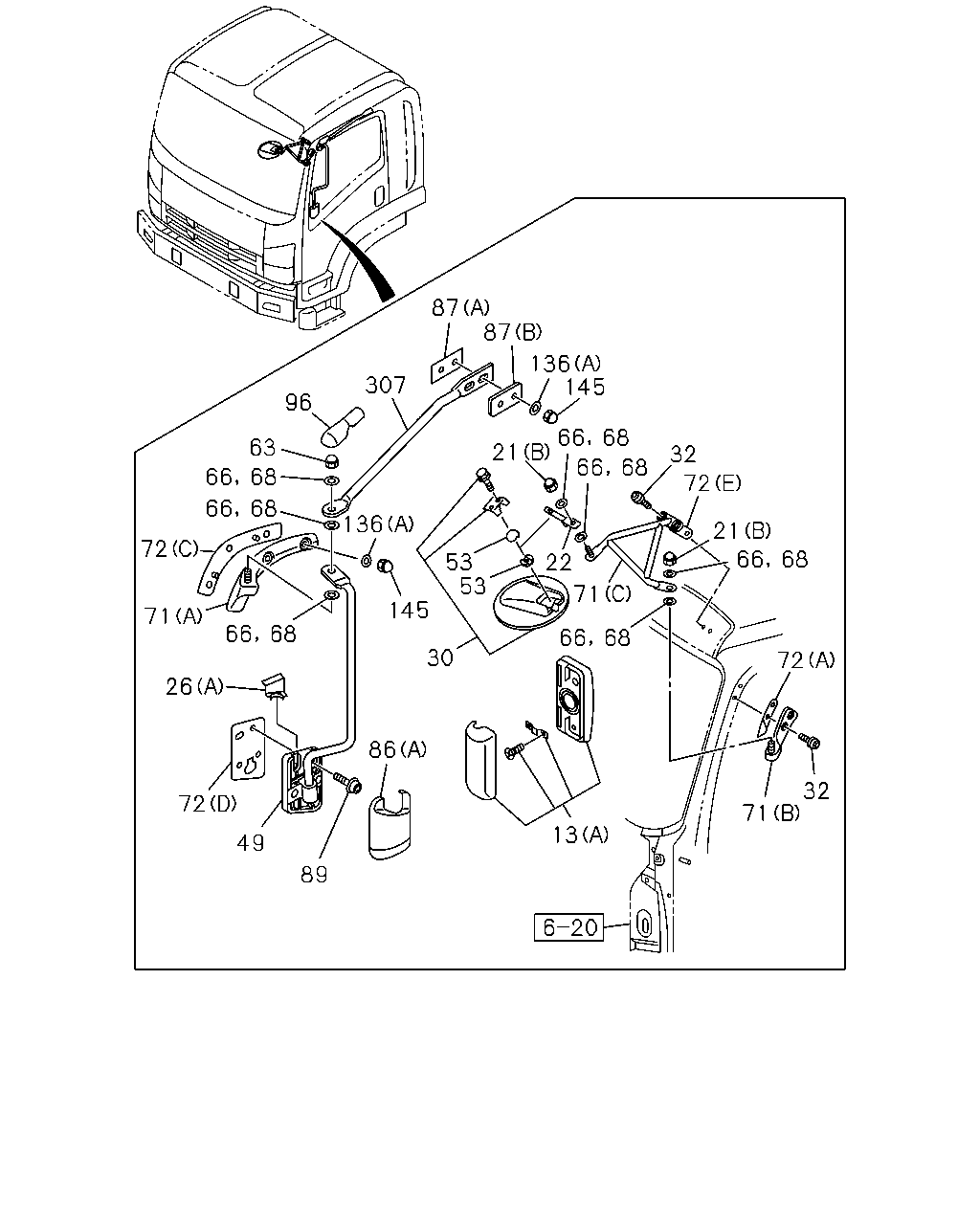

87 87 136 145 307 96 63 66 66 68 68 72 136 145 66 68 13 86 89 49 26 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1412-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1412-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-806-0	01	1	1412-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-805-0	01	1	1412-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98257-748-0	01	1	1412-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98091-477-0	01	1	1412-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-195-0	01	1	1412-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-194-0	01	1	1412-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1412-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	02	1	1412-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1412-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1412-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1412-
68	WASHER; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-535-0	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-537-1	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I)	8-98040-351-0	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-353-1	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98031-797-0	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98060-245-1	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98064-776-0	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98031-796-0	01	1	1412-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D)	8-98116-605-0	01	1	1412-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D)	8-98116-604-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1412-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	1-71737-646-2	01	1	1412-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98063-786-0	02	1	1412-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98063-789-0	02	1	1412-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	10	1	1412-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X23	8-97310-216-1	08	1	1412-
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98080-173-0	02	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=10	1-09985-180-0	01	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1412-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	03	1	1412-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 CAP NUT	8-98059-914-0	10	1	1412-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98063-785-2	01	1	1412-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98063-784-2	01	1	1412-

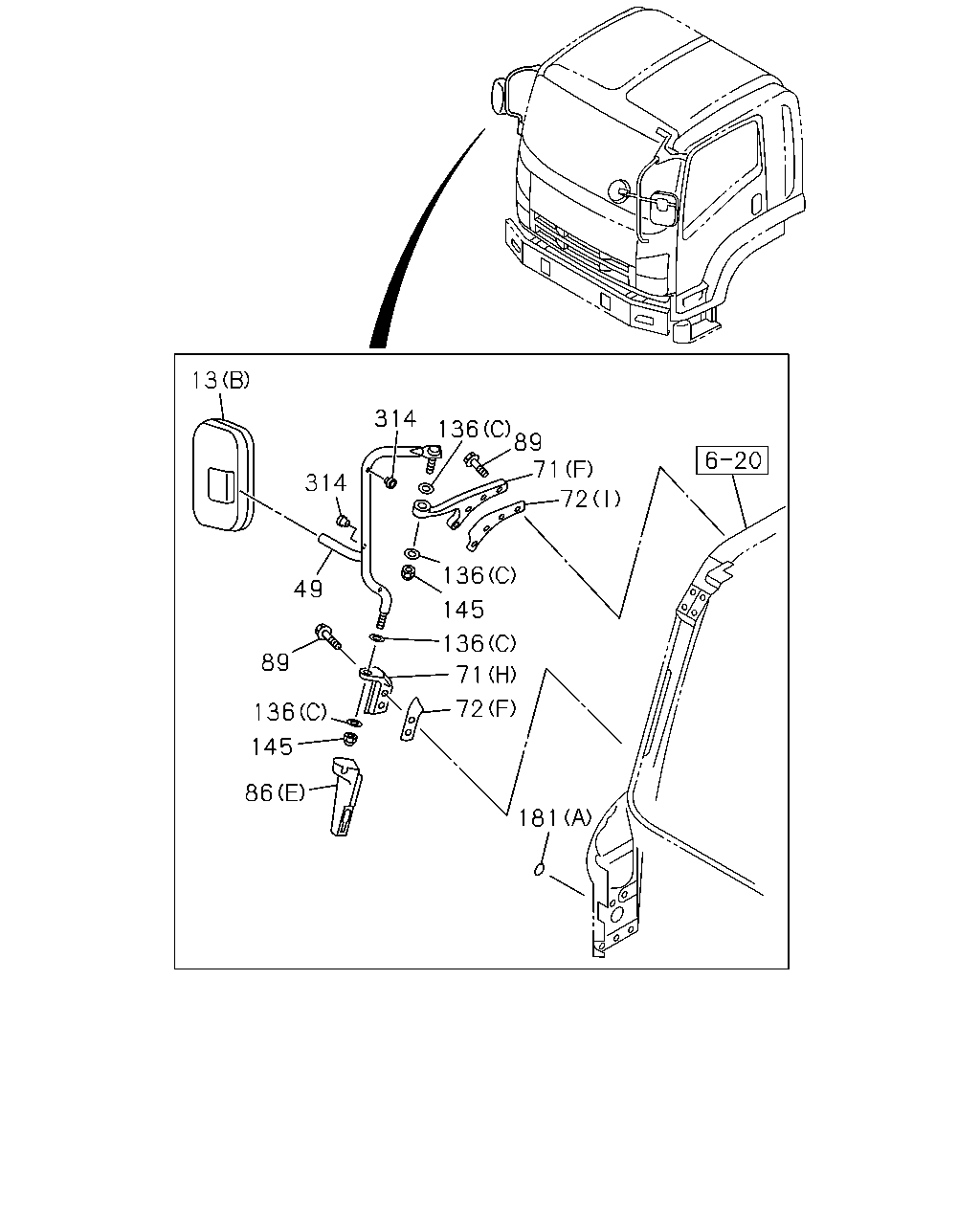

13 89 136 145 86 49 314 314 136 145 136 71 72 181 136 72 71 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1412-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1412-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98257-748-0	01	1	1412-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98091-477-0	01	1	1412-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-195-0	01	1	1412-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-194-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-535-0	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-537-1	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I)	8-98040-351-0	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-353-1	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98031-797-0	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98060-245-1	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98064-776-0	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98031-796-0	01	1	1412-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D)	8-98116-605-0	01	1	1412-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D)	8-98116-604-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1412-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	10	1	1412-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X23	8-97310-216-1	08	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=10	1-09985-180-0	01	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1412-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	03	1	1412-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 CAP NUT	8-98059-914-0	10	1	1412-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1412-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1412-
314	BUFFER; STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-94314-317-0	02	1	1412-

29 49 58 118 136 136 136 145 13 86 86 63 66 66 92 181 42 92 92 71 89 72 71 72 89 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1412-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1412-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-422-0	01	1	1412-
42	ATTACHMENT; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98070-643-0	01	1	1412-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98257-748-0	01	1	1412-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98091-477-0	01	1	1412-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-195-0	01	1	1412-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-194-0	01	1	1412-
58	NUT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M12	8-98061-883-0	01	1	1412-
61	NUT; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 FLANGE	0-91180-108-0	01	1	1412-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1412-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	02	1	1412-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1412-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1412-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-535-0	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-537-1	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I)	8-98040-351-0	01	1	1412-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-353-1	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98031-797-0	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98060-245-1	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98064-776-0	01	1	1412-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98031-796-0	01	1	1412-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D)	8-98116-605-0	01	1	1412-
72	SHEET O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D)	8-98116-604-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1412-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	10	1	1412-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X23	8-97310-216-1	08	1	1412-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE	8-98076-109-0	04	1	1412-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE	8-98076-109-0	01	1	1412-
118	JOINT ASM; BALL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-356-2	01	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=10	1-09985-180-0	01	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1412-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10 CAP NUT	1-09984-134-0	03	1	1412-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 CAP NUT	8-98059-914-0	10	1	1412-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1412-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1412-

13 53 53 71 26 25 14 9 86 30 135 32 87 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98028-332-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98104-068-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-992-1	01	1	1412-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98055-991-1	01	1	1412-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98045-690-0	01	1	1412-1510
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98324-761-0	01	1	1511-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98108-511-0	01	1	1412-1510
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98324-760-0	01	1	1511-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5	1-09984-124-0	02	1	1412-
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M10 CAP NUT	1-09984-134-0	02	1	1412-
25	SCREW; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M6X40	1-71707-223-0	04	1	1412-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-806-0	01	1	1412-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-805-0	01	1	1412-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-591-1	01	1	1412-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98055-994-0	01	1	1412-1504
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M5X40 W/PL WASHER	1-71737-797-0	02	1	1412-
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X26 W/PL WASHER	8-98067-249-2	04	1	1412-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=22.2	1-71736-489-2	04	1	1412-
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) ID=19.1	1-71737-633-2	02	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	1-71707-224-0	04	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (G)	8-98040-022-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98201-957-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F)	8-98040-021-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H)	8-98040-543-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98060-240-0	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98092-492-3	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-793-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-794-2	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	8-98040-545-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D)	8-98040-546-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E)	8-98040-541-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-803-2	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98031-802-2	01	1	1412-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C)	1-71737-646-2	01	1	1412-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A)	8-98063-786-0	02	1	1412-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B)	8-98063-789-0	02	1	1412-
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)	1-71798-838-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
