6-90 — REAR BUMPER (#153611) — 57 parça

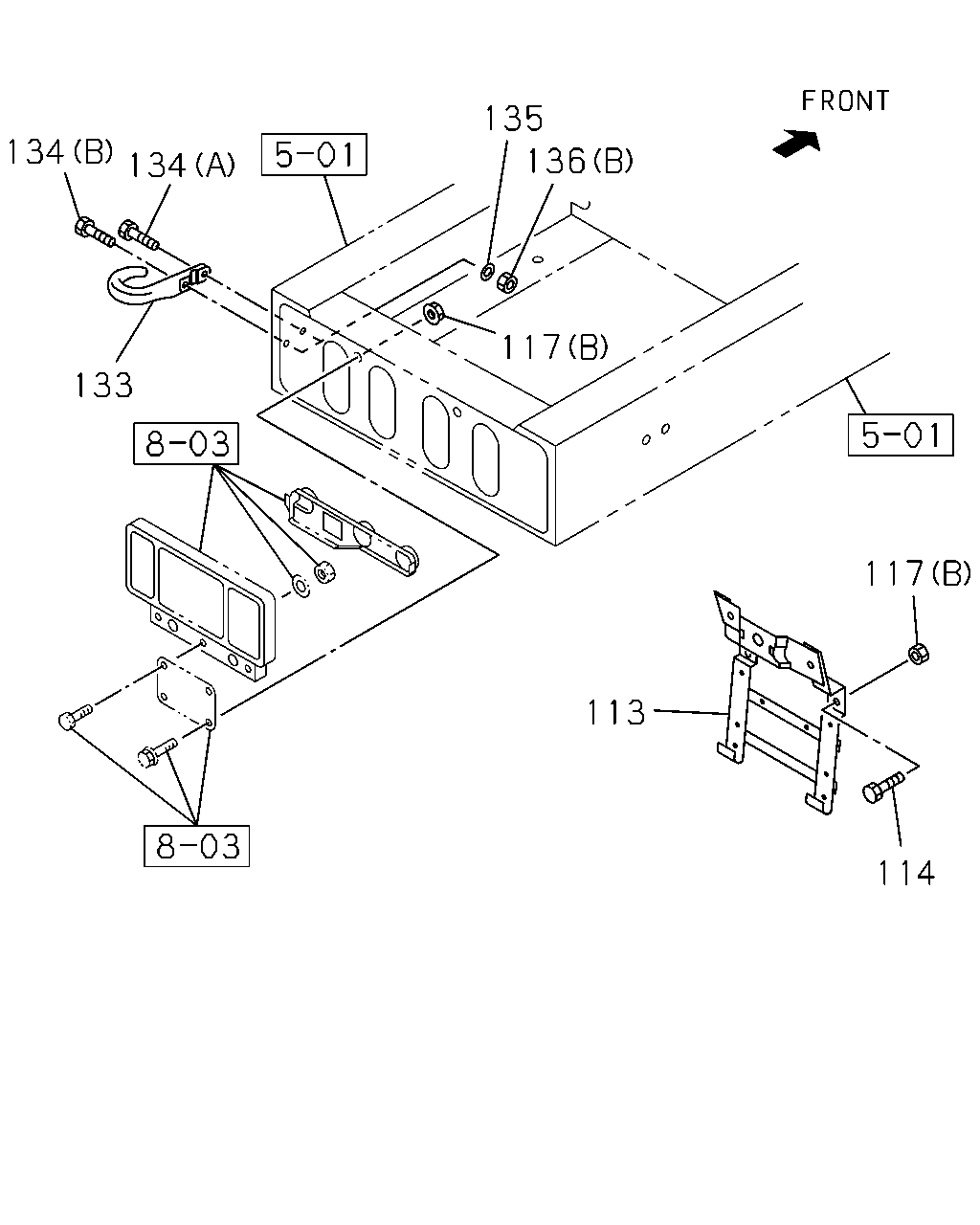

114 113 117 117 136 135 134 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1412-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1412-
117	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1412-
117	NUT; BRKT PINTLE HOOK<PP7> (A) M12 FLANGE	0-91180-212-0	02	1	1412-
133	HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7>	1-57181-027-1	02	1	1412-
133	HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7>	1-57181-027-1	01	1	1412-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M16X50	0-20851-650-0	02	1	1412-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16X60	0-20851-660-0	02	1	1412-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M16X50	0-20851-650-0	01	1	1412-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16X60	0-20851-660-0	01	1	1412-
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2	0-91510-816-0	04	1	1412-
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> ID=16.2	0-91510-816-0	02	1	1412-
136	NUT; HOOK PINTLE HOOK<PP7> (A)	1-09420-006-0	01	1	1412-
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16	0-91110-516-0	04	1	1412-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16	0-91110-516-0	02	1	1412-

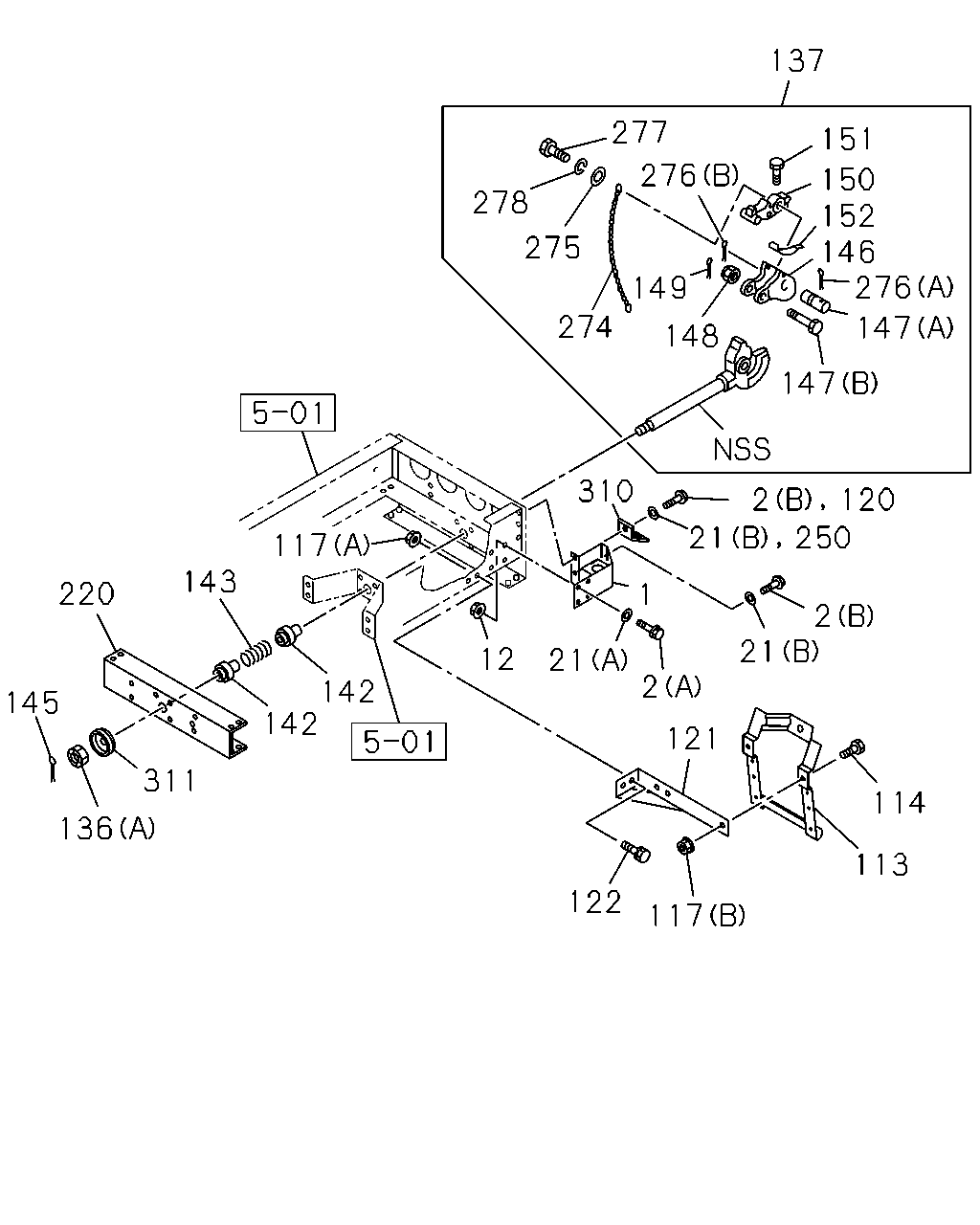

137 151 150 152 146 276 147 147 277 276 278 275 274 149 148 310 2 120 21 250 1 2 21 12 21 2 121 114 113 117 122 117 143 220 145 311 136 142 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER; RR REAR BUMPER,REINFORCEMENT<SMS>	1-71220-043-2	02	1	1412-
2	BOLT; BACK BAR REAR BUMPER,REINFORCEMENT<SMS> (A) M14X40	0-20851-440-0	08	1	1412-
2	BOLT; BACK BAR REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> (B) M16X40	0-20851-640-0	02	1	1412-
2	BOLT; BACK BAR REAR BUMPER,REINFORCEMENT<SMS> EXC. RR HOOK TWO EYE<VR7> (B) M16X40	0-20851-640-0	04	1	1412-
12	NUT; BRKT REAR BUMPER,REINFORCEMENT<SMS> M14	0-91110-514-0	04	1	1412-
21	WASHER; LK,BUMPER REAR BUMPER,REINFORCEMENT<SMS> (A) ID=14.2	0-91510-814-0	08	1	1412-
21	WASHER; LK,BUMPER REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> (B) ID=16.2	0-91510-816-0	02	1	1412-
21	WASHER; LK,BUMPER REAR BUMPER,REINFORCEMENT<SMS> EXC. RR HOOK TWO EYE<VR7> (B) ID=16.2	0-91510-816-0	04	1	1412-
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1412-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1412-
117	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1412-
117	NUT; BRKT PINTLE HOOK<PP7> (A) M12 FLANGE	0-91180-212-0	02	1	1412-
120	BOLT RR HOOK TWO EYE<VR7> M16X40	0-20851-640-0	02	1	1412-
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	8-98179-582-0	01	1	1412-
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 FLANGE	0-28651-230-0	02	1	1412-
136	NUT; HOOK PINTLE HOOK<PP7> (A)	1-09420-006-0	01	1	1412-
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16	0-91110-516-0	04	1	1412-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16	0-91110-516-0	02	1	1412-
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	1412-
142	GUIDE; HOOK SPR	9-53522-001-0	02	1	1412-
143	SPRING; COIL,PINTLE HOOK	9-09940-078-0	01	1	1412-1501
143	SPRING; COIL,PINTLE HOOK REAR BUMPER,REINFORCEMENT<SMS>	9-09940-078-0	01	1	1502-
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	0-81126-065-0	01	1	1412-
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	1412-
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	1412-
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	1412-
148	NUT; LK PIN PINTLE HOOK<PP7> M24	1-09442-032-0	01	1	1412-
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	0-81123-045-0	01	1	1412-
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	1412-
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50540-832-0	01	1	1412-
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	1412-
220	MEMBER; PINTLE HOOK	8-97618-610-0	01	1	1412-1501
220	MEMBER; PINTLE HOOK REAR BUMPER,REINFORCEMENT<SMS>	8-97618-610-0	01	1	1502-
250	WASHER; LK,BRKT TRAILER SAFETY CHAIN RR HOOK TWO EYE<VR7> ID=16.2	0-91510-816-0	02	1	1412-
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	1412-
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4	0-91610-606-0	01	1	1412-
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	1412-
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08113-015-0	01	1	1412-
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	1412-
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	0-91510-506-0	01	1	1412-
310	EYE; PLATE RR HOOK TWO EYE<VR7>	1-57184-001-0	02	1	1412-
311	PLATE; ADJUSTING PINTLE HOOK<PP7>	1-57184-008-0	01	1	1412-
