Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#153597) — 52 parça
◀

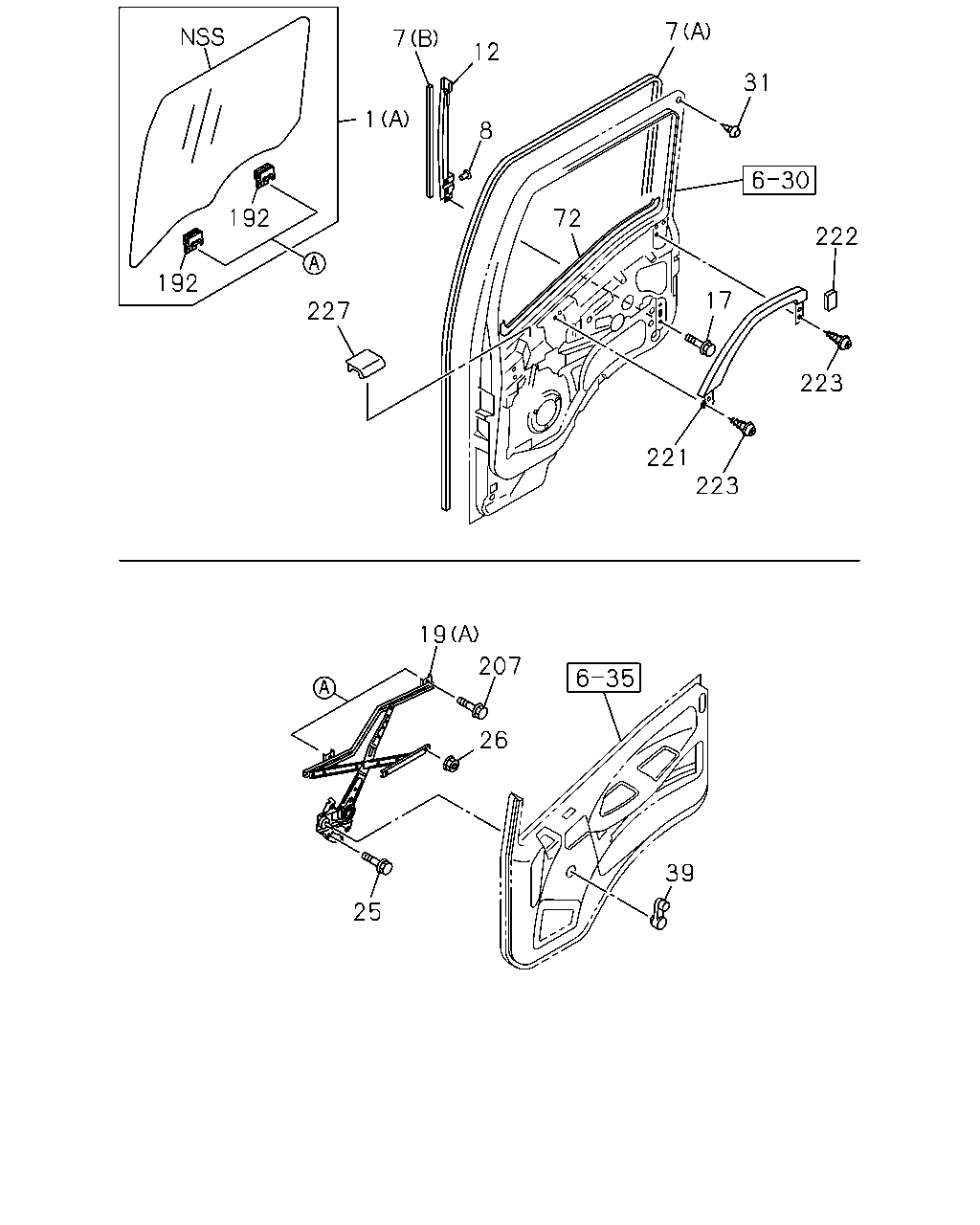

[631A] RH (26 parça)

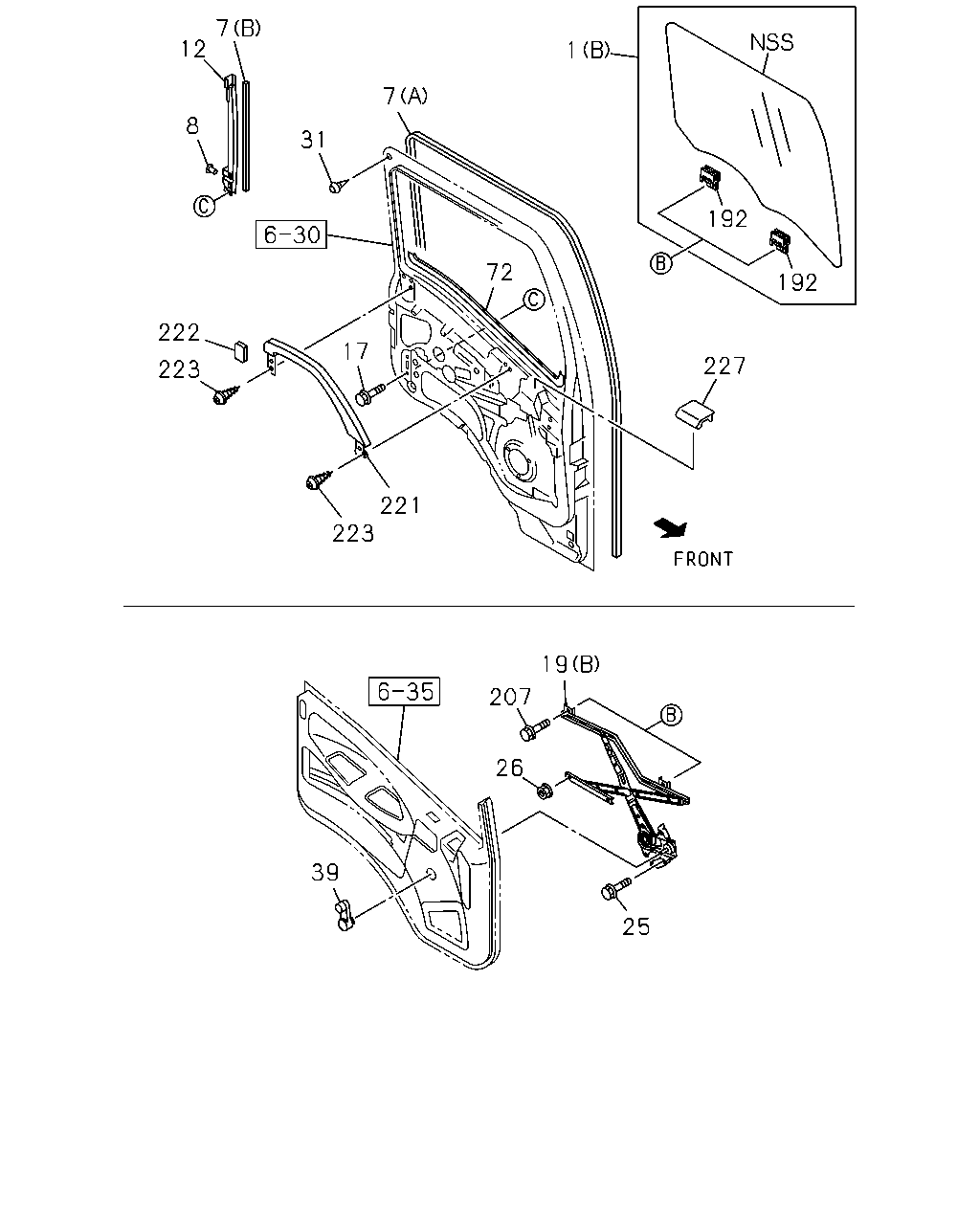

[631A] LH (26 parça)
▶
221
223
222
31
7
12
7
1
192
192
227
19
207
26
39
25
223
17
72
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
(B)
8-98211-765-0
01
1
1412-
1
GLASS; FRT DOOR
(A)
8-98211-764-0
01
1
1412-
7
GLASS RUN; FRT DOOR
(B)
8-98260-310-0
02
1
1412-
7
GLASS RUN; FRT DOOR
(A)
8-98260-309-0
01
1
1412-
7
GLASS RUN; FRT DOOR
(A)
8-98260-308-0
01
1
1412-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1412-
12
CHANNEL; GLASS RUN,FRT
8-98260-319-0
01
1
1412-
12
CHANNEL; GLASS RUN,FRT
8-98260-318-0
01
1
1412-
17
SCREW; RR CHANNEL
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1412-
19
REGULATOR; WINDOW,FRT DOOR
(B)
8-98029-234-3
01
1
1412-
19
REGULATOR; WINDOW,FRT DOOR
(A)
8-98029-233-3
01
1
1412-
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1412-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1412-
31
STOPPER; RUBBER,DOOR INNER
8-94358-581-0
04
1
1412-
39
HANDLE; WINDOW REG,FRT DOOR
GRAY
8-97405-313-3
02
1
1412-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1412-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1412-
192
HOLDER; DOOR GLASS
8-98211-762-0
04
1
1412-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1412-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-317-2
01
1
1412-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-316-2
01
1
1412-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1412-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1412-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1412-
227
RUBBER; SHUTTER
GRAY
8-97405-321-0
01
1
1412-
227
RUBBER; SHUTTER
GRAY
8-97405-321-0
01
1
1412-
25
19
207
26
39
221
223
17
223
222
72
227
192
192
7
31
8
12
7
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
(B)
8-98211-765-0
01
1
1412-
1
GLASS; FRT DOOR
(A)
8-98211-764-0
01
1
1412-
7
GLASS RUN; FRT DOOR
(B)
8-98260-310-0
02
1
1412-
7
GLASS RUN; FRT DOOR
(A)
8-98260-309-0
01
1
1412-
7
GLASS RUN; FRT DOOR
(A)
8-98260-308-0
01
1
1412-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1412-
12
CHANNEL; GLASS RUN,FRT
8-98260-319-0
01
1
1412-
12
CHANNEL; GLASS RUN,FRT
8-98260-318-0
01
1
1412-
17
SCREW; RR CHANNEL
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1412-
19
REGULATOR; WINDOW,FRT DOOR
(B)
8-98029-234-3
01
1
1412-
19
REGULATOR; WINDOW,FRT DOOR
(A)
8-98029-233-3
01
1
1412-
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1412-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1412-
31
STOPPER; RUBBER,DOOR INNER
8-94358-581-0
04
1
1412-
39
HANDLE; WINDOW REG,FRT DOOR
GRAY
8-97405-313-3
02
1
1412-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1412-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1412-
192
HOLDER; DOOR GLASS
8-98211-762-0
04
1
1412-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1412-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-317-2
01
1
1412-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-316-2
01
1
1412-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1412-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1412-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1412-
227
RUBBER; SHUTTER
GRAY
8-97405-321-0
01
1
1412-
227
RUBBER; SHUTTER
GRAY
8-97405-321-0
01
1
1412-
