Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

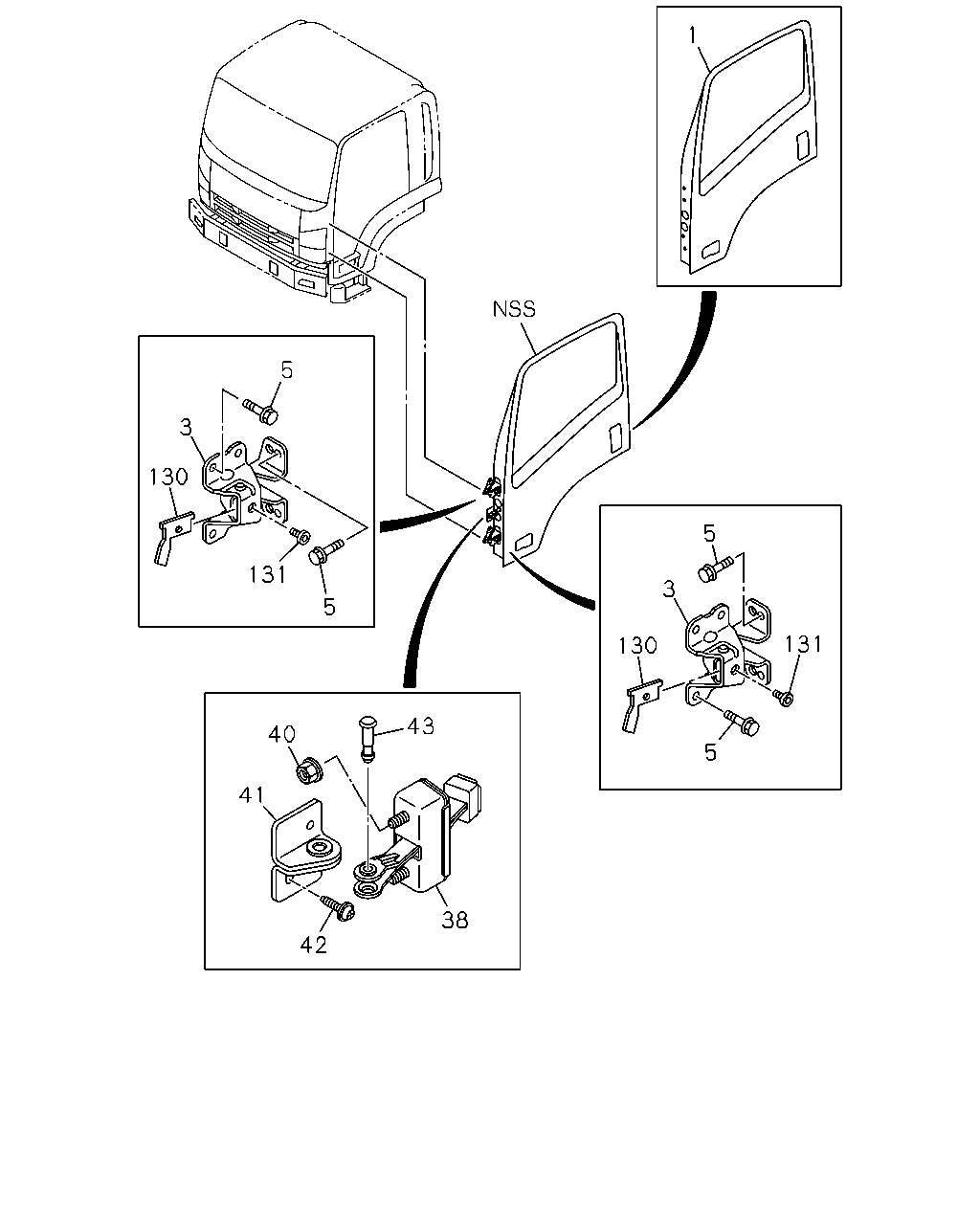

6-30 — FRONT DOOR AND HINGE
(#153596) — 19 parça
1
5
3
130
131
5
5
3
130
131
5
43
40
41
38
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98260-600-0
01
1
1412-
1
DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98260-599-0
01
1
1412-
1
DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98260-598-0
01
1
1412-
1
DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98260-597-0
01
1
1412-
3
HINGE; DOOR FRT
8-98191-302-0
04
1
1412-
5
BOLT; HINGE
M8X20 FLANGE
8-98049-756-0
12
1
1412-
5
BOLT; HINGE
M8X20 FLANGE
8-98049-756-0
08
1
1412-
38
CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98208-189-1
02
1
1412-1508
38
CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98296-601-0
02
1
1509-
38
CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98031-730-6
02
1
1412-1508
38
CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98296-602-0
02
1
1509-
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1412-1508
40
NUT; CHECKER
M8 W/DISHED WASHER
8-98302-918-0
04
1
1509-1509
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1510-
41
BRACKET; CHECKER
8-98029-290-3
02
1
1412-
42
BOLT; BRKT
M6X20 W/PL WASHER
8-98032-159-2
04
1
1412-
43
PIN
8-98037-152-2
02
1
1412-
130
STOPPER; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB)
8-98038-299-1
04
1
1412-
131
BOLT; DOOR STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M10X11
8-98039-593-1
04
1
1412-
