Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

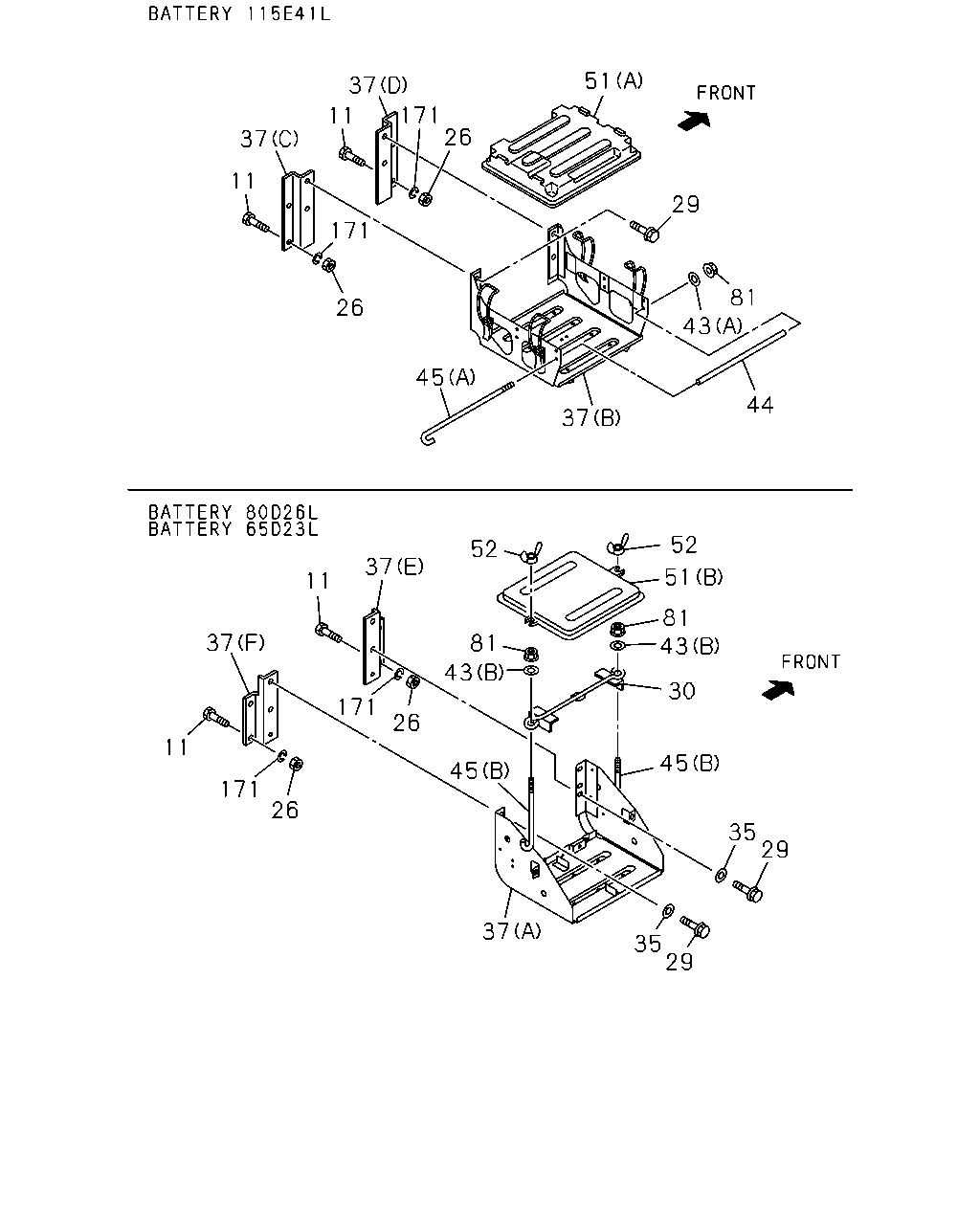

5-20 — BATTERY CARRIER
(#153589) — 22 parça
29
35
29
35
45
30
43
51
81
52
52
81
43
26
171
37
11
37
171
11
26
37
45
37
44
43
81
29
51
26
171
37
11
171
37
11
26
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M14X35
0-20851-435-0
04
1
1412-
26
NUT; BRKT
M14
0-91110-514-0
04
1
1412-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1412-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1412-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1412-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (C)
8-98152-834-1
01
1
1412-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (D)
8-98152-835-1
01
1
1412-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1412-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1412-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1412-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)
1-53619-056-1
01
1
1412-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)
1-53619-057-2
01
1
1412-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (A) ID=8.4 OD=16
0-91610-508-0
02
1
1412-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22
0-91614-708-0
02
1
1412-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1412-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1412-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1412-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1412-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1412-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1412-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1412-
171
WASHER; BRKT
ID=14.2
0-91510-814-0
04
1
1412-
