5-01 — FRAME AND OTHER PARTS (#153586) — 73 parça

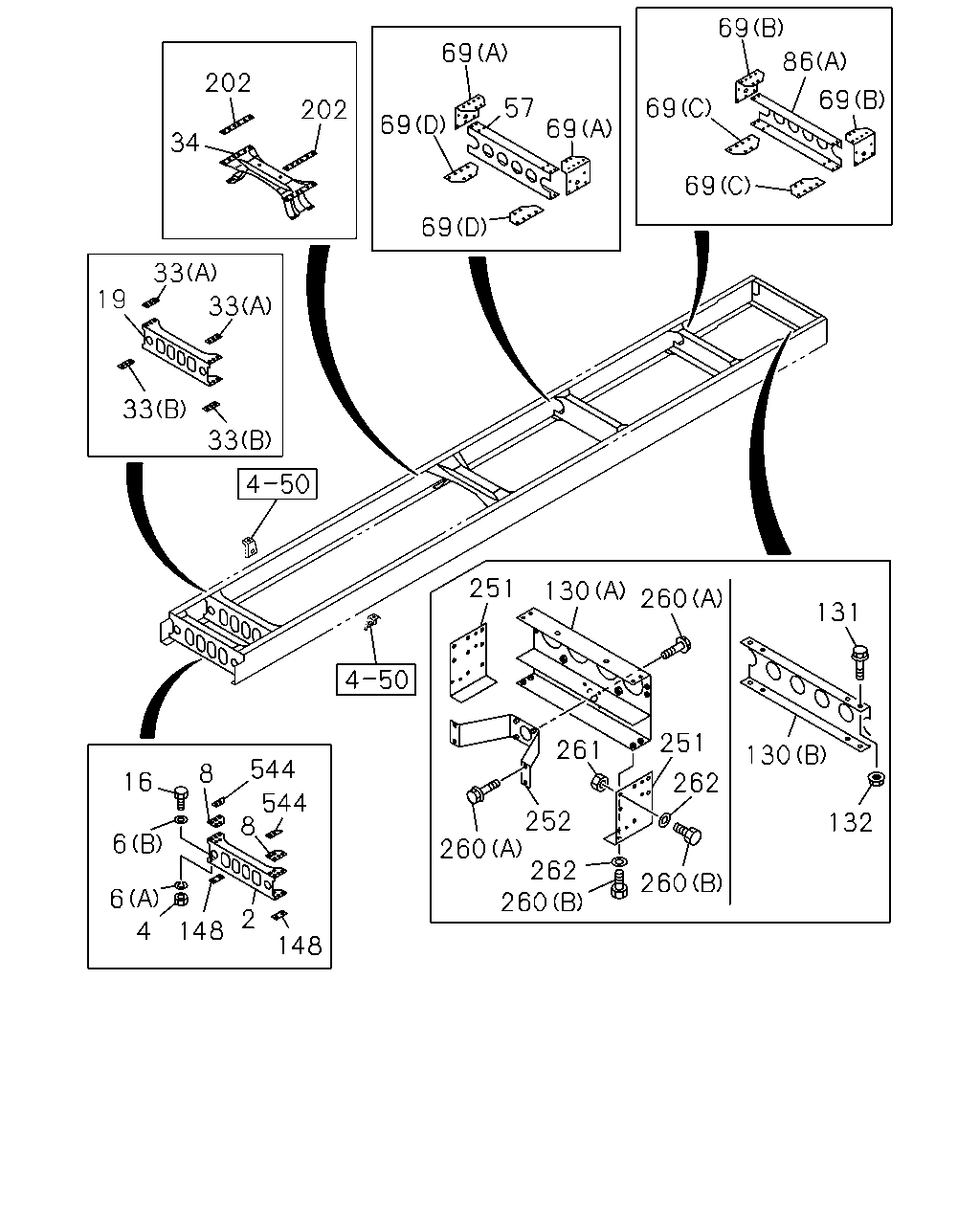

çizim 459099
202 34 202 33 33 19 33 33 544 544 8 8 16 6 6 4 148 2 148 260 260 262 252 261 130 251 260 131 130 132 251 262 260 69 69 69 57 69 69 69 69 86 69
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 8-97626-850-2 01 1 1412-
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1412-
6 WASHER; LK,1ST C/MBR
(A) ID=14.2 		0-91510-814-0 02 1 1412-
6 WASHER; LK,1ST C/MBR
(B) ID=15 		8-98010-627-1 02 1 1412-
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1412-
16 BOLT; 1ST C/MBR TO S/MBR
M14X40 		0-20851-440-0 02 1 1412-
19 MEMBER; CROSS,2ND 8-97615-907-4 01 1 1412-
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1412-
33 SPACER; 2ND C/MBR,UPR
(B) 		8-97616-640-0 02 1 1412-
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1412-
57 MEMBER; CROSS,RR SUSP FRT 8-97637-015-0 01 1 1412-
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-865-0 02 1 1412-
69 GUSSET; RR SUSP,UPR
(C) 		8-97610-866-0 02 1 1412-
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 1412-
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 1412-
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-266-1 01 1 1412-
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-267-1 01 1 1412-
86 MEMBER; CROSS,RR SUSP RR
(A) 		8-97610-858-5 01 1 1412-
86 MEMBER; CROSS,RR SUSP RR
(B) 		8-97636-043-0 01 1 1412-
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7>,REAR BUMPER, REINFORCEMENT<SMS> (B) 		8-97610-869-1 01 1 1502-
130 MEMBER; CROSS,END
(A) 		8-97618-608-1 01 1 1412-
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7>,REAR BUMPER, REINFORCEMENT<SMS> M12X30 W/LK WASHER 		0-50541-230-0 04 1 1502-
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7>,REAR BUMPER, REINFORCEMENT<SMS> M12 		0-91110-512-0 04 1 1502-
148 SPACER; C/MBR 8-97611-039-0 02 1 1412-
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1412-
251 SUPPORT; PINTLE HOOK 8-97618-611-0 01 1 1412-1501
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> 		8-97618-611-0 01 1 1502-
251 SUPPORT; PINTLE HOOK 8-97618-612-0 01 1 1412-1501
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> 		8-97618-612-0 01 1 1502-
252 STIFFENER; PINTLE HOOK 8-97618-613-0 01 1 1412-1501
252 STIFFENER; PINTLE HOOK
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> 		8-97618-613-0 01 1 1502-
260 BOLT; SUB FRAME
(B) M14X35 		0-20951-435-0 24 1 1412-1501
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> (B) M14X35 		0-20951-435-0 24 1 1502-
260 BOLT; SUB FRAME
(A) M12X35 FLANGE 		0-28051-235-0 08 1 1412-1501
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> (A) M12X35 FLANGE 		0-28051-235-0 08 1 1502-
261 NUT; SUB FRAME
M14 		0-91110-514-0 16 1 1412-1501
261 NUT; SUB FRAME
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> M14 		0-91110-514-0 16 1 1502-
262 WASHER; LK,SUB FRAME
ID=14.2 		0-91510-814-0 24 1 1412-1501
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> ID=14.2 		0-91510-814-0 24 1 1502-
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 1412-

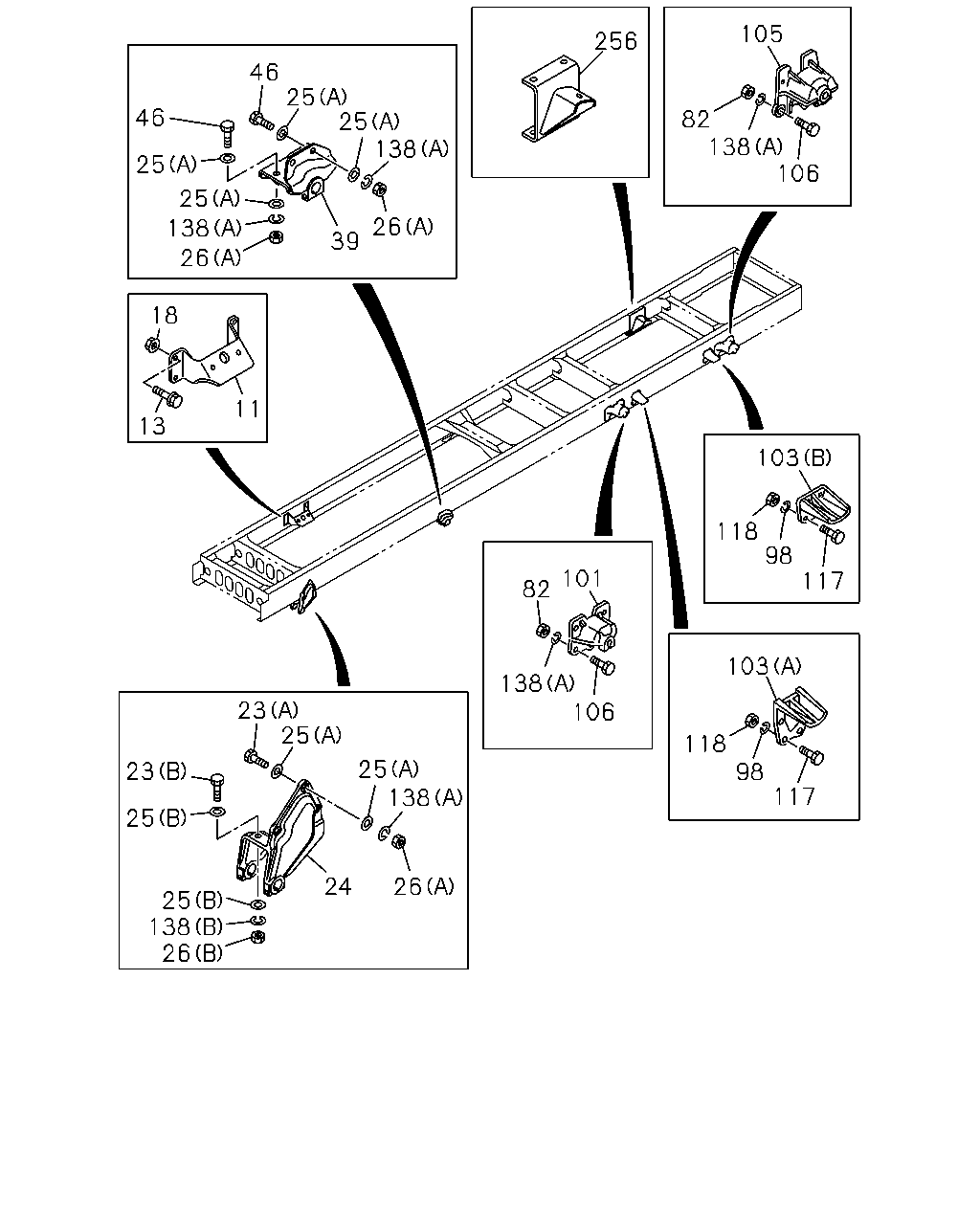

çizim 459332
26 138 25 24 25 23 23 25 26 138 25 117 98 118 103 106 138 101 82 117 98 118 103 11 13 18 26 39 138 25 25 46 46 25 25 138 26 106 138 82 105 256
BalonParca AdiParca NoAdetTipApplied Date
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1412-
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1412-
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1412-
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1412-
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1412-
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 1412-
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 1412-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1412-
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1412-
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1412-
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1412-
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 1412-
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 1412-
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1412-
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1412-
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1412-
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 1412-
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 1412-
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 1412-
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 1412-
106 BOLT; BRKT
M14X50 		0-20851-450-0 20 1 1412-
117 BOLT; STOPPER
M14X50 		0-20851-450-0 16 1 1412-
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1412-
138 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-814-0 34 1 1412-
138 WASHER; LK,BRKT
(B) ID=16.2 		0-91510-816-0 04 1 1412-
256 BRACKET; S/ABS 8-98050-122-0 01 1 1412-
256 BRACKET; S/ABS 8-98050-123-0 01 1 1412-
çizim 459789
70 201 86 139
BalonParca AdiParca NoAdetTipApplied Date
70 GUSSET; TRUNNION,UPR 8-97632-933-0 02 1 1412-
86 MEMBER; CROSS,RR SUSP RR
(A) 		8-97610-858-5 01 1 1412-
86 MEMBER; CROSS,RR SUSP RR
(B) 		8-97636-043-0 01 1 1412-
139 MEMBER; CROSS,6TH 8-97611-528-1 01 1 1412-
201 GUSSET; C/MBR 8-97632-934-0 01 1 1412-
201 GUSSET; C/MBR 8-97635-101-0 01 1 1412-
