4-50 — FRONT SUSPENSION (#153580) — 38 parça
çizim 458968
344 82
BalonParca AdiParca NoAdetTipApplied Date
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 1412-
344 PIN; FRT S/ABS 9-43219-034-0 01 1 1412-

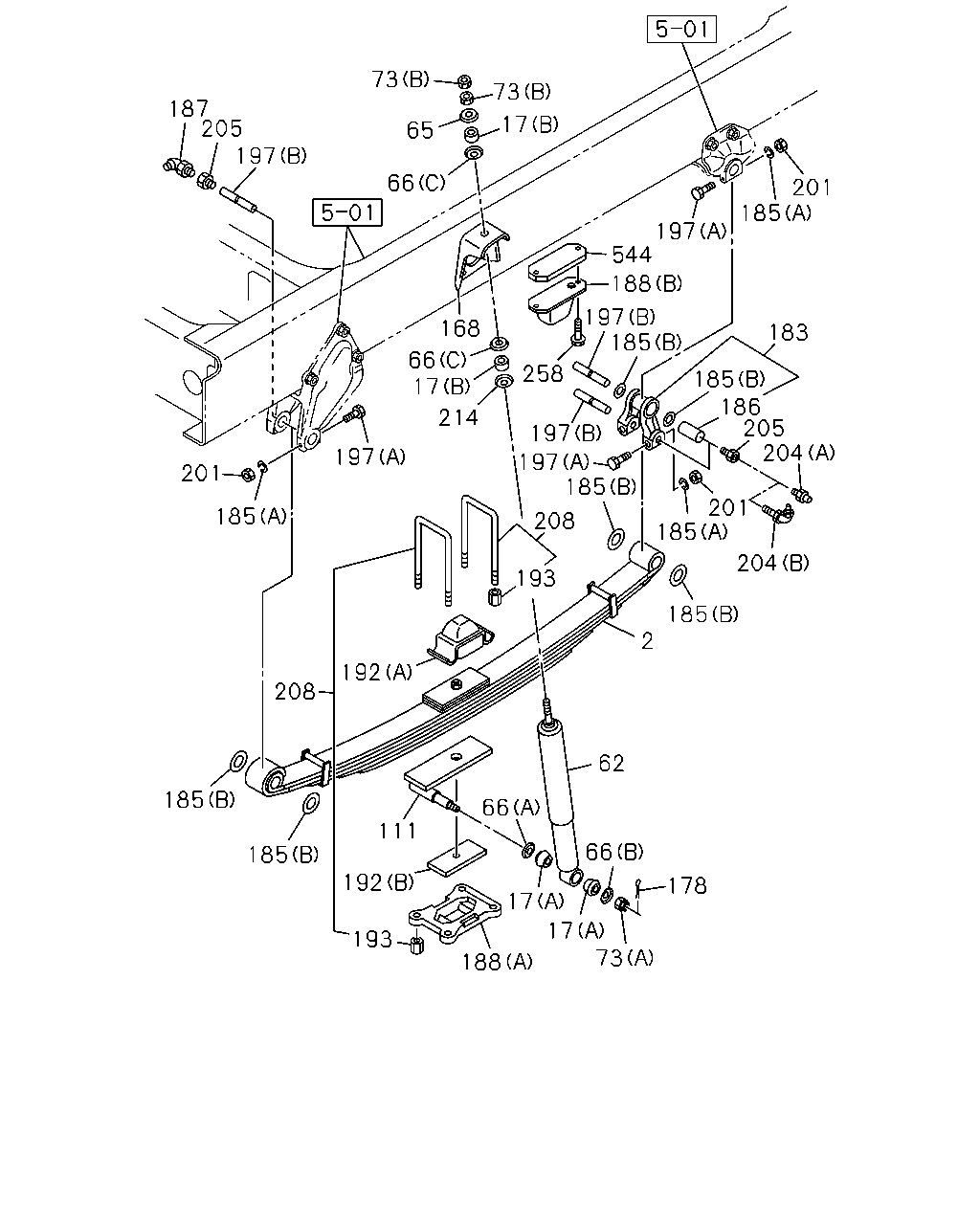

çizim 459002
73 73 17 65 187 205 197 66 201 185 197 544 188 197 185 183 185 186 205 204 201 168 66 17 214 258 197 197 185 208 193 185 185 2 204 197 201 185 192 208 185 185 111 192 193 188 62 66 66 178 17 17 73
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98135-956-0 02 1 1412-
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 1412-
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 1412-
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1412-
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 1412-1412
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 02 1 1412-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1412-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 		1-51631-020-0 02 1 1412-
66 WASHER; LK,S/ABS SETTING
(C) ID=16.8 		1-51631-022-0 04 1 1412-
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1412-
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		8-98049-689-0 02 1 1412-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 1412-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 1412-
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 1412-
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 1412-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1412-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1412-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1412-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1412-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1412-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51173-038-0 02 1 1412-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-009-2 01 1 1412-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-008-2 01 1 1412-
192 PIECE; DIST
(A) 		1-51172-106-0 02 1 1412-
192 PIECE; DIST
(B) 		9-51377-038-0 01 1 1412-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1412-
197 PIN; FRT SPR,FRT
(A) M12X80 		0-10856-280-0 12 1 1412-
197 PIN; FRT SPR,FRT
(B) 		1-51161-031-0 06 1 1412-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1412-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1412-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1412-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1412-
208 U-BOLT SET; FRT SPRING
L=400 		1-87870-503-0 04 1 1412-
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 1412-
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 1412-
544 BRACKET; RUBBER 1-51174-017-1 02 1 1412-
