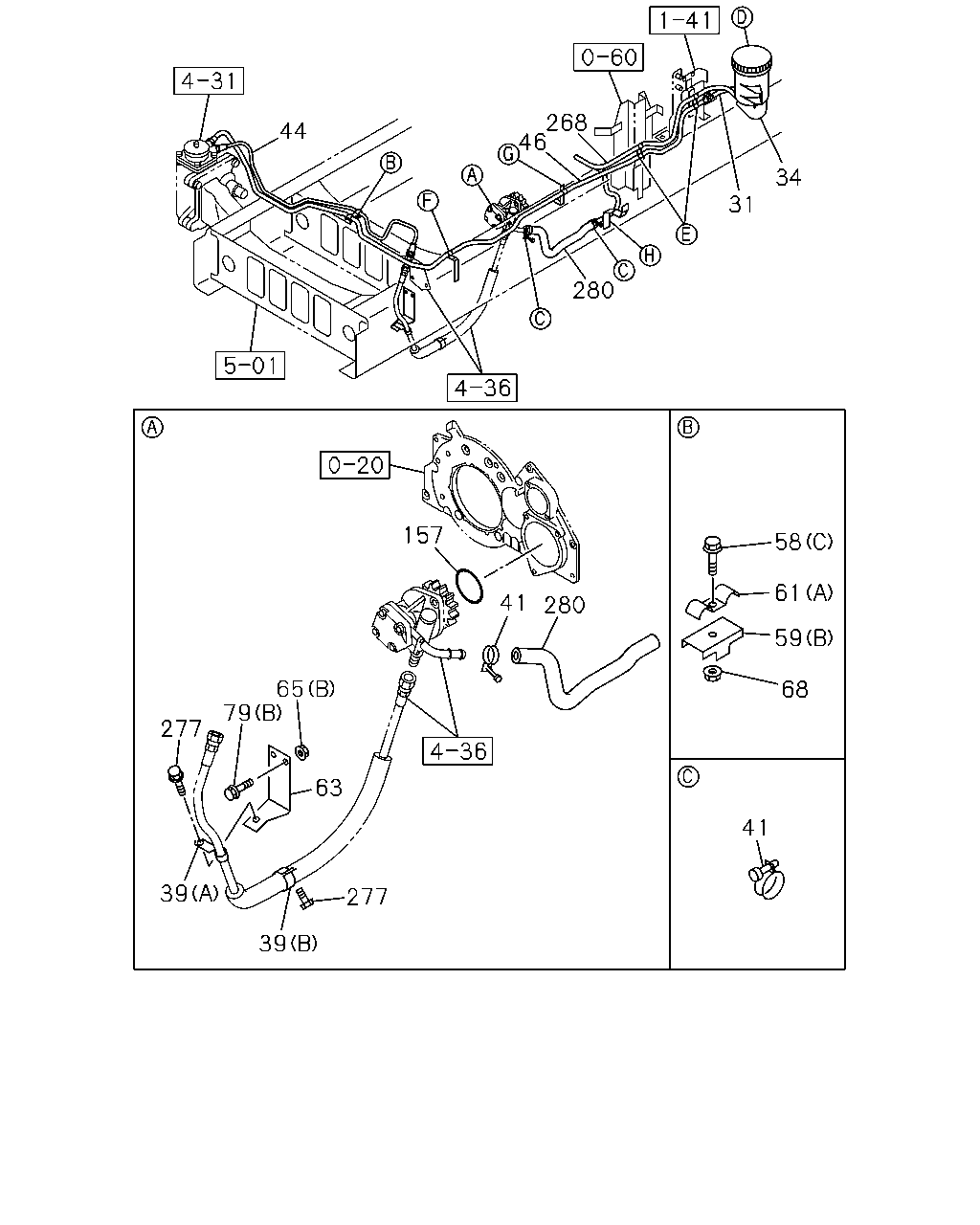

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#153576) — 59 parça

44 46 268 34 31 280 58 61 59 68 41 280 41 157 65 79 277 63 39 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1412-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1412-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1412-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1412-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1412-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-97623-288-0	01	1	1412-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2775	8-98111-272-0	01	1	1412-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28050-820-0	02	1	1412-
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1412-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1412-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1412-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1412-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1412-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1412-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1412-
63	BRACKET; CLIP,P/S	8-98215-731-0	01	1	1412-
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1412-
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1412-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1412-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1412-
79	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1412-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-048-0	01	1	1412-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1412-
280	HOSE; P/S OIL PUMP,INL	8-98131-414-0	01	1	1412-

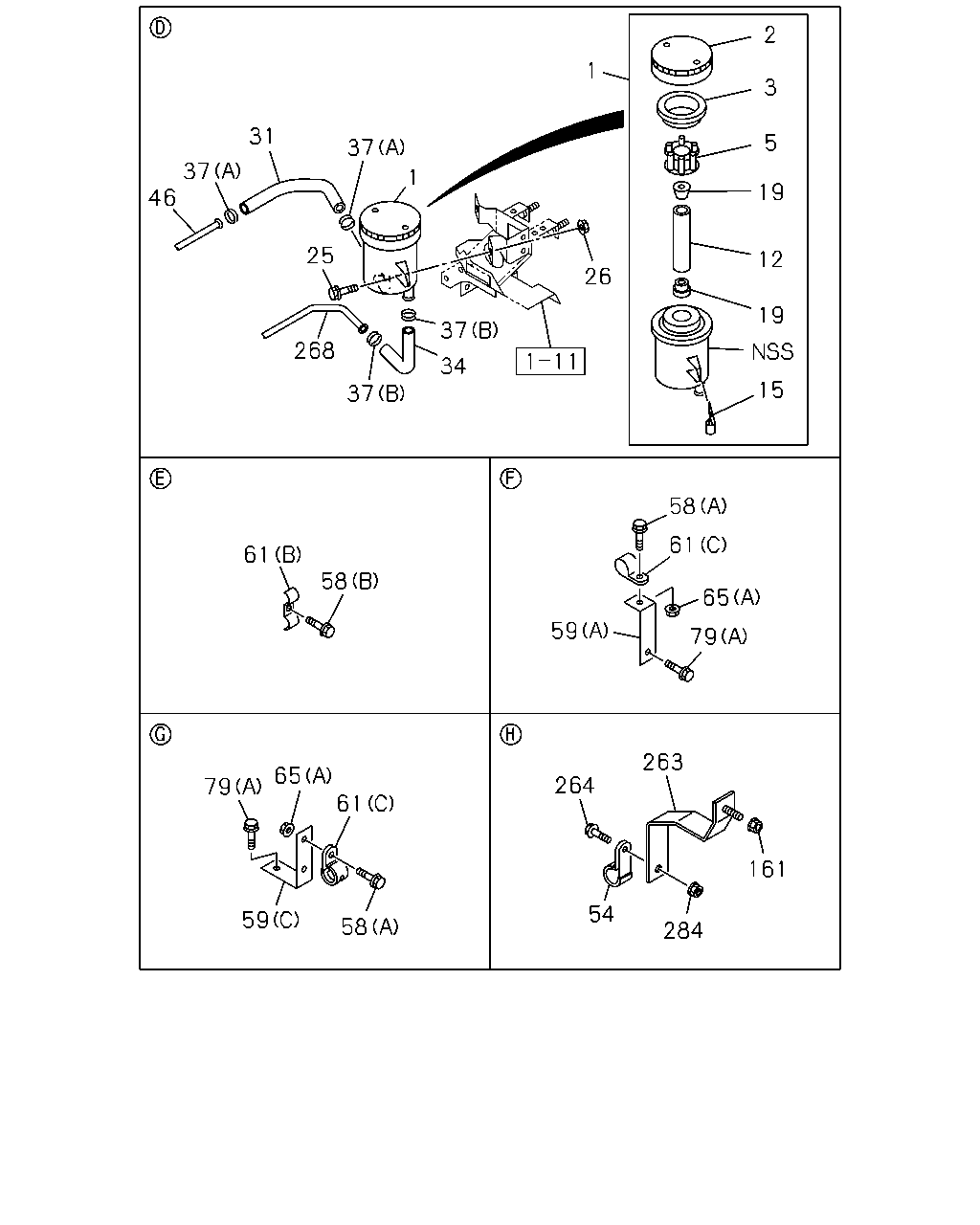

1 2 3 5 19 12 19 15 26 37 34 37 268 25 1 37 31 37 46 61 58 59 58 61 65 79 65 61 58 59 79 264 54 284 161 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1412-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1412-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1412-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1412-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1412-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1412-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1412-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1412-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1412-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1412-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1412-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1412-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1412-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2775	8-98111-272-0	01	1	1412-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1412-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28050-820-0	02	1	1412-
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1412-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1412-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1412-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1412-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1412-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1412-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1412-
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1412-
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1412-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1412-
79	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1412-
263	BRACKET; P/S PIPE	8-98131-412-0	01	1	1412-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1412-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-048-0	01	1	1412-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
