Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#153572) — 353 parça

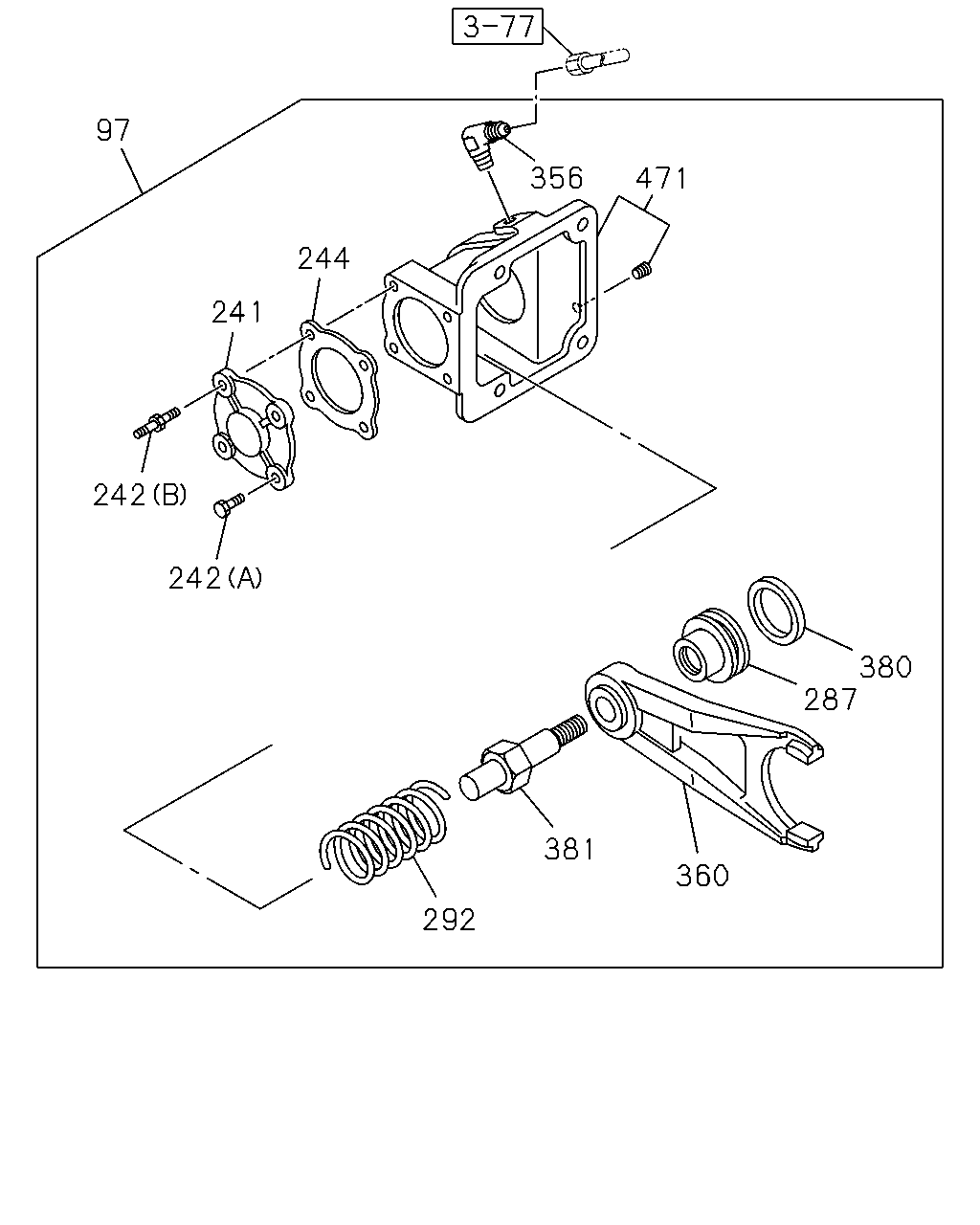

97 241 244 356 471 242 242 292 381 360 287 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	SHIFT UNIT; DIFF LOCK	1-48260-096-0	01	1	1412-
241	COVER; SHIFT HSG	1-48266-011-0	01	1	1412-
242	BOLT; COVER (A) M8X20	0-20800-820-0	02	1	1412-
242	BOLT; COVER (B) M8X14.5,M8X20 L=40	8-98025-349-0	02	1	1412-
244	GASKET; COVER	1-48269-062-0	01	1	1412-
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	1412-
292	SPRING; PISTON	1-48265-007-0	01	1	1412-
356	NIPPLE; SHIFT UNIT DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1412-
360	FORK; SHIFT	1-48269-065-0	01	1	1412-
380	GASKET; PISTON	1-48269-107-0	01	1	1412-
381	ROD; SHIFT	1-48263-005-0	01	1	1412-
471	CYLINDER ASM; SHIFT UNIT	1-48269-261-0	01	1	1412-

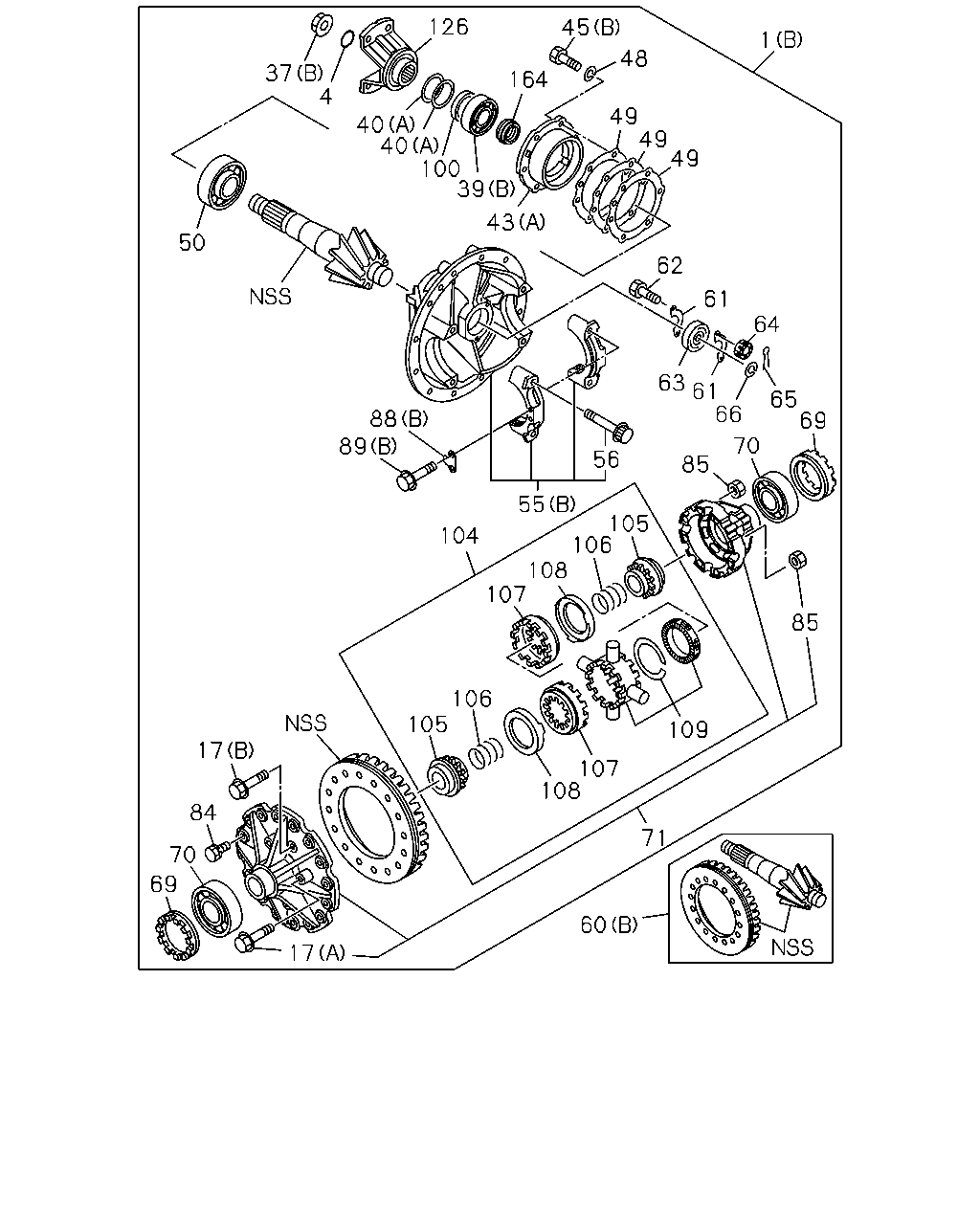

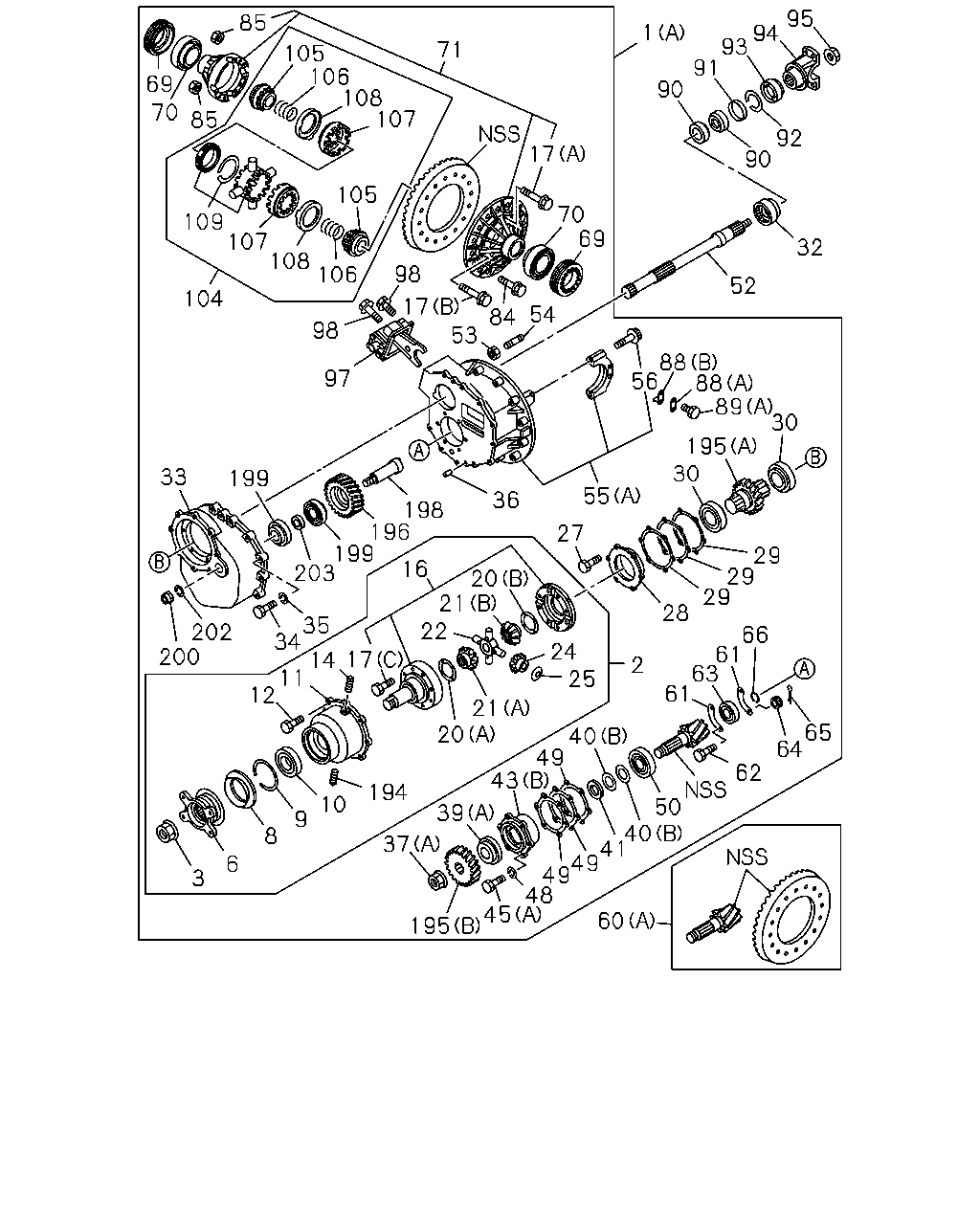

85 69 70 85 105 106 108 107 71 105 106 108 107 109 104 98 97 98 17 53 84 54 69 70 17 199 33 200 202 34 35 203 199 196 198 36 20 16 21 22 17 14 11 12 3 6 8 9 10 194 37 39 43 49 40 20 21 25 24 2 195 45 48 49 49 41 40 50 62 64 65 61 63 61 66 28 29 29 29 27 55 30 195 30 89 88 88 56 52 32 90 92 95 94 93 91 90 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR (A) 39/6	1-41003-587-0	01	1	1412-
1	DRIVE ASM; FINAL,RR (B) 39/6	1-41003-588-0	01	1	1412-
2	DIFF ASM; INTER,FINAL	1-41320-038-0	01	1	1412-
3	NUT; INPUT SHAFT M42	1-09449-061-0	01	1	1412-
6	FLANGE ASM; INPUT SHAFT	1-37245-209-1	01	1	1412-
8	SEAL; OIL,INPUT SHAFT	1-09625-119-0	01	1	1412-
9	RING; SNAP,BRG,INPUT	1-09587-023-0	01	1	1412-
10	BEARING; INPUT SHAFT NSK	1-09800-215-0	01	1	1412-
10	BEARING; INPUT SHAFT JTEKT	1-09800-216-0	01	1	1412-
11	COVER; INTER AXLE DIFF	1-41323-022-0	01	1	1412-
12	BOLT; COVER TO CASE M12X34	1-09044-058-0	08	1	1412-
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	1412-
16	SHAFT ASM; INPUT	1-41340-058-0	01	1	1412-
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1412-
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1412-
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1412-
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1412-
17	BOLT; DIFF CAGE SETTING (C) M12X75	1-09070-058-0	08	1	1412-
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-098-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-099-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-100-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-101-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-102-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-103-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-104-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-105-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-106-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-107-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-108-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-109-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-110-0	AR	1	1412-
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-111-0	AR	1	1412-
21	GEAR; SIDE,DIFF (A) Z=20	1-41561-033-0	01	1	1412-
21	GEAR; SIDE,DIFF (B) Z=20	9-41561-094-1	01	1	1412-
22	SPIDER; DIFF PINION	1-41521-033-0	01	1	1412-
24	GEAR; PINION,DIFF Z=10	1-41551-015-2	04	1	1412-
25	WASHER; THRUST,PINION	1-41552-015-0	04	1	1412-
27	BOLT; BRG RET M10X25 FLANGE	0-28751-025-0	06	1	1412-
28	RETAINER; BRG,DRIVE GEAR	1-41353-009-0	01	1	1412-
29	SHIM; BRG RET T=1.00	1-41355-013-0	AR	1	1412-
29	SHIM; BRG RET T=0.50	1-41355-014-0	AR	1	1412-
29	SHIM; BRG RET T=0.20	1-41355-015-0	AR	1	1412-
29	SHIM; BRG RET T=0.15	1-41355-016-0	AR	1	1412-
30	BEARING; TAPER ROLLER JTEKT	1-09812-017-0	02	1	1412-
30	BEARING; TAPER ROLLER NSK	9-00093-164-0	02	1	1412-
32	SLEEVE; CLU,DIFF LK	9-41356-004-0	01	1	1412-
33	CASE; POWER DIVIDER	1-41321-019-0	01	1	1412-
34	BOLT; CASE TO CARRIER M12X35	0-23801-235-0	13	1	1412-
35	WASHER; CASE TO CARRIER ID=12.2	0-91510-512-0	13	1	1412-
36	PIN; STRAIGHT	9-08161-222-0	02	1	1412-
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1412-
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1412-
39	BEARING; FINAL PINION (A) NSK	1-09812-041-2	01	1	1412-
39	BEARING; FINAL PINION (A) JTEKT	1-09812-042-1	01	1	1412-
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1412-
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1412-
40	SHIM; FINAL PINION (A) T=1.60	1-41229-179-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.61	1-41229-180-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.62	1-41229-181-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.63	1-41229-182-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.64	1-41229-183-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.65	1-41229-184-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.66	1-41229-185-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.67	1-41229-186-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.68	1-41229-187-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.69	1-41229-188-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.70	1-41229-189-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.50	9-41229-324-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.51	9-41229-325-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.52	9-41229-326-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.53	9-41229-327-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.54	9-41229-328-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.55	9-41229-329-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.56	9-41229-330-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.57	9-41229-331-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.58	9-41229-332-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.59	9-41229-333-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.60	9-41229-334-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=8.2	1-41229-088-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=8.4	1-41229-089-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=6.8	9-41229-318-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=7.0	9-41229-319-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=7.2	9-41229-320-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=7.4	9-41229-321-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=7.6	9-41229-322-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=7.8	9-41229-323-0	AR	1	1412-
41	SPACER; FINAL DRIVE PINION BRG T=8.0	9-41229-389-0	AR	1	1412-
43	CAGE; FINAL PINION (A)	1-41151-027-0	01	1	1412-
43	CAGE; FINAL PINION (B)	1-41151-029-0	01	1	1412-
45	BOLT; FINAL PINION CAGE (A) M12X35	0-23801-235-0	06	1	1412-
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1412-
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	1412-
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	1412-
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1412-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1412-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1412-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1412-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1412-
52	SHAFT; OUTPUT	1-41343-004-3	01	1	1412-
53	NUT; FINAL DRIVE SET M12	0-91110-512-0	01	1	1412-
54	STUD; FINAL DRIVE SET M12X32 L=54	1-09300-096-0	01	1	1412-
55	CARRIER; DIFF (B)	1-41110-129-0	01	1	1412-
55	CARRIER; DIFF (A)	1-41310-034-1	01	1	1412-
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1412-
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1412-
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1412-
60	GEAR SET; FINAL DRIVE,RR (A) 39/6	1-41210-764-0	01	1	1412-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1412-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1412-
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1412-
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1412-
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1412-
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1412-
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1412-
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1412-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1412-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1412-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1412-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1412-
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1412-
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1412-
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1412-
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1412-
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1412-
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1412-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1412-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1412-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1412-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1412-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1412-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1412-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1412-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1412-
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD	1-41510-112-0	01	1	1412-
71	CAGE ASM; DIFF,FINAL DRIVE REARWARD	1-41510-343-0	01	1	1412-
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1412-
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1412-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1412-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1412-
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	1412-
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	1412-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1412-
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1412-
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1412-
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-016-0	02	1	1412-
90	BEARING; OUTPUT SHAFT NSK	9-00093-165-1	02	1	1412-
91	SHIM; BRG,OUTPUT SHAFT T=10.2	1-41349-003-0	AR	1	1412-
91	SHIM; BRG,OUTPUT SHAFT T=10.3	1-41349-004-0	AR	1	1412-
91	SHIM; BRG,OUTPUT SHAFT T=10.4	1-41349-005-0	AR	1	1412-
91	SHIM; BRG,OUTPUT SHAFT T=10.5	1-41349-006-0	AR	1	1412-
91	SHIM; BRG,OUTPUT SHAFT T=10.6	1-41349-007-0	AR	1	1412-
91	SHIM; BRG,OUTPUT SHAFT T=10.7	1-41349-008-0	AR	1	1412-
91	SHIM; BRG,OUTPUT SHAFT T=10.8	1-41349-009-0	AR	1	1412-
91	SHIM; BRG,OUTPUT SHAFT T=10.9	1-41349-010-0	AR	1	1412-
92	RING; SNAP,BRG,OUTPUT SHAFT	1-09587-022-0	01	1	1412-
93	SEAL; OIL,OUTPUT SHAFT	1-09625-120-0	01	1	1412-
94	FLANGE ASM; OUTPUT SHAFT	1-37245-046-3	01	1	1412-
95	NUT; OUTPUT SHAFT M30 FLANGE	1-09449-066-1	01	1	1412-
97	SHIFT UNIT; DIFF LOCK	1-48260-096-0	01	1	1412-
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	1412-
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	1412-
104	DIFF ASM; NO SPIN	1-41530-053-0	01	1	1412-
104	DIFF ASM; NO SPIN	1-41530-053-0	01	1	1412-
105	GEAR; SIDE	1-41539-043-0	02	1	1412-
105	GEAR; SIDE	1-41539-043-0	02	1	1412-
106	SPRING; NO SPIN DIFF	1-41539-006-0	02	1	1412-
106	SPRING; NO SPIN DIFF	1-41539-006-0	02	1	1412-
107	CLUTCH; DRIVEN	1-41539-003-0	02	1	1412-
107	CLUTCH; DRIVEN	1-41539-003-0	02	1	1412-
108	RING; HOLD OUT	1-41539-004-1	02	1	1412-
108	RING; HOLD OUT	1-41539-004-1	02	1	1412-
109	SPIDER; DIFF	1-41539-014-0	01	1	1412-
109	SPIDER; DIFF	1-41539-014-0	01	1	1412-
194	PLUG PT1/2	9-09204-521-0	01	1	1412-
195	GEAR; DRIVEN (A) Z=23	1-41351-035-1	01	1	1412-
195	GEAR; DRIVEN (B) Z=18	1-41352-035-1	01	1	1412-
196	GEAR; IDLER	1-41358-002-1	01	1	1412-
198	SHAFT; IDLER	1-41344-004-1	01	1	1412-
199	BEARING; IDLER SHAFT NSK	1-09812-051-0	02	1	1412-
199	BEARING; IDLER SHAFT JTEKT	1-09812-052-1	02	1	1412-
200	NUT; LK,IDLER SHAFT M30 FLANGE	1-09449-066-1	01	1	1412-
202	GASKET; IDLER SHAFT ID=39.7	1-09623-389-0	01	1	1412-
203	SPACER; IDLER BRG T=14.00	1-41229-037-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.10	1-41229-038-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.20	1-41229-039-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.30	1-41229-040-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.40	1-41229-041-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.50	1-41229-042-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.60	1-41229-043-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.70	1-41229-044-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.80	1-41229-045-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.90	1-41229-046-1	AR	1	1412-
203	SPACER; IDLER BRG T=15.00	1-41229-047-1	AR	1	1412-
203	SPACER; IDLER BRG T=15.10	1-41229-048-1	AR	1	1412-
203	SPACER; IDLER BRG T=15.20	1-41229-049-1	AR	1	1412-
203	SPACER; IDLER BRG T=15.30	1-41229-050-1	AR	1	1412-
203	SPACER; IDLER BRG T=15.40	1-41229-051-1	AR	1	1412-
203	SPACER; IDLER BRG T=15.50	1-41229-052-1	AR	1	1412-
203	SPACER; IDLER BRG T=14.05	1-41229-345-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.15	1-41229-346-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.25	1-41229-347-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.35	1-41229-348-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.45	1-41229-349-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.55	1-41229-350-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.65	1-41229-351-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.75	1-41229-352-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.85	1-41229-353-0	AR	1	1412-
203	SPACER; IDLER BRG T=14.95	1-41229-354-0	AR	1	1412-
203	SPACER; IDLER BRG T=15.05	1-41229-355-0	AR	1	1412-
203	SPACER; IDLER BRG T=15.15	1-41229-356-0	AR	1	1412-
203	SPACER; IDLER BRG T=15.25	1-41229-357-0	AR	1	1412-
203	SPACER; IDLER BRG T=15.35	1-41229-358-0	AR	1	1412-
203	SPACER; IDLER BRG T=15.45	1-41229-359-0	AR	1	1412-

37 40 4 126 40 50 100 43 164 45 39 49 48 1 49 49 62 63 61 61 64 65 66 88 89 104 55 56 85 70 69 85 105 106 108 107 106 105 17 84 70 69 17 60 71 108 109 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR (A) 39/6	1-41003-587-0	01	1	1412-
1	DRIVE ASM; FINAL,RR (B) 39/6	1-41003-588-0	01	1	1412-
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1412-
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1412-
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1412-
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1412-
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1412-
17	BOLT; DIFF CAGE SETTING (C) M12X75	1-09070-058-0	08	1	1412-
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1412-
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1412-
39	BEARING; FINAL PINION (A) NSK	1-09812-041-2	01	1	1412-
39	BEARING; FINAL PINION (A) JTEKT	1-09812-042-1	01	1	1412-
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1412-
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1412-
40	SHIM; FINAL PINION (A) T=1.60	1-41229-179-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.61	1-41229-180-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.62	1-41229-181-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.63	1-41229-182-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.64	1-41229-183-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.65	1-41229-184-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.66	1-41229-185-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.67	1-41229-186-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.68	1-41229-187-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.69	1-41229-188-0	AR	1	1412-
40	SHIM; FINAL PINION (A) T=1.70	1-41229-189-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.50	9-41229-324-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.51	9-41229-325-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.52	9-41229-326-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.53	9-41229-327-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.54	9-41229-328-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.55	9-41229-329-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.56	9-41229-330-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.57	9-41229-331-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.58	9-41229-332-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.59	9-41229-333-0	AR	1	1412-
40	SHIM; FINAL PINION (B) T=3.60	9-41229-334-0	AR	1	1412-
43	CAGE; FINAL PINION (A)	1-41151-027-0	01	1	1412-
43	CAGE; FINAL PINION (B)	1-41151-029-0	01	1	1412-
45	BOLT; FINAL PINION CAGE (A) M12X35	0-23801-235-0	06	1	1412-
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1412-
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	1412-
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	1412-
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1412-
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1412-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1412-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1412-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1412-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1412-
55	CARRIER; DIFF (B)	1-41110-129-0	01	1	1412-
55	CARRIER; DIFF (A)	1-41310-034-1	01	1	1412-
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1412-
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1412-
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1412-
60	GEAR SET; FINAL DRIVE,RR (A) 39/6	1-41210-764-0	01	1	1412-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1412-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1412-
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1412-
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1412-
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1412-
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1412-
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1412-
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1412-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1412-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1412-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1412-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1412-
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1412-
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1412-
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1412-
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1412-
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1412-
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1412-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1412-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1412-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1412-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1412-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1412-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1412-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1412-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1412-
71	CAGE ASM; DIFF,FINAL DRIVE FORWARD	1-41510-112-0	01	1	1412-
71	CAGE ASM; DIFF,FINAL DRIVE REARWARD	1-41510-343-0	01	1	1412-
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1412-
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1412-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1412-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1412-
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	1412-
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	1412-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1412-
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1412-
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1412-
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1412-
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1412-
104	DIFF ASM; NO SPIN	1-41530-053-0	01	1	1412-
104	DIFF ASM; NO SPIN	1-41530-053-0	01	1	1412-
105	GEAR; SIDE	1-41539-043-0	02	1	1412-
105	GEAR; SIDE	1-41539-043-0	02	1	1412-
106	SPRING; NO SPIN DIFF	1-41539-006-0	02	1	1412-
106	SPRING; NO SPIN DIFF	1-41539-006-0	02	1	1412-
107	CLUTCH; DRIVEN	1-41539-003-0	02	1	1412-
107	CLUTCH; DRIVEN	1-41539-003-0	02	1	1412-
108	RING; HOLD OUT	1-41539-004-1	02	1	1412-
108	RING; HOLD OUT	1-41539-004-1	02	1	1412-
109	SPIDER; DIFF	1-41539-014-0	01	1	1412-
109	SPIDER; DIFF	1-41539-014-0	01	1	1412-
126	COUPLING; DRIVING PINION	1-37245-078-7	01	1	1412-
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1412-
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1412-
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1412-
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1412-
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1412-
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1412-
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1412-
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1412-
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
