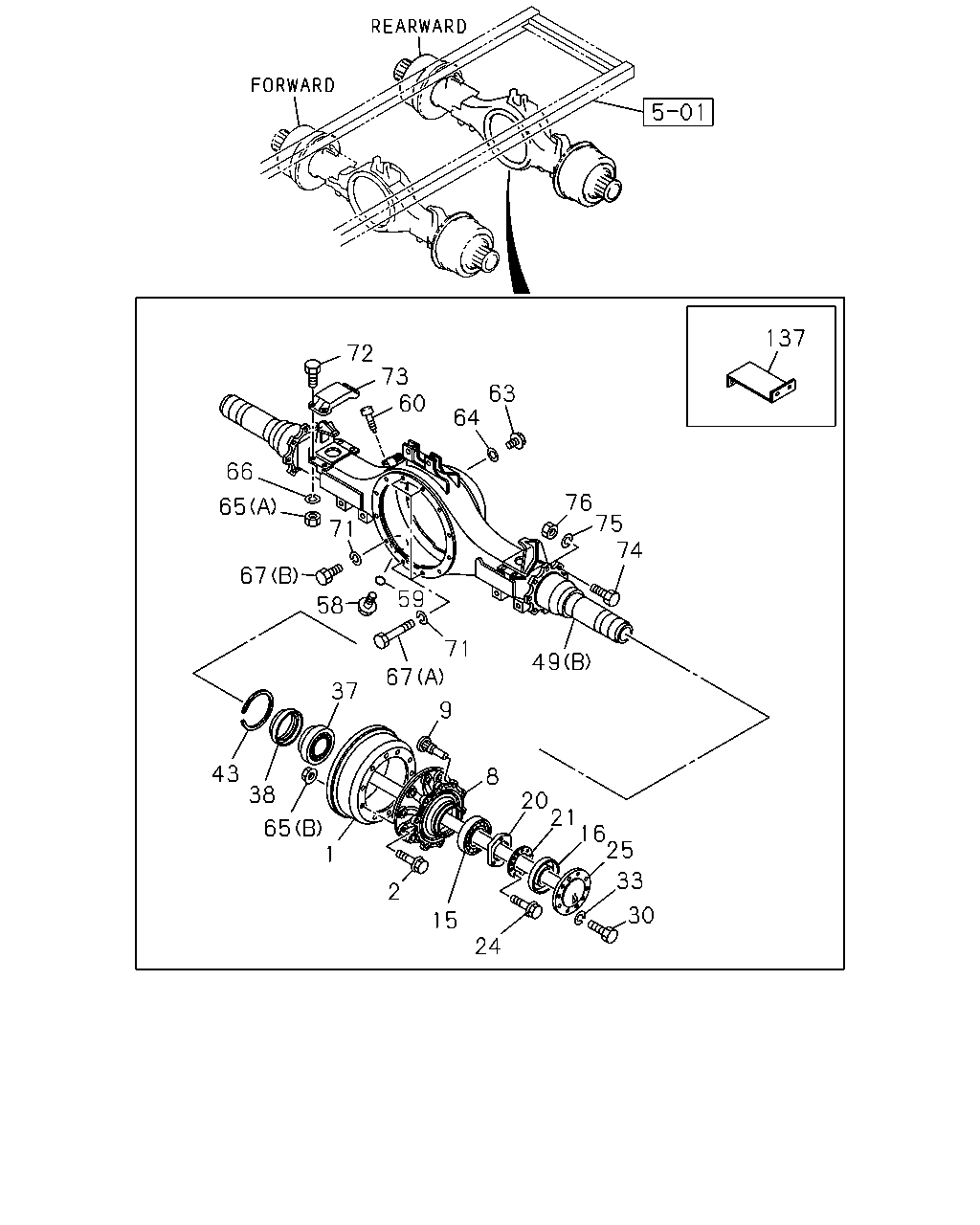

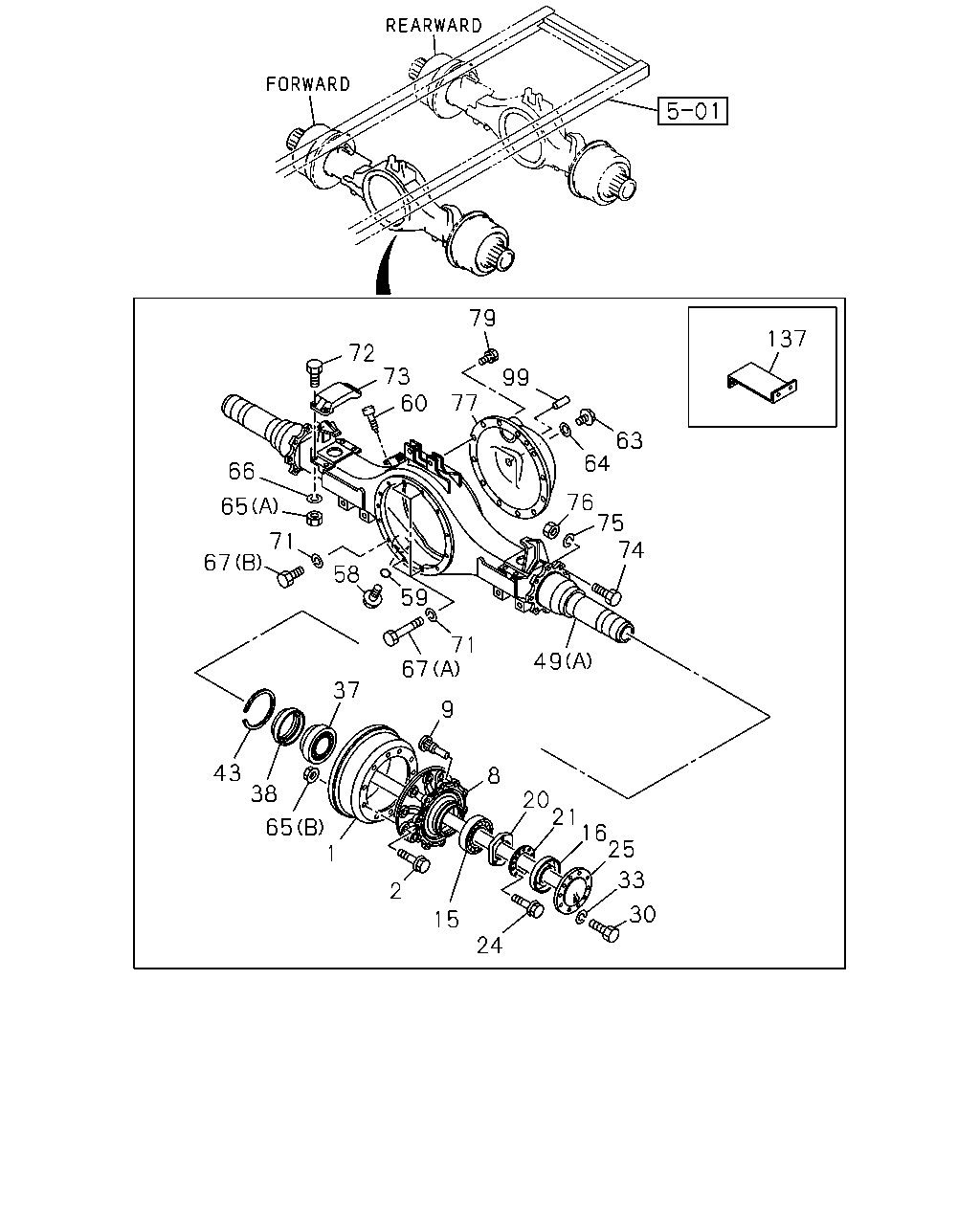

1 |
DRUM; BRK,RR
|
1-42315-380-0 |
02 |
1 |
1412- |
| |
1 |
DRUM; BRK,RR
|
1-42315-380-0 |
02 |
1 |
1412- |
| |
2 |
BOLT; BRK DRUM
M22X54
|
1-09000-275-1 |
20 |
1 |
1412- |
| |
2 |
BOLT; BRK DRUM
M22X54
|
1-09000-275-1 |
20 |
1 |
1412- |
| |
8 |
HUB; RR AXLE
|
8-98136-844-0 |
02 |
1 |
1412- |
| |
8 |
HUB; RR AXLE
|
8-98136-844-0 |
02 |
1 |
1412- |
| |
9 |
PIN; WHEEL,RR AXLE
M22X67 RH THREAD
|
1-42337-097-1 |
20 |
1 |
1412- |
| |
9 |
PIN; WHEEL,RR AXLE
M22X67 RH THREAD
|
1-42337-097-1 |
20 |
1 |
1412- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
1-09812-153-0 |
02 |
1 |
1412- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
1-09812-153-0 |
02 |
1 |
1412- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-154-0 |
02 |
1 |
1412- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-154-0 |
02 |
1 |
1412- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
9-09924-468-0 |
02 |
1 |
1412- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
9-09924-468-0 |
02 |
1 |
1412- |
| |
20 |
NUT; BRG,RR HUB
M74.6
|
9-09843-064-2 |
02 |
1 |
1412- |
| |
20 |
NUT; BRG,RR HUB
M74.6
|
9-09843-064-2 |
02 |
1 |
1412- |
| |
21 |
WASHER; LK,BRG NUT
ID=74.6
|
1-09533-008-0 |
02 |
1 |
1412- |
| |
21 |
WASHER; LK,BRG NUT
ID=74.6
|
1-09533-008-0 |
02 |
1 |
1412- |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
1412- |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
1412- |
| |
25 |
SHAFT; AXLE,RR
L=1049
|
8-98139-716-0 |
01 |
1 |
1412- |
| |
25 |
SHAFT; AXLE,RR
L=1049
|
8-98139-716-0 |
01 |
1 |
1412- |
| |
25 |
SHAFT; AXLE,RR
L=1137
|
8-98139-717-0 |
01 |
1 |
1412- |
| |
25 |
SHAFT; AXLE,RR
L=1137
|
8-98139-717-0 |
01 |
1 |
1412- |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
1412- |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
1412- |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
0-91510-814-0 |
20 |
1 |
1412- |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
0-91510-814-0 |
20 |
1 |
1412- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
1-09812-150-0 |
02 |
1 |
1412- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
1-09812-150-0 |
02 |
1 |
1412- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-151-0 |
02 |
1 |
1412- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-151-0 |
02 |
1 |
1412- |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
9-09924-415-0 |
02 |
1 |
1412- |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
9-09924-415-0 |
02 |
1 |
1412- |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=150
|
9-09950-147-0 |
02 |
1 |
1412- |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=150
|
9-09950-147-0 |
02 |
1 |
1412- |
| |
49 |
CASE; RR AXLE
(A)
|
8-98258-569-0 |
01 |
1 |
1412- |
| |
49 |
CASE; RR AXLE
(B)
|
8-98258-570-0 |
01 |
1 |
1412- |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
1412- |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
1412- |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1412- |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1412- |
| |
60 |
BREATHER; RR AXLE CASE
|
9-36122-015-1 |
01 |
1 |
1412- |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
1412- |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
1412- |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1412- |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1412- |
| |
65 |
NUT
(A)
M14
|
0-91110-514-0 |
08 |
1 |
1412- |
| |
65 |
NUT
(A)
M14
|
0-91110-514-0 |
08 |
1 |
1412- |
| |
65 |
NUT
(B)
M22 FLANGE
|
1-09440-065-0 |
20 |
1 |
1412- |
| |
65 |
NUT
(B)
M22 FLANGE
|
1-09440-065-0 |
20 |
1 |
1412- |
| |
66 |
WASHER; LK
ID=14.2
|
0-91510-814-0 |
08 |
1 |
1412- |
| |
66 |
WASHER; LK
ID=14.2
|
0-91510-814-0 |
08 |
1 |
1412- |
| |
67 |
BOLT; FINAL DRIVE SETTING
(B) FORWARD
M12X35
|
0-20951-235-0 |
07 |
1 |
1412- |
| |
67 |
BOLT; FINAL DRIVE SETTING
(B) REARWARD
M12X35
|
0-20951-235-0 |
08 |
1 |
1412- |
| |
67 |
BOLT; FINAL DRIVE SETTING
(A)
M12X55
|
9-91066-255-0 |
04 |
1 |
1412- |
| |
67 |
BOLT; FINAL DRIVE SETTING
(A)
M12X55
|
9-91066-255-0 |
04 |
1 |
1412- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1412- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1412- |
| |
72 |
BOLT; PAD FIX
M14X40
|
0-20951-440-0 |
08 |
1 |
1412- |
| |
72 |
BOLT; PAD FIX
M14X40
|
0-20951-440-0 |
08 |
1 |
1412- |
| |
73 |
PAD; RR SPR CONTACT
|
1-42124-112-0 |
02 |
1 |
1412- |
| |
73 |
PAD; RR SPR CONTACT
|
1-42124-112-0 |
02 |
1 |
1412- |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X50
|
1-09040-066-0 |
16 |
1 |
1412- |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X50
|
1-09040-066-0 |
16 |
1 |
1412- |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
16 |
1 |
1412- |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
16 |
1 |
1412- |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
0-91110-514-0 |
16 |
1 |
1412- |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
0-91110-514-0 |
16 |
1 |
1412- |
| |
77 |
COVER; RR AXLE CASE
|
1-42141-016-1 |
01 |
1 |
1412- |
| |
79 |
BOLT; COVER TO CASE
M12X35 W/LK WASHER
|
0-50541-235-0 |
12 |
1 |
1412- |
| |
99 |
PIN; STRAIGHT
|
9-08151-222-0 |
01 |
1 |
1412- |
| |
137 |
BRACKET; BREATHER,RR AXLE
|
1-42129-122-0 |
01 |
1 |
1412- |
