4-15 — FRONT FINAL DRIVE (#153570) — 91 parça

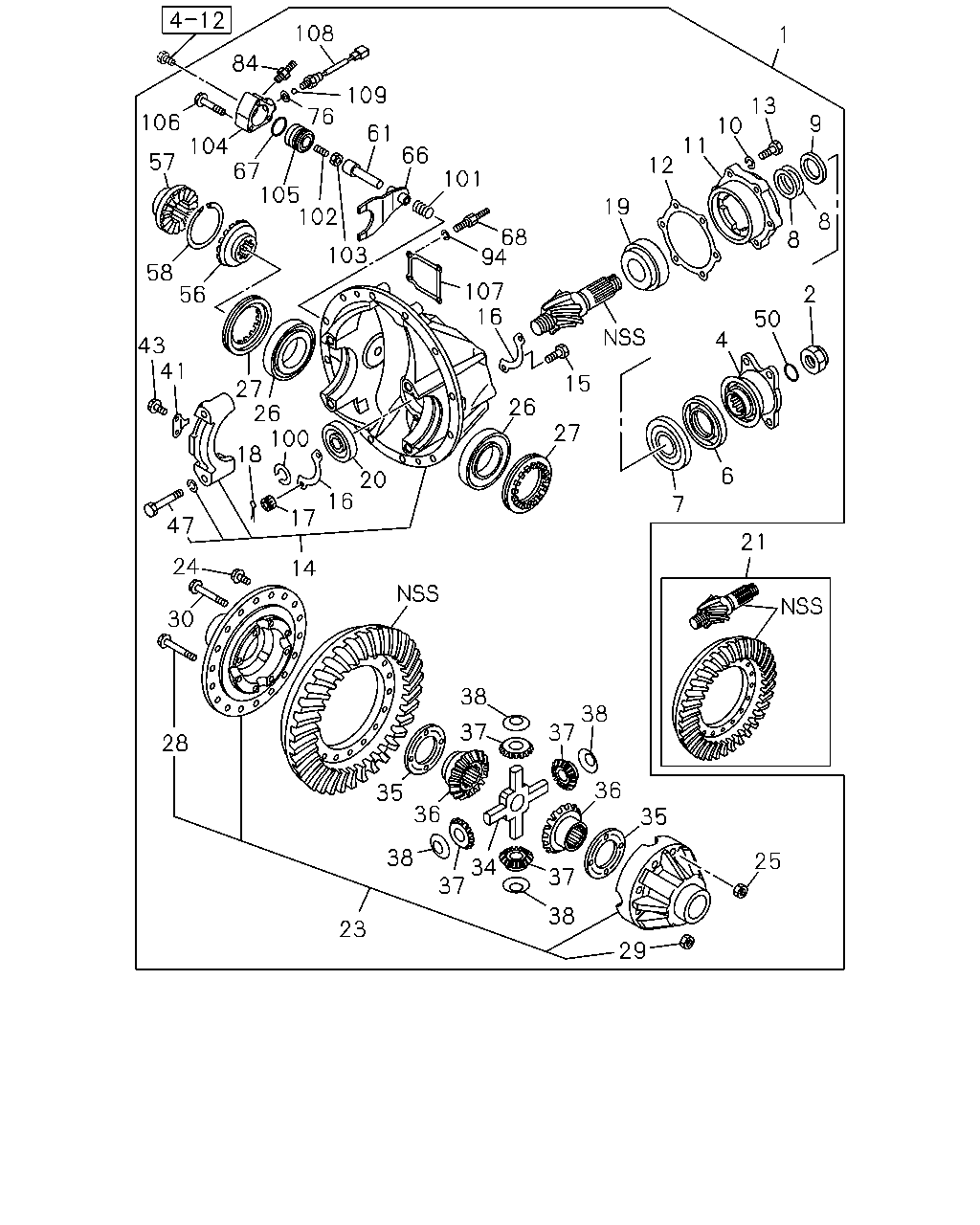

çizim 459460
1 13 9 10 8 8 2 50 4 11 12 19 15 27 6 7 21 25 29 35 36 38 37 38 37 35 36 38 23 37 34 37 38 28 30 24 14 17 18 16 20 100 26 27 41 43 56 58 57 106 104 67 105 102 103 84 108 109 76 61 66 101 68 94 107 16 26 47
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,FRT
39/6 		1-41003-384-0 01 1 1412-
2 NUT; FINAL DRIVE PINION
M36 FLANGE 		1-09449-083-0 01 1 1412-
4 COUPLING; FINAL DRIVE PINION 1-37245-415-0 01 1 1412-
6 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 1412-
6 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 1412-
7 BEARING; PINION,OUTER
JTEKT 		5-09812-062-1 01 1 1412-
7 BEARING; PINION,OUTER
NSK 		5-09812-063-0 01 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.60 		1-41229-179-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.61 		1-41229-180-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.62 		1-41229-181-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.63 		1-41229-182-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.64 		1-41229-183-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.65 		1-41229-184-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.66 		1-41229-185-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.67 		1-41229-186-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.68 		1-41229-187-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.69 		1-41229-188-0 AR 1 1412-
8 SHIM; PINION,FINAL DRIVE
T=1.70 		1-41229-189-0 AR 1 1412-
9 COLLAR; DIST,PINION
T=10.70 		1-36355-031-0 01 1 1412-
9 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 1412-
9 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 1412-
9 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 1412-
9 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 1412-
9 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 1412-
9 COLLAR; DIST,PINION
T=11.90 		1-36355-043-0 01 1 1412-
9 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 1412-
9 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 1412-
10 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-812-0 06 1 1412-
11 CAGE; FINAL PINION 1-41151-027-0 01 1 1412-
12 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 1412-
12 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 1412-
12 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 1412-
12 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 1412-
13 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 1412-
14 CARRIER ASM; FINAL DRIVE,FRT AXLE 1-41110-122-0 01 1 1412-
15 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 1412-
16 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1412-
17 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1412-
18 PIN; SPLIT,RET 0-81122-012-0 02 1 1412-
19 BEARING; PINION,INNER
NSK 		1-09812-041-2 01 1 1412-
19 BEARING; PINION,INNER
JTEKT 		1-09812-042-1 01 1 1412-
20 BEARING; FINAL DRIVE PINION
NSK 		1-09810-073-2 01 1 1412-
20 BEARING; FINAL DRIVE PINION
JTEKT 		1-09810-074-1 01 1 1412-
21 GEAR SET; FINAL DRIVE,FRT
39/6 		1-41210-394-2 01 1 1412-
23 CAGE ASM; DIFF,FINAL DRIVE 1-41510-335-0 01 1 1412-
24 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 1412-
25 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 04 1 1412-
26 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 1412-
26 BEARING; DIFF CAGE
NSK ID=85 OD=130 T=29 		1-09812-088-0 01 1 1412-
26 BEARING; DIFF CAGE
JTEKT ID=85 OD=130 T=29 		1-09812-089-0 01 1 1412-
26 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 1412-
27 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 1412-
27 NUT; ADJ,DIFF CAGE
M138 H=30 		1-41121-054-0 01 1 1412-
28 BOLT; DIFF CAGE SETTING
M14X112 FLANGE 		1-09070-057-1 04 1 1412-
29 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 04 1 1412-
30 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1412-
34 PIN; CROSS,DIFF PINION 1-41521-050-2 01 1 1412-
35 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 1412-
35 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 1412-
35 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 1412-
35 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 1412-
35 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 1412-
35 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 1412-
35 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 1412-
36 GEAR; SIDE,DIFF
Z=16 		1-41561-149-0 02 1 1412-
37 GEAR; PINION DIFF
Z=10 		1-41551-049-0 04 1 1412-
38 WASHER; THRUST,PINION GEAR
ID=29 OD=60 		1-41562-119-0 04 1 1412-
41 PLATE; LK,ADJ NUT
T=2.3 		9-41124-015-0 02 1 1412-
43 BOLT; LK PLATE
M8X12 FLANGE 		8-94479-696-1 04 1 1412-
47 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 1412-
50 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 1412-
56 CLUTCH; CLAW,FRT DIFF 1-41266-025-0 01 1 1412-
57 SLEEVE; CLU,FRT DIFF 1-41266-027-0 01 1 1412-
58 RING; SNAP,CLAW CLU 1-09588-186-0 01 1 1412-
61 ROD; SHIFT 1-41271-014-0 01 1 1412-
66 FORK; SHIFT 1-41271-015-0 01 1 1412-
67 GASKET; PISTON
ID=43.7 		9-09561-344-0 01 1 1412-
68 BOLT; COVER
M6X14,M8X17 L=42 		5-09309-006-1 04 1 1412-
76 GASKET; SWITCH
ID=14.2 		8-94462-114-0 01 1 1412-
84 CONNECTOR; HOSE
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1412-
94 WASHER; COVER
ID=8.2 		1-09985-177-0 04 1 1412-
100 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1412-
101 SPRING; RETUN,DIFF LK 1-09580-507-0 01 1 1412-
102 SCREW; SET,DIFF LK
M12X31 		1-09120-021-0 01 1 1412-
103 NUT
M12 		0-91111-512-0 01 1 1412-
104 CYLINDER; DIFF LK 1-41279-021-0 01 1 1412-
105 PISTON; CHAMBER,DIFF LK 1-41279-020-0 01 1 1412-
106 BOLT
M8X60 FLANGE 		0-28050-860-0 03 1 1412-
107 COVER; CARRIER,DIFF LK 1-41117-005-0 01 1 1412-
108 SWITCH; STROKE 1-82340-534-0 01 1 1412-
109 BALL 9-00097-010-0 01 1 1412-
