4-12 — FRONT DRIVE SHAFT (#153569) — 54 parça

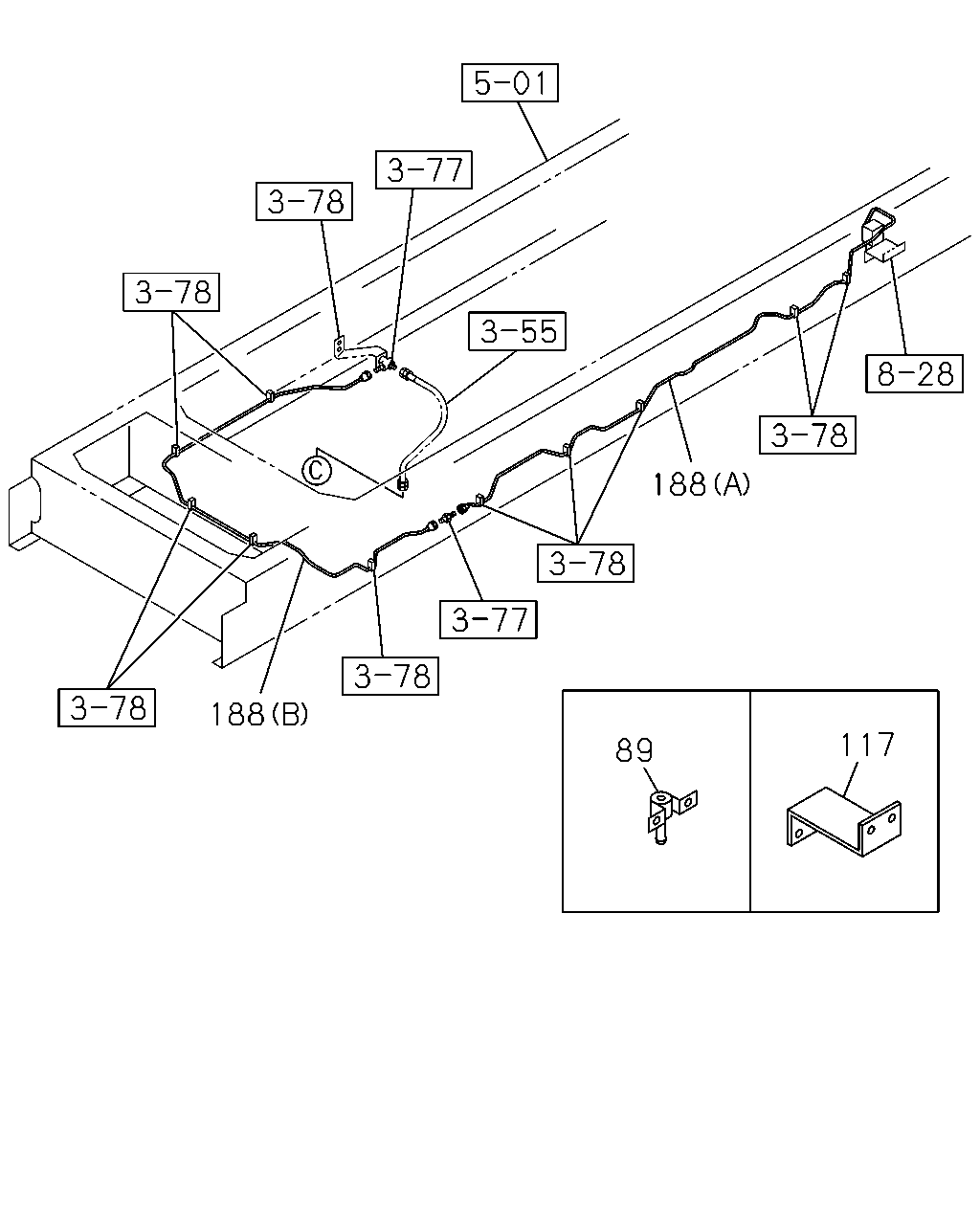

188 188 89 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	ADAPTER; AIR BREATHER	1-09669-066-0	01	1	1412-
117	BRACKET; ADAPTER,AIR BREATHER	1-42129-203-0	01	1	1412-
188	PIPE; AIR,DIFF LOCK (A) L=2166 SERVICED BY L=2200	1-47428-824-0	01	1	1412-
188	PIPE; AIR,DIFF LOCK (B) L=2042 SERVICED BY L=2200	1-47428-824-0	01	1	1412-

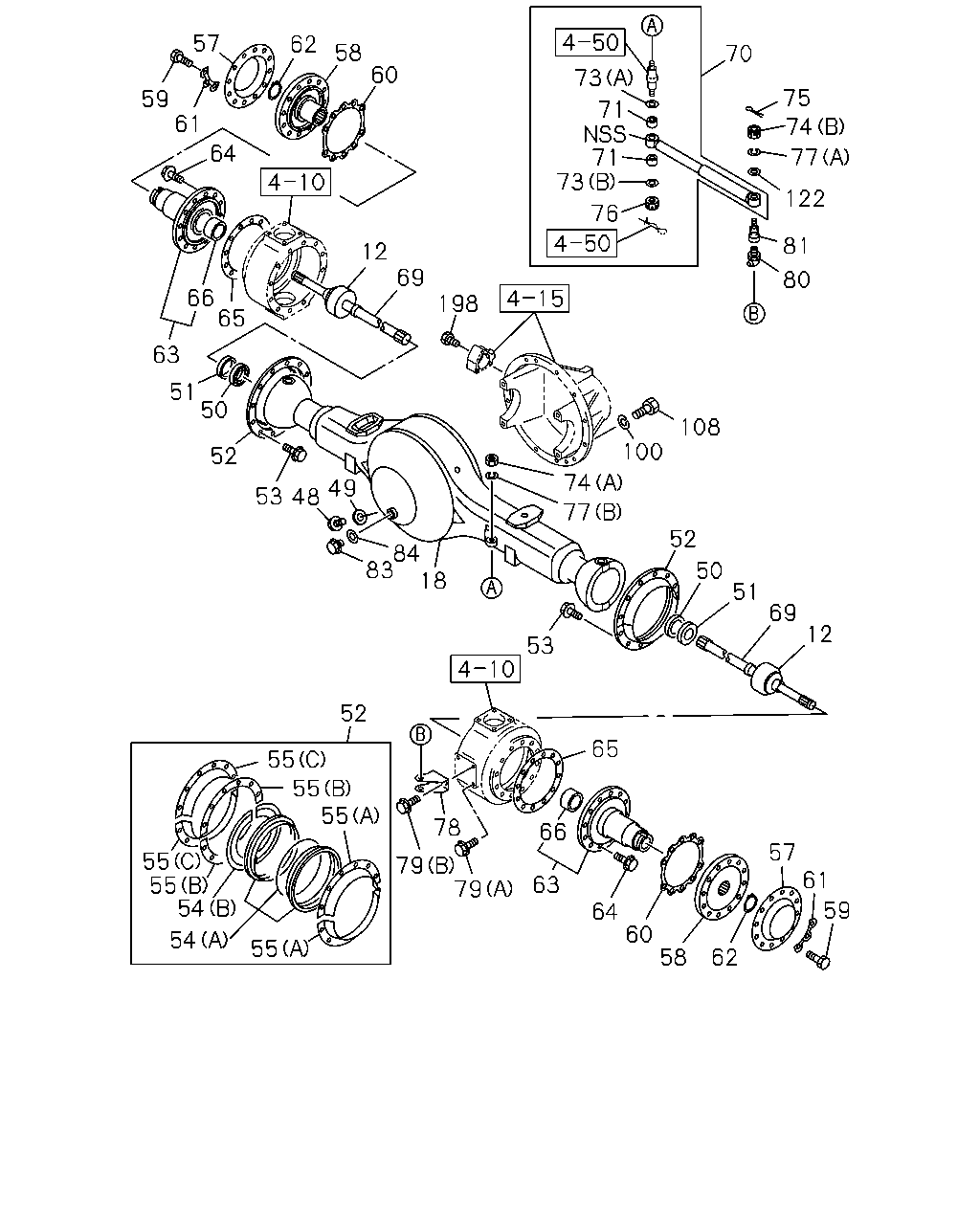

108 100 74 77 52 50 51 69 12 53 65 66 63 64 60 79 79 78 55 55 55 52 83 48 53 49 84 18 57 61 59 55 55 54 54 55 52 50 51 63 65 66 64 61 59 57 62 60 58 73 76 71 71 73 70 75 77 74 122 81 80 198 69 12 62 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM	1-43330-018-0	02	1	1412-
18	CASE; FRT AXLE	8-98200-134-0	01	1	1412-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1412-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1412-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1412-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1412-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1412-
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	1412-
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	1412-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1412-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1412-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1412-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1412-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1412-
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1412-
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1412-
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1412-
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1412-
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1412-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1412-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	8-98082-198-0	02	1	1412-
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1412-
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1412-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1412-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1412-
69	SHAFT; AXLE,FRT INNER	8-98082-680-2	01	1	1412-
69	SHAFT; AXLE,FRT INNER	8-98082-681-2	01	1	1412-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	1412-
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	1412-
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	1412-
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	1412-
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	1412-
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	1412-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1412-
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	1412-
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	1412-
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	1412-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1412-
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	1412-
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1412-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1412-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1412-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1412-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1412-
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	1412-
108	BOLT; FRT FINAL DRIVE M12X60	0-10956-260-0	04	1	1412-
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	06	1	1412-
108	BOLT; FRT FINAL DRIVE M12X105	8-97029-869-0	02	1	1412-
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	1412-
198	PLUG; COVER M12X9	0-92002-412-0	01	1	1412-
