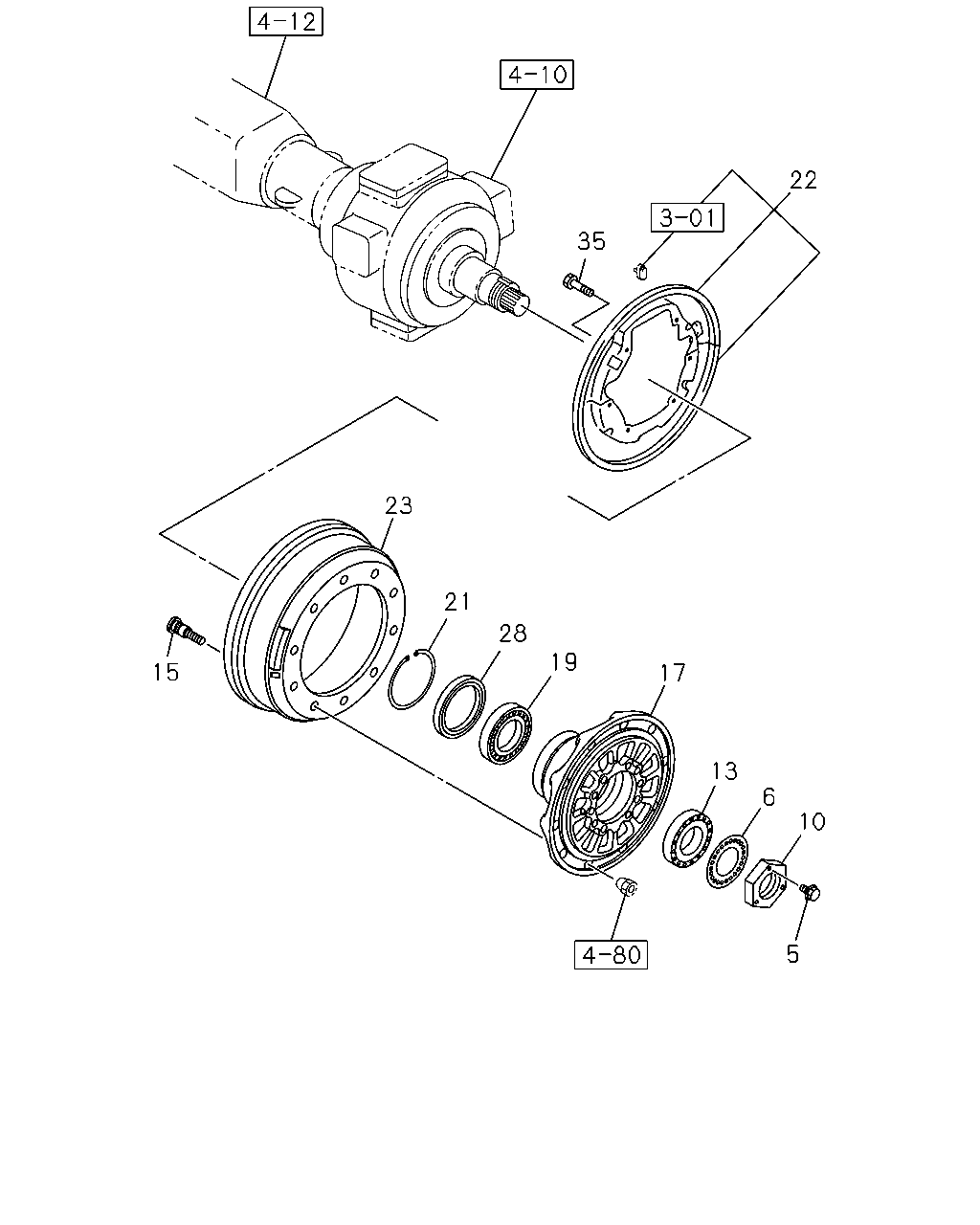

4-11 — FRONT HUB AND DRUM OR ROTOR
(#153568) — 14 parça
21
23
28
19
13
17
6
10
5
35
22
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
06
1
1412-
6
WASHER; LK,FRT HUB
ID=74.6
1-09533-008-0
02
1
1412-
10
NUT; FRT HUB BRG
M74.6
9-09843-064-2
02
1
1412-
13
BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-153-0
02
1
1412-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-154-0
02
1
1412-
15
PIN; WHEEL,FRT AXLE
M22X82 RH THREAD
1-42337-093-1
20
1
1412-
17
HUB; FRT AXLE
8-98139-835-0
02
1
1412-
19
BEARING; HUB INNER,FRT AXLE
NSK
1-09812-150-0
02
1
1412-
19
BEARING; HUB INNER,FRT AXLE
NACHI
1-09812-151-0
02
1
1412-
21
RING; SNAP,HUB
OD=150
9-09950-147-0
02
1
1412-
22
COVER SET; FRT BRK DRUM
1-85576-014-1
02
1
1412-
23
DRUM; BRK,FRT
1-42315-416-0
02
1
1412-
28
SEAL; OIL,FRT HUB
TKK
9-09924-415-0
02
1
1412-
35
BOLT; DRUM COVER
M10X12
1-47159-187-0
12
1
1412-
