4-01 — PROPELLER SHAFT (#153566) — 182 parça

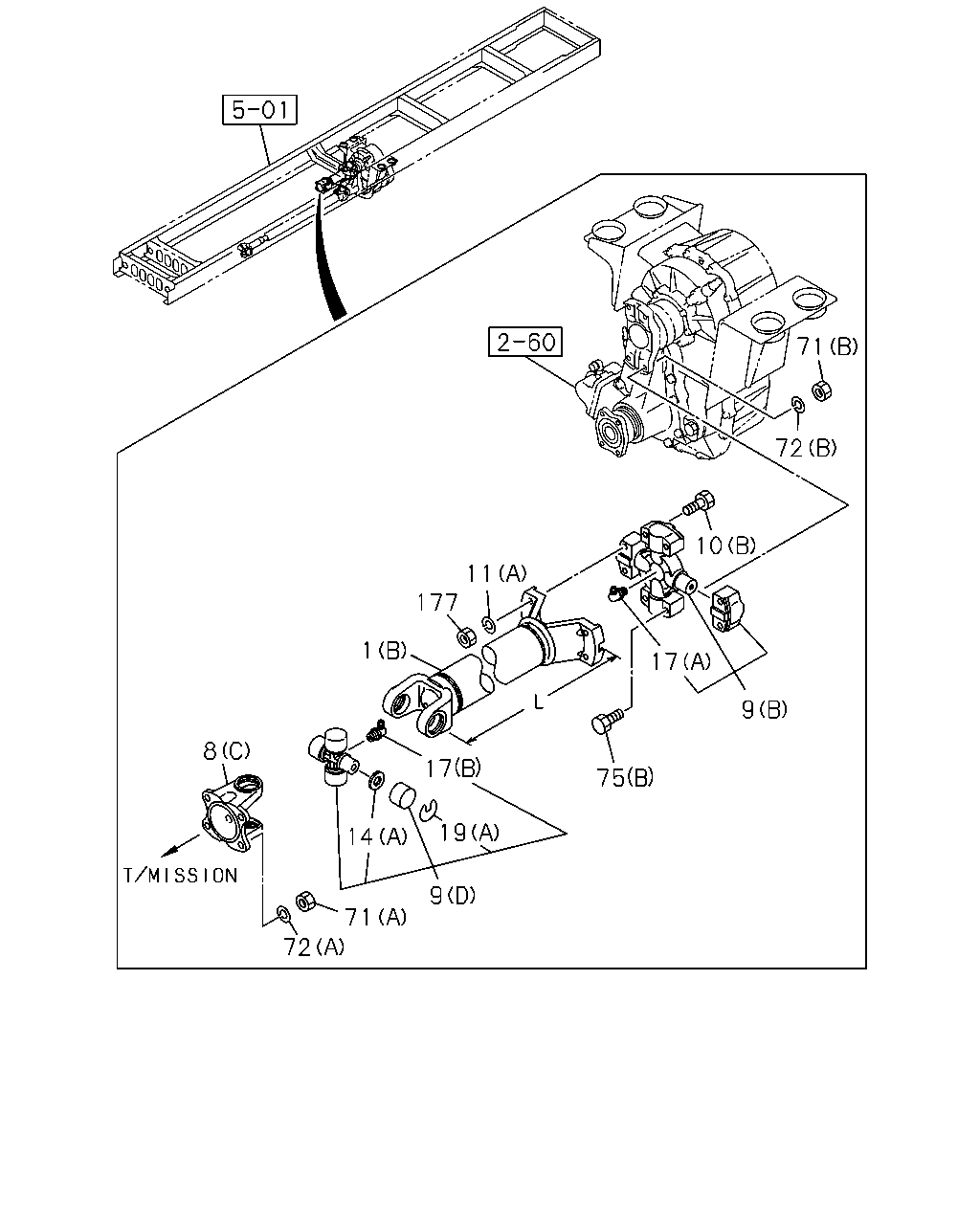

72 9 19 17 14 8 1 177 11 75 17 9 10 72 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (A) L=1477	1-37123-668-1	01	1	1412-
1	SHAFT; PROP (B) L=255	1-37152-779-0	01	1	1412-
1	SHAFT; PROP (C) L=1061	8-98084-471-0	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	1412-
8	YOKE; FLANGE,PROP SHAFT (C)	1-37211-056-3	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (C)	1-37211-056-3	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (A)	8-98178-052-0	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-059-1	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (D)	1-37300-102-1	AR	1	1412-1505
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-106-1	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (C)	8-98020-789-1	02	1	1412-
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-0	AR	1	1412-1505
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-
10	BOLT; UJT (A) UNF7/16X27	9-09820-144-0	08	1	1412-
10	BOLT; UJT (B) M12X75	9-91061-275-0	04	1	1412-
11	WASHER; LK,UNIVERSAL,PROP SHAFT (A) ID=12.2	0-91510-612-0	04	1	1412-
11	WASHER; LK,UNIVERSAL,PROP SHAFT (B) ID=11.4	9-09850-072-0	04	1	1412-
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	1412-1505
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-
14	COVER; DUST,SPIDER (B)	8-98020-791-0	08	1	1412-
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	02	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	02	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (C)	9-09928-049-0	02	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1412-
71	NUT; YOKE (B) M12	0-91110-512-0	04	1	1412-
71	NUT; YOKE (B) M12	0-91110-512-0	04	1	1412-
71	NUT; YOKE (A) M14	0-91110-514-0	04	1	1412-
72	WASHER; LK,YOKE (B) ID=12.2	0-91510-612-0	04	1	1412-
72	WASHER; LK,YOKE (B) ID=12.2	0-91510-612-0	04	1	1412-
72	WASHER; LK,YOKE (A) ID=14.2	0-91510-614-0	04	1	1412-
75	BOLT; PROP SHAFT TO TRANS (A) M12X32	1-09000-076-1	04	1	1412-
75	BOLT; PROP SHAFT TO TRANS (B) M12X75	9-91061-275-0	04	1	1412-
177	NUT M12	0-91110-512-0	04	1	1412-

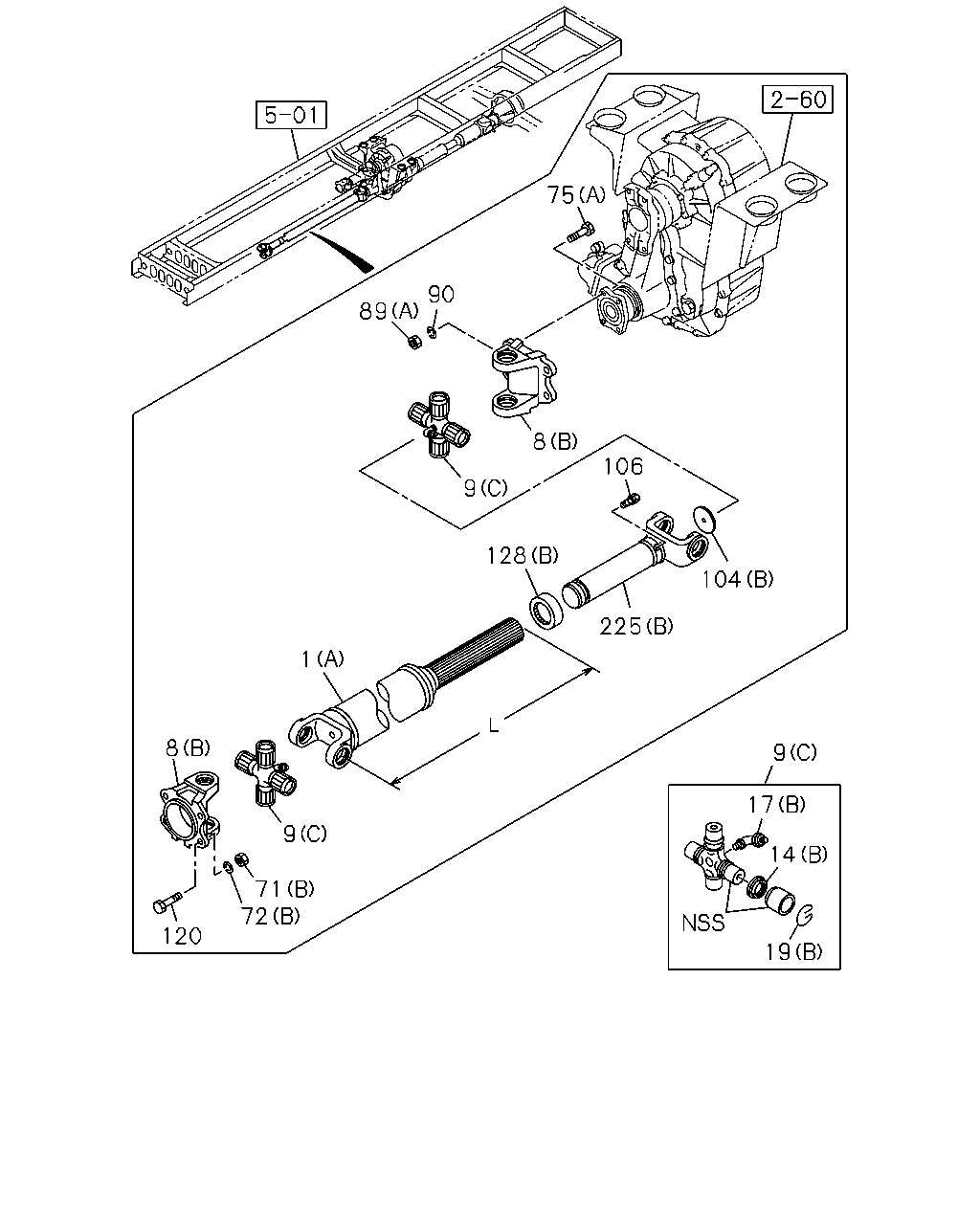

75 90 89 9 8 128 225 104 106 1 8 9 71 72 120 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (A) L=1477	1-37123-668-1	01	1	1412-
1	SHAFT; PROP (B) L=255	1-37152-779-0	01	1	1412-
1	SHAFT; PROP (C) L=1061	8-98084-471-0	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	1412-
8	YOKE; FLANGE,PROP SHAFT (C)	1-37211-056-3	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (C)	1-37211-056-3	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (A)	8-98178-052-0	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-059-1	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (D)	1-37300-102-1	AR	1	1412-1505
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-106-1	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (C)	8-98020-789-1	02	1	1412-
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-0	AR	1	1412-1505
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	1412-1505
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-
14	COVER; DUST,SPIDER (B)	8-98020-791-0	08	1	1412-
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	02	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	02	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (C)	9-09928-049-0	02	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1412-
71	NUT; YOKE (B) M12	0-91110-512-0	04	1	1412-
71	NUT; YOKE (B) M12	0-91110-512-0	04	1	1412-
71	NUT; YOKE (A) M14	0-91110-514-0	04	1	1412-
72	WASHER; LK,YOKE (B) ID=12.2	0-91510-612-0	04	1	1412-
72	WASHER; LK,YOKE (B) ID=12.2	0-91510-612-0	04	1	1412-
72	WASHER; LK,YOKE (A) ID=14.2	0-91510-614-0	04	1	1412-
75	BOLT; PROP SHAFT TO TRANS (A) M12X32	1-09000-076-1	04	1	1412-
75	BOLT; PROP SHAFT TO TRANS (B) M12X75	9-91061-275-0	04	1	1412-
89	NUT; YOKE TO RR AXLE (A) M12	0-91110-512-0	04	1	1412-
89	NUT; YOKE TO RR AXLE (B) M16 FLANGE	1-09449-065-0	04	1	1412-
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-612-0	04	1	1412-
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	1412-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1412-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
120	BOLT; YOKE TO RR AXLE M12X32	1-09000-076-1	04	1	1412-
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	1412-
128	SEAL; SLEEVE (C)	1-37247-002-1	01	1	1412-
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	1412-
225	YOKE; SLEEVE,PROP SHAFT (B) L=228	1-37241-098-2	01	1	1412-
225	YOKE; SLEEVE,PROP SHAFT (A) L=271	1-37241-099-2	01	1	1412-

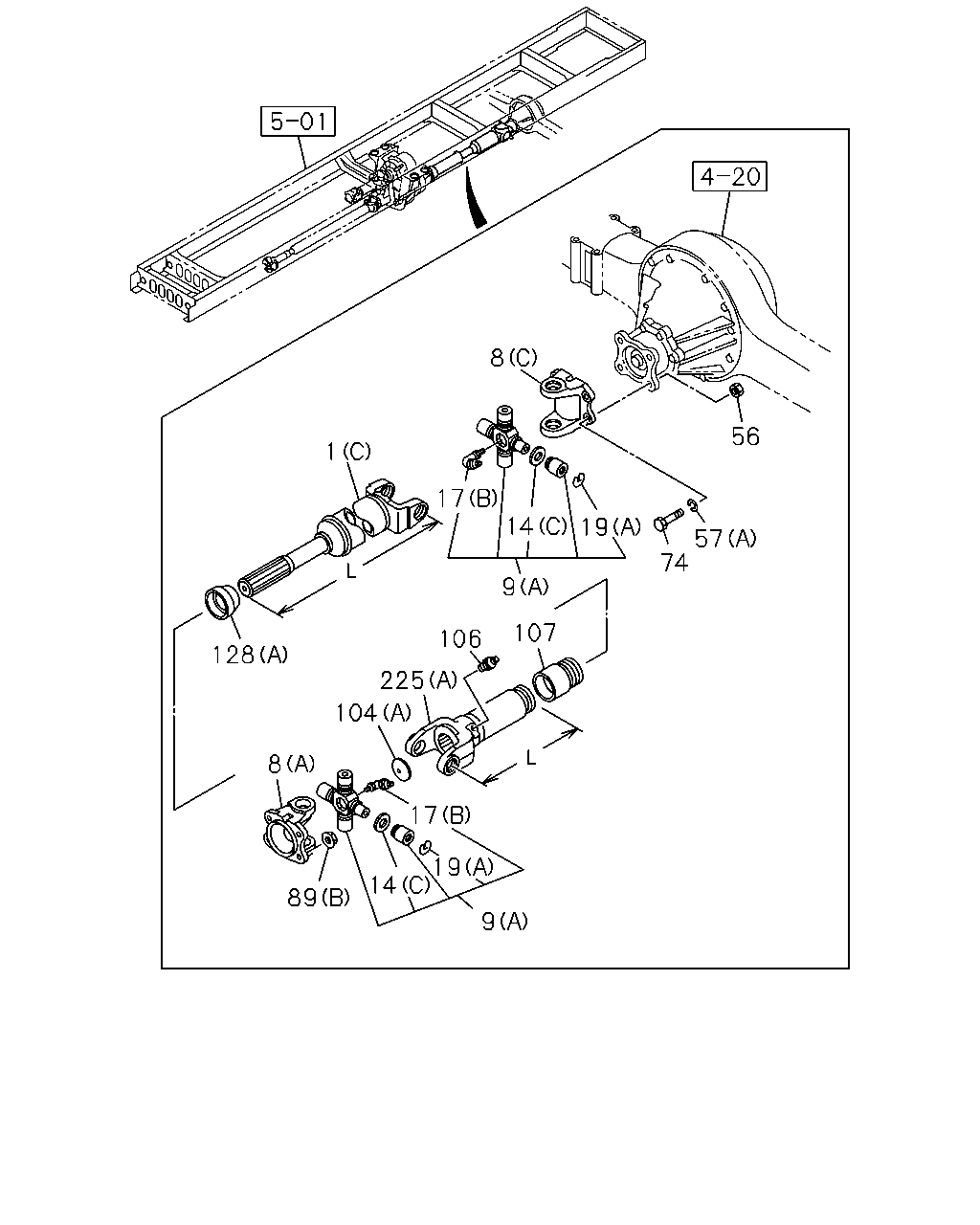

9 19 14 89 8 128 225 104 106 107 9 74 56 19 57 14 17 1 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (A) L=1477	1-37123-668-1	01	1	1412-
1	SHAFT; PROP (B) L=255	1-37152-779-0	01	1	1412-
1	SHAFT; PROP (C) L=1061	8-98084-471-0	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	1412-
8	YOKE; FLANGE,PROP SHAFT (C)	1-37211-056-3	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (C)	1-37211-056-3	01	1	1412-
8	YOKE; FLANGE,PROP SHAFT (A)	8-98178-052-0	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-059-1	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (D)	1-37300-102-1	AR	1	1412-1505
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-106-1	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (C)	8-98020-789-1	02	1	1412-
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-0	AR	1	1412-1505
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-
14	COVER; DUST,SPIDER (A)	1-37319-012-0	04	1	1412-1505
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-
14	COVER; DUST,SPIDER (B)	8-98020-791-0	08	1	1412-
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	02	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	02	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (C)	9-09928-049-0	02	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1412-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1412-
56	NUT; YOKE M14	0-91110-514-0	04	1	1412-
57	WASHER; LK,YOKE (A) ID=14.2	0-91510-614-0	04	1	1412-
57	WASHER; LK,YOKE (B) ID=11.4	9-09850-072-0	08	1	1412-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1412-
89	NUT; YOKE TO RR AXLE (A) M12	0-91110-512-0	04	1	1412-
89	NUT; YOKE TO RR AXLE (B) M16 FLANGE	1-09449-065-0	04	1	1412-
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	1412-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1412-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	1412-
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	1412-
128	SEAL; SLEEVE (C)	1-37247-002-1	01	1	1412-
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	1412-
225	YOKE; SLEEVE,PROP SHAFT (B) L=228	1-37241-098-2	01	1	1412-
225	YOKE; SLEEVE,PROP SHAFT (A) L=271	1-37241-099-2	01	1	1412-

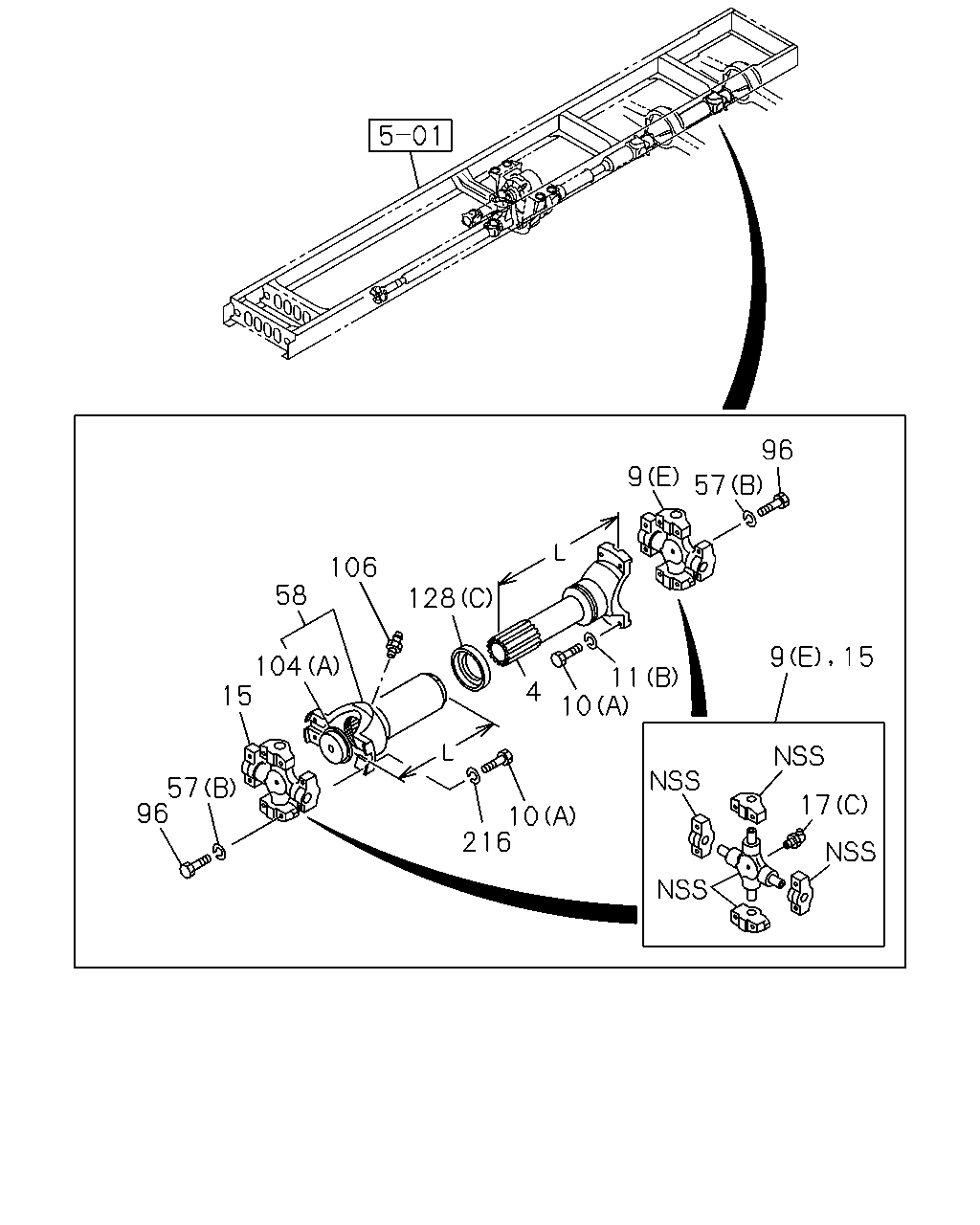

17 15 9 9 96 57 11 10 4 10 216 104 15 57 96 58 128 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SHAFT; PROP L=357	1-37171-101-0	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-059-1	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (D)	1-37300-102-1	AR	1	1412-1505
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-106-1	01	1	1412-
9	JOURNAL ASM; PROP SHAFT (C)	8-98020-789-1	02	1	1412-
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-0	AR	1	1412-1505
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-
10	BOLT; UJT (A) UNF7/16X27	9-09820-144-0	08	1	1412-
10	BOLT; UJT (B) M12X75	9-91061-275-0	04	1	1412-
11	WASHER; LK,UNIVERSAL,PROP SHAFT (A) ID=12.2	0-91510-612-0	04	1	1412-
11	WASHER; LK,UNIVERSAL,PROP SHAFT (B) ID=11.4	9-09850-072-0	04	1	1412-
15	UNIVERSAL CENTER	1-37300-106-1	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	02	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	02	1	1412-
17	NIPPLE; GREASE,PROP SHAFT (C)	9-09928-049-0	02	1	1412-
57	WASHER; LK,YOKE (A) ID=14.2	0-91510-614-0	04	1	1412-
57	WASHER; LK,YOKE (B) ID=11.4	9-09850-072-0	08	1	1412-
58	FLANGE; SPLINED	1-37245-314-0	01	1	1412-
96	BOLT; PROP SHAFT UNF7/16X27	9-09820-144-0	08	1	1412-
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	1412-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1412-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	1412-
128	SEAL; SLEEVE (C)	1-37247-002-1	01	1	1412-
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	1412-
216	WASHER; LK,UJT ID=11.4	9-09850-072-0	04	1	1412-
