Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#153563) — 55 parça
◀

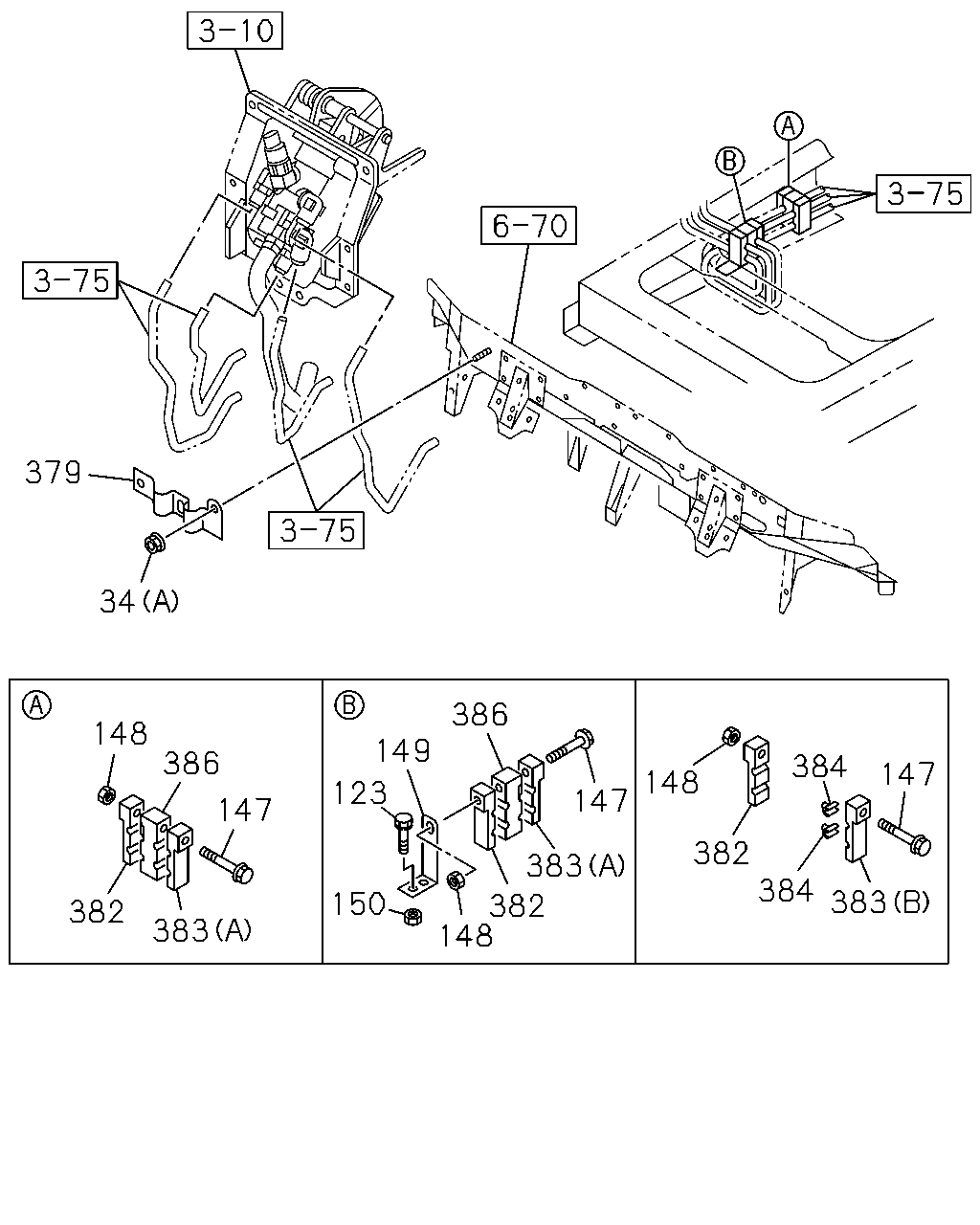

[378A] FRONT SIDE (14 parça)

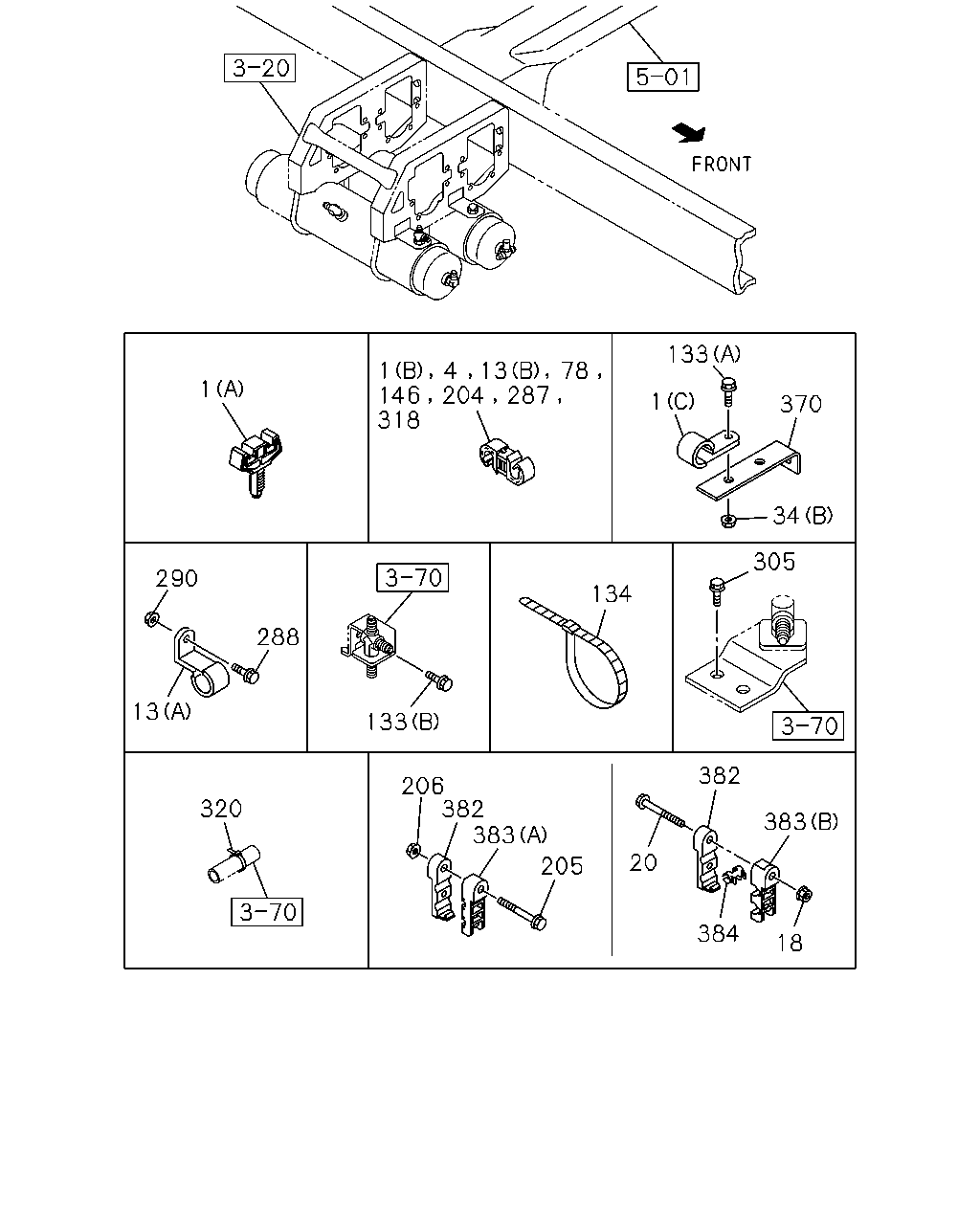

[378A] FRAME SIDE NO.1 (36 parça)

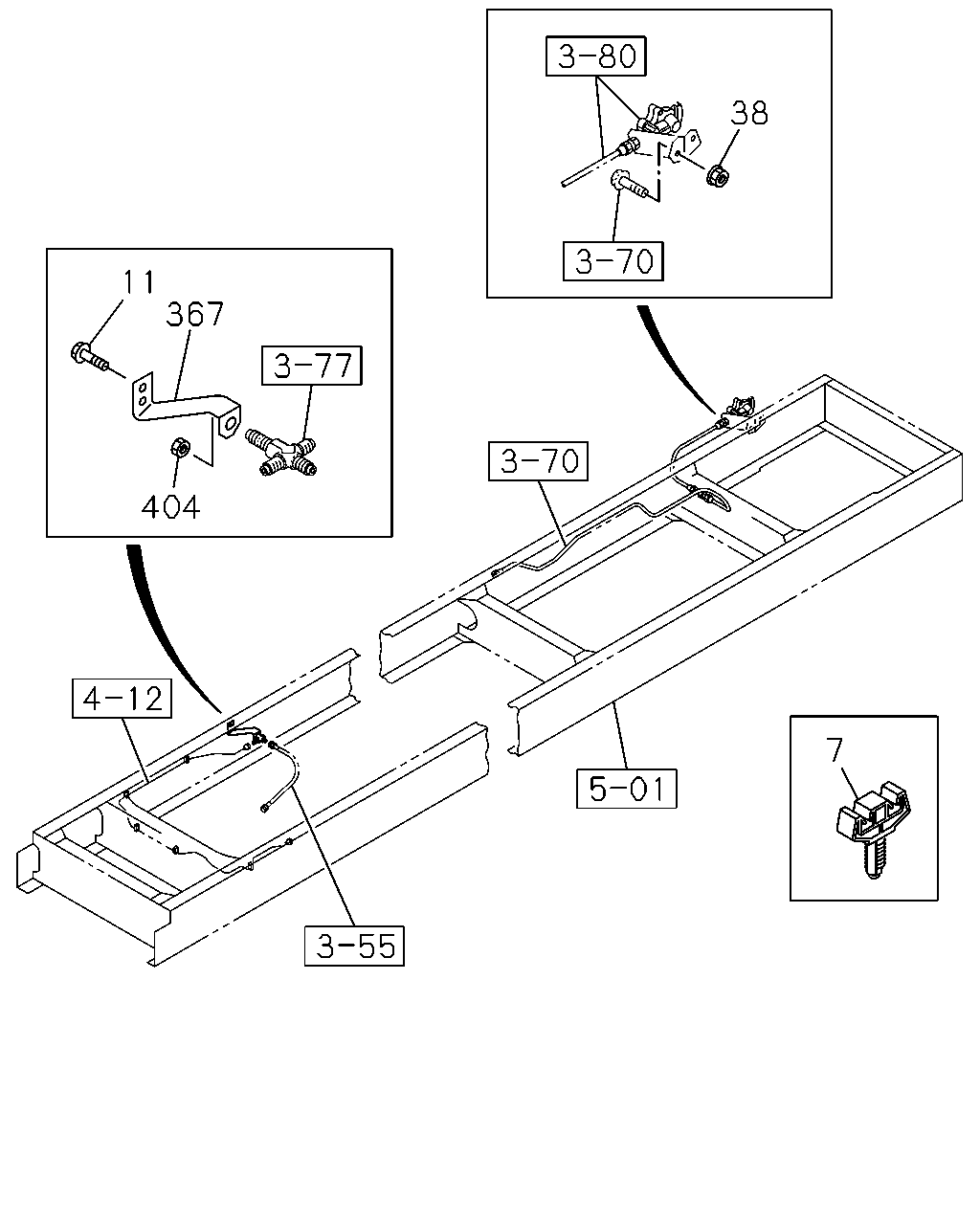

[378A] FRAME SIDE NO.2 (5 parça)
▶
379
34
148
386
147
383
382
150
123
148
383
382
147
386
149
148
382
384
383
147
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
(A) M6 FLANGE
0-91180-106-0
02
1
1412-
34
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
01
1
1412-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1412-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
1412-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
1412-
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1412-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1412-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1412-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
02
1
1412-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
1412-
383
CLIP; LWR
(A) ID=10 & 10
1-09709-241-0
04
1
1412-
383
CLIP; LWR
(B) ID=10 & 10
1-09709-243-0
02
1
1412-
384
COLLAR
ID=6
1-47459-010-0
02
1
1412-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
1412-
384
18
20
382
383
205
383
382
206
133
288
290
13
320
134
305
370
1
133
78
287
204
13
4
1
318
146
1
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; AIR PIPE
(C) ID=7 L=16
0-95234-625-0
01
1
1412-
1
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
1412-
1
CLIP; AIR PIPE
(A)
8-98012-254-1
01
1
1412-
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
03
1
1412-
4
CLIP; AIR PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1412-
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
1412-
13
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
1412-
13
CLIP; AIR PIPE
(B) ID=6.35 & 6.35
1-09709-273-1
01
1
1412-
18
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1412-
18
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1412-
20
BOLT; CLIP
M8X50 FLANGE
0-28050-850-0
02
1
1412-
20
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1412-
34
NUT; BRKT
(A) M6 FLANGE
0-91180-106-0
02
1
1412-
34
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
01
1
1412-
78
CLIP; AIR PIPE
AIR DRYER<PS7> ID=10 & 12
1-09709-278-1
01
1
1412-
78
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> ID=6.35 & 10.0
1-09709-274-1
01
1
1412-
133
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
01
1
1412-
133
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
01
1
1412-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1412-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1412-
204
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
1412-
205
BOLT; PIPE CLIP
M8X50 FLANGE
0-28050-850-0
01
1
1412-
206
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1412-
287
CLIP; AIR PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1412-
288
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
0-28650-820-0
01
1
1412-
290
NUT; CLIP,AIR PIPE
M8 FLANGE
0-91180-108-0
01
1
1412-
305
BOLT; CLIP BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1412-
318
CLIP; AIR PIPE
ID=6.35 & 15
1-09709-276-1
02
1
1412-
318
CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 12
1-09709-275-1
01
1
1412-
320
CLIP; BAND,FLEX FIX
L=250
5-09707-030-1
01
1
1412-
370
BRACKET; PIPE CLIP
8-98219-172-0
01
1
1412-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
02
1
1412-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
1412-
383
CLIP; LWR
(A) ID=10 & 10
1-09709-241-0
04
1
1412-
383
CLIP; LWR
(B) ID=10 & 10
1-09709-243-0
02
1
1412-
384
COLLAR
ID=6
1-47459-010-0
02
1
1412-
11
404
367
38
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CLIP; AIR PIPE
8-98012-254-1
10
1
1412-
11
BOLT; CLIP BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1412-
38
NUT; BRKT
TRAILER BRAKE CONTROL<J91> M10 FLANGE
0-91180-210-0
02
1
1412-
367
BRACKET ASM
8-98152-567-0
01
1
1412-
404
NUT
M12
0-91111-512-0
01
1
1412-
