Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#153562) — 17 parça
◀
[377A] NO.1 (6 parça)
[377A] NO.2 (4 parça)
[377A] NO.3 (7 parça)
▶
178
471
50
129
192
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1412-
129
CONNECTOR; NYLON TUBE
DIN8 R1/4 STRAIGHT
1-09660-647-1
01
1
1412-
137
PIPE; AIR,PROTECTION VLV TO UNION
TRAILER BRAKE CONTROL<J91> L=632 SERVICED BY L=660
1-47428-869-0
01
1
1412-
178
BRACKET; UNION
8-98017-052-1
01
1
1412-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1412-
471
SEAL; BRKT
1-79738-832-0
01
1
1412-

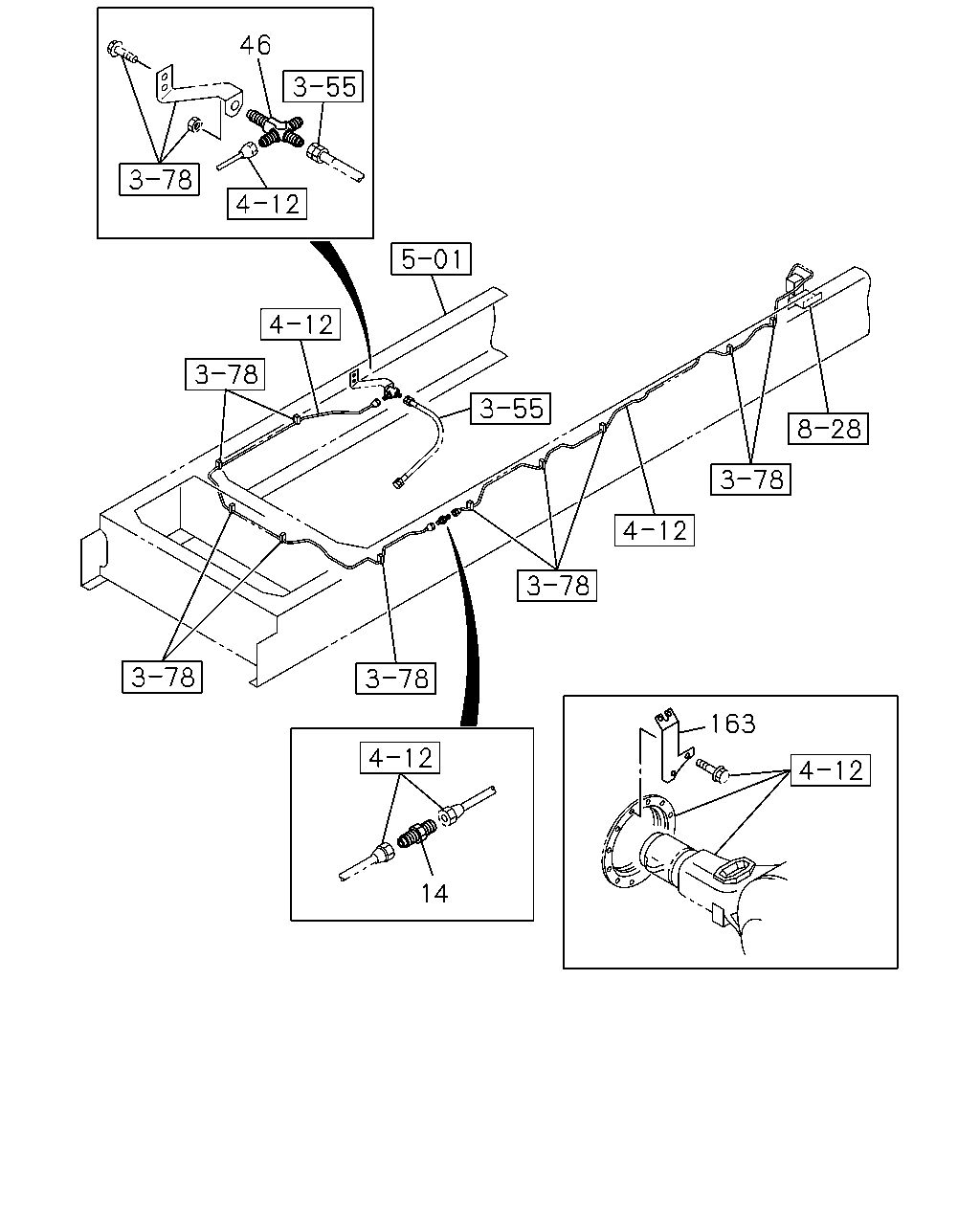

46
14
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
UNION; AIR PIPE
M12 L=40
0-92113-006-0
01
1
1412-
46
NIPPLE; AIR PIPE
M12 2WAY
1-09654-059-2
01
1
1412-
163
BRACKET; FLEX HOSE
8-98093-260-0
01
1
1412-
163
BRACKET; FLEX HOSE
8-98106-706-0
01
1
1412-

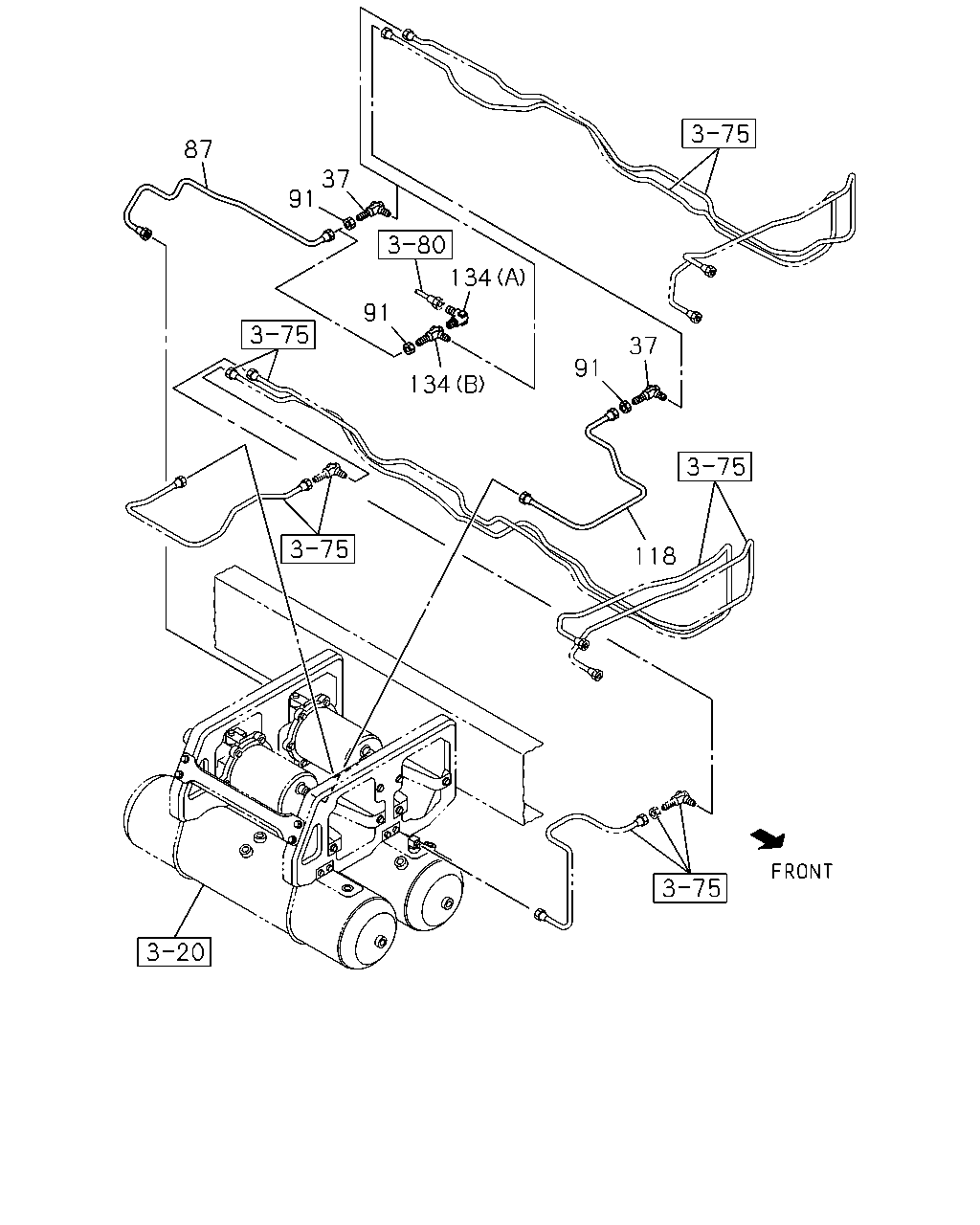

87
91
37
91
134
134
91
37
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
1412-
37
UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> M16 ELBOW
0-92135-210-0
01
1
1412-
87
PIPE; AIR,AIR TANK TO UNION
L=954 SERVICED BY L=1000
1-47428-874-0
01
1
1412-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
1412-
118
PIPE; AIR,UNION TO AIR MASTER
L=688 SERVICED BY L=700
1-47428-870-0
01
1
1412-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (A) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1412-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (B)
1-09656-561-1
01
1
1412-
