3-75 — BRAKE PIPING; AIR,FRONT (#153561) — 28 parça

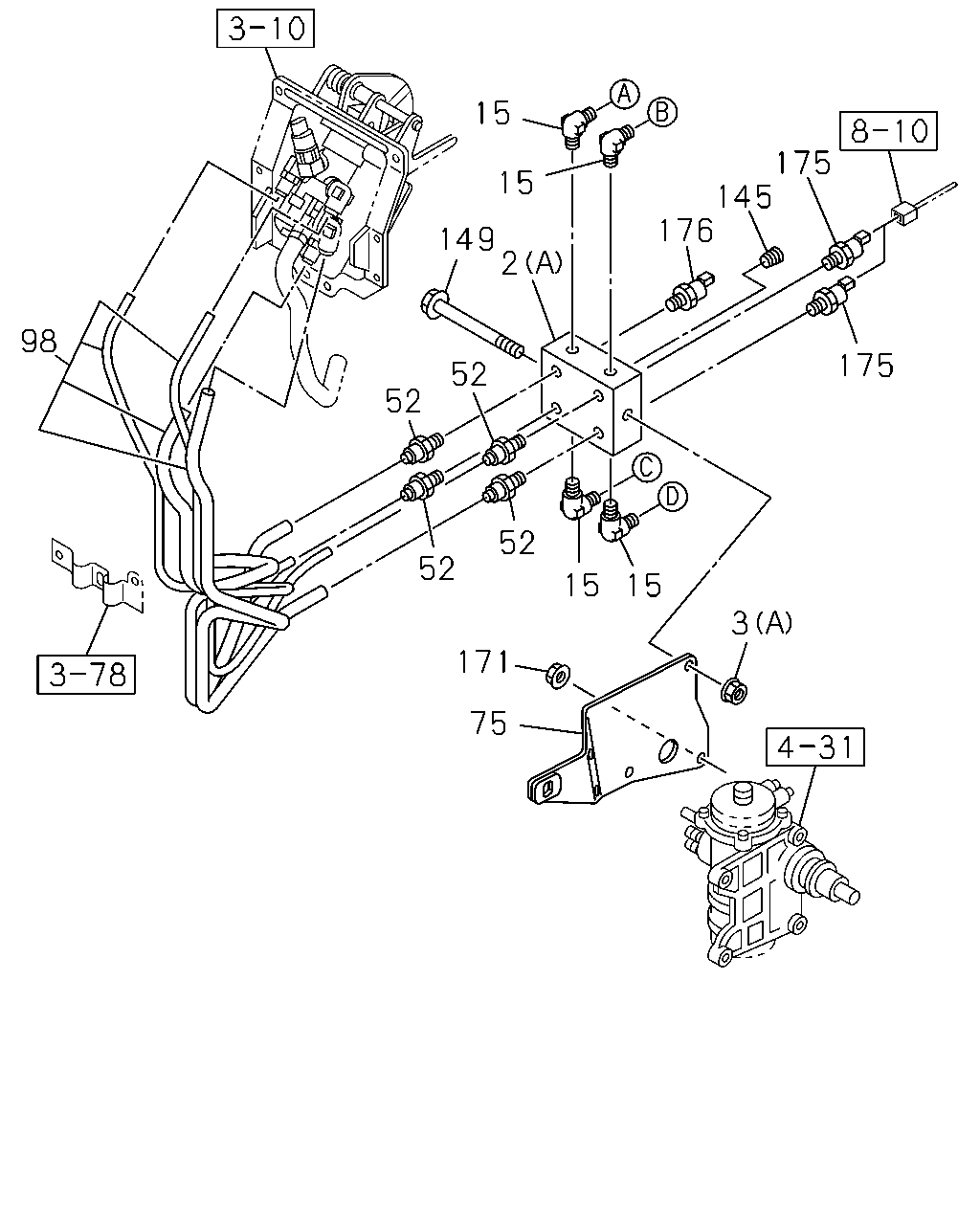

çizim 458698
15 15 149 52 52 52 52 98 171 75 15 15 3 175 176 145 175 2
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1412-
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1412-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1412-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1412-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1412-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1412-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1412-
75 BRACKET; UNION 8-98099-485-1 01 1 1412-
98 TUBE; NYLON 8-98139-141-0 01 1 1412-
145 PLUG
PT1/4 		9-99204-513-0 01 1 1412-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1412-
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1412-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1412-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1412-

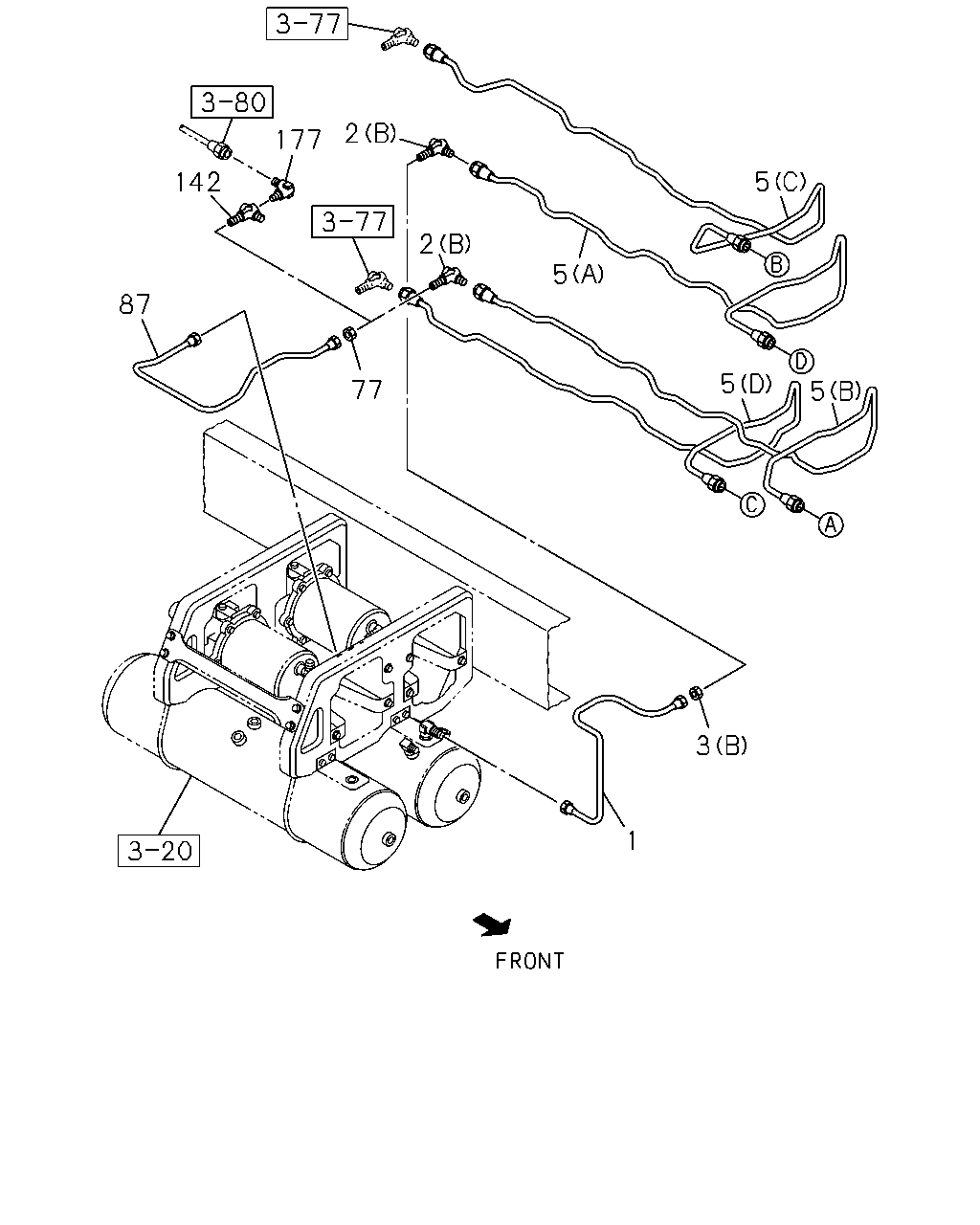

çizim 458742
177 2 142 87 77 2 5 5 5 5 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=568 SERVICED BY L=600 		1-47428-868-0 01 1 1412-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1412-
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1412-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1412-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1412-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1412-
5 PIPE; AIR,UNION TO UNION
(A) L=2998 SERVICED BY L=3300 		1-47428-886-0 01 1 1412-
5 PIPE; AIR,UNION TO UNION
(B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1412-
5 PIPE; AIR,UNION TO UNION
(C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1412-
5 PIPE; AIR,UNION TO UNION
(D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1412-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1412-
87 PIPE; AIR,UNION TO AIR MASTER
L=661 SERVICED BY L=700 		1-47428-870-0 01 1 1412-
142 UNION; 3-WAY
TRAILER BRAKE CONTROL<J91> 		1-09656-561-1 01 1 1412-
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1412-
